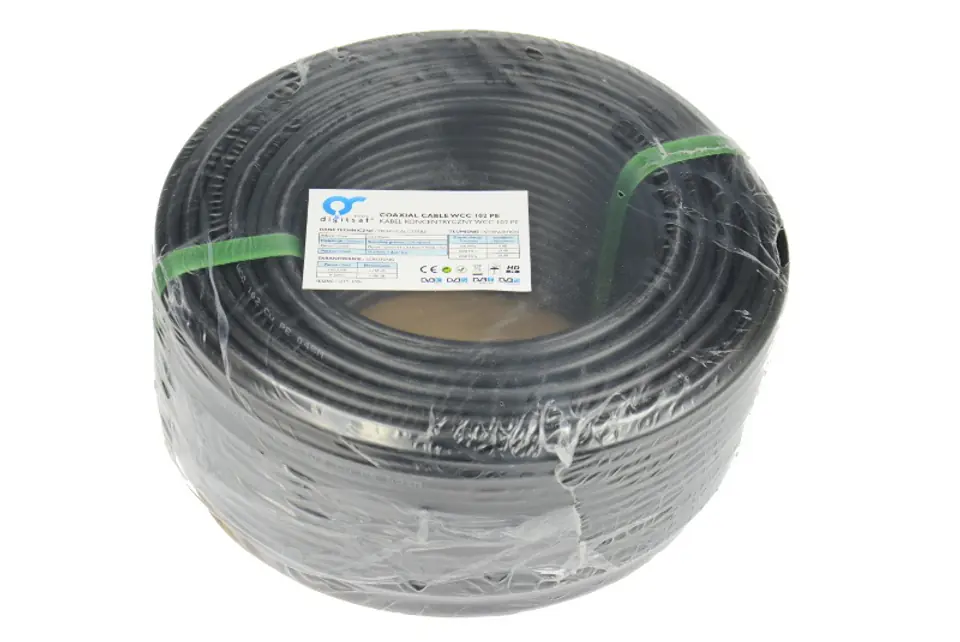

DIGITSAT Basic gel-filled cable has been designed for outdoor and indoor antenna installations. The WCC PE series has a copper core and gel to protect the cable from moisture ingress. It is perfect for bringing the signal from antennas to the building. The cable is characterized by relatively good electrical parameters.
RoHS and CE compliant.
Specifications:
- core: Cu 1.02 mm
- Dielectric: gas-foamed
- Screen: braid 64 x 0.12mm + foil
- coat: PE 6,8mm + gel
Attenuation:
- frequency 200 MHz - attenuation 8 dB
- frequency 1000 MHz - attenuation 19 dB
- frequency 2050 MHz - attenuation 28 dB
Quantity:

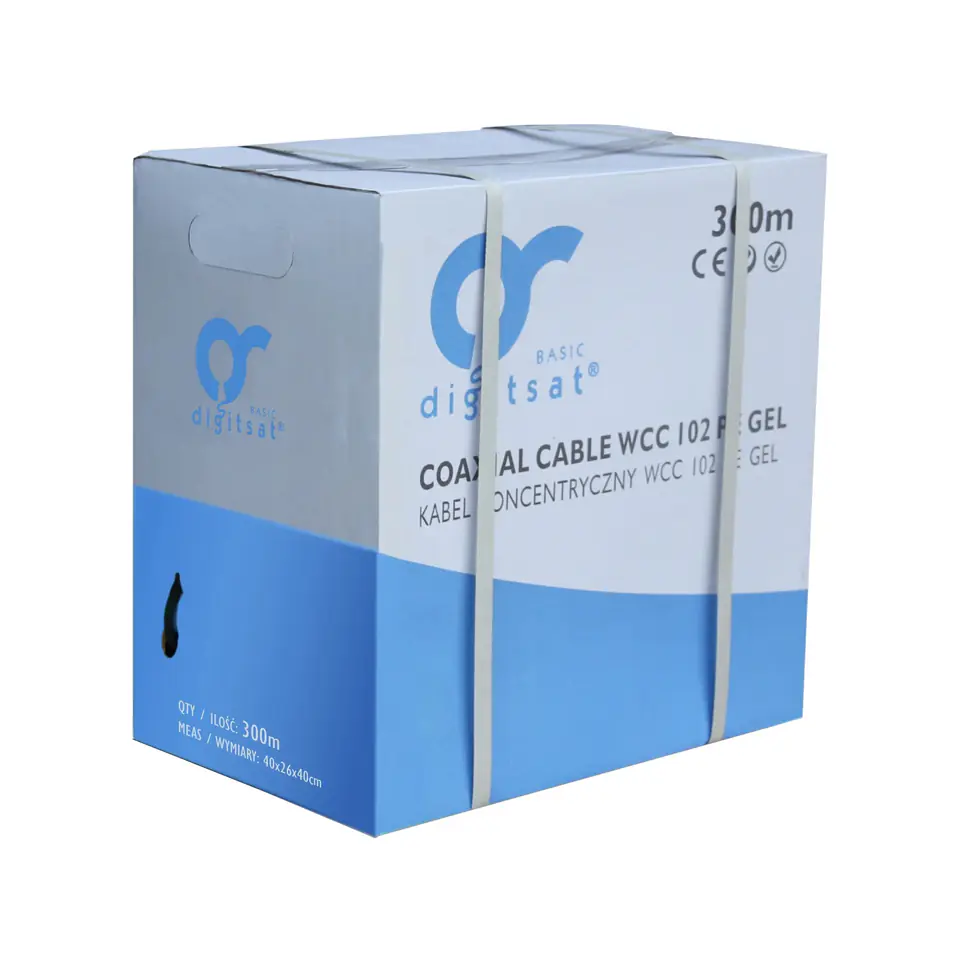

Pull-Box: 300 m
