Specifications
Length120 cm
Measuring range0 – 360° (4 x 90°)
Electronic measurement accuracy 0°/90°± 0.05°
Electronic measurement accuracy in the range of 1 – 89°
Measuring accuracy of spirit levels± 0.057° = ± 1 mm/m
Working time, slope measurement, approx. 200 h
Weight approx.1.3 kg
Length1250 mm
Width27 mm
Height59 mm
Measuring units°, %, mm/m
Tripod connection1/4"

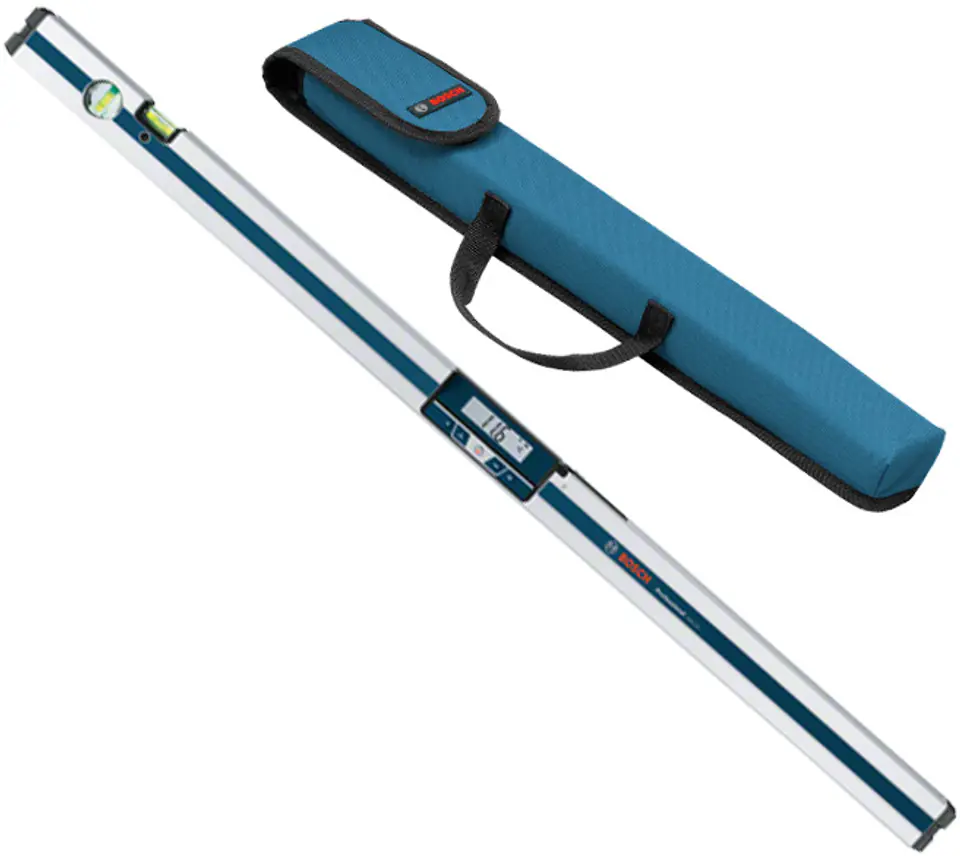

Bosch GIM 120 Professional digital tilt angle meter for precise handling
angles of inclination at greater distances and setting any value as an alternative to the 0° setting.
In addition, GIM 120 is equipped with a switch of units of measurement, acoustic signaling of the selected
angle without the need to look at the display and the possibility of manual adjustment of the angle to facilitate the transfer of measurements.
Characteristics
Beep
greater durability – IP 54 protection
arm length 120 cm with libella
unit change button
backlit rotating display for improved readability
