Manufacturer no: 10030412

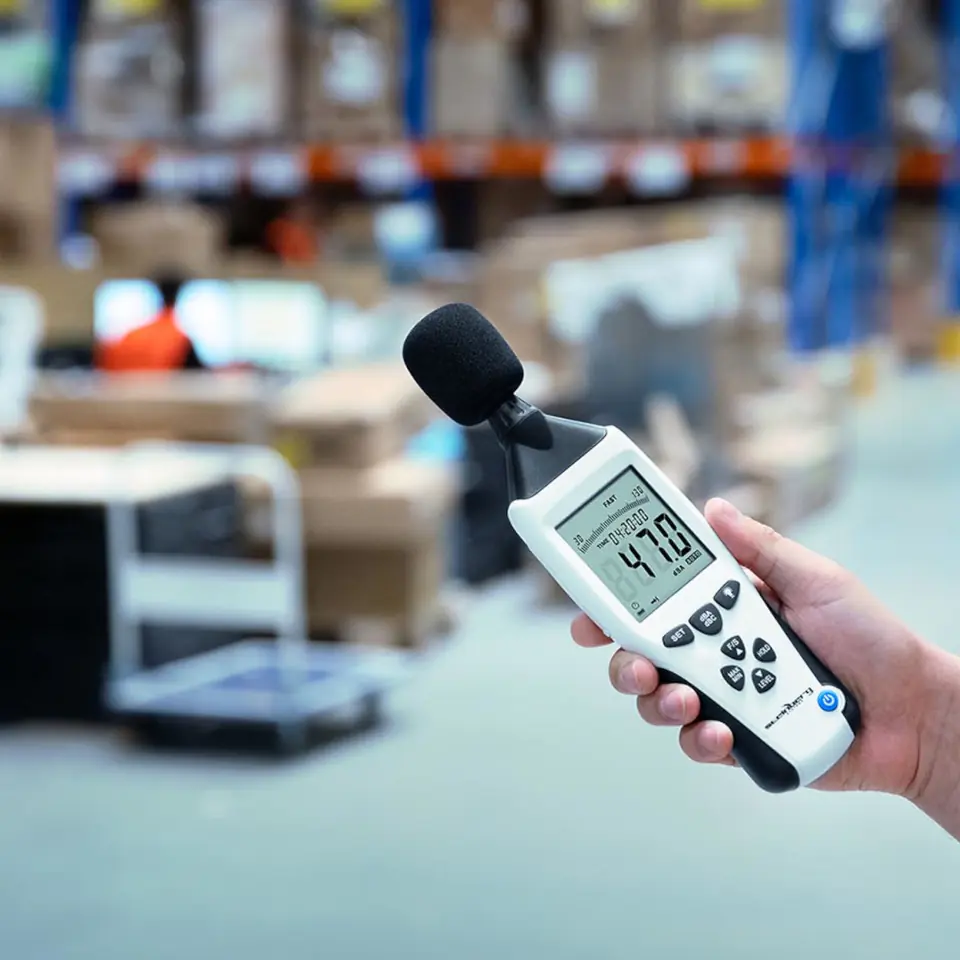

A decibel meter is a digital meter that allows you to check if it is not too noisy in your immediate surroundings, in the office or on the street. The device is aimed at people conducting various types of evidence-based noise tests. The accuracy of the device is due to 4 measuring ranges from 30 to 130 dB with an accuracy of 1.4 dB (Lo: 30 dB~80 dB; Med: 50 dB~100 dB; Hi: 80 dB~130 dB; Auto: 30 dB~130 dB). You can also choose from 2 measurement times: fast (125 ms) and slow (1 s). The SBS-SM-130C meets the full requirements of EC61672 Class 2 Standard, allows maximum and minimum sound level readings, and stores up to 262,100 measurements in memory.

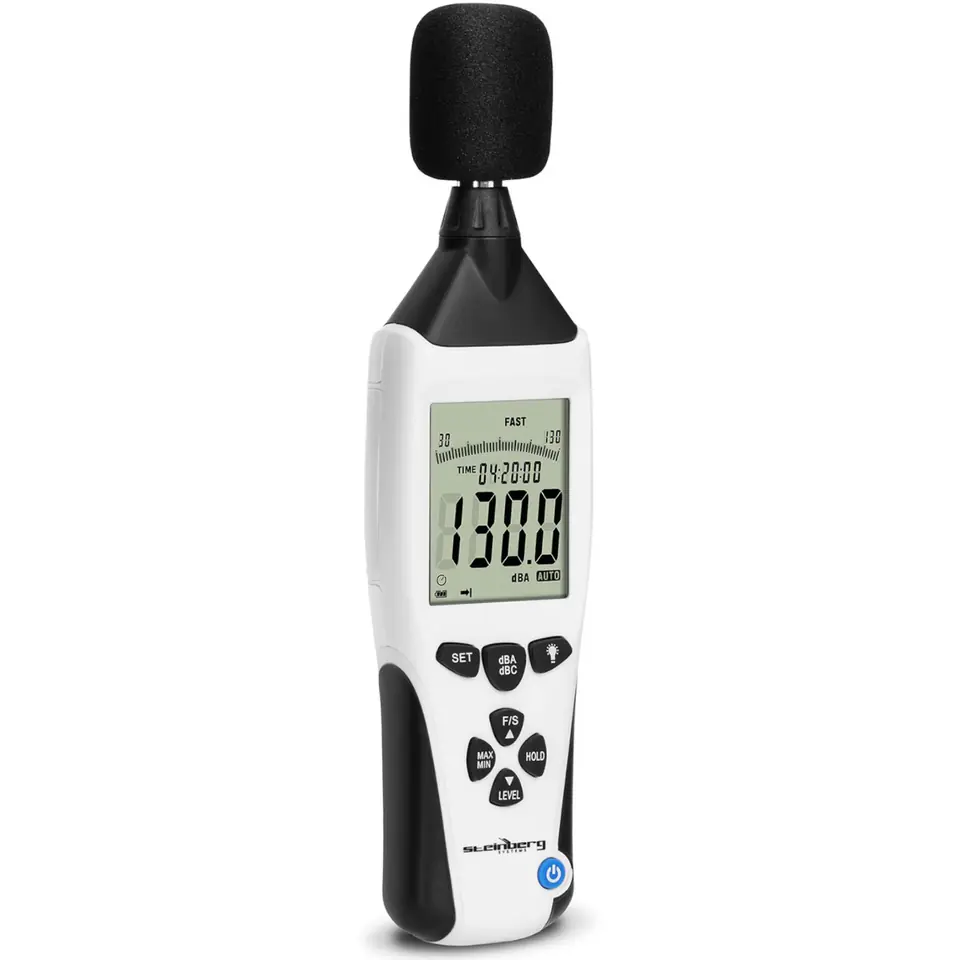

LCD display with analog bar graph for easy viewing of rapidly changing sound levels. Quick and easy analysis and checking the noise level is the basis when working with a decibel meter. The device can be easily mounted on a tripod and taken with you to the field. A USB cable allows you to export readings to a computer for archiving and reporting, and a 3.5 mm headphone jack connects the meter to a frequency analyzer, FFT analyzer or other measuring equipment.
The cover mounted in the sound meter reduces the impact of wind and air movement on the microphone, protects it from damage and prevents pollen and other impurities from entering. The Steinberg Systems product has a built-in sound level alarm, a battery compartment cover with a screw and an automatic shutdown option that saves battery life. The sonometer allows you to test noise both in rooms and offices (type A filter) and in the case of sound produced by machines (type C filter).
Product features:
- - Electroacoustic properties of the device meet the required standards EC61672 type 2,
- - Precise measurement is possible thanks to the accuracy of 1.4 dB,
- - The frequency range of 31.5-8 kHz allows you to study sounds inaudible to the human ear,
- - 4 measuring ranges,
- - Frequency evaluation according to A and C curves,
- - LCD display, USB port.
- - Model - SBS-SM-130C
- - Catalogue number - 10030412
- - Article status - New
- - Range - 30-130 dB
- - Accuracy - ±1.4 dB according to EC61672 type 2
- - Frequency - 31.5-8 kHz
- - Measurement taking into account the characteristics of filters - A, C
- - Response time - fast (125 ms) / slow (1 s)
- - PC - USB interface
- - Memory - 262 100 readings
- - Display - 4-digit LCD (backlit)
- - Battery type - 9 V
- - Battery life - at least 30 hours
- - MIN/MAX function - Yes
- - Pause - Yes
- - Auto power off - Yes
- - Dimensions (LxWxH) - 35.5 x 28.5 x 8.5 cm
- - Weight - 1.2 kg
- - Shipping dimensions (LxWxH) - 36 x 29 x 9 cm
- - Shipping weight - 1.5 kg

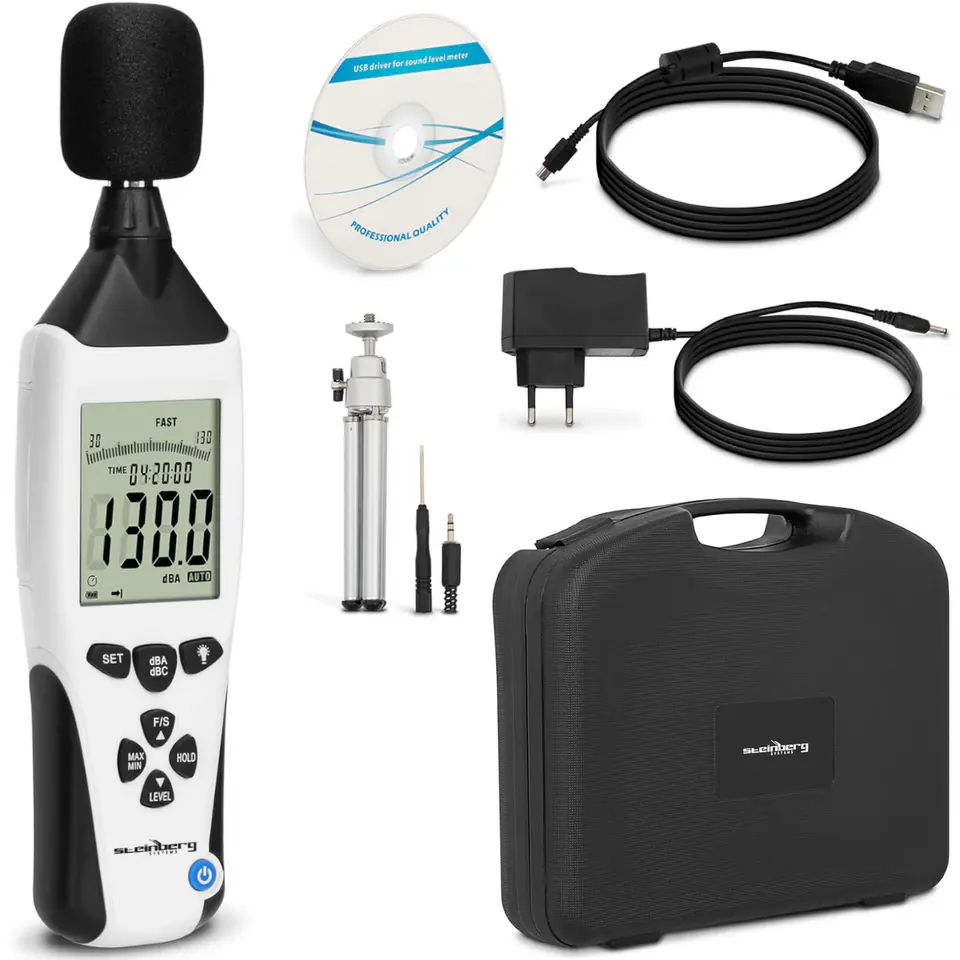

- - Decibel meter,
- - Microphone cover,
- - 9 V battery,

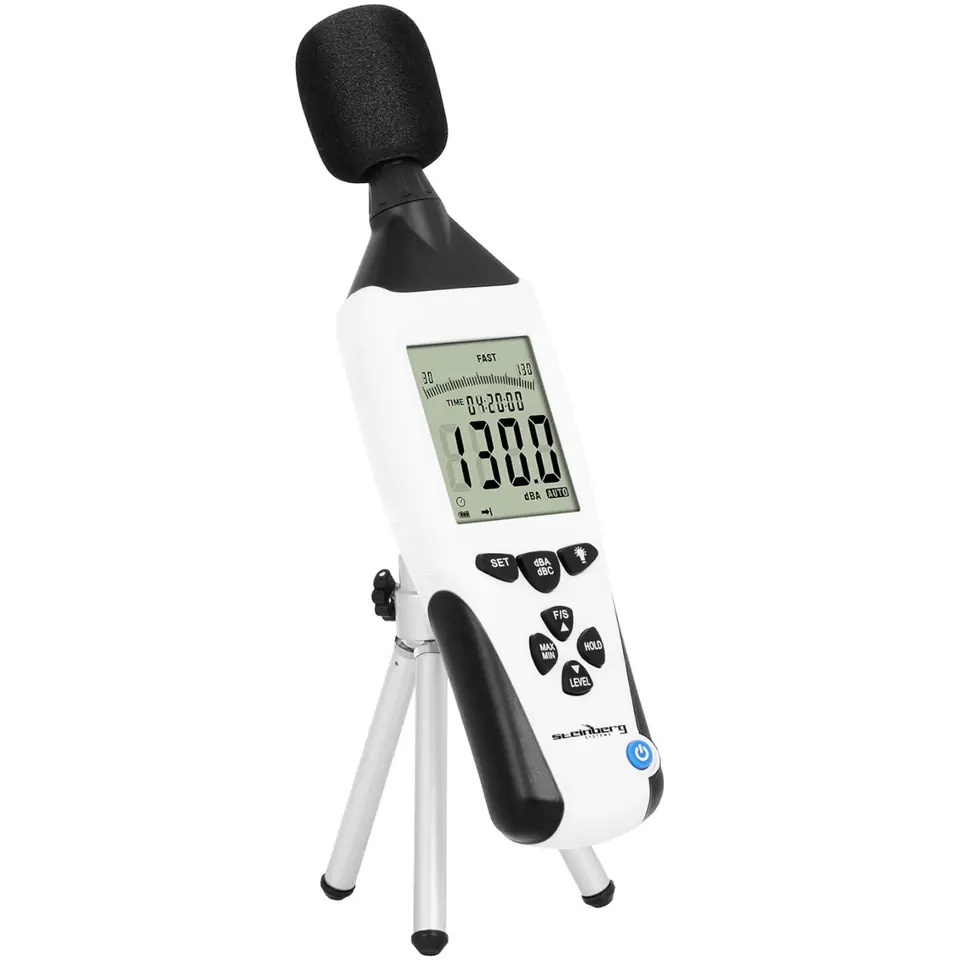

- - Tripod,
- - 3.5 mm headphone jack,
- - USB cable,
- - AC adapter,
- - Windows compatible software (CD),
- - Calibration screwdriver,
- - Case,
- - Instruction manual.
