Specifications:
Accuracy pom. Temperatures: -40 to 40°C
Article: 128600111
Manufacturer part number: 300
Operating temperature, max.: 40°C
Operating temperature, min.: 0°C
Voltage range (AC), max.: 250V
Voltage range (AC), min.: 200V
Voltage range (DC), max.: 250V
Voltage Range (DC), min.: 200mV
Scope of pom. Current (DC), max.: 10A
Scope of pom. Current (DC), min.: 2000μA
Accuracy pom. Current (DC): ±(1.0%+2)-±(1.0%+5)
Resolution pom. Voltage (DC): 1μA-0.01A
Scope of pom. resistance, max.: 20M?
Scope of pom. resistance, min: 200?
Resolution pom. Resistance: 0.1 ?-0.01 M?
Accuracy pom. voltage (AC): ±(1.2% +3)
Resolution pom. voltage (AC): 0.1-1V
Accuracy pom. voltage (DC): ±(0.7% +3)
Backlit display: Yes
Accuracy pom. Resistance: ±(1.0%+2)- ±(1.0%+3)
Scope of pom. Max. temperature: 1000°C
Scope of pom. temperature, min.: -40°C
Easy to use and ergonomically designed digital multimeter with large and clear display.
For measuring DC and AC voltage, direct current, resistance and temperature.
In addition, it has the following functions: diode test, circuit continuity test with acoustic signaling, "datahold" measurement result memory, display backlight and low battery indication.
Equipped with rubber cover and retractable kickstand.
Supplied complete with measuring cables, temperature transmitter up to max. 260°C and 2 x 1.5V AAA batteries.
Scale length 1999. Safety class CAT II 250V according to IEC 61010.
Protection of ranges up to max. 250V for 10 seconds and 200mA.
**

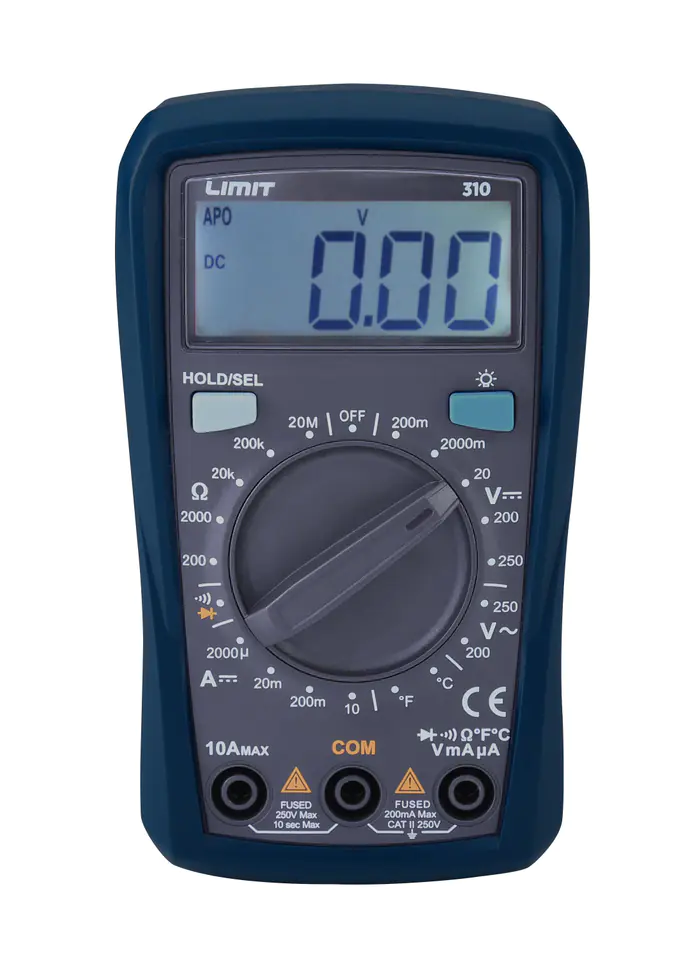

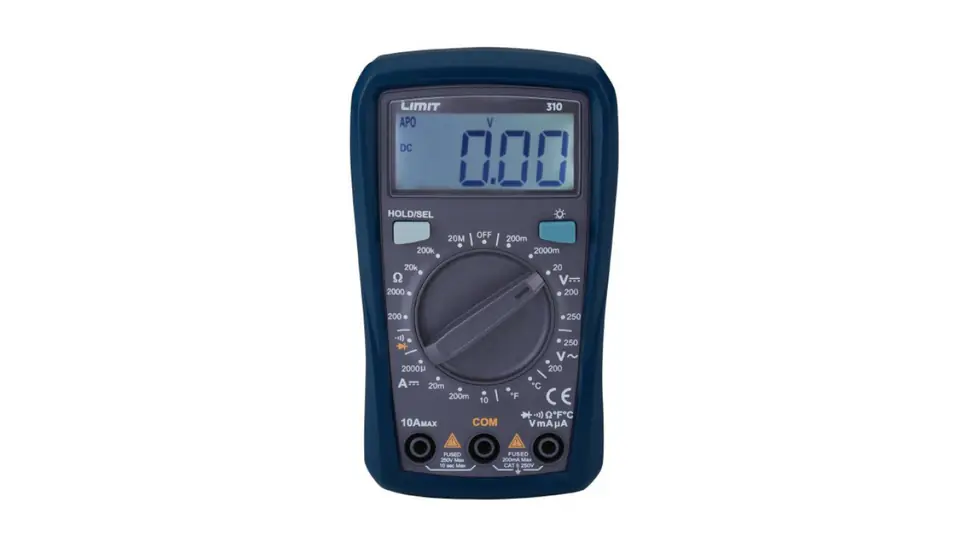

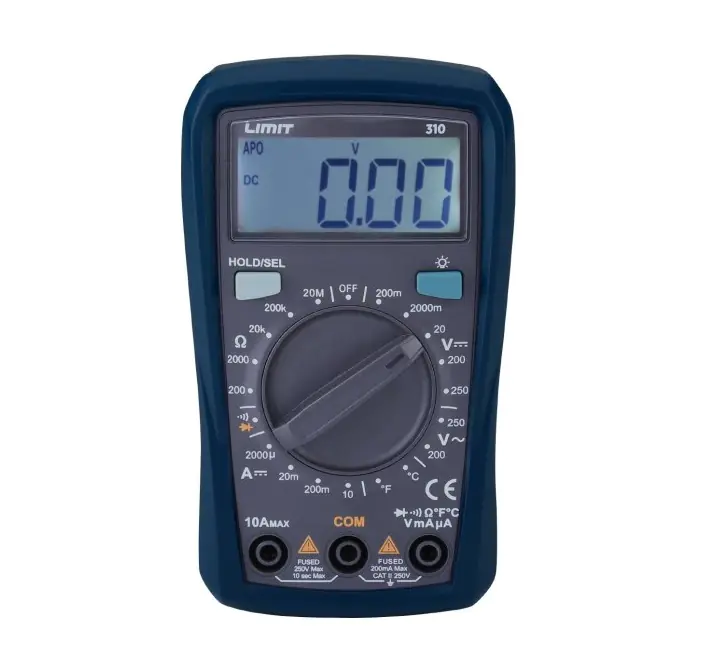

DIGITAL MULTIMETER LIMIT NR310
€35.63
Shipping from warehouse: U1
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- UN
- Product code:
- 128600111 / 7311662222673
Share this product:
Specification
| Ac voltage measurement accuracy: | ±(1.2% +3) |
|---|---|
| Ac voltage measurement resolution (v): | 0.00 |
| Ac voltage measuring range (v): | 200 - 250 |
| Battery type: | AAA (1.5 V) |
| Dc current measurement accuracy: | ±(1.0%+2) - ± (1.0%+5) |
| Dc current measuring range (a): | 0.002 - 10 |
| Dc voltage measurement accuracy: | ±(0.7% +3) |
| Dc voltage measurement resolution: | 0.1mV-1V |
| Dc voltage measuring range (v): | 0.2 - 250 |
| Display backlighting: | yes |
| Item number: | 128600111 |
| Length (mm): | 134.00 |
| Number of batteries (pcs): | 2 |
| Operating temperature (°c): | 0 - +40 |
| Package dimensions (mm): | 170x106x45 |
| Package quantity (pcs): | 1 |
| Resistance measurement accuracy: | ±(1,0%+2)- ±(1,0%+3) |
| Resistance measurement resolution: | 0.1 Ω-0.01 MΩ |
| Resistance measuring range: | 200 Ω - 20 MΩ |
| Security class: | CAT II: 250V |
| Temperature measurement accuracy: | [-40 to 40°C: ± 4°C / > 40 to 500°C: ± (1.0% + 4°C), > 500 to 1000°C: ± (2.0% + 4°C) / -40 to 104°F: ± 5°F, > 104 to 932°F: ± (1.5% + 5°F), > 932 to 1832°F: ± (2.5% + 5°F)] |
| Temperature measurement resolution (°c): | 1.00 |
| Temperature measuring range (°c): | -40°C to +1000°C |
| Thickness (mm): | 47.00 |
| Weight (kg): | 0.210000 |
| Width (mm): | 77.00 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
