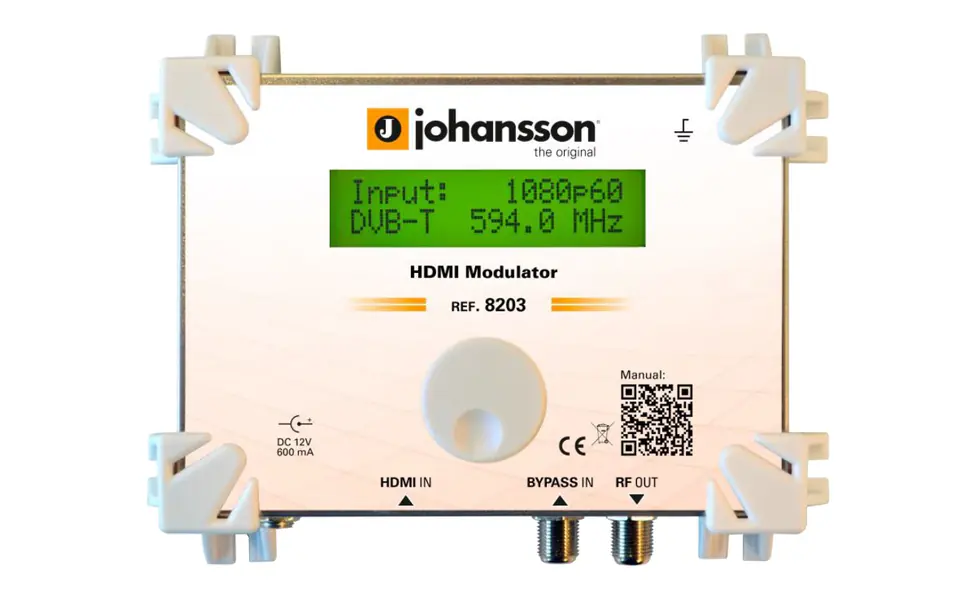

HDMI to DVB-T modulator: 1 HDMI input / 1 RF input - output
This professional HDMI modulator converts local HDMI signal to RF signal, ready for distribution via coaxial cables.
The 8203 is suitable for continuous operation 24h per day / 7 days a week, making it one of the most reliable HDMI modulators on the market.
Features:
- 1 HDMI input, capable of receiving all resolutions up to 1080p 60Hz
- 1 RF input to bypass terrestrial or cable signals
- 1 RF output: DVB-T (MUX) signal
- MER at level: 38dB
- Excellent image thanks
- Easy-to-use menu structure, combined with rotary button
- Optimized for cascading multiple modulators in a coaxial network
- The smallest housing within its reach
Safety manual ENG
http://dmtrade.pl/katalogi/johansson/8203/instrukcjebezpiecze%C5%84stwaeng.pdf
User manual ENG
http://dmtrade.pl/katalogi/johansson/8203/8203eng.pdf
User manual GER
http://dmtrade.pl/katalogi/johansson/8203/8203ger.pdf
User manual FRAhttp://dmtrade.pl/katalogi/johansson/8203/8203fra.pdf
Esp User Manual
http://dmtrade.pl/katalogi/johansson/8203/8203esp.pdf
ITA User Manual
http://dmtrade.pl/katalogi/johansson/8203/8203ita.pdf
