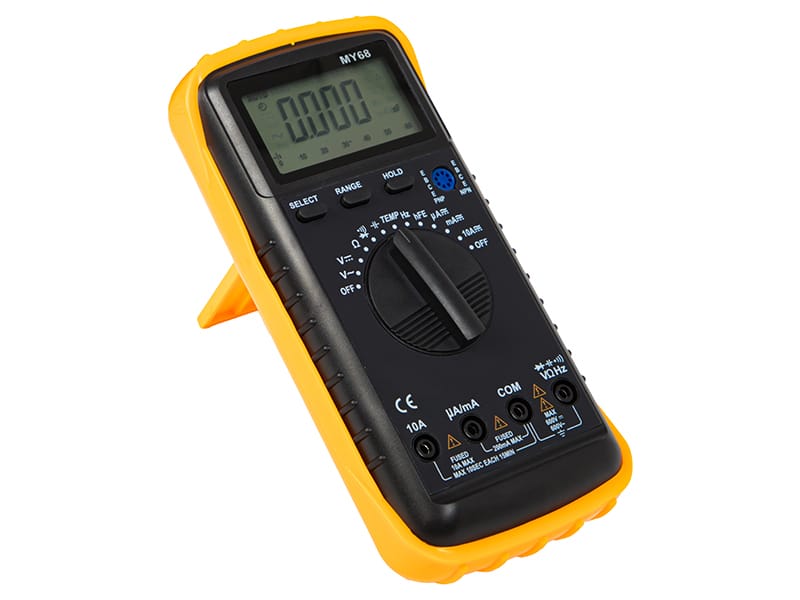

The MY-68 XTREME digital meter is a product that guarantees accuracy and precision. The large and clear LCD display ensures that the results are read correctly. The materials that were used in the production of the meter are of high quality, which translates into the durability of the product and its long use.
Convenient use

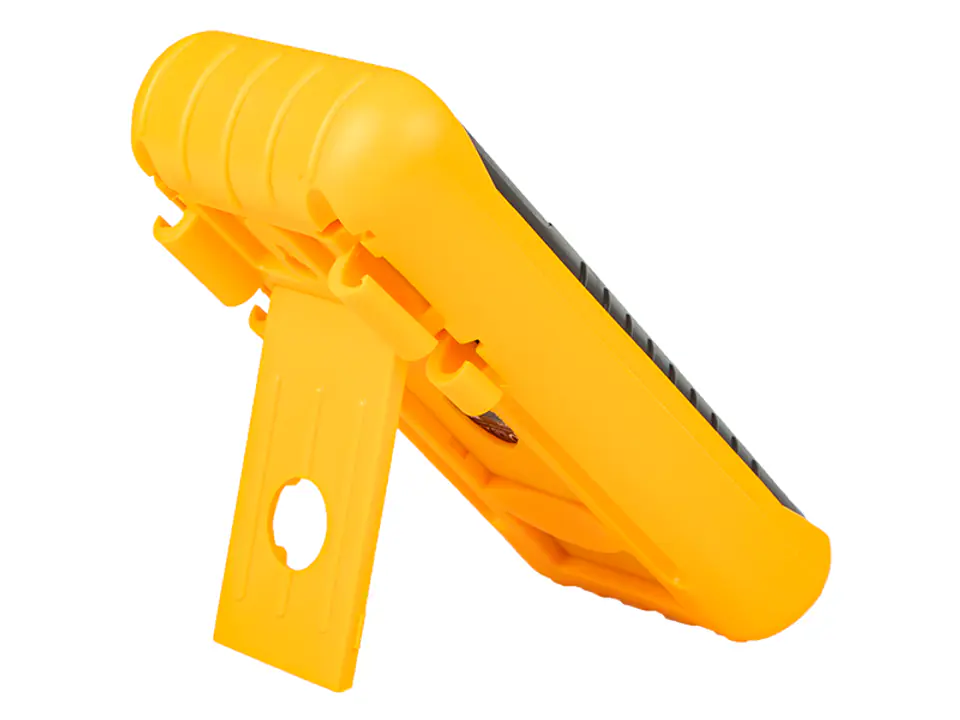

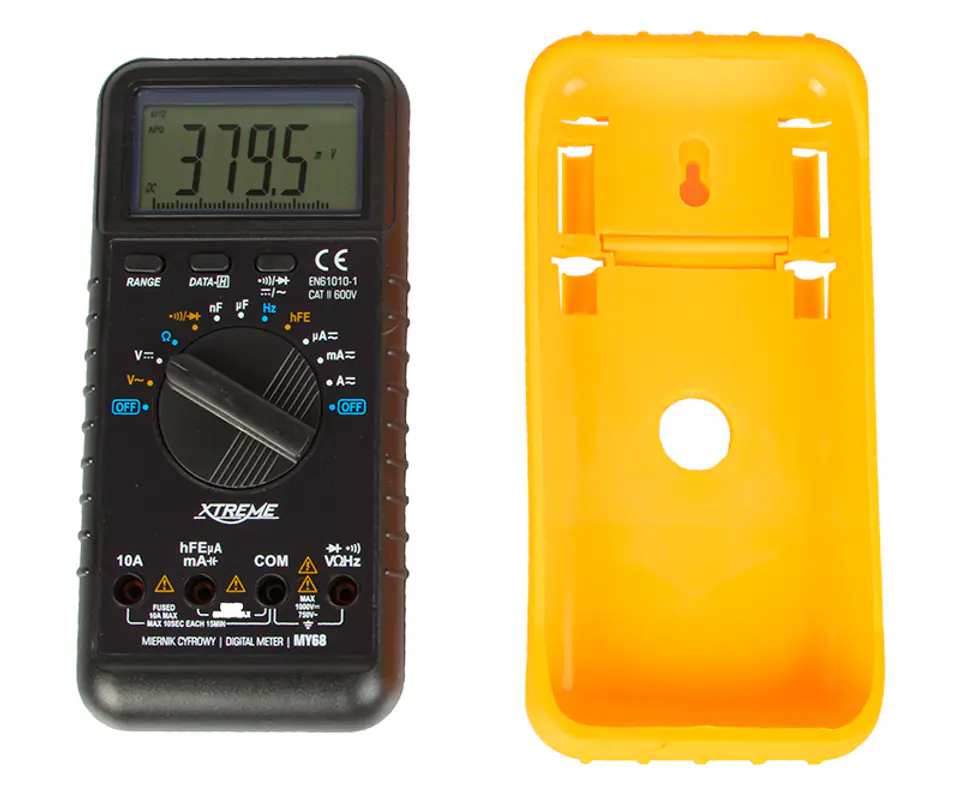

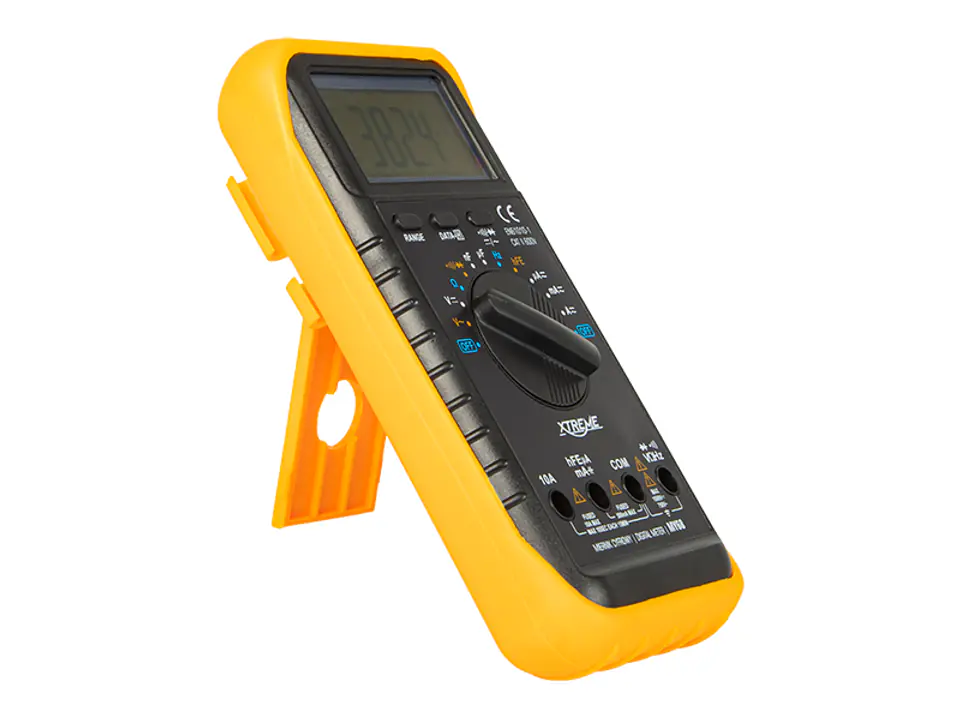

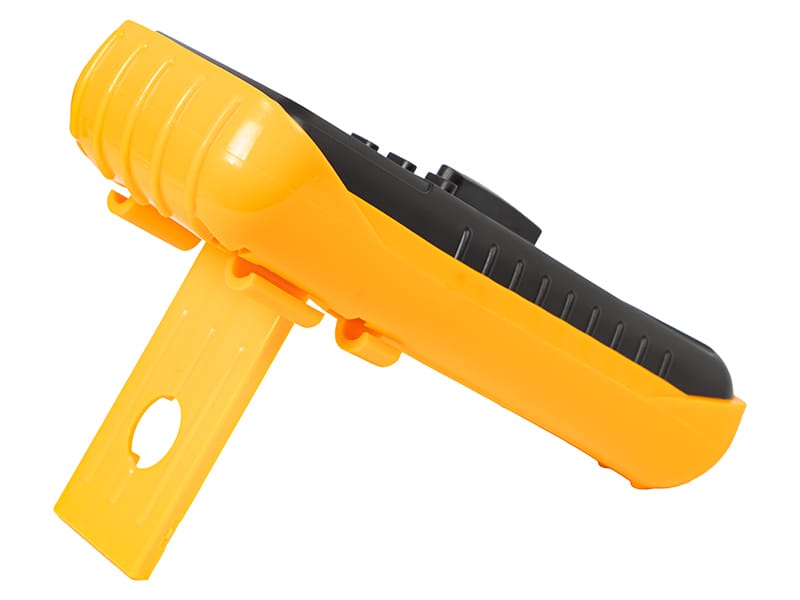

The plastic kickstand built into the case allows you to set the device in a way that is convenient for the user, without having to constantly hold the meter in his hand - this will definitely facilitate various types of manual work, and reading the measurement results will provide an extremely clear and expressive LCD screen. In addition, the removable rubber cover will protect the device from mechanical damage and at the same time protect the user from shock.
Variety of applications
The meter is perfect not only for professional workshop workers, but also for amateurs of electronics. The device allows you to measure current in batteries, in household sockets or wires in hobby electronics, as well as in other electronic devices.
Included:

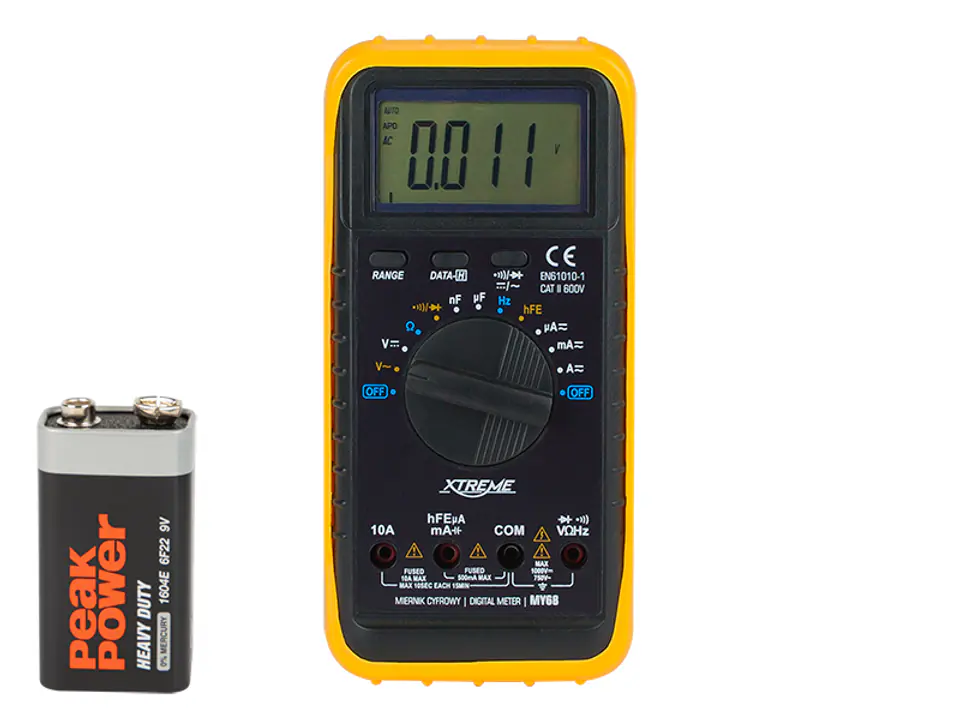

- Meter with easy-to-read LCD display

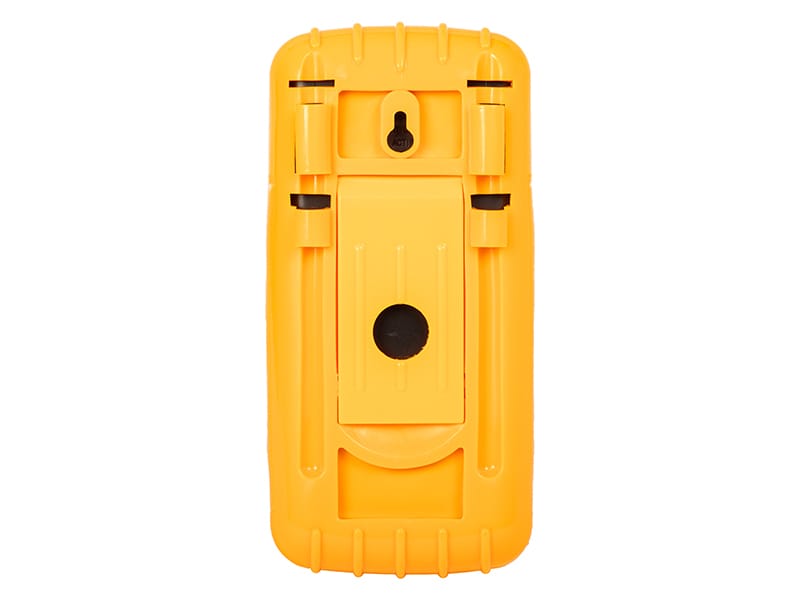

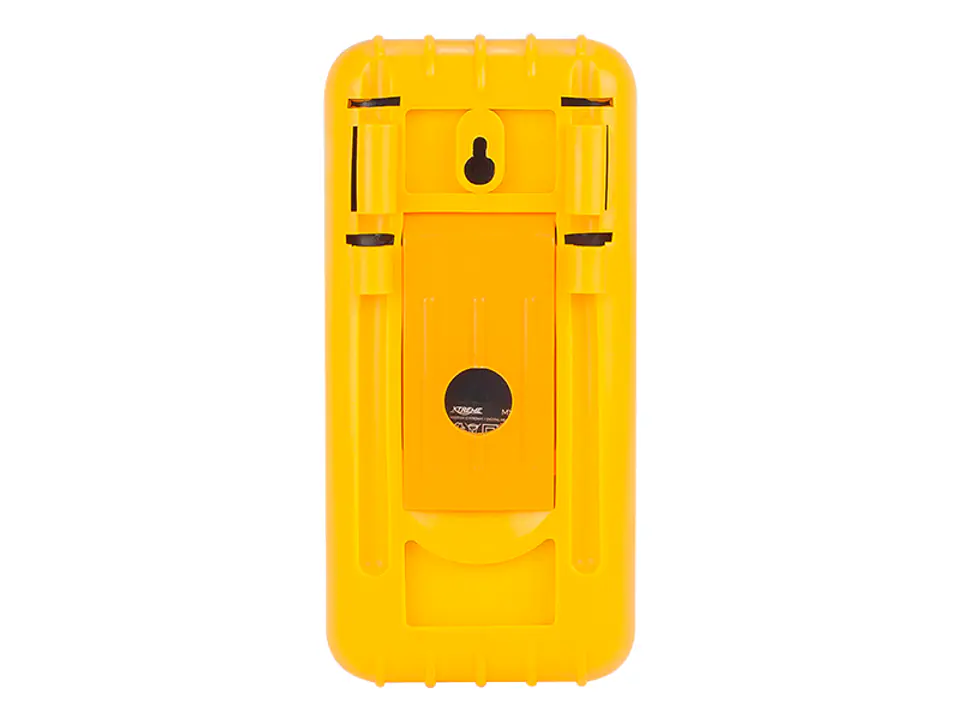

- Rubber protection against mechanical damage and shock with built-in plastic support

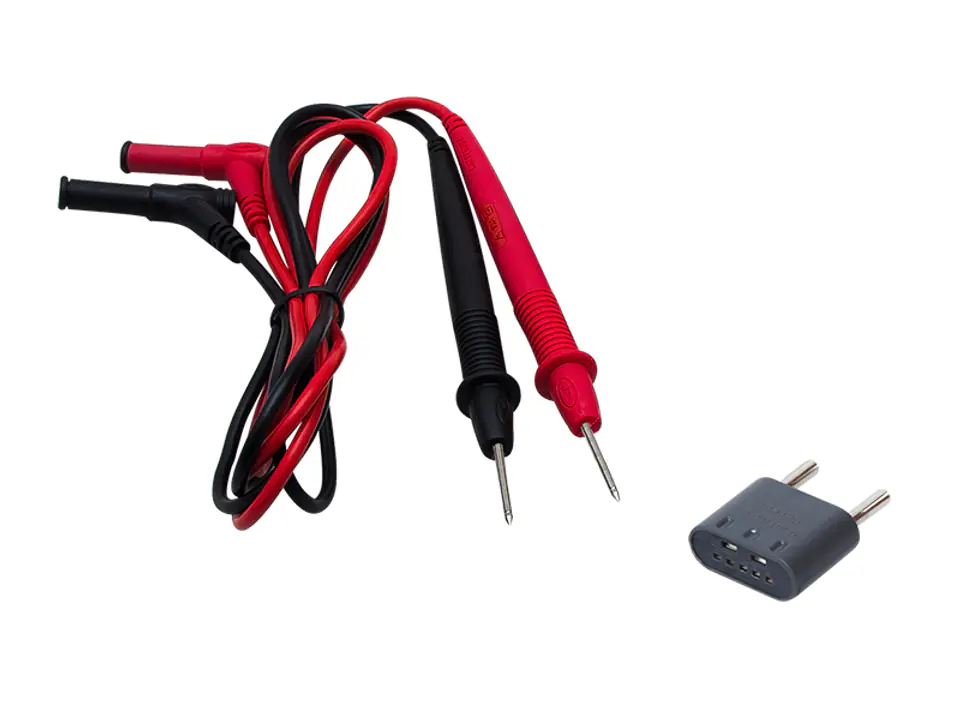

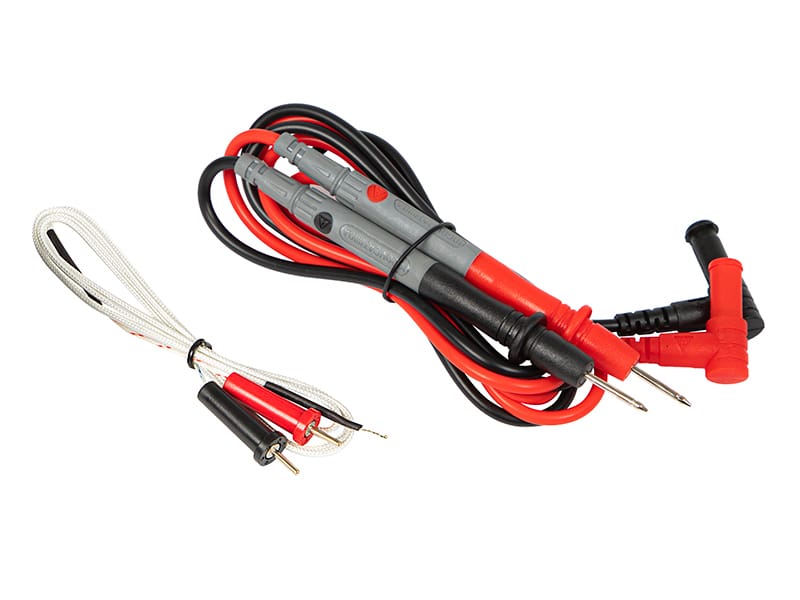

- Necessary test leads and plugs
- User Manual
Specification:
- Power supply: 9V battery
- Screen: LCD, 65x37mm
- Sampling rate: 2 times per second
- Measurement method: A/D converter double integral
- Out of range indication: "OL" information on the screen
- Working temperature: 0 degree c ~ 40 degree c
- Storage temperature: -10 degrees C ~ 50 degrees C
- Dead battery indication: on-screen battery icon
- Dimensions: 190x90x35mm
- Weight with battery: 227g with battery
- DC voltage measurement: 0V – 600V
- AC voltage measurement: 0V – 400V
- DC measurement: 400uA – 10A
- AC measurement: 400uA – 10A
- Resistance measurement: 400 – 40MΩ
- Capacitance measurement: YES
- Frequency measurement: YES
- Temperature measurement: YES
- hFE measurement in transit.+diode testing: YES
- Acoustic continuity tester: YES
- Basic accuracy: +/- (0.5% + 2 digits)
