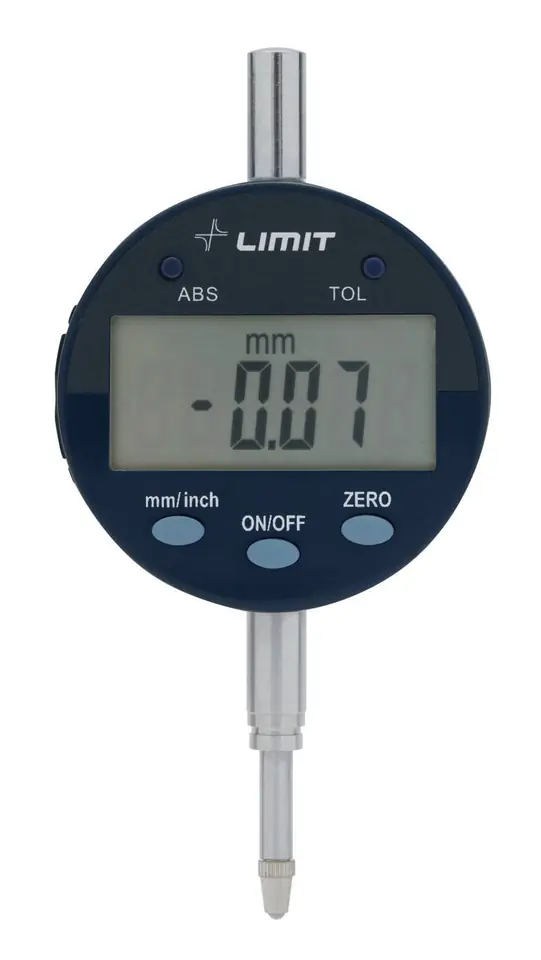

Digital dial indicator. Response speed 1.6 m/s. Accuracy 0.02 mm. Large LCD display with 11mm digits. Data transfer. Tolerance field setting function. Switch between absolute and incremental measurement. Setting the zero point in any position. Choice of indication in mm or inches. DIN 878. CR2025 type battery included.
Digital Dial Gauge Imitation DDA 12.7 Limit
€104.02
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- LIMIT
- Product code:
- 151300506 / 7311662250225
Share this product:
Specification
| Accuracy: | 0.02 mm |
|---|---|
| Diameter (mm): | 56.0000 |
| Height of digits/letters (mm): | 11.0000 |
| Item number: | 151300506 |
| Measuring range of dial indicator (mm): | 12.7000 |
| Mounting diameter (mm): | 8.0000 |
| Package dimensions (mm): | 45x108x190 |
| Package quantity (pcs): | 1 |
| Resolution (mm): | 0.01 |
| Sensor thickness (mm): | 27.8000 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
