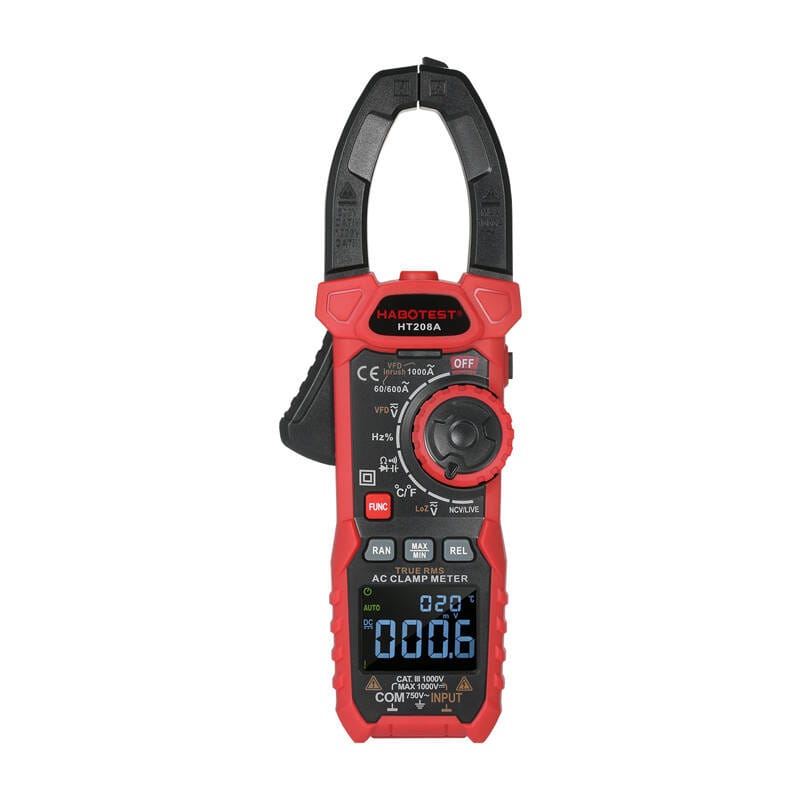

HT208A is a practical device with which you can check the value of various parameters, for example, AC voltage and amperage, resistance, temperature, starting current and much more. The product provides precise measurement, the results of which are then displayed on the LCD screen. HT208A also has a flashlight that allows you to work comfortably in dark rooms.

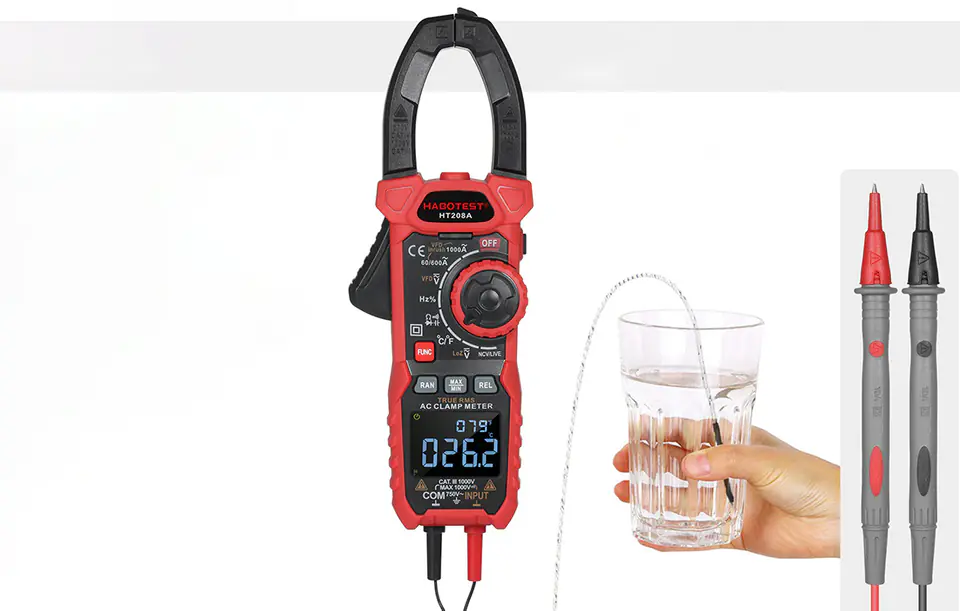

You can use the digital clamp meter in many situations. With it, you can check the value of AC voltage, resistance, capacitance, temperature, frequency, NCV, etc. You can also check the continuity and true value of RMS.

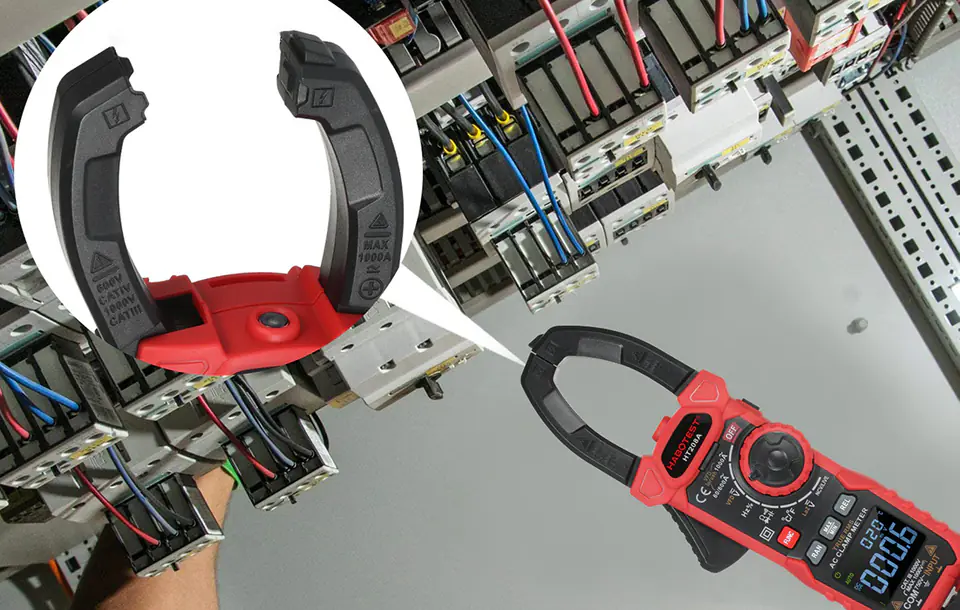

The device has been designed so that its use is completely safe. You can, for example, detect voltage without contact thanks to NCV sensors. The jaws of the meter, thanks to the maximum width of 40 mm, allow you to comfortably measure without damaging the circumference. The flashlight function ensures comfortable and safe work in dark rooms.

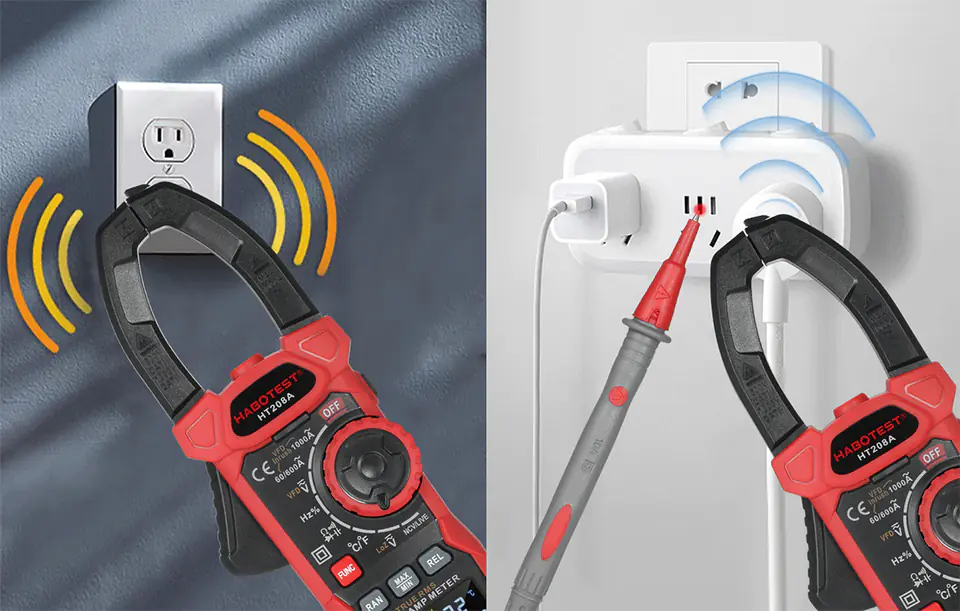

After receiving the electromagnetic signal, the NCV sensor will send an audible alarm, and in case of high voltage or amperage, the color of the LCD screen will change to orange. What's more, the device will turn off automatically to save power if no action is performed within 15 minutes.
| HT208A | HT208D | Funkcja |
|---|---|---|
| 6V/60V/600V/1000V ±(1%+3) | 6V/60V/600V/1000V ±(1%+3) | Napięcie DC |
| 6V/60V/600V/750V ±(1.2%+3) | 6V/60V/600V/750V ±(1.2%+3) | Napięcie AC |
| n/d | 60A/600A/1000A ±(2.5%+5) | Natężenie DC |
| 60A/600A/1000A ±(3.0%+5) | 60A/600A/1000A ±(3.0%+5) | Natężenie AC |
| 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+3) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+3) | Opór |
| 10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3),100mF ±(5.0%+5) | 10nF/100nF/1μF/10μF/100μF/1mF/10mF±(4.0%+3),100mF ±(5.0%+5) | Pojemność |
| 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3) | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3) | Częstotliwość |
| 1%~99% ±(1.0%+2) | 1%~99% ±(1.0%+2) | Współczynnik wypełnienia |
| -40°C~1000°C ±(1.0%+3) | -40°C~1000°C ±(1.0%+3) | Temperatura |
| 6000 | 6000 | Liczba zliczeń |
| Tak | Tak | Wybór zakresów(automatyczny/ręczny) |
| Tak, alarm dźwiękowy i świetlny | Tak, alarm dźwiękowy i świetlny | Badanie ciągłości |
| Tak | Tak | Testowanie diod |
| Tak | Tak | Przechowywanie danych |
| Tak, alarm dźwiękowy i świetlny | Tak, alarm dźwiękowy i świetlny | NCV |
| Tak | Tak | Podświetlenie |
| Tak | Tak | Latarka |
| Tak | Tak | Wskaźnik niskiegopoziomu baterii |
| Tak | Tak | Automatyczne wyłączanie |
| Tak | Tak | Prawdziwa wartość RMS |
| Nie | Tak | LPF |
| Tak | Tak | MAX/MIN |
| Nie | Tak | V-LoZ |
| 2x bateria AA (zestawie) | 2x bateria AA (zestawie) | Zasilanie |
| Ok. 380 g | Ok. 380 g | Waga |
| 240 x 85 x 40 mm | 240 x 85 x 40 mm | Wymiary |
| 44 mm | 44 mm | Szerokość szczęk |
| EN61010-1, -2-030 EN61010-2-033, EN61326-1 CAT III 1000V, CATIV 600V | EN61010-1, -2-030 EN61010-2-033, EN61326-1 CAT III 1000V, CATIV 600V | Bezpieczeństwo |
