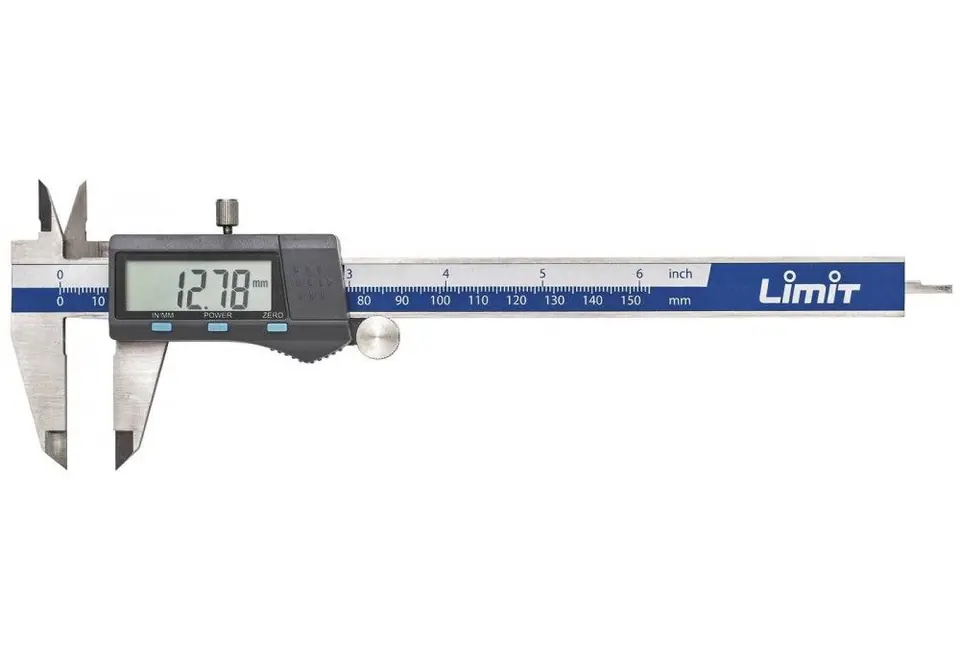

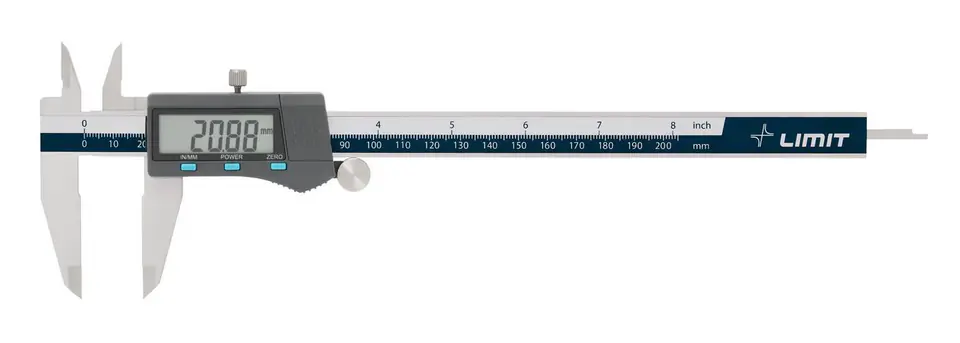

Digital caliper, in which special attention was paid to details and finish. The caliper is characterized by a very soft and smooth movement of the jaw, because the components were ground in several stages. Stainless, hardened and precisely ground measuring jaws. Jaw thickness of 3.5 to 4 mm ensures high stability. LCD display with clear digits height 11 mm. 4-functions. Auto power off. Processor with high update frequency (3 measurements/sec). Choice of indication in mm or inches. Equipped with a rectangular depth gauge extension and jaws for internal measurements. Made according to DIN 862. Supplied in a pouch, with a quality control certificate. SR44 type battery is attached.
Digital caliper CDK 200 mm ABS Limit
€99.51
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- LIMIT
- Product code:
- 263960205 / 7311662212292
Share this product:
Specification
| Accuracy: | ±0.03 mm |
|---|---|
| Arm thickness (mm): | 3.50 |
| Blockade: | locking screw |
| Depth gauge shape: | Rectangular |
| Height of digits/letters (mm): | 11.0000 |
| Item number: | 263960205 |
| Jaw length - inner (mm): | 24.0000 |
| Jaw length - outer (mm): | 50.0000 |
| Measuring length (mm): | 200 |
| Package dimensions (mm): | 30x105x310 |
| Package quantity (pcs): | 1 |
| Repeatability (mm): | ± 0.01 |
| Resolution (inches): | 0.0005 |
| Resolution (mm): | 0.01 |
| Update frequency (m/s): | 3.0000 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
