Product description

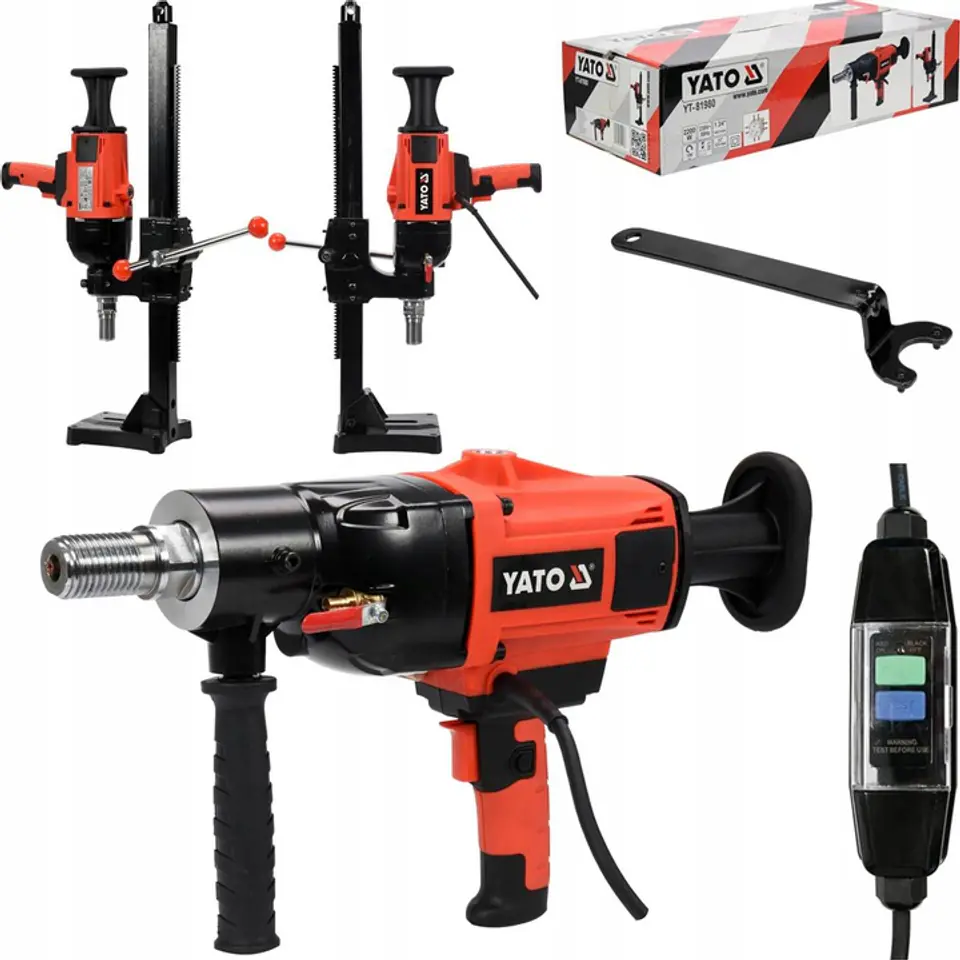

Universal diamond drilling rig for working with or hand-held.
The machine has a power of 2200W and works at a speed of 0-1200 rpm.
It allows drilling holes in a very wide range, ranging from 30mm to 180mm.
The machine is equipped with a clutch, which, thanks to smooth operation, does not cause jerks of the device when cutting holes in reinforced concrete.
The 1 1/4" drill chuck is a standard chuck that fits all drill bits on the market.
The set includes a tripod equipped with a gear, thanks to which drilling in hard materials such as granite or concrete does not require the use of force.
The drilling rig is indispensable for cutting electric cans in reinforced concrete, drilling ceilings for pipes and cables, installing cable routes or ventilation ducts.
Technical Specifications
Index numberYT-81980
Power [W]2200w
Rotational speed [1/min]0-1200
Impact
ApplicationReinforced concrete
Range [mm]30-180
Tripod
Water coolingyes
DIAMOND DRILLING RIG 2200W
€222.74
Shipping from warehouse: M7
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- YT-81980 / 5906083029288
Share this product:
Specification
| Ac input frequency: | 50 Hz |
|---|---|
| Ac input voltage: | 230 V |
| Adjustable speed: | Yes |
| Built-in light: | No |
| Chuck capacity (max): | 18 cm |
| Drilling: | Yes |
| Drilling diameter in concrete (max): | 18 cm |
| Hammer drilling: | No |
| Idle speed (max): | 1200 RPM |
| Input power: | 2200 W |
| International protection (ip) code: | IP20 |
| Power source: | AC |
| Product colour: | Red, Black |
| Product design: | Pistol grip drill |
| Protection class: | II |
| Screwdriving: | No |
| Sound power level: | 103 dB |
| Sound pressure level: | 90 dB |
| Vibration level (concrete drilling): | 2.9 m/s² |
| Weight: | 12 kg |
