Manufacturer no: 10061307
The MSW brand concrete drilling rig is used for core drilling in hard building materials using diamond drills of appropriate diameter. The high efficiency of the device is due to the high power of its engine – 2000 W. It allows you to make holes with a diameter of 150 mm and a depth of 700 mm. The speed of rotation without load is adjustable and ranges from 0 to 1950 rpm. The diamond hole saw has an overload clutch. Work safety is ensured by the PRCD module. It prevents the device from turning on in the event of a short circuit, as well as accidental starting when connecting to an electric power source. Thus, it protects the drill rig from destruction and the user from paralysis. In addition, the equipment is equipped with overload protection. Durable construction has a long service life. The most important elements are made of die-cast aluminum alloy, which increases the precision of operation. The equipment is in a contoured case.
Product features:
- - PRCD cable module
- - equipment for professionals
- - overload protection
- - contoured case
- - no-load speed in the range of 0-1950 rpm
- - for drilling holes with a diameter of 150 mm
- - 2000 W motor
- - Model: MSW-DDM150
- - Catalogue number: 10061307
- - Article status: new
- - Voltage: 230 V
- - Power: 2000 W
- - Max. drilling diameter: 150 mm
- - Rotational speed: 1950 rpm
- - Guide reach adjustment: 160 mm

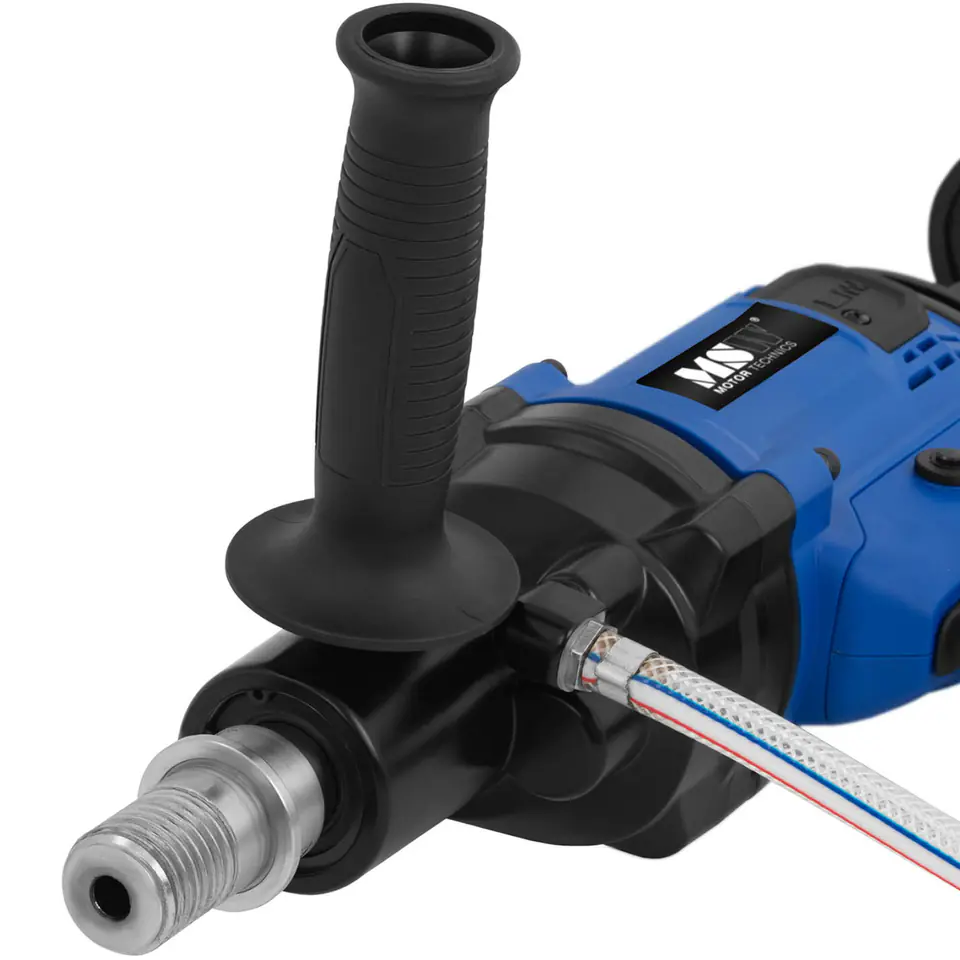

- - Water connector diameter: 0.51" (13 mm)

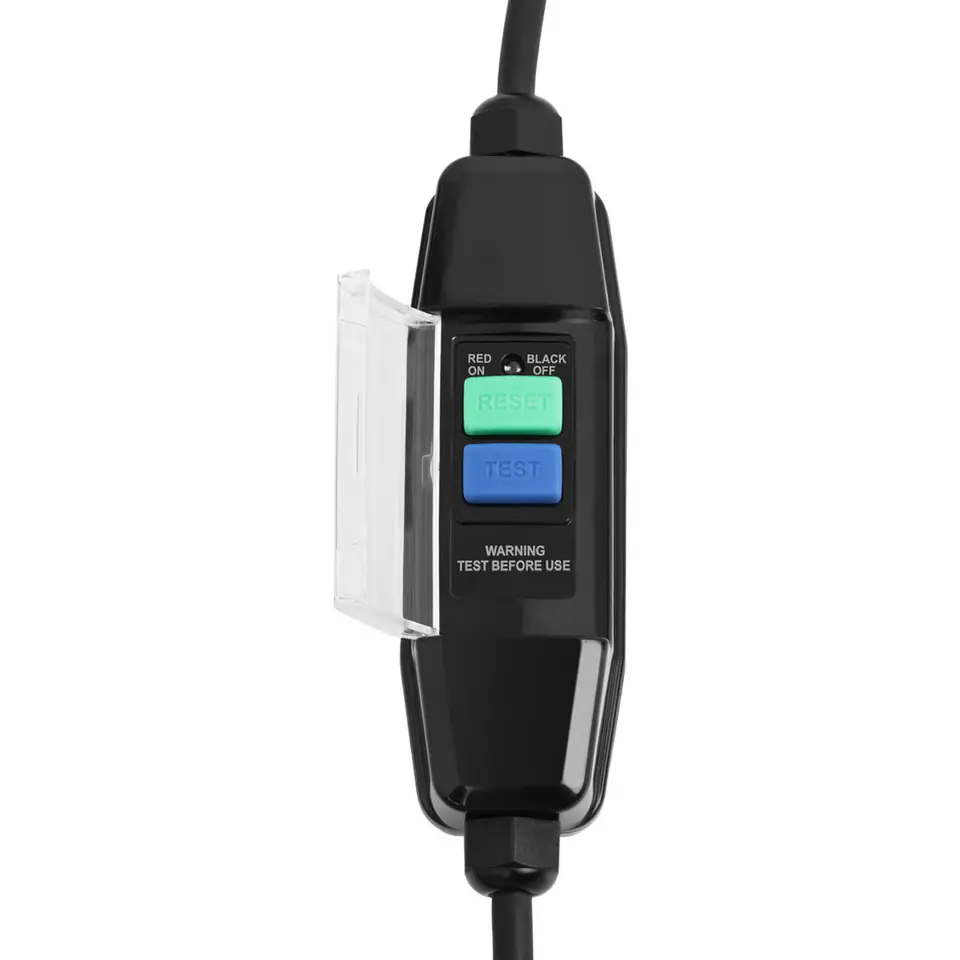

- - PRCD protection module on cable: yes
- - Power cord: 2.3 m
- - Dimensions (LxWxH): 40 cm x 11 cm x 27 cm
- - Weight: 7.10 kg
- - Shipping dimensions (LxWxH): 50 cm x 16 cm x 40 cm
- - Shipping weight: 9.80 kg

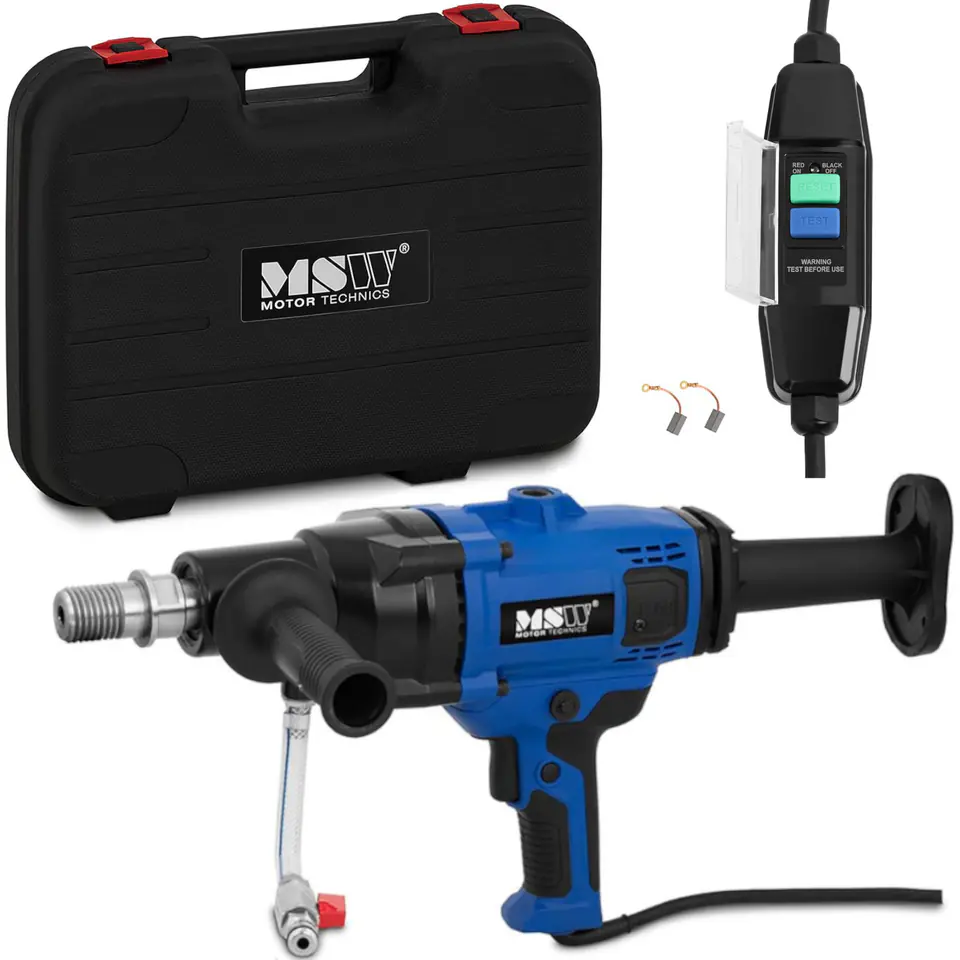

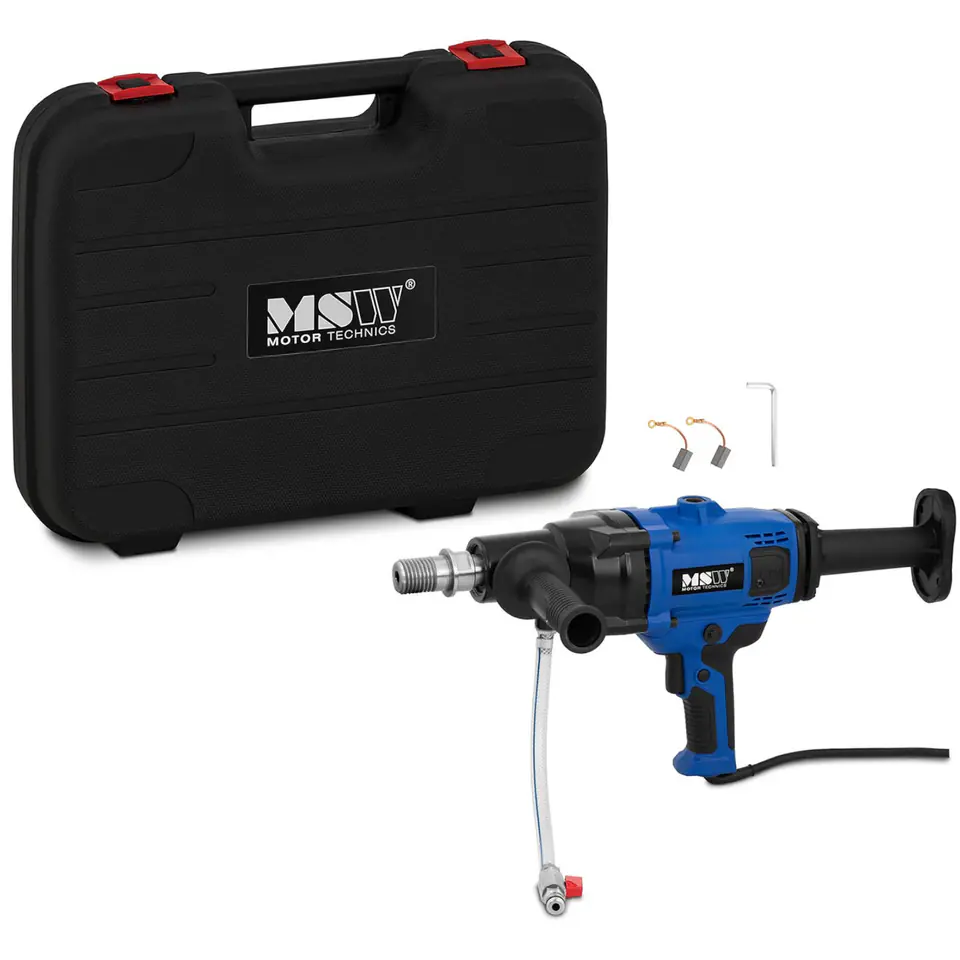

- - Concrete drilling rig
- - User Manual
