DIAMOND BLADE FOR WALL TILES, 230 SUPRPRO CSV

Technical data:

Outer diameter - 230 mm
Inner diameter - 22,2 mm
Blade flange height - 7 mm
Blade flange thickness - 1.9 mm



RUBI CSV diamond blades with continuous edging are the best choice for dry cutting using a grinder of all kinds of ceramic tiles.

CSV diamond blades are best suited for machining all kinds of ceramic materials. CSV discs, as a universal model, reduce the time needed to change the disc when changing the material for cutting. As a result, good cutting quality and optimal performance are achieved in a wide range of potential ceramic materials.

The connection between diamond grain and metal alloy makes THE CSV diamond blades from RUBI ideal for cutting ceramic tiles (glazed and porcelain stoneware).

The RUBI CSV blade is a continuous flange blade. This type of diamond edging allows the contractor to obtain a high-quality finish of the cutting edge.

The shape of the RUBI CSV diamond blade makes it ideal for cutting all kinds of ceramics and other wall stone tiles with a thickness of less than 25 mm.

Thanks to laser welding technology, it was possible to achieve a connection between the diamond edge and the metal disc of the RUBI CSV continuous disc that guarantees cutting quality and user safety.

SUPERPRO quality discs are the best choice for the most demanding work.

Discs with a disc thickness of less than 2 mm are not recommended for diagonal cuts on a grinder.


**

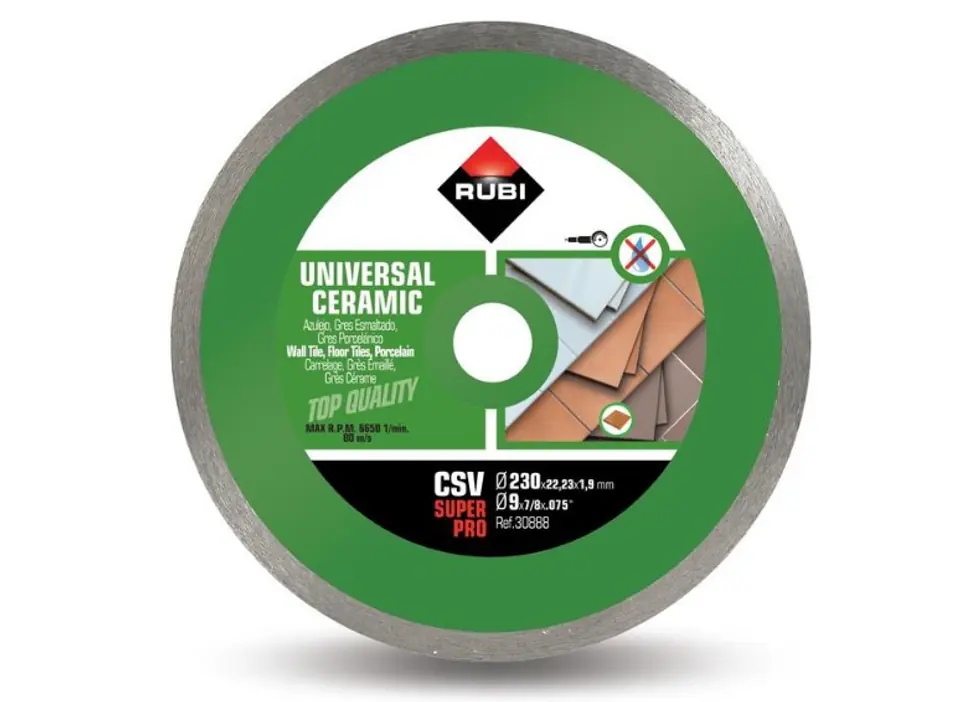

Illustrative photo.
