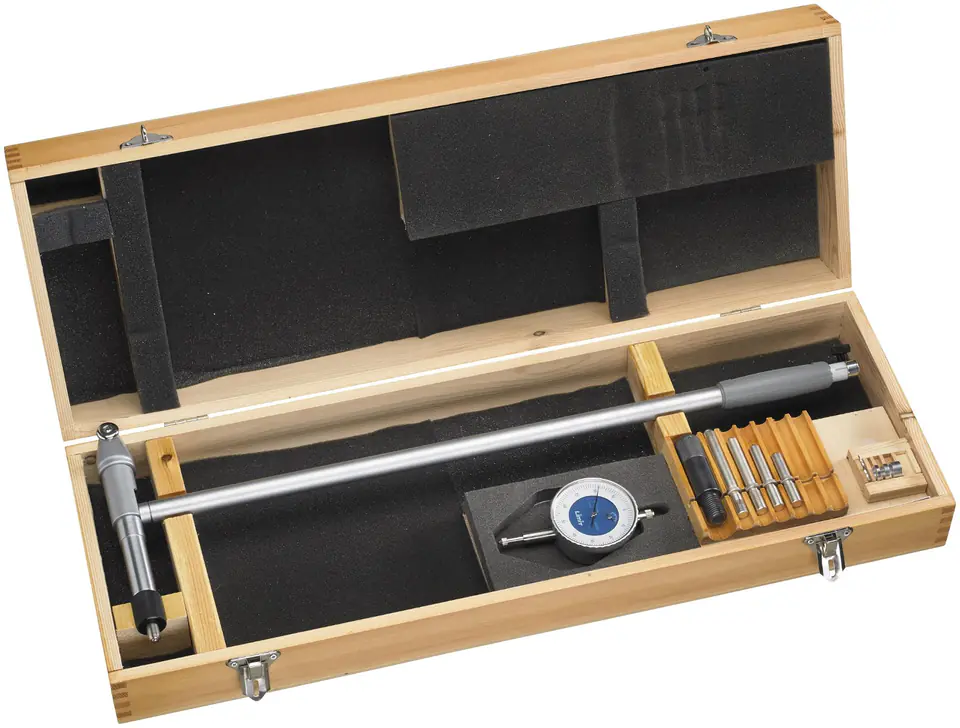

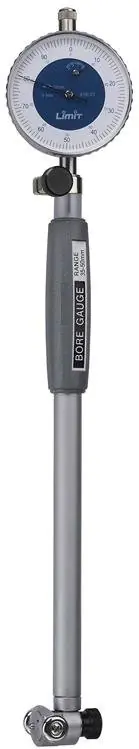

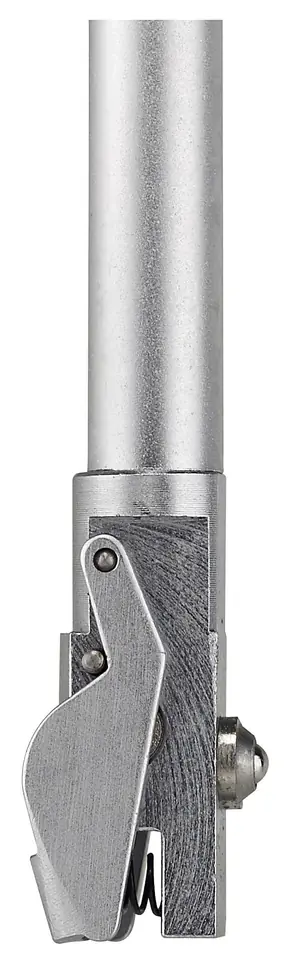

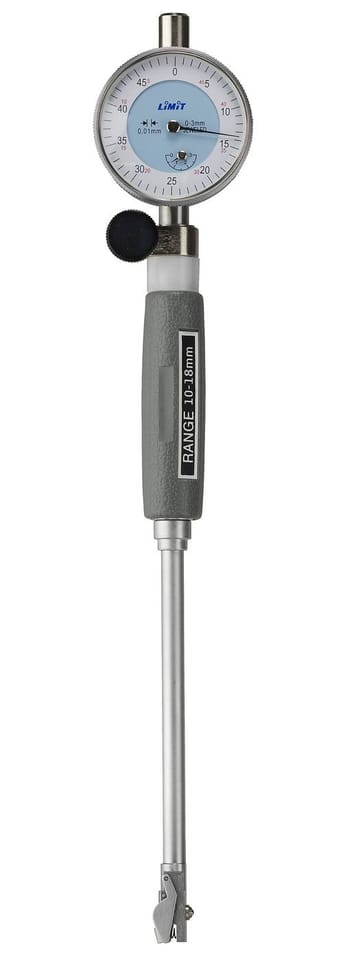

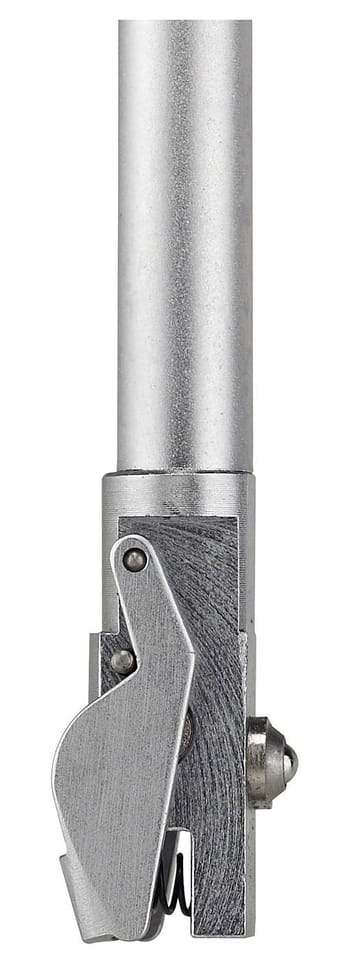

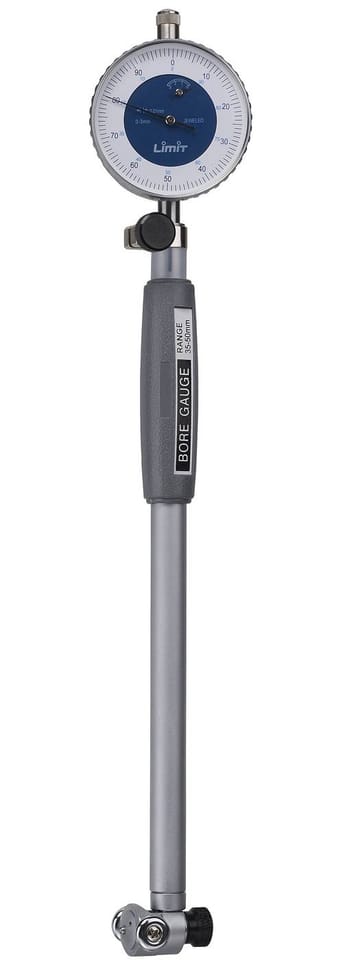

For precise measurements of internal diameters and gaps. Equipped with interchangeable measuring pins and spacers of various sizes. The spring-loaded tip mechanism ensures self-centering and the measuring tip has a carbide coating. Complete with dial indicator. Accuracy ± 15 μm plus clockwork sensor accuracy according to DIN 878. It allows you to measure blind holes at the bottom.
6193-1002: 10, 11, 12, 13, 14, 15, 16, 17, 18mm
6193-1101: 18-20.5, 20.5-23, 23-25.5, 25.5-28, 28-30.5, 30.5-33, 33-35.5mm
6193-1200: 35, 40, 45, 50mm
6193-1309: 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 105mm
6193-1408: 160, 170, 180, 190, 200mm
