| -10 °c ... 40 °c: | Operating temperature: |
|---|---|
| < 2.7 v: | Relay switching voltage L: |
| > 4 volts: | Relay switching voltage H: |
| 0.03 kg: | Scales: |
| 1: | Number of relay outputs: |
| 10 ... 16 vdc: | Power: |
| 10 a (max), 30 v dc / 50 v ac (max): | Contact capacity: |
| 3 years: | Warranty: |
| 35 ma / 12 v dc: | Current consumption: |
| 78 x 27 x 20 mm: | Dimensions: |
| Delta: | Manufacturer / Brand: |
| Mounting with spacer screws, led signaling, protection : surge protector, reverse connection, fuse time-lag (5/20mm) 10 a: | Selected features: |
| No/nc: | Egress: |
| Use: | Use: |

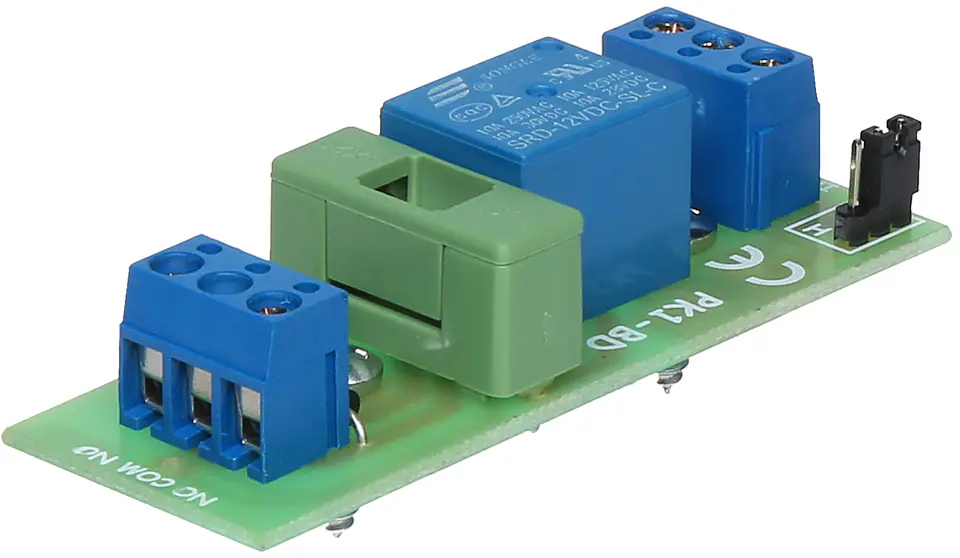

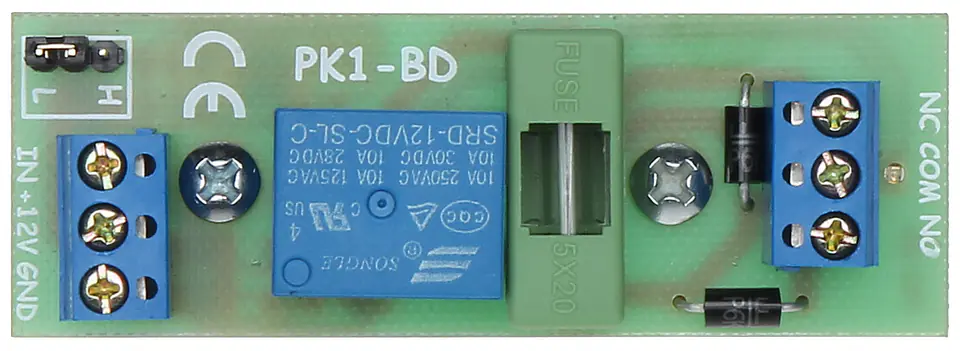

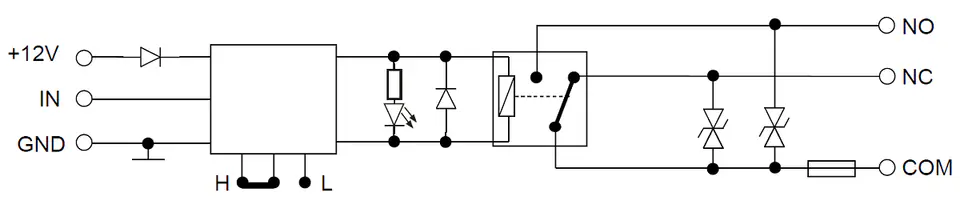

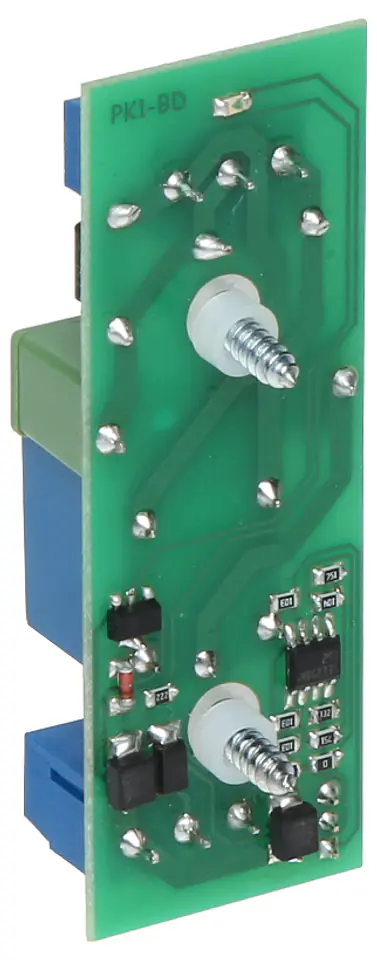

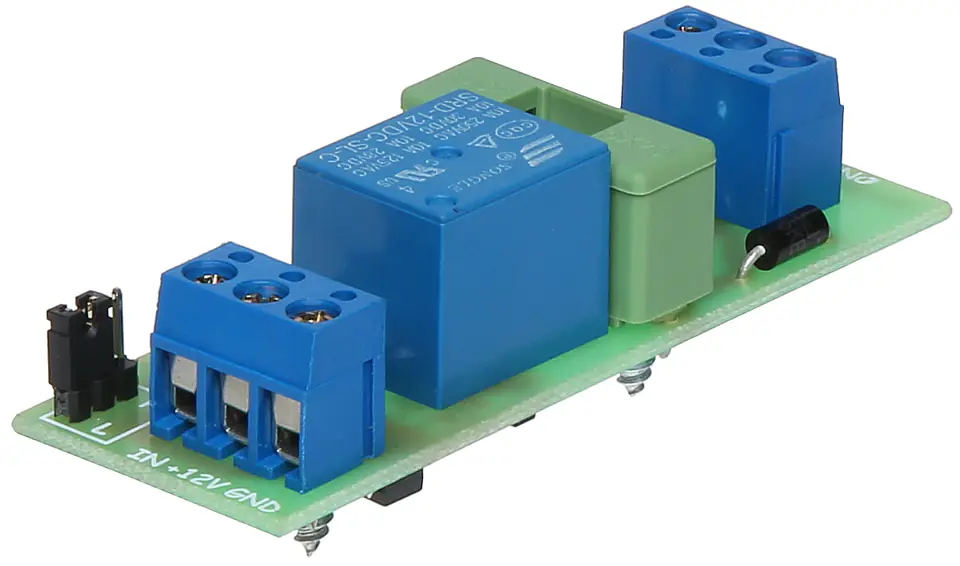

The PK1-12-PST module consists of a changeover relay and a configuration system that sets the relay control with high or low state
It allows to increase the current carrying capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load
