| -10 °c ... 40 °c: | Operating temperature: |
|---|---|
| < 2.7 v: | Relay switching voltage L: |
| > 4 volts: | Relay switching voltage H: |
| 0.04 kg: | Scales: |
| 1: | Number of relay outputs: |
| 10 ... 16 vdc: | Power: |
| 10 a (max), 30 v dc / 50 v ac (max): | Contact capacity: |
| 3 years: | Warranty: |
| 35 ma / 12 v dc: | Current consumption: |
| 78 x 27 x 41 mm: | Dimensions: |
| Delta: | Manufacturer / Brand: |
| Din rail mounting, ts-35, led signalling, protection : surge protector, reverse connection, fuse time-lag (5/20mm) 10 a: | Selected features: |
| No/nc: | Egress: |
| Relay for controlling electric strike, bolt or electromagnetic interlock: | Use: |

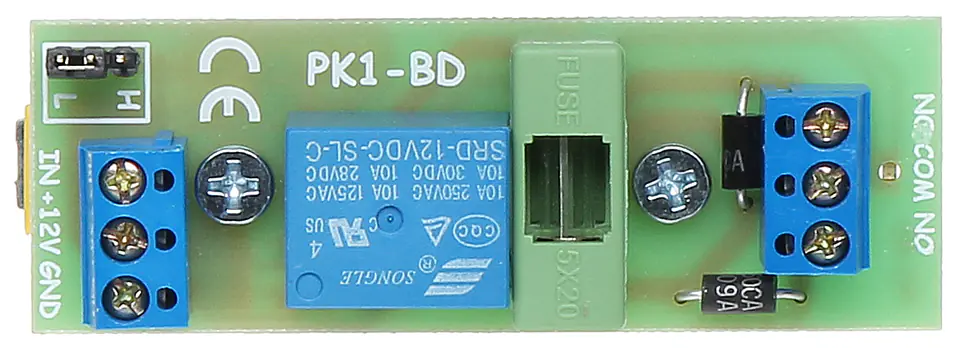

The PK1-12-PDT module consists of a changeover relay and a configuration system setting the relay control with high or low state
It allows to increase the current carrying capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load
