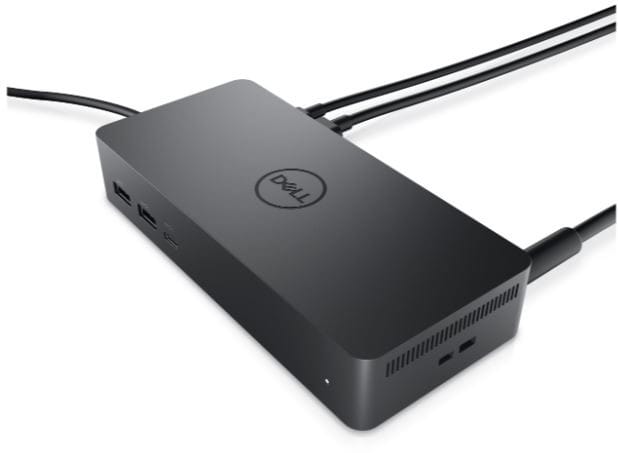

Dell UD22 universal docking station
Meet the best universal docking station, with 10 ports, for any USB-C notebook. High power provides fast charging with up to 96 watts of power for any notebook with a USB-C connector.
Versatility
Connect to any USB-C notebook, regardless of manufacturer, and run any operating system.

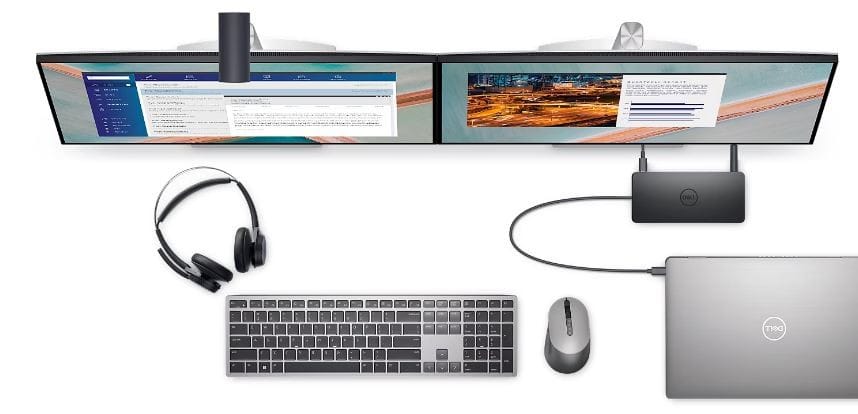

Multi-monitor support
Enrich your coworking spaces with consistent display support across multiple systems.
Improved display support
Maximise productivity with the large number of displays supported by the universal docking station , allowing you to connect up to four 4K monitors via DisplayLink drivers.

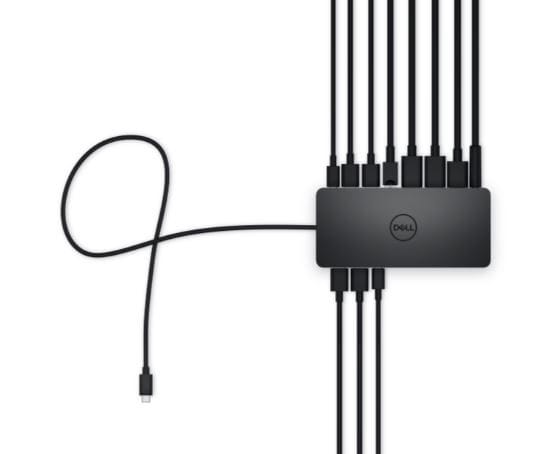

Multiple ports
Create a powerful workstation with increased flexibility thanks to the largest number of ports on the Universal Docking Station.
Faster and easier deployment
Connect your laptop and get started quickly, even if the DisplayLink driver is not installed, thanks to the additional support for DP Alt mode.
Convenience of use
Enhance your shared workspace with DisplayLink layout sharing, which allows you to automatically configure a pre-configured display layout for users.
Extended warranty
Dell Docking Stations now come with their own service tags, as well as a 3 to 5 year warranty option for the best possible support, management and upgradeability.

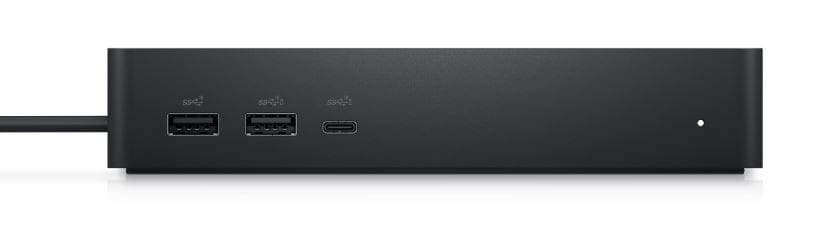

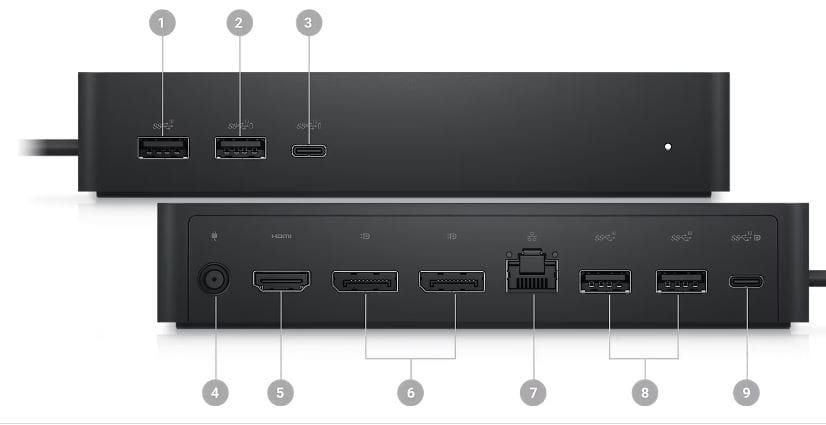

Front view
1. USB-A 3.2 Gen 2
2. USB-A 3.2 Gen 2 with PowerShare function
3. USB-C 3.2 Gen 2 with PowerShare function

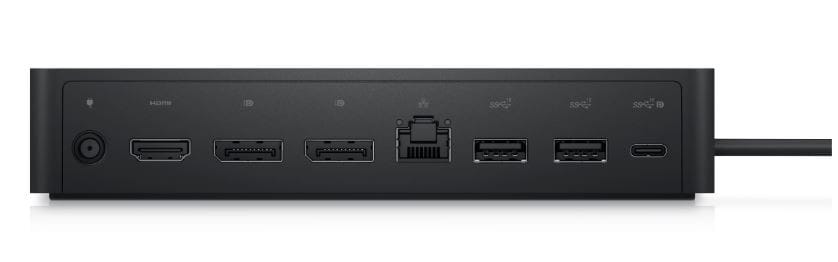

Rear view
4. Power input
5. HDMI 2.0
6. DisplayPort 1.2 (2) 7.
7. Gigabit Ethernet RJ45
8. USB-A 3.2 Gen 2 (2)
9. USB 3.2 Gen2 Type-C with DisplayPort 1.4 alternate mode
Complete docking station support without hassle
When you choose Premium Support for your docking station, you get 24/7 support for configuration, interoperability and software. If needed, the Advanced Exchange Service docking station can be replaced the next business day .
Advanced Exchange Service
The docking station is covered by the 3-year Advanced Exchange Service, so if a replacement becomes necessary, it will be shipped to you the next business day as part of the 3-year limited hardware warranty.
Video
Maximum resolution of 5K - 60 Hz
Networking
- Gigabit Ethernet
Expansion / Connectivity
Interfaces
2 x display / video - DisplayPort - 20 pin DisplayPort (1.4)
1 x display / video - HDMI
1 x USB-C 3.2 Gen 2/DisplayPort
1 x USB 3.2 Gen 2 with PowerShare function
3 USB 3.2 Gen 2 ports
1 x USB-C 3.2 2nd Gen port
1 x network
Cables included
- 1 x USB-C cable - 0.8m
Features
Security lock slot (lock cable sold separately), LAN wake-up, 3 LED indicators, MAC address forwarding, wireless vPro, 96 W power supply, High Bit Rate 3 (HBR3), High Bit Rate 2 (HBR2), Kernel Direct Memory Access Protection (DMA). Kensington nano security slot / Kensington security slot
- 130W power supply
Required operating system
- Windows 10, Windows 11, Ubuntu 20.04 or later, Apple macOS 12.21 or later, Google Chrome OS 100 or later
Bundled services: 3-year advanced replacement service and limited hardware warranty
