- Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base

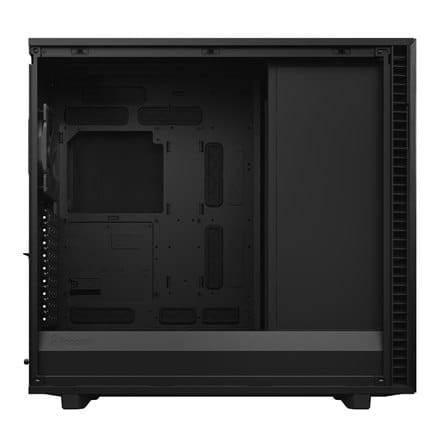

- Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
- Two 5.25 ODD bays can be converted to an additional front fan mount with filtered louver covering
- Ventilated PSU shroud with two-part removable cover
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
- Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)
- Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
- Sturdy new HDD cage design with vibration damped trays
- 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size

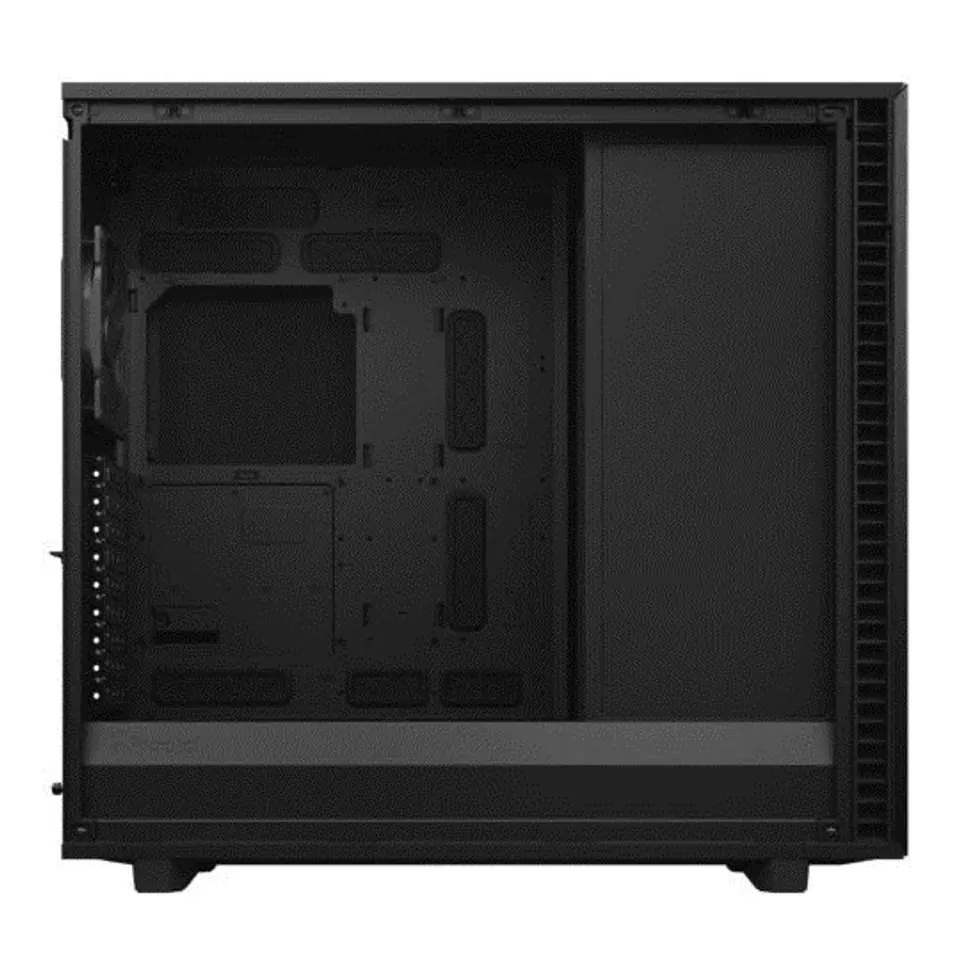

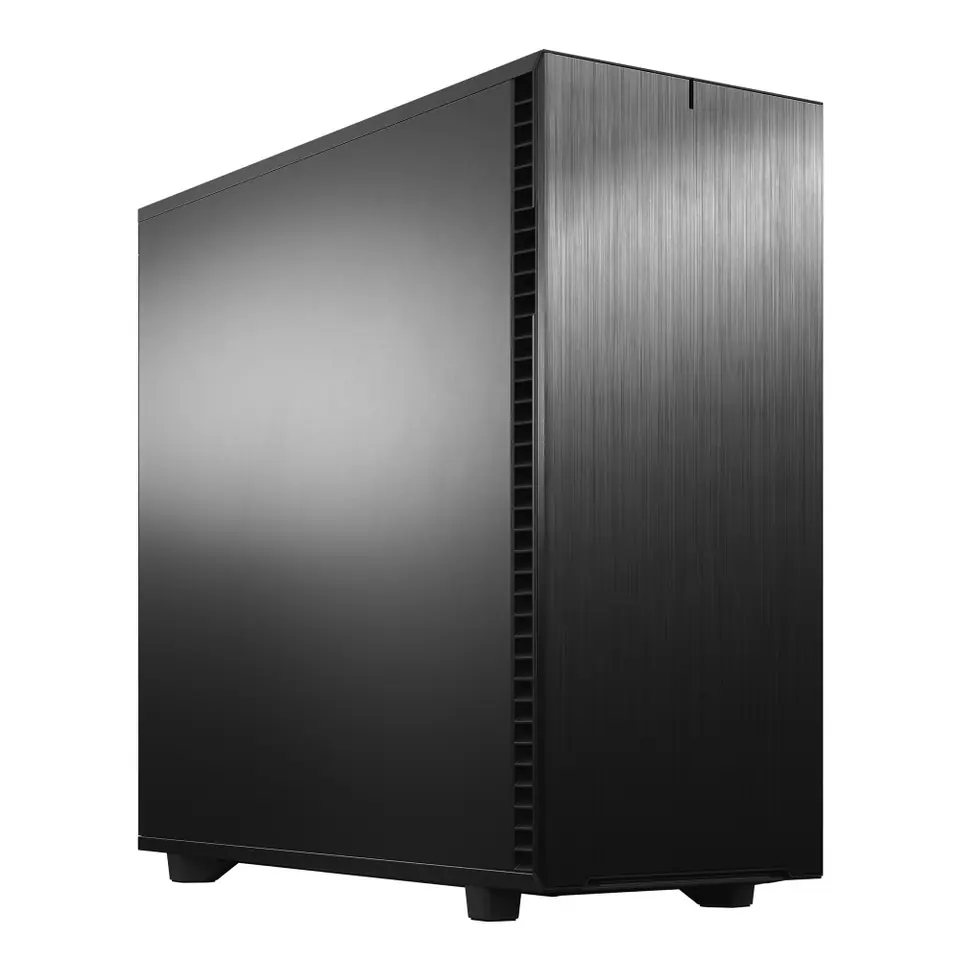

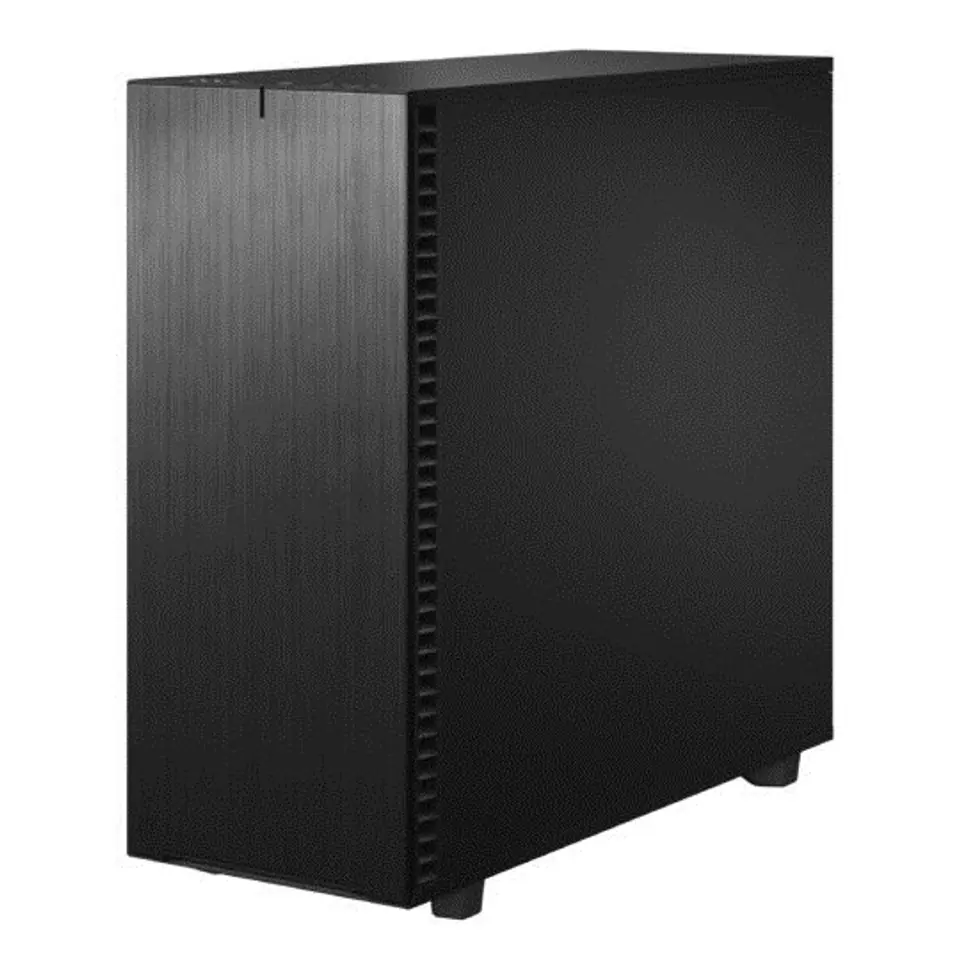

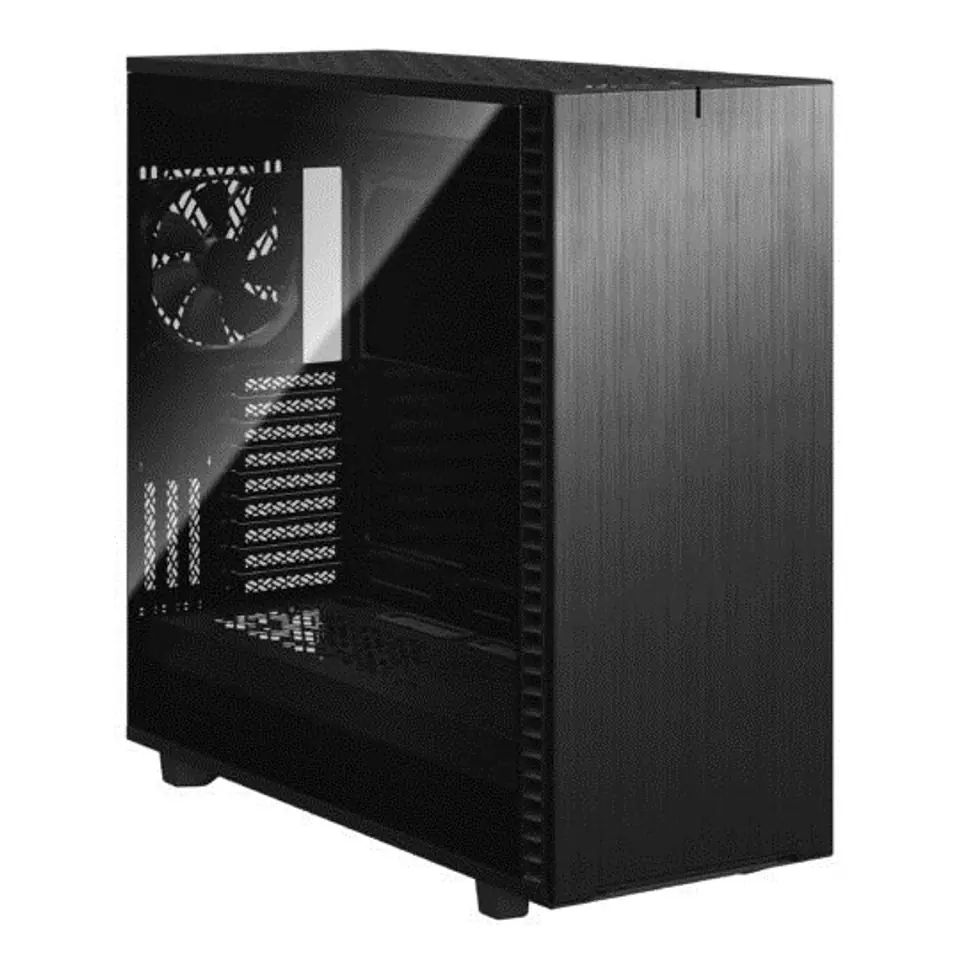

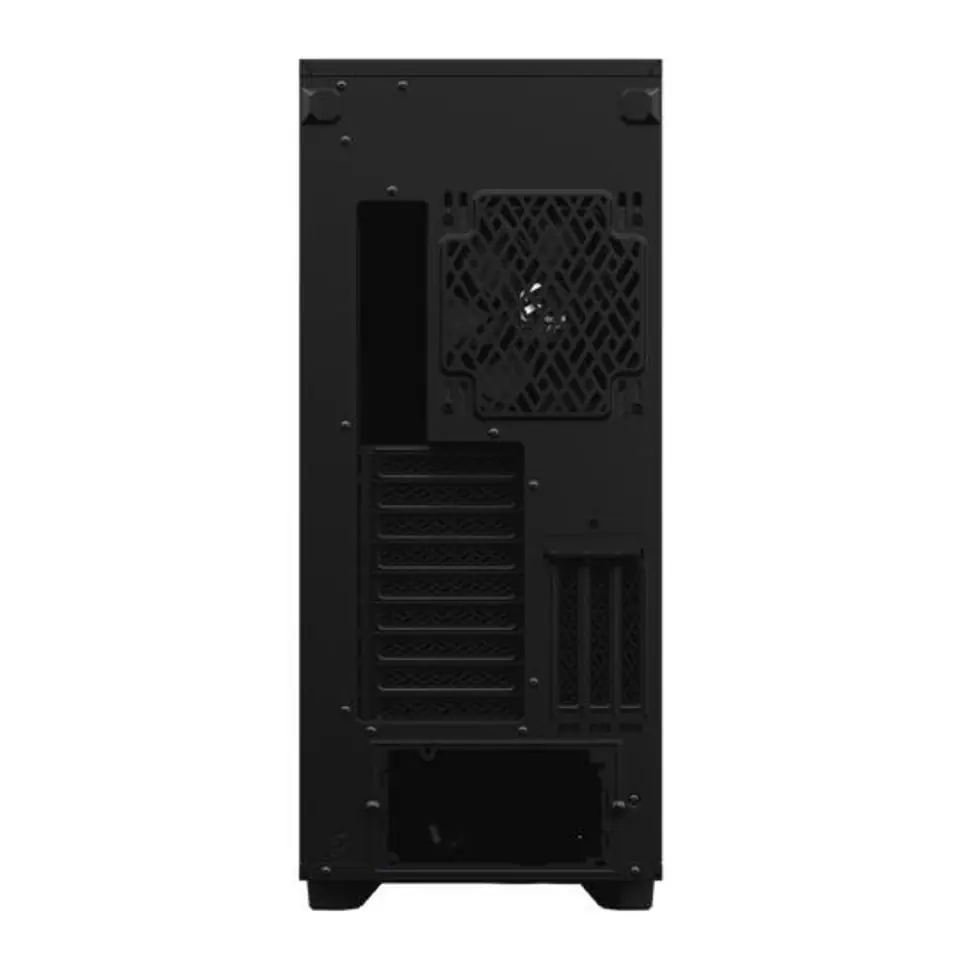

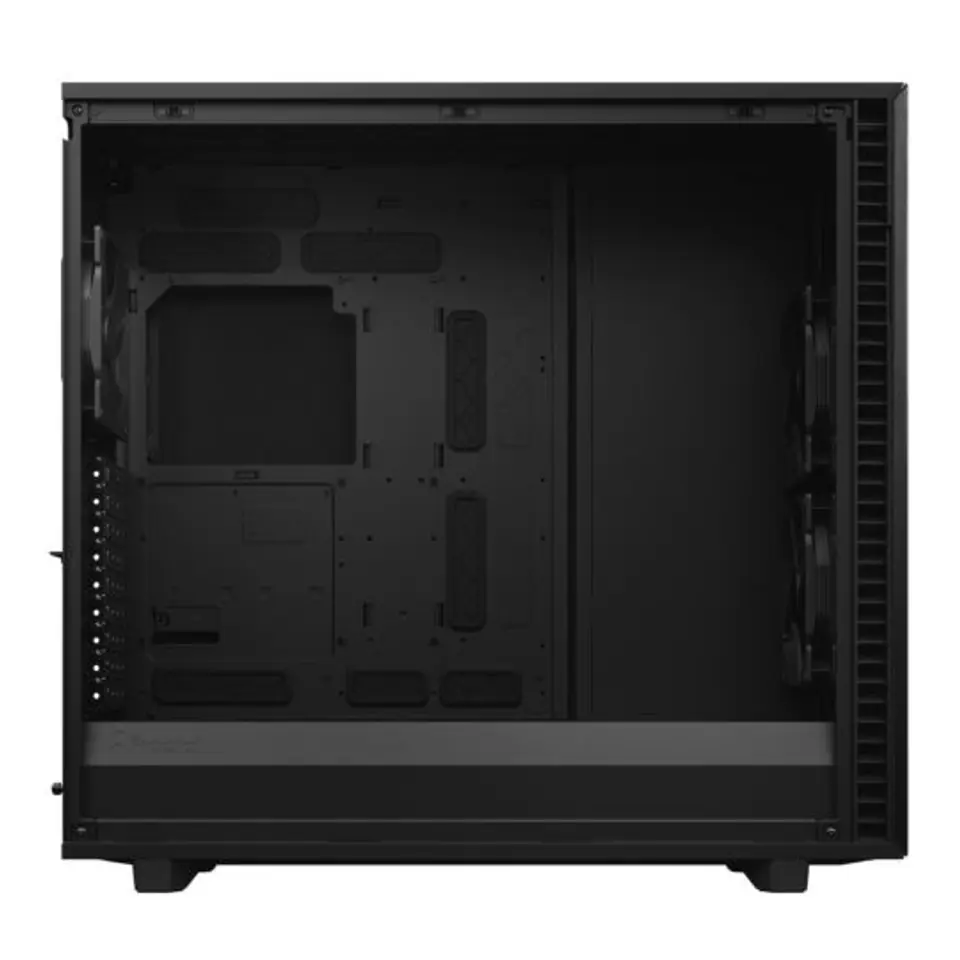

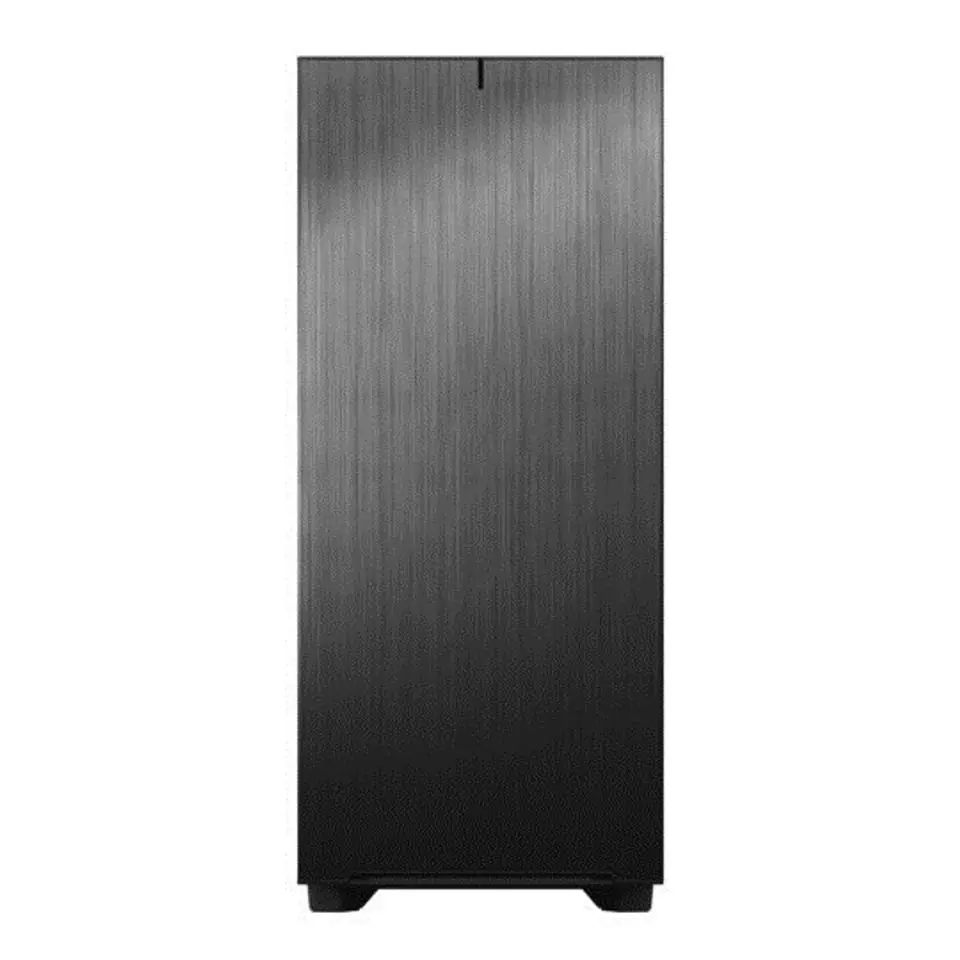

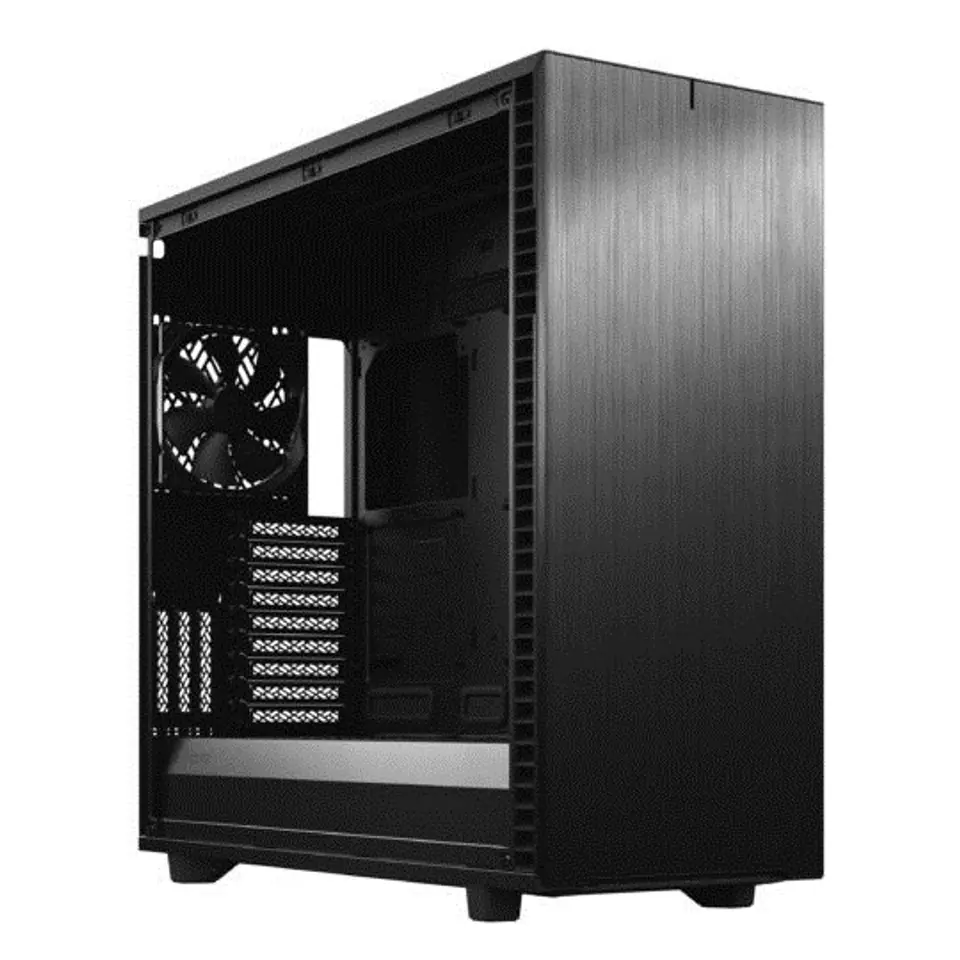

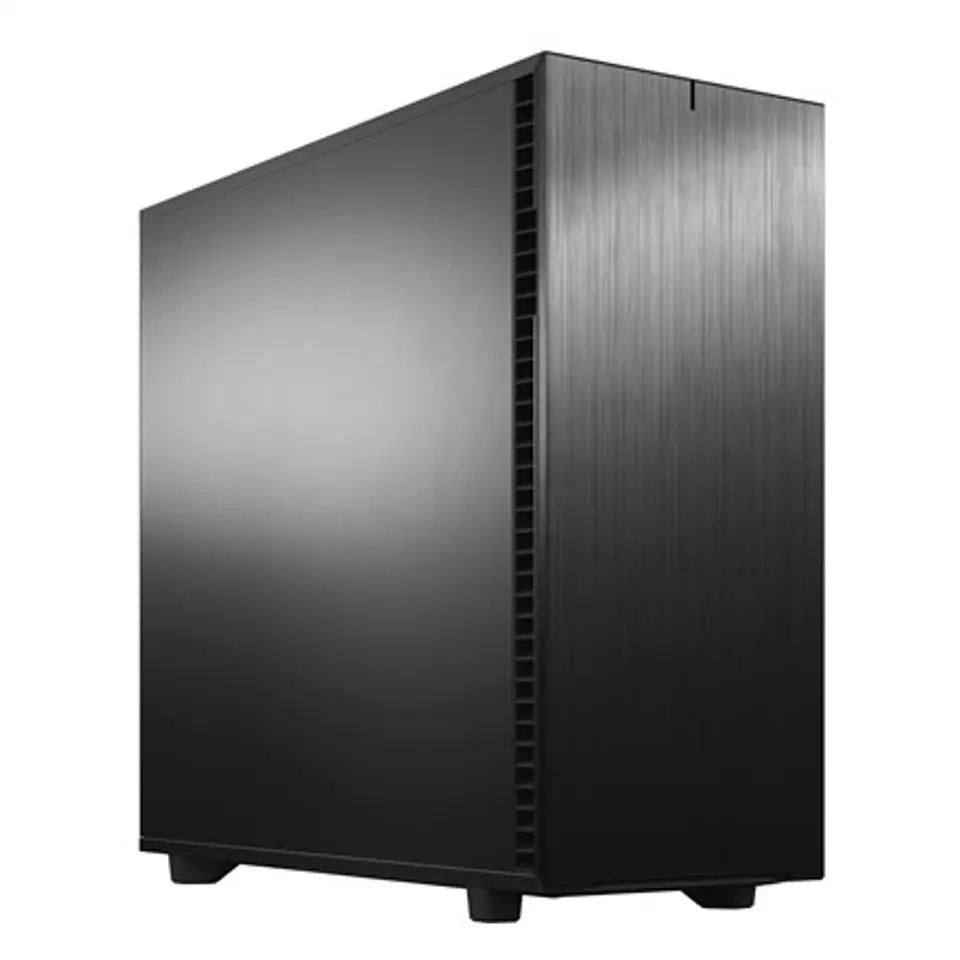

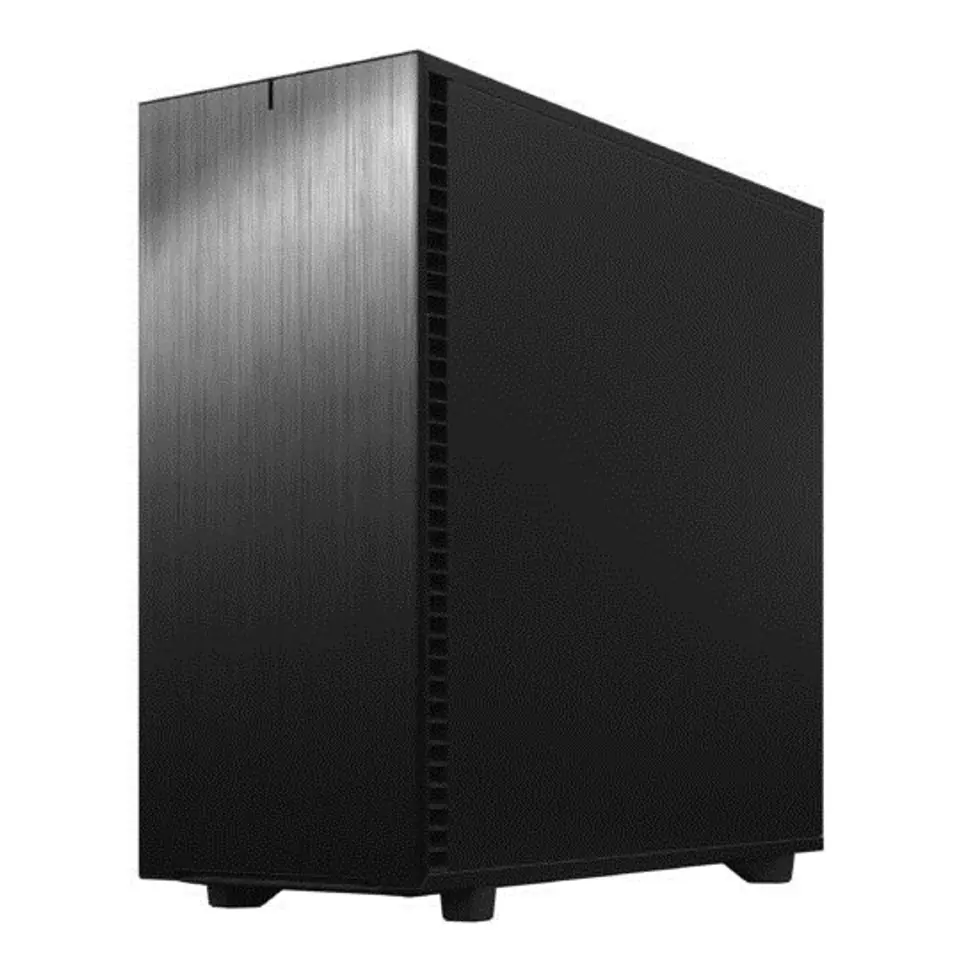

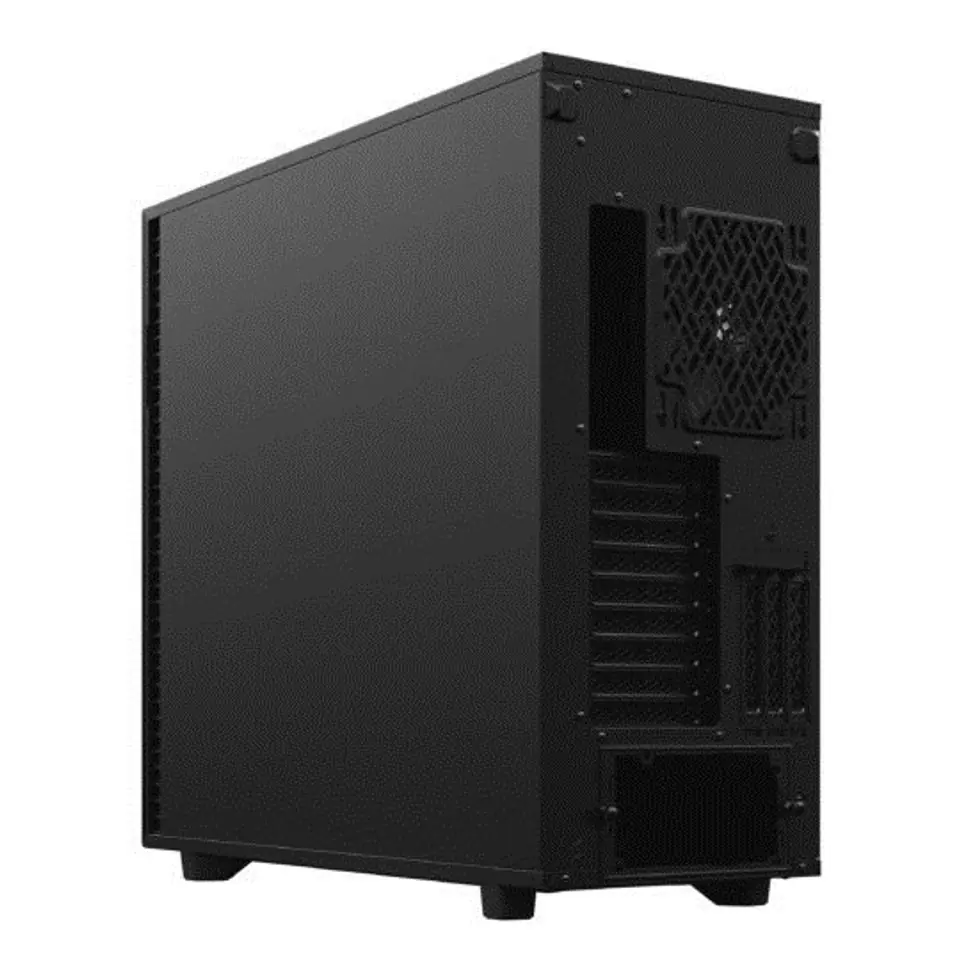

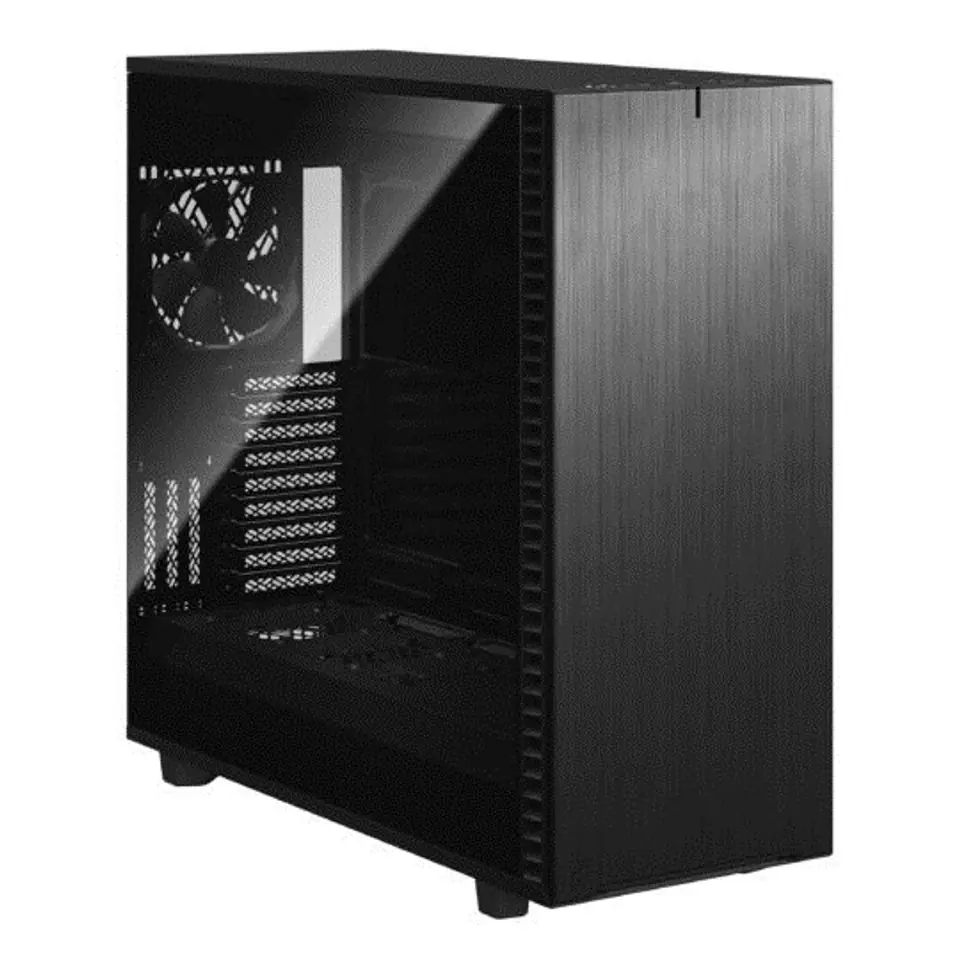

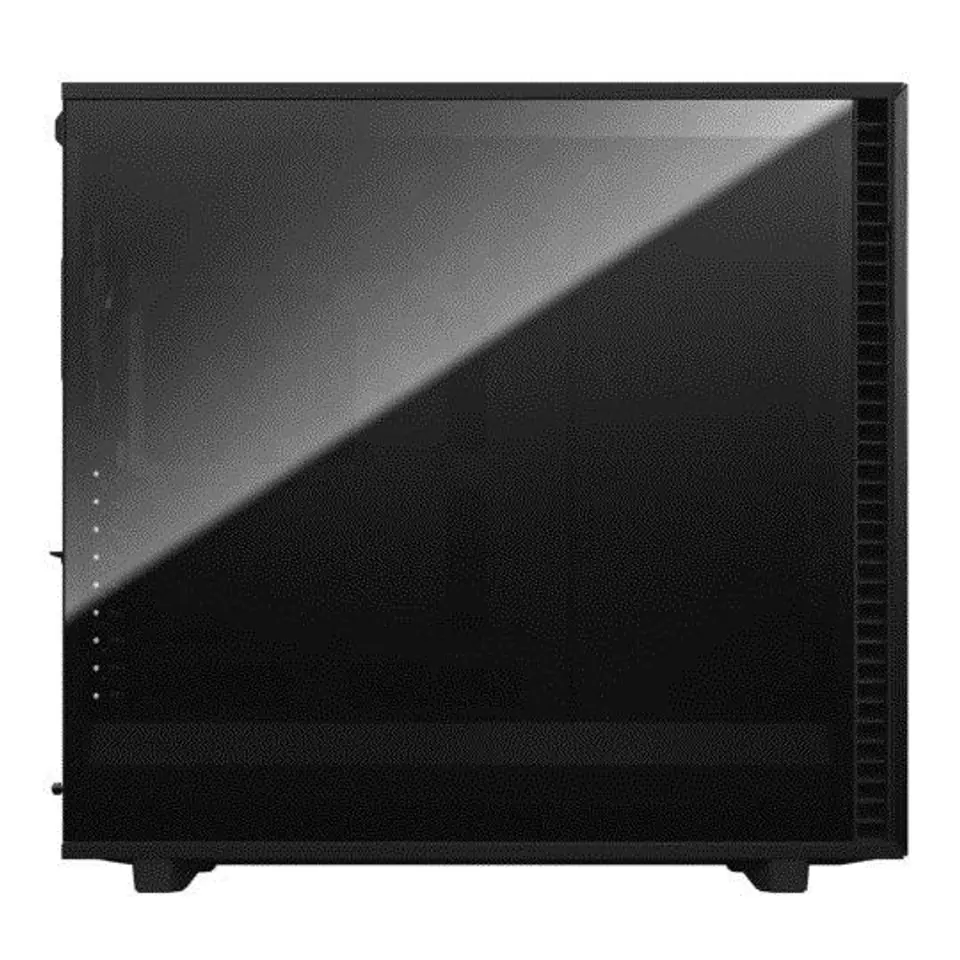

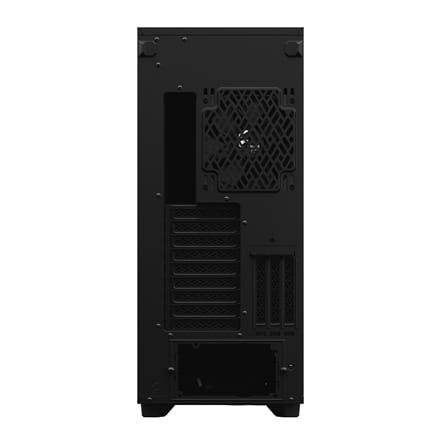

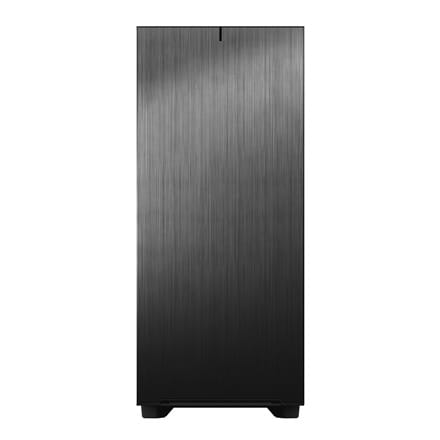

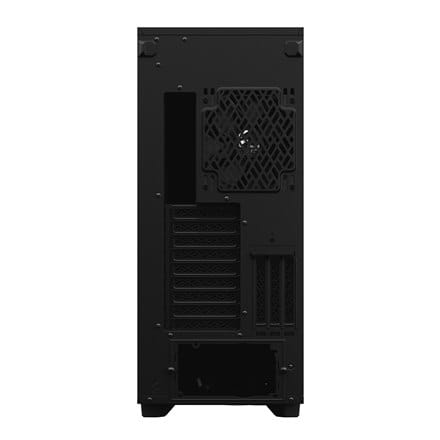

Define XL Black Solid ATX
€296.05
Shipping from warehouse: A1
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Fractal Design
- Product code:
- FD-C-DEF7X-01 / 7340172702047
Share this product:
Specification
| Audio input: | Yes |
|---|---|
| Audio output: | Yes |
| Bottom fans diameters supported: | 120, 140 |
| Bottom radiator fan sizes supported: | 240, 280 mm |
| Bottom radiator sizes supported: | 240, 280 |
| Cable management: | Y |
| Depth: | 604 mm |
| Form factor: | Midi Tower |
| Front fans diameters supported: | 120, 140 |
| Front radiator fan sizes supported: | 480 mm, 420 |
| Front radiator installed: | N |
| Front radiator sizes supported: | 480 mm, 420 mm |
| Harmonized system (hs) code: | 84733080 |
| Height: | 566 mm |
| Material: | Steel |
| Maximum cpu cooler height: | 18.5 cm |
| Maximum graphics card length: | 54.9 cm |
| Maximum psu length: | 25 cm |
| Number of 5.25" bays: | 2 |
| Number of bottom fans supported (max): | 2 |
| Number of expansion slots: | 12 |
| Number of front fans supported (max): | 4 |
| Number of power supply units: | 1 |
| Number of rear fans supported (max): | 1 |
| Number of top fans supported (max): | 4 |
| Package depth: | 646 mm |
| Package height: | 708 mm |
| Package weight: | 18.8 kg |
| Package width: | 357 mm |
| Power supply included: | N |
| Product colour: | Black |
| Rear fans diameters supported: | 120, 140 mm |
| Rear radiator fan size installed: | 120 |
| Rear radiator installed: | Y |
| Rear radiator type: | Single radiator |
| Side window: | N |
| Supported hdd sizes: | 3.5", 2.5 |
| Supported motherboard form factors: | SSI EEB, SSI CEB, micro ATX, Mini-ITX, EATX, ATX |
| Supported power supply form factors: | ATX |
| Top fans diameters supported: | 120 mm, 140 mm |
| Top radiator fan sizes supported: | 420 mm, 480 mm |
| Top radiator installed: | N |
| Top radiator sizes supported: | 420, 480 mm |
| Type: | PC |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Weight: | 16.6 kg |
| Width: | 240 mm |
