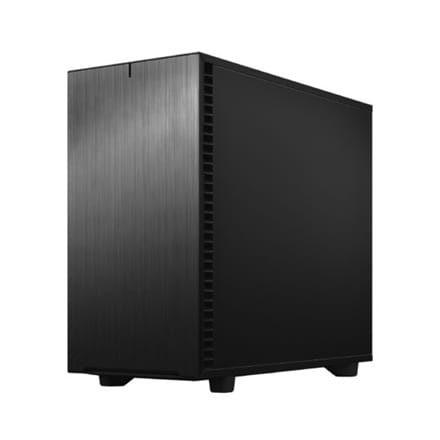

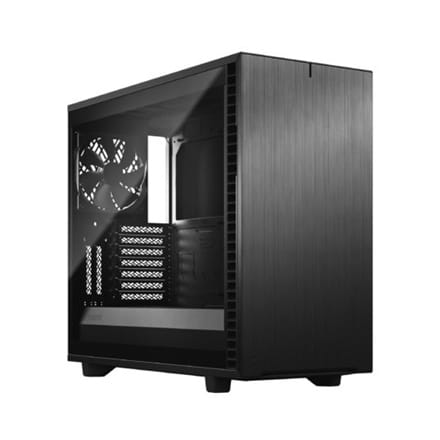

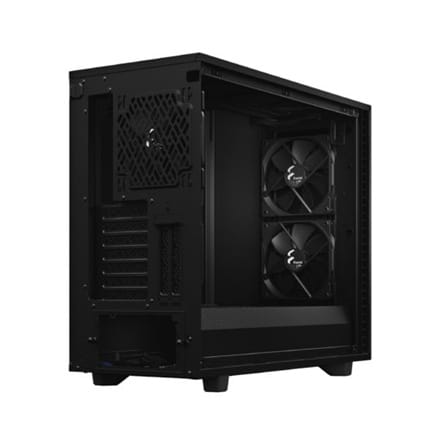

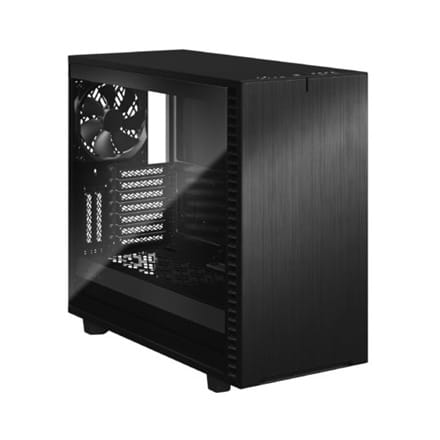

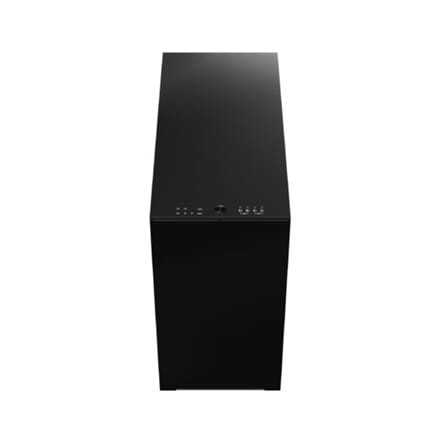

Define 7 Black TG Light Tint ATX

This product is not available
Availability:
expected delivery
Brand:
Fractal Design
Product code:
FD-C-DEF7A-02 / 7340172702207

Specification

Anti-dust filter:Yes
Bottom radiator fan sizes supported:240, 280 mm
Bottom radiator sizes supported:240 mm, 280
Cable management:Yes
Depth:240 mm
Form factor:Midi Tower
Front fans diameters supported:120, 140 mm
Front radiator installed:No
Front radiator sizes supported:280, 360 mm
Harmonized system (hs) code:84733080
Height:451 mm
Led indicators:Yes
Manual:Yes
Material:Aluminium, Steel
Maximum cpu cooler height:18.5 cm
Maximum graphics card length:49.1 cm
Maximum psu length:25 cm
Number of 3.5" bays:6
Number of 5.25" bays:1
Number of expansion slots:9
Number of front fans supported (max):3
Number of power supply units:1
Number of rear fans supported (max):1
Number of top fans supported (max):3
On/off button:Yes
Power supply included:No
Product colour:Black
Rear fans diameters supported:120, 140 mm
Rear radiator fan size installed:120
Rear radiator installed:Yes
Reset button:Yes
Side window:Yes
Supported hdd sizes:5.25", 3.5", 2.5
Supported motherboard form factors:Micro-ITX, EATX, micro ATX, ATX
Supported power supply form factors:ATX
Tempered glass panel(s):Yes
Top fans diameters supported:120, 140 mm
Top radiator installed:No
Top radiator sizes supported:420 mm, 360 mm
Type:PC
Usb 2.0 ports quantity:2
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:2
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:1
Weight:13.4 kg
Width:533 mm

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.

Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.

  • Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
  • Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
  • The single 5.25 ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering

Youll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

  • Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
  • Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
