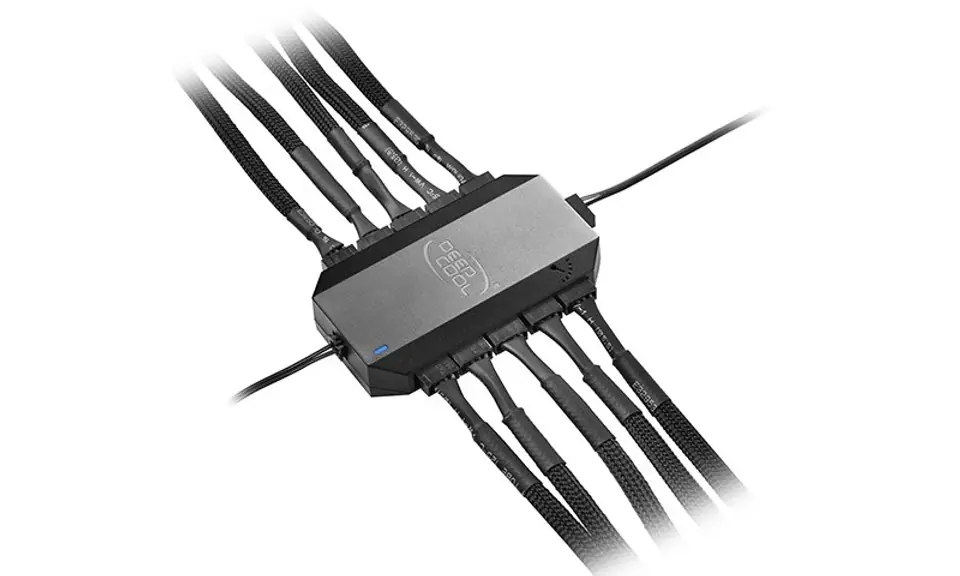

10-port fan hub
The FH-10 is a brand new integrated Deepcool fan hub that can power up to 10 fans (3-pin or 4-pin) with PWM modulation, occupying only one 4-pin motherboard
The FH-10 Fan Hub allows users to fully fill the chassis with fans while maintaining clean and efficient cable management.
At the same time, the blue LED makes it an attractive choice for both cooling performance enthusiasts and users looking for a hassle-free installation.
Supports up to 10 independent fans
The ability to deploy up to 10 fans allows users to significantly expand the cooling capabilities of the chassis and enjoy better system performance.
Stable SATA power consumption
Powered by a stable SATA connection to the system power supply, the FH-10 provides safe and reliable power for up to 10 fans.
PWM design
Each port has its own PWM function, and the fan speed can be adjusted at the same time, but the system can only identify fan speed 1.
Optimized cable management
The fan hub can be easily attached with a screw and Velcro, keeping the cables clean and keeping the fan hub in place.
Specification:
Overall dimension 80 x 46 x 15 mm
Net weight 40g
Rated voltage 12VDC
Fan port 4PINX10
SATAX1 power port
