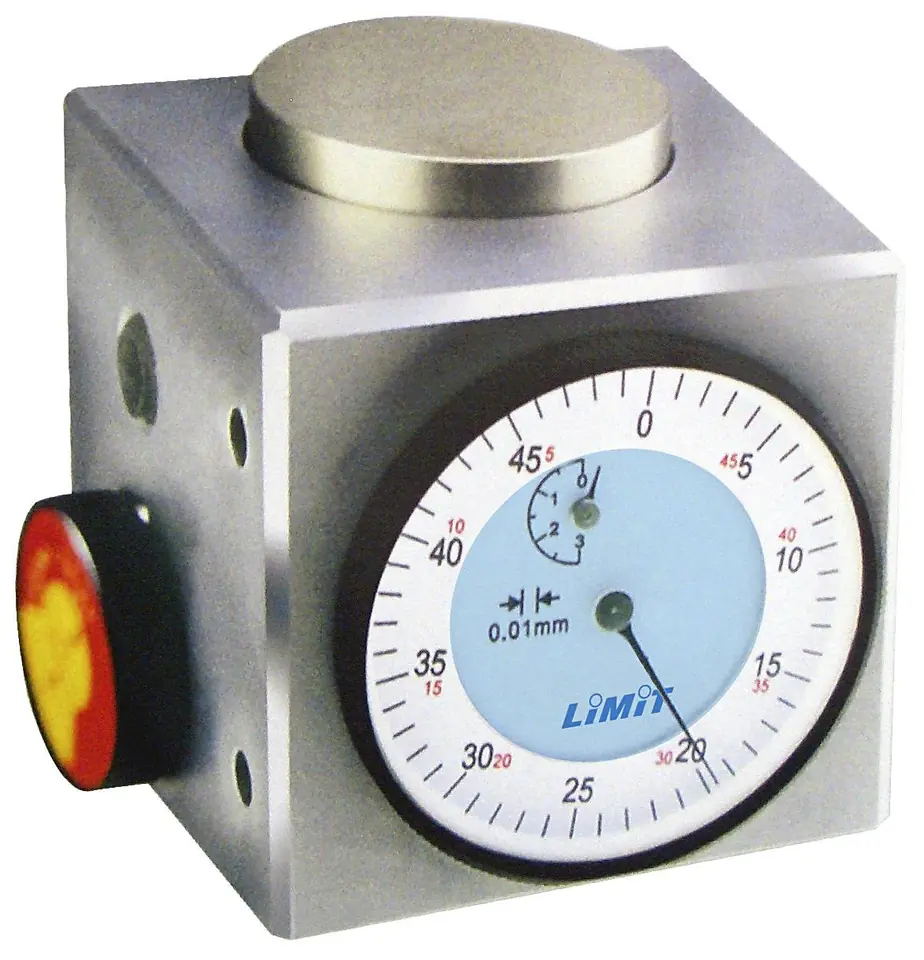

A block used to set the position of the tool relative to the workpiece, or relative to the table of the milling machine or drill. The dial gauge signals the moment of touching the spring-suspended block plate. At the indication "0" the distance is 50 mm. The magnet located in the base allows use in a vertical or horizontal position. The block is equipped with a calibration mechanism.
DDQ 50 Limit setting block
€268.21
Shipping from warehouse: B6
Estimated shipping: Thu, Jan 23 - Mon, Jan 27
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- LIMIT
- Product code:
- 153200100 / 7311662159511
Share this product:
Specification
| Dial gauge resolution (mm): | 0.0100 |
|---|---|
| Height (mm): | 50 |
| Item number: | 153200100 |
| Length (mm): | 50.00 |
| Package dimensions (mm): | 82x110x130 |
| Package quantity (pcs): | 1 |
| Plate stroke (mm): | 4.0000 |
| Width (mm): | 50.00 |
