| Analog signal format system: | NTSC, PAL |
|---|---|
| Audio formats supported: | G.711 μ-law, PCM, G.711 A-law |

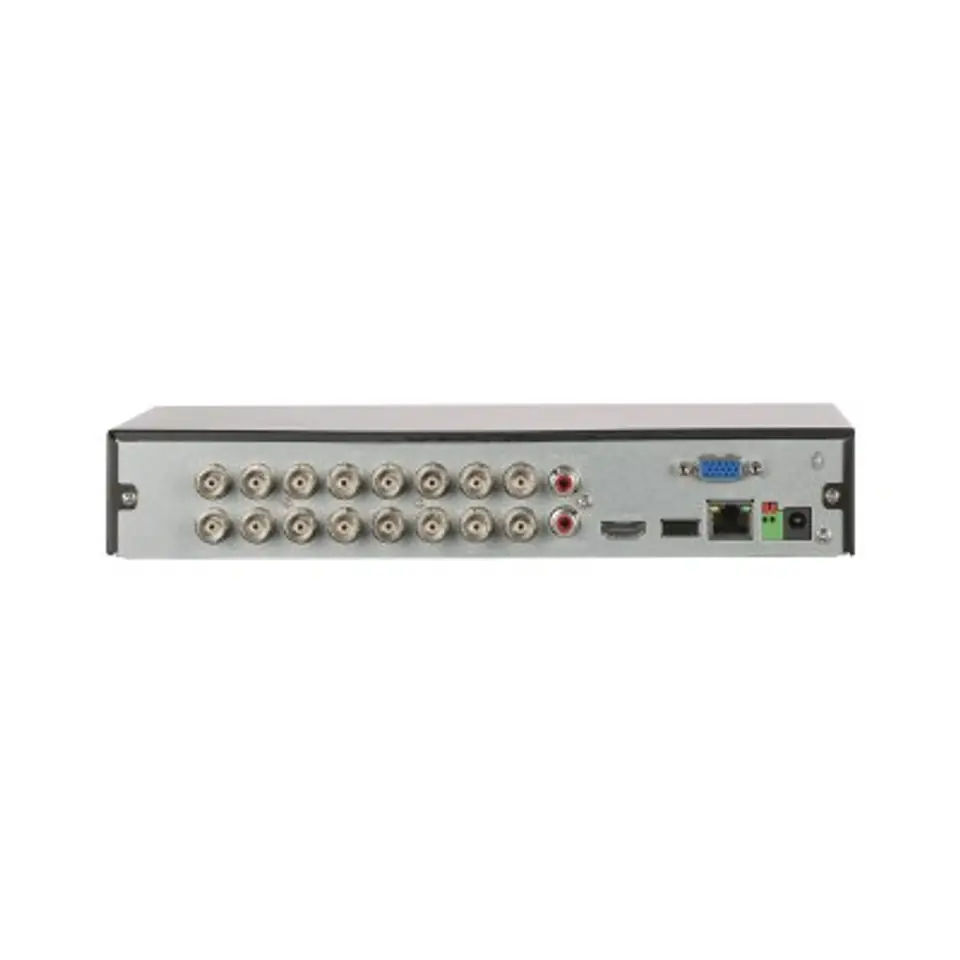

| Audio input: | 1 RCA |
| Audio output: | 1 RCA |
| Backup function: | Yes |
| Bit rate: | 32 – 6144 Kbit/s |

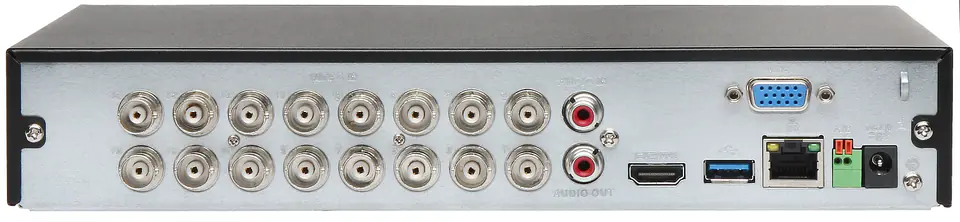

| Bnc input ports: | 16 |
| Channels quantity: | 16 channels |
| Dc voltage: | 12 V |
| Depth: | 237.4 mm |
| Dual stream support: | Yes |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Hdd interface: | SATA III |
| Hdmi ports quantity: | 1 |
| Height: | 47.6 mm |
| Maximum hdd capacity: | 16 TB |
| Maximum resolution of supported cameras: | 6 Mpix |
| Maximum video resolution: | 3840 x 2160 pixels |
| Number of hdds supported: | 1 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating system installed: | Embedded LINUX |
| Operating temperature (t-t): | -10 - 55 °C |
| Package depth: | 333 mm |
| Package height: | 315 mm |
| Package width: | 89 mm |
| Power supply type: | DC |
| Product colour: | Black |
| Ptz control: | Yes |
| Rack capacity: | 1U |
| Rs-485 ports: | 1 |
| Supported network protocols: | HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Usb 2.0 ports quantity: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 1 |
| Vga (d-sub) output ports: | 1 |
| Video capturing speed (ntsc): | 30 fps |
| Video capturing speed (pal): | 25 fps |
| Video compression formats: | H.265+, H.264+, H.265, H.264 |
| Video in: | HDCVI/AHD/TVI/CVBS/IP |
| Video loss detection: | Yes |
| Video motion detection: | Yes |
| Video streaming: | Yes |
| Weight: | 1.17 kg |
| Width: | 260 mm |

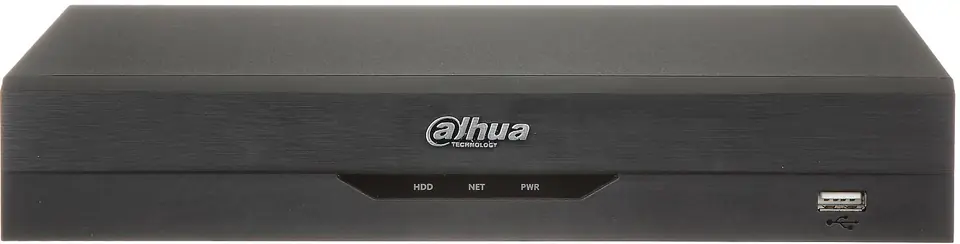

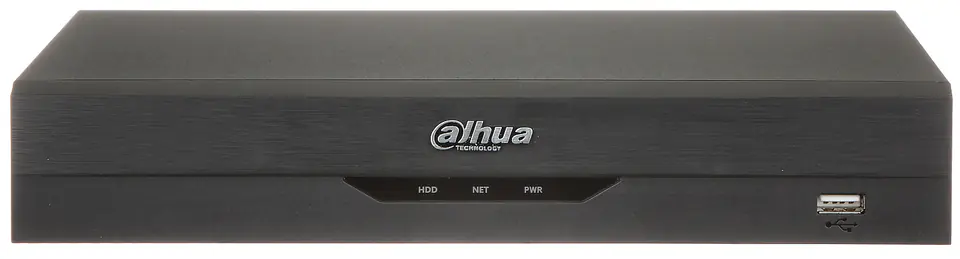

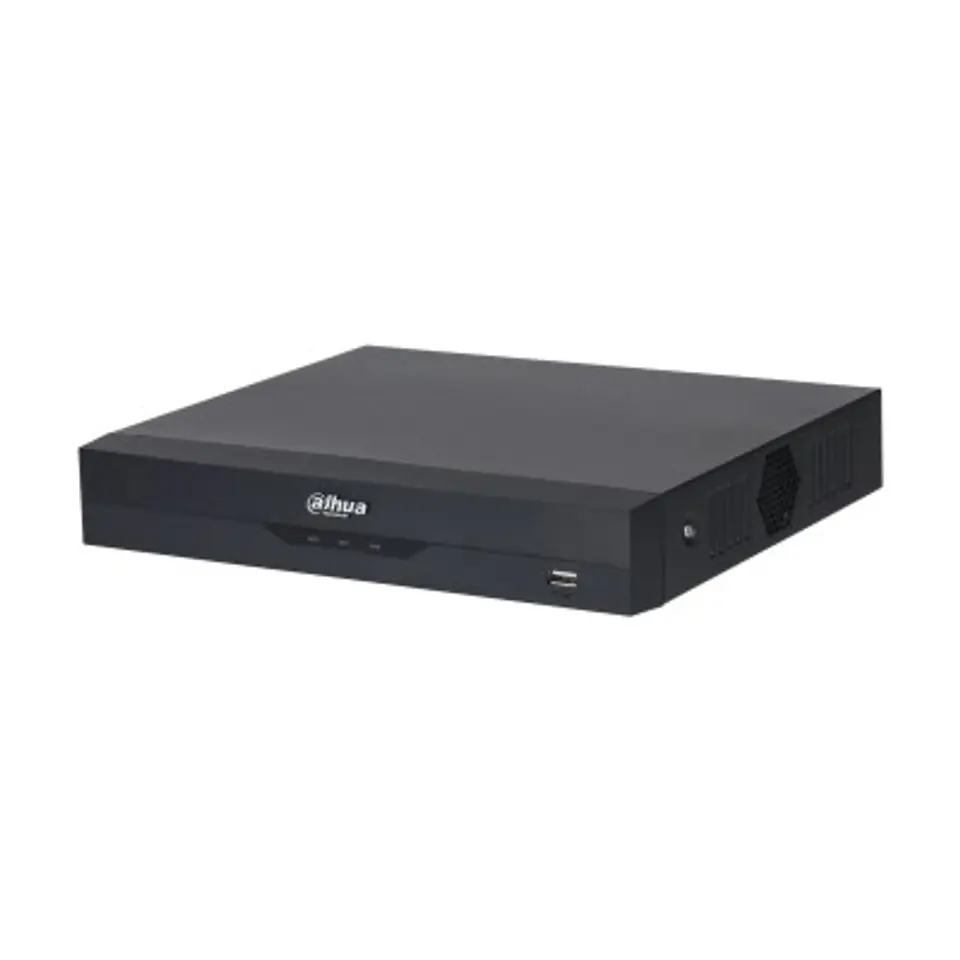

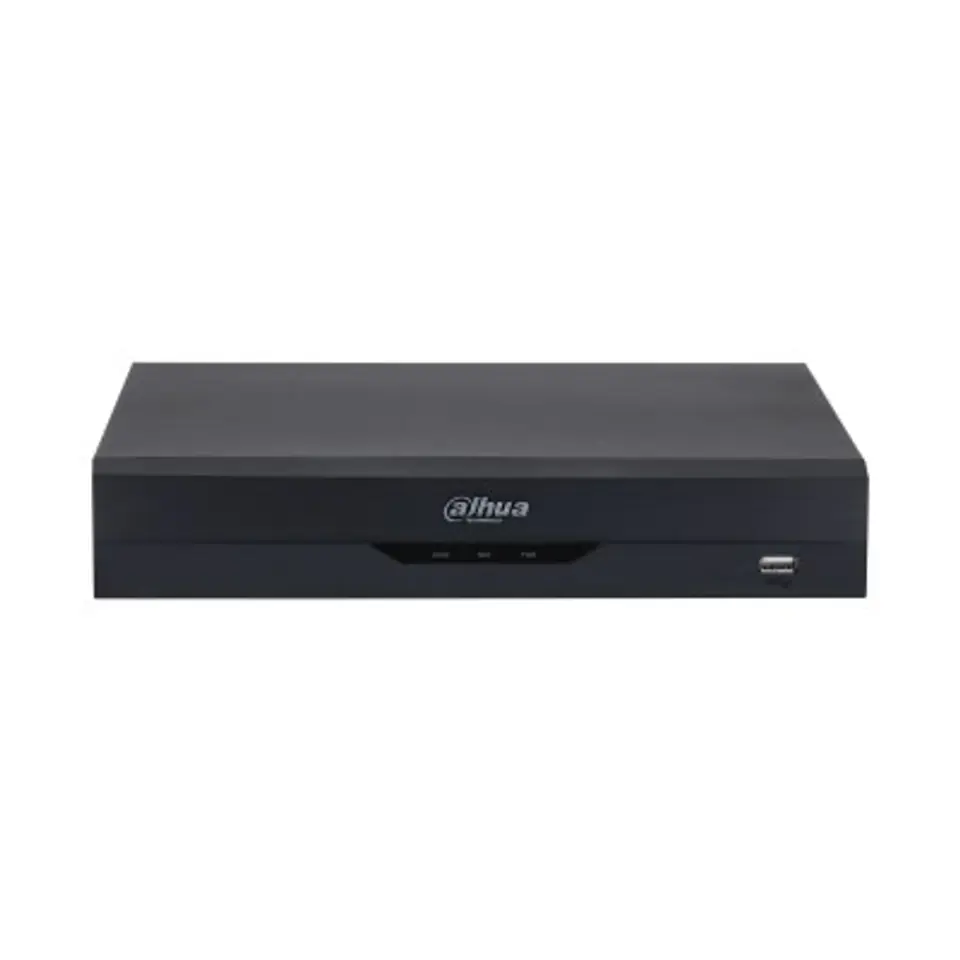

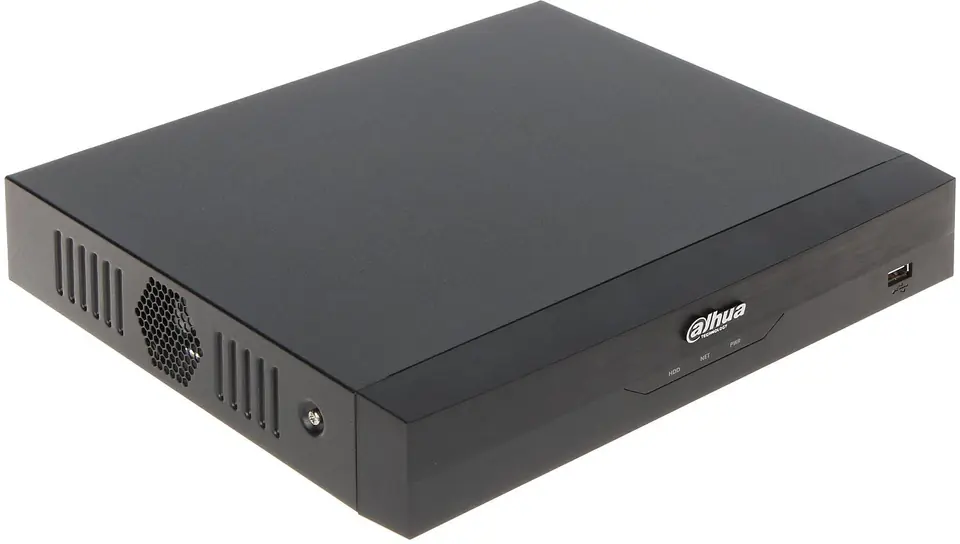

Rejestrator cyfrowy XVR5116HS-I3 z interfejsem AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP oraz CVBS, to profesjonalne urządzenie stosowane w instalacjach monitoringu

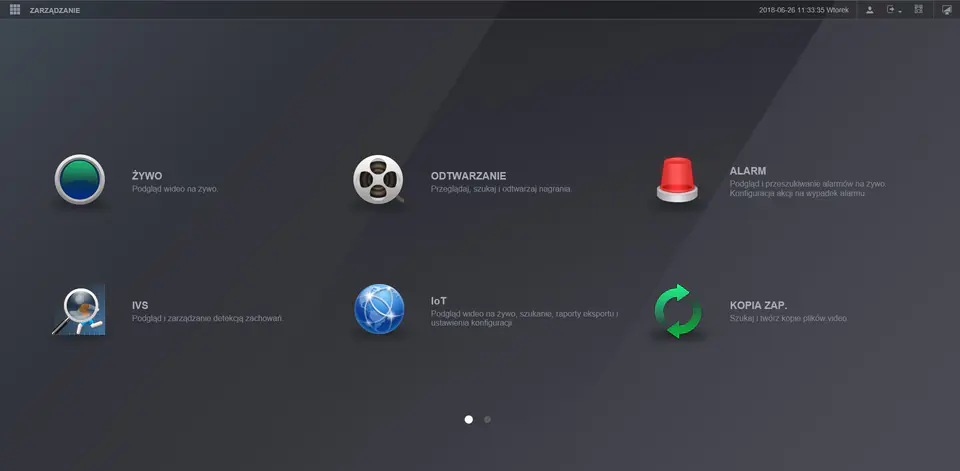

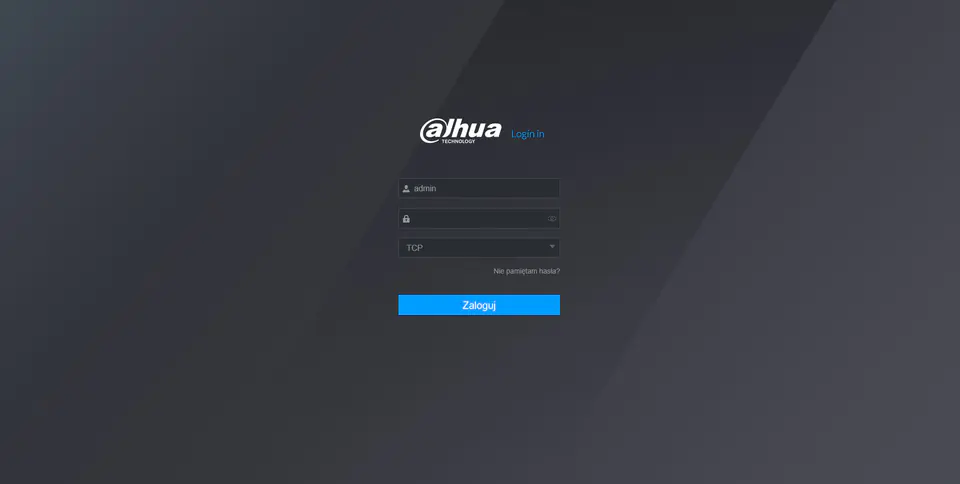

Menu zostało zaprojektowane w sposób ułatwiający każdemu, nawet początkującemu użytkownikowi nawigację i wprowadzanie zmian w ustawieniach rejestratora
