| Analog signal format system: | NTSC, PAL |
|---|---|
| Audio formats supported: | PCM, G.711 A-law, G.711 μ-law |
| Audio input: | 1 |
| Audio output: | 1 |
| Audio system: | 2-way |
| Backup function: | Yes |

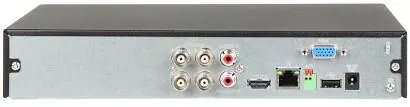

| Bnc input ports: | 4 |
| Bnc output ports: | 1 |
| Built-in memory: | No |
| Built-in processor: | Yes |
| Channels quantity: | 4 channels |
| Dc voltage: | 12 V |
| Depth: | 237.9 mm |
| Dual stream support: | Yes |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Hdd interface: | SATA |
| Hdmi ports quantity: | 1 |
| Height: | 47.6 mm |
| Maximum frame rate: | 60 fps |
| Maximum hdd capacity: | 16 TB |
| Maximum resolution of supported cameras: | 6 Mpix |
| Maximum video resolution: | 1920 x 1080 pixels |
| Number of hdds supported: | 1 |
| Operating relative humidity (h-h): | 0 - 90% |
| Operating system installed: | Embedded LINUX |
| Operating temperature (t-t): | -10 - 55 °C |
| Package depth: | 315 mm |
| Package height: | 89 mm |
| Package weight: | 1.4 kg |
| Package width: | 330 mm |
| Playback modes: | Smart, Instant, Event, General, Tag |
| Power consumption (typical): | 4 W |
| Power supply type: | DC |
| Product colour: | Black |
| Ptz control: | Yes |
| Rack capacity: | 1U |
| Rs-485 ports: | 1 |
| Supported cameras: | TVI, CVBS, IP, HDCVI, AHD |
| Supported network protocols: | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Usb 2.0 ports quantity: | 2 |
| Vga (d-sub) output ports: | 1 |
| Video capturing speed: | 30 fps |
| Video compression formats: | H.264+, H.264, H.265, H.265+ |
| Video in: | 4 |
| Video input channels: | 4 channels |
| Video loss detection: | Yes |
| Video motion detection: | Yes |
| Video streaming: | Yes |
| Weight: | 1 kg |
| Width: | 260 mm |

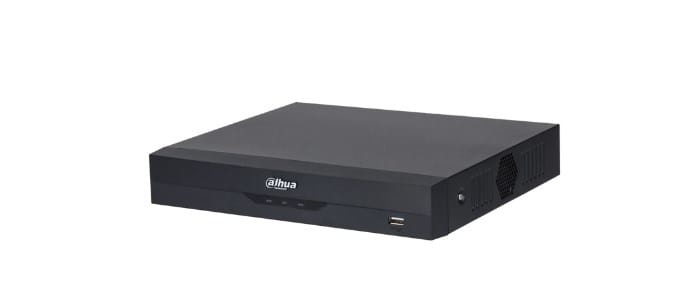

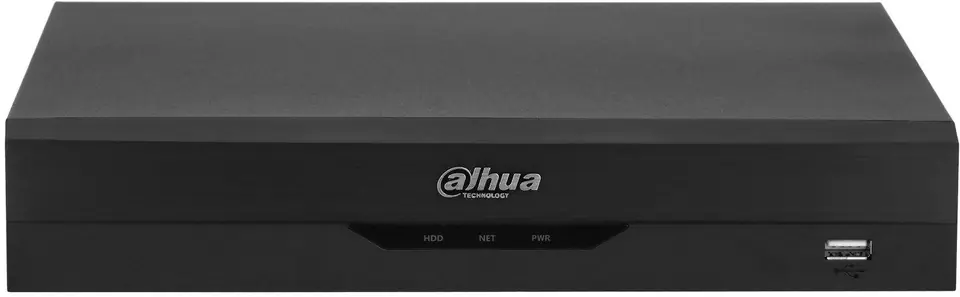

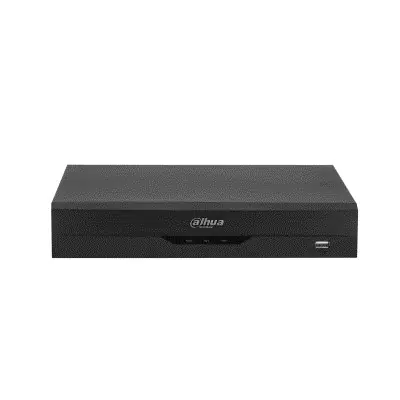

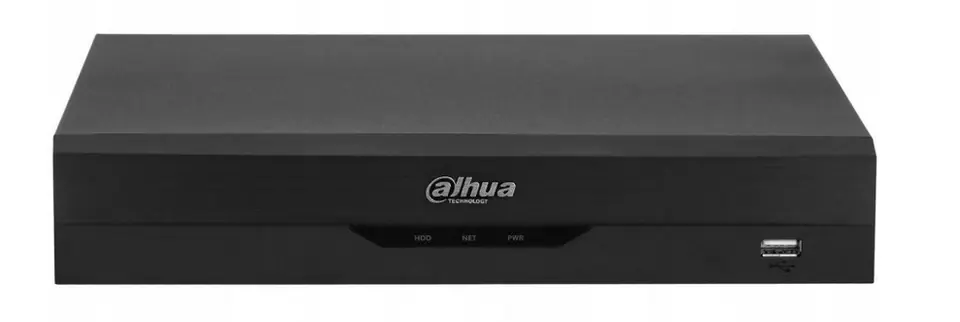

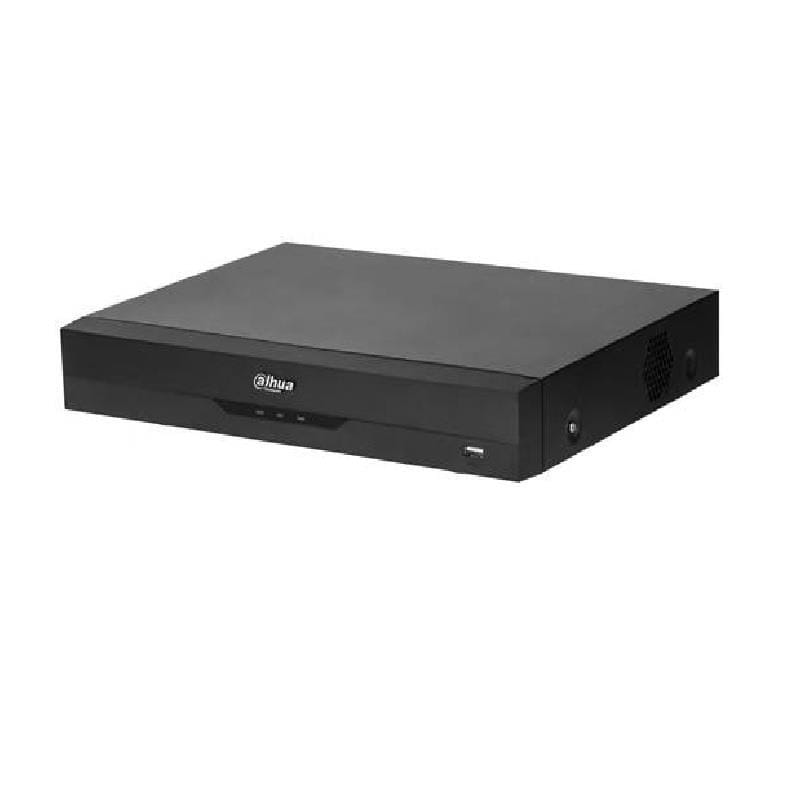

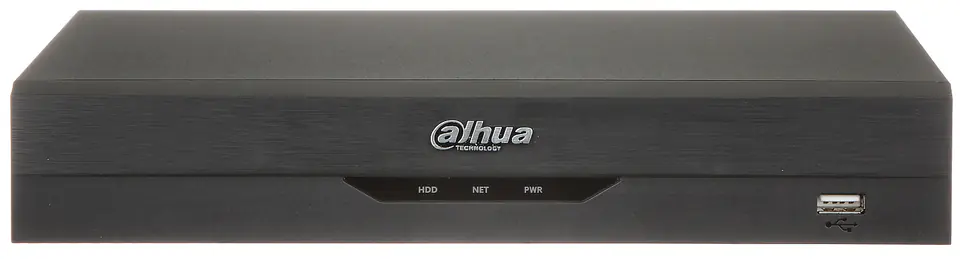

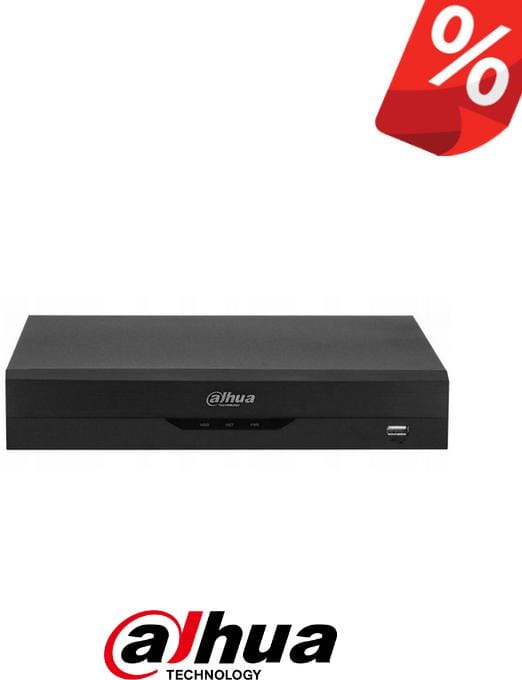

Rejestrator cyfrowy XVR5104HS-I3 z interfejsem AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP oraz CVBS, to profesjonalne urządzenie stosowane w instalacjach monitoringu

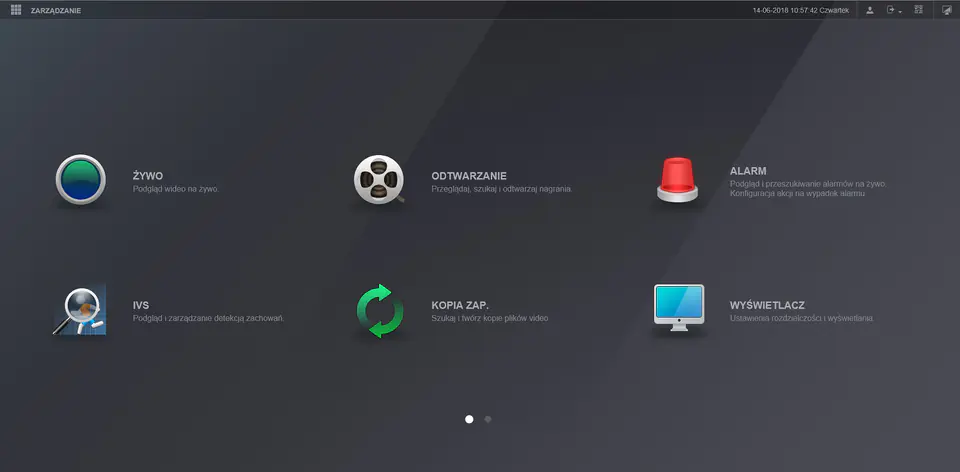

Menu zostało zaprojektowane w sposób ułatwiający każdemu, nawet początkującemu użytkownikowi nawigację i wprowadzanie zmian w ustawieniach rejestratora
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
