| Backlight display: | Yes |
|---|---|
| Built-in microphone: | Yes |
| Built-in speaker(s): | Yes |
| Colour: | Yes |
| Connectivity technology: | Wired |
| Depth: | 21.5 mm |
| Display diagonal: | 17.8 cm (7") |
| Display resolution: | 1024 x 600 pixels |
| Display technology: | LCD |
| Ethernet interface type: | Fast Ethernet |

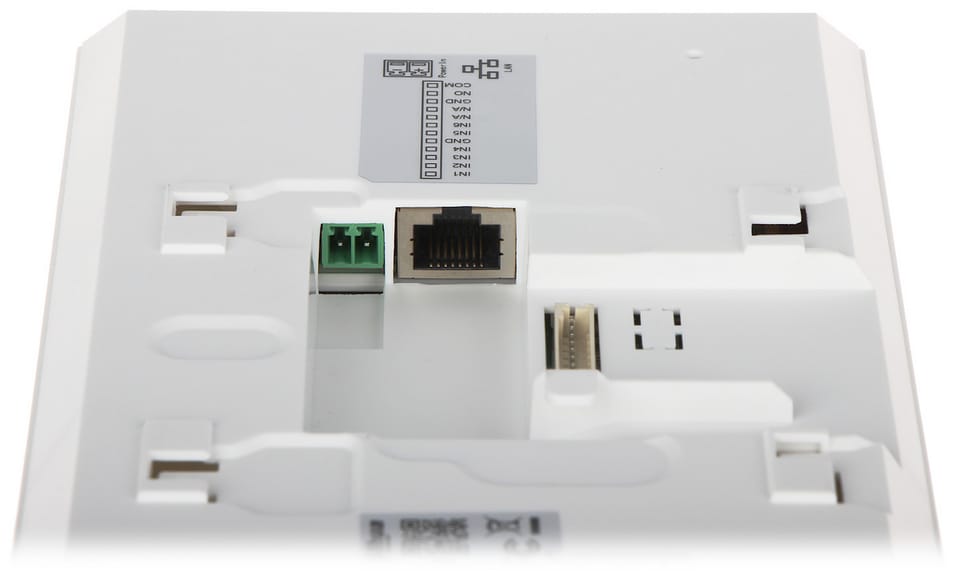

| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10, 100 |
| Height: | 119.6 mm |
| Indoor unit included: | Yes |
| Indoor unit power type: | DC |
| Networking standards: | IEEE 802.3af |
| Number of displays supported: | 1 |
| Number of speakers: | 1 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating system installed: | Linux |
| Operating temperature (t-t): | -10 - 55 °C |
| Outdoor unit included: | No |
| Placement supported: | Horizontal |
| Power consumption (standby): | 1 W |
| Power consumption (typical): | 7 W |
| Product colour: | White, Black |
| Speaker power: | 1.5 W |
| Speakerphone: | Yes |
| Supported network protocols: | TCP/IP |
| Touchscreen: | Yes |
| Touchscreen type: | Capacitive |
| Video codecs: | H.264 |
| Video formats supported: | H.264 |
| Voice codecs: | G.711 |
| Wall mountable: | Yes |
| Weight: | 350 g |
| Width: | 221.5 mm |

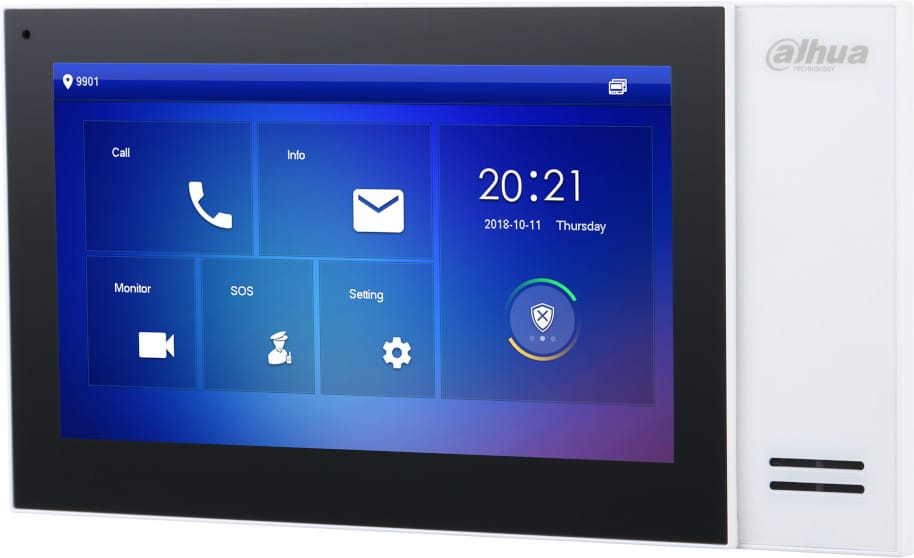

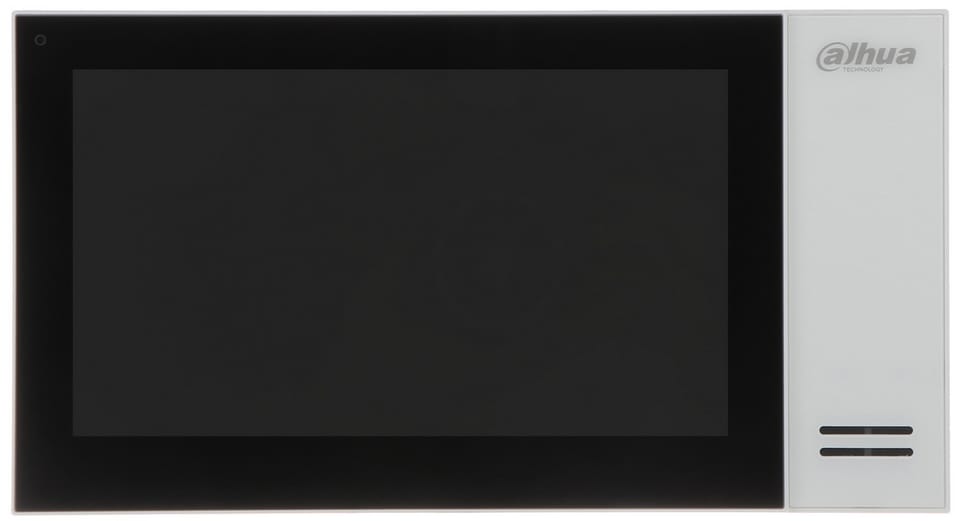

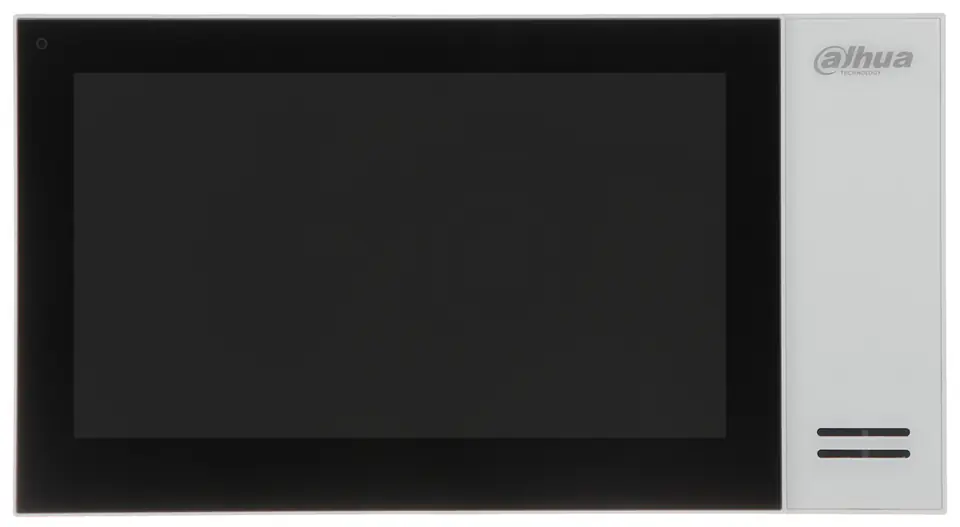

Panel VTH2421FW-P został zaprojektowany z myślą o stworzeniu prostego i efektywnego systemu komunikacji lokalnej

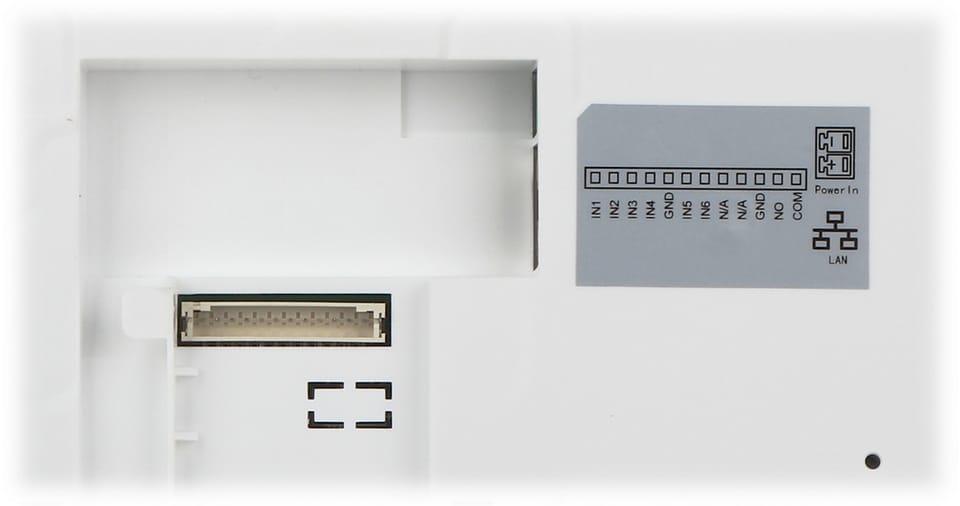

Urządzenie współpracuje z wideodomofonami, oraz innymi panelami w standardzie DAHUA IPMoże również pełnić funkcję uproszczonej centrali alarmowej, lub modułu powiadamiania przez obsługę 6 wejść alarmowych
UWAGA! Urządzenie nie współpracuje z analogowym systemem Dahua
