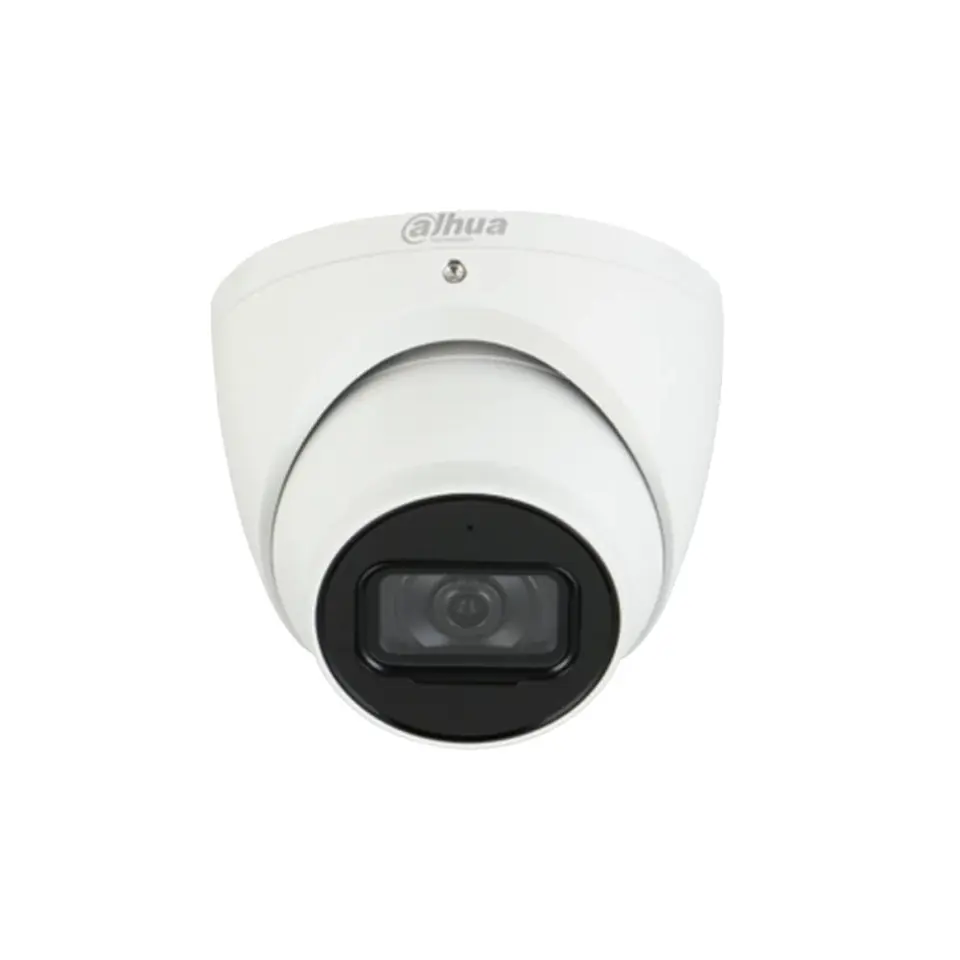

Dahua Technology IPC-HDW5541TM-ASE-0280B security camera Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling
This product is not available
- Availability:
- expected delivery
- Brand:
- Dahua
- Product code:
- IPC-HDW5541TM-ASE-0280B-S3 / 6923172583468
Share this product:
Specification
| Adjustment shutter speed: | Auto/Manual |
|---|---|
| Angle of rotation: | 360° |
| Back light compensation (blc): | Yes |
| Bit rate: | 32 Kbps–8192 Kbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | No |
| Built-in microphone: | Yes |
| Camera shutter speed: | 1/3 s–1/100000 s |
| Camera shutter type: | Electronic |

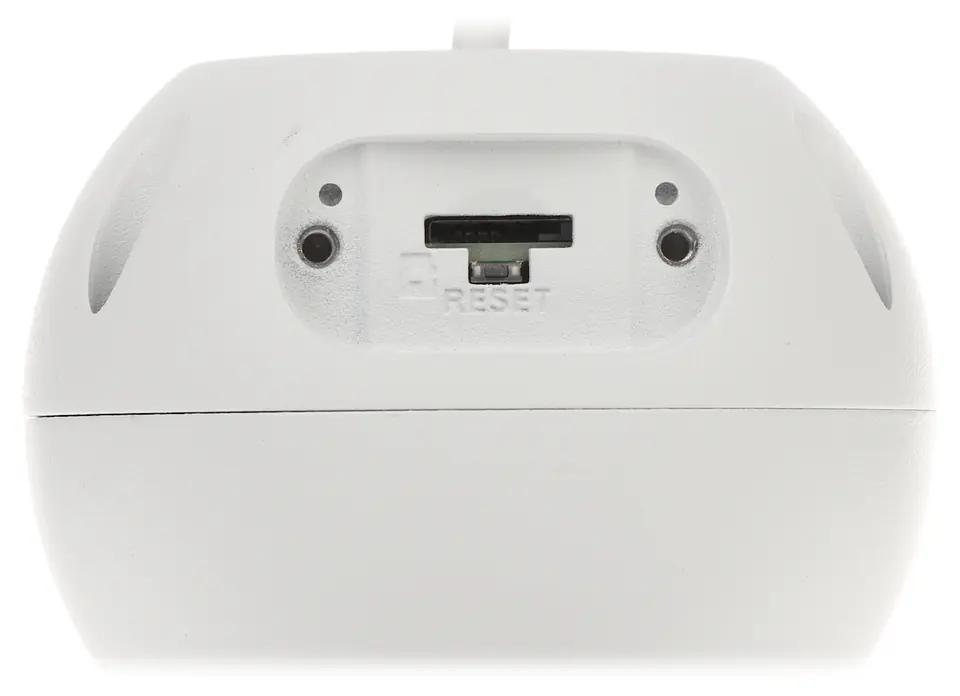

| Card reader integrated: | Yes |
| Compatible memory cards: | MicroSD (TransFlash) |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dc output voltage: | 12 |

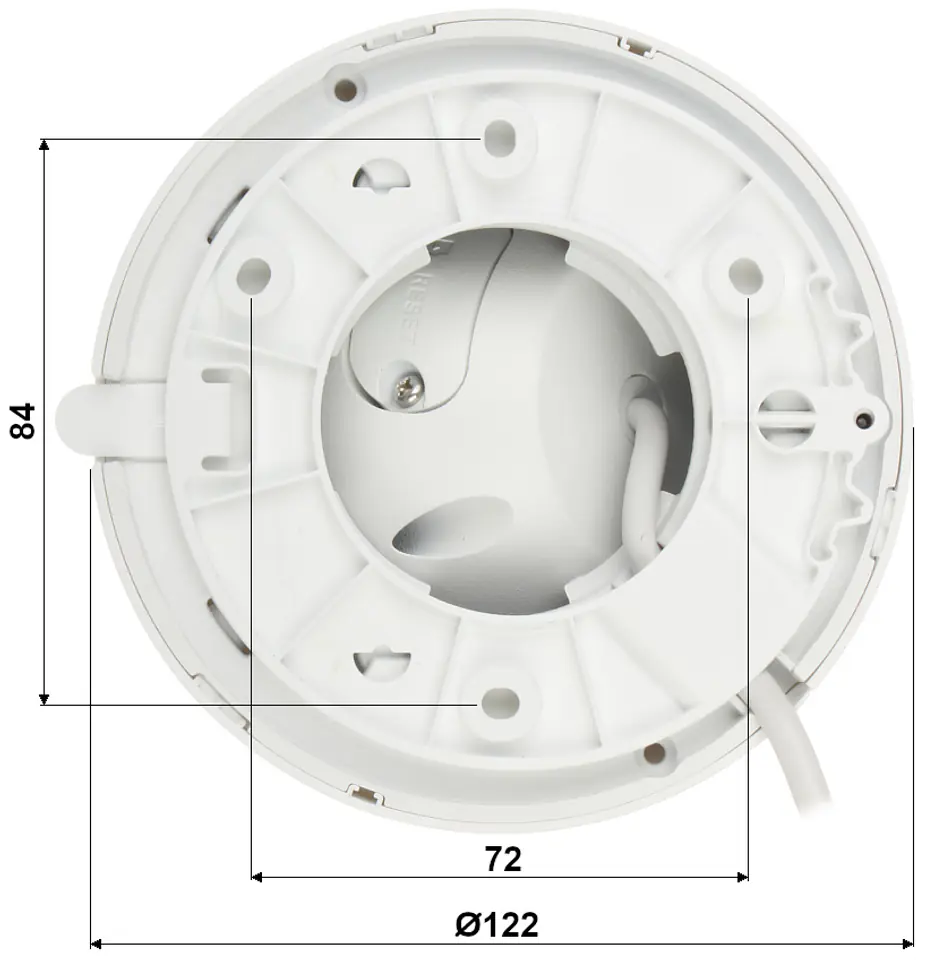

| Diameter: | 10.6 cm |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Fixed focal length: | 2.8 mm |
| Flip & mirror: | Yes |
| Form factor: | Dome |
| Frame rate: | 60 fps |
| Gain control type: | Auto/Manual |
| Height: | 93.6 mm |
| Highlight compensation (hlc): | Yes |
| Housing material: | Metal |
| Infrared (ir) cut-off filter: | Yes |
| Intelligent video surveillance (ivs) system features: | Crossing line, Tripwire, Heat map, Intrusion, People counting |
| Internal memory: | 512 MB |
| International protection (ip) code: | IP67 |
| Led type: | IR |
| Lens viewing angle, horizontal: | 102° |
| Lens viewing angle, vertical: | 71° |
| Maximum aperture number: | 1.6 |
| Maximum resolution: | 2592 x 1944 pixels |
| Minimum illumination: | 0.005 lx |
| Mobile operating systems supported: | Android, iOS |
| Mounting type: | Ceiling |
| Networking standards: | IEEE 802.3af |
| Night vision: | Yes |
| Night vision distance: | 50 m |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of effective pixels (h x v): | 2592 x 1944 pixels |
| Number of illumination leds: | 2 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Number of users: | 20 user(s) |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -30 - 60 °C |
| Optical sensor size: | 25.4 / 2.7 mm (1 / 2.7") |
| Package weight: | 710 g |
| Pan range: | 0 - 360° |
| Placement supported: | Indoor & outdoor |
| Power consumption (typical): | 7.2 W |
| Power source type: | DC, PoE |
| Privacy masking: | Yes |
| Product colour: | White |
| Progressive scan: | Yes |
| Quality of service (qos) support: | Yes |
| Region of interest (roi) encoding: | Yes |
| Rom capacity: | 128 MB |
| Sensor type: | CMOS |
| Storage temperature (t-t): | -30 - 60 °C |
| Streaming method: | Unicast, Multicast |
| Supported graphics resolutions: | 352 x 240, 2304 x 1296, 704 x 576, 1280 x 960, 1280 x 720 (HD 720), 2592 x 1520, 352 x 288, 2560 x 1440, 640 x 480 (VGA), 704 x 480, 1920 x 1080 (HD 1080) |
| Tilt angle range: | 0 - 78° |
| Total megapixels: | 5 MP |
| Type: | IP security camera |
| Video compression formats: | H.264 |
| Video motion detection: | Yes |
| Video streaming: | Yes |
| Voice codecs: | AAC, G.711a, G.726, G.723, G.711Mu |
| Web browser: | Yes |
| Weight: | 550 g |
| White balance: | Lamp, Outdoor, Manual, Natural, Auto |
| Wi-fi: | No |
| Wide dynamic range (wdr): | Yes |
