| Alarm input channels: | 8 |
|---|---|
| Analog signal format system: | PAL, NTSC |
| Audio input: | 4 |
| Audio output: | 1 |
| Audio system: | 2-way |
| Backup function: | Yes |
| Bit rate: | 6144 Kbit/s |
| Bnc input ports: | 4 |
| Built-in display: | No |
| Built-in memory: | No |
| Built-in processor: | Yes |
| Channels quantity: | 4 + 2 (IP) channels |
| Compatibility with fiscal cash registers (pos 2.0): | Yes |
| Dc voltage: | 12 V |
| Depth: | 256.6 mm |
| Digital zoom: | Yes |
| Dual stream support: | Yes |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Face detection: | Yes |
| Face recognition: | Yes |
| Hdcvi-iot support: | Yes |
| Hdd interface: | SATA |
| Hdmi ports quantity: | 1 |
| Height: | 55 mm |
| Internal: | No |
| Led indicators: | Yes |
| Maximum frame rate: | 60 fps |
| Maximum hdd capacity: | 6 TB |
| Maximum resolution of supported cameras: | 6 Mpix |
| Maximum video resolution: | 1920 x 1080 pixels |
| Multi-display modes: | 4, 6 |
| Multi-display supported: | Yes |
| Number of hdds supported: | 1 |
| Number of users: | 128 user(s) |
| Operating system installed: | Linux |
| Operating temperature (t-t): | -10 - 45 °C |
| P2p: | Y |
| Package weight: | 1.77 kg |
| Perimeter protection: | Yes |
| Playback modes: | Stop, Next, Repeat, Pause, Fast, Shuffle, Slow, Play, Previous |
| Power consumption (max): | 4 W |
| Power supply type: | DC |
| Privacy masking: | Yes |
| Product colour: | Black |
| Ptz control: | Yes |
| Rack capacity: | 1U |
| Relay outputs: | 3 |
| Rs-485 ports: | 1 |
| Smd plus: | Yes |
| Storage temperature (t-t): | -20 - 70 °C |
| Sustainability certificates: | CE |
| Sustainability compliance: | Yes |
| Two-way talk: | Yes |
| Usb 2.0 ports quantity: | 2 |
| Vga (d-sub) output ports: | 1 |
| Video compression formats: | H.264, H.265+, H.264+, H.265, AI Coding |
| Video in: | HDCVI/AHD/TVI/CVBS/IP |
| Video input channels: | 4 channels |
| Video loss detection: | Yes |
| Video motion detection: | Yes |
| Video streaming: | Yes |
| Weight: | 1.31 kg |
| Width: | 325 mm |
Rejestrator cyfrowy XVR5104HE-I3 z interfejsem AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP oraz CVBS, to profesjonalne urządzenie stosowane w instalacjach monitoringu

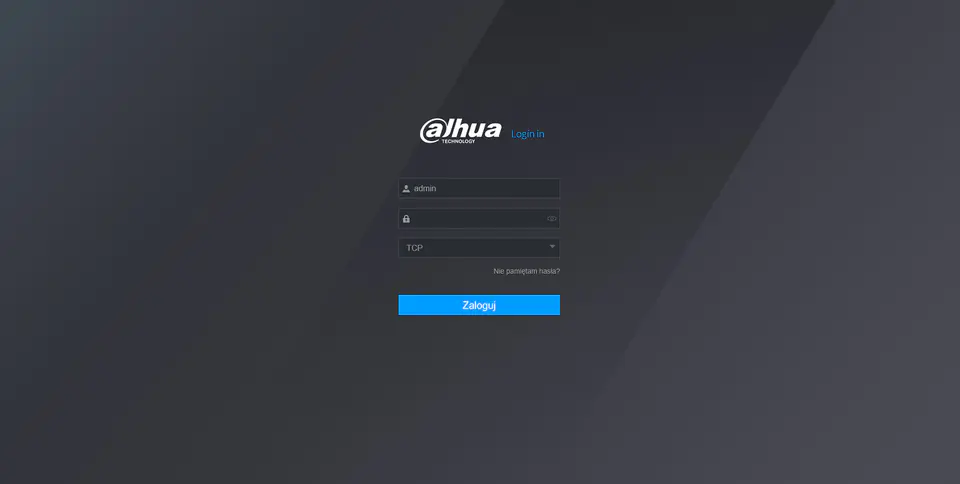

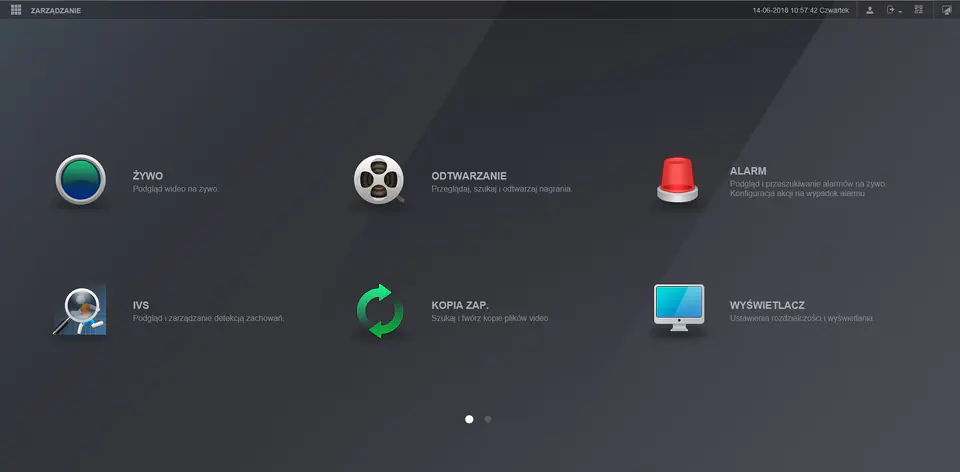

Menu zostało zaprojektowane w sposób ułatwiający każdemu, nawet początkującemu użytkownikowi nawigację i wprowadzanie zmian w ustawieniach rejestratora
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
