| 10g support: | No |
|---|---|

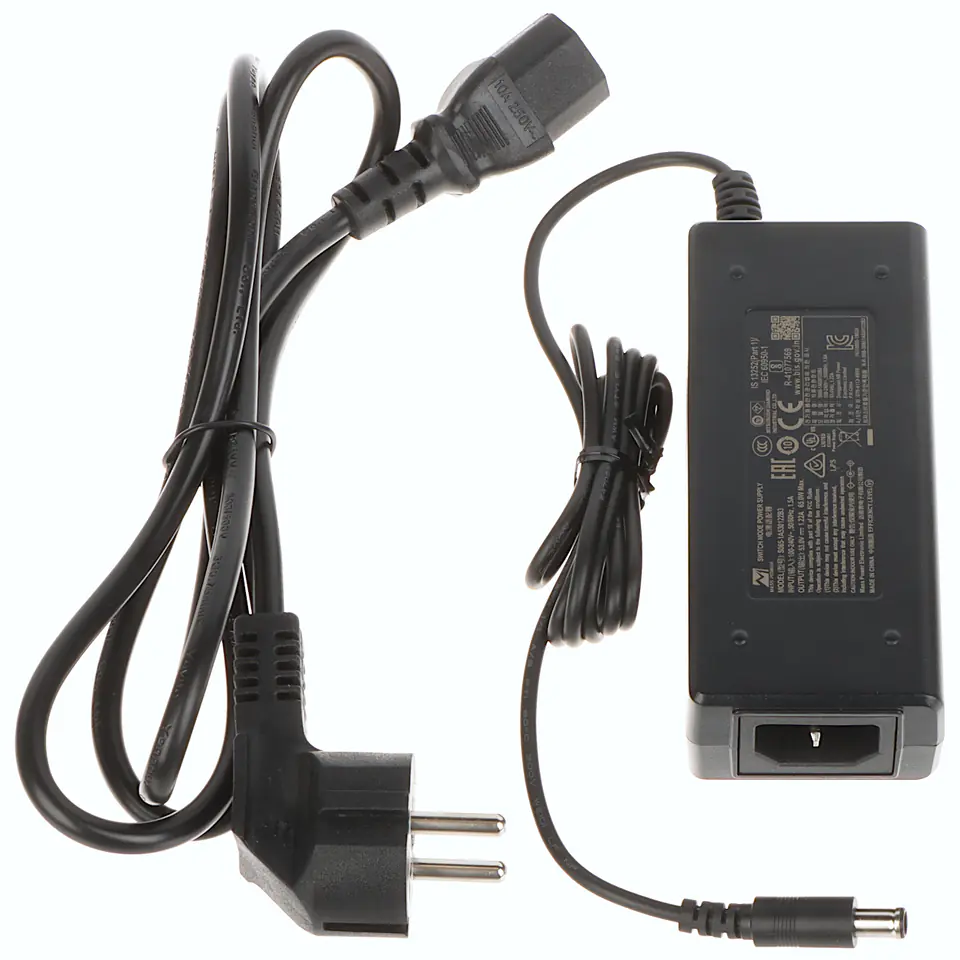

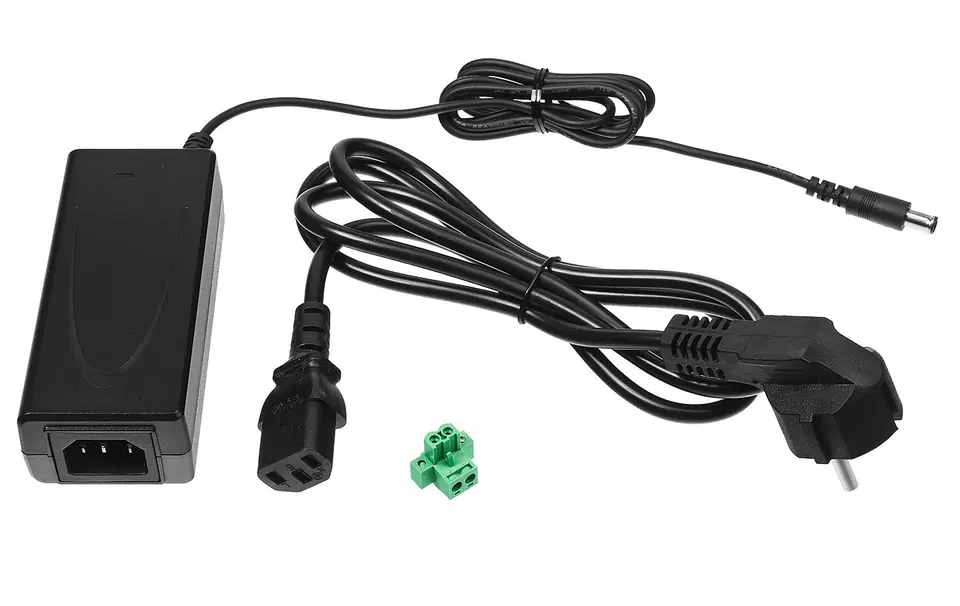

| Ac adapter included: | Yes |
| Auto diagnostic: | Yes |

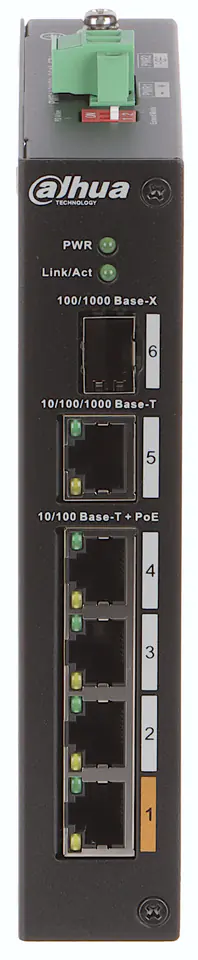

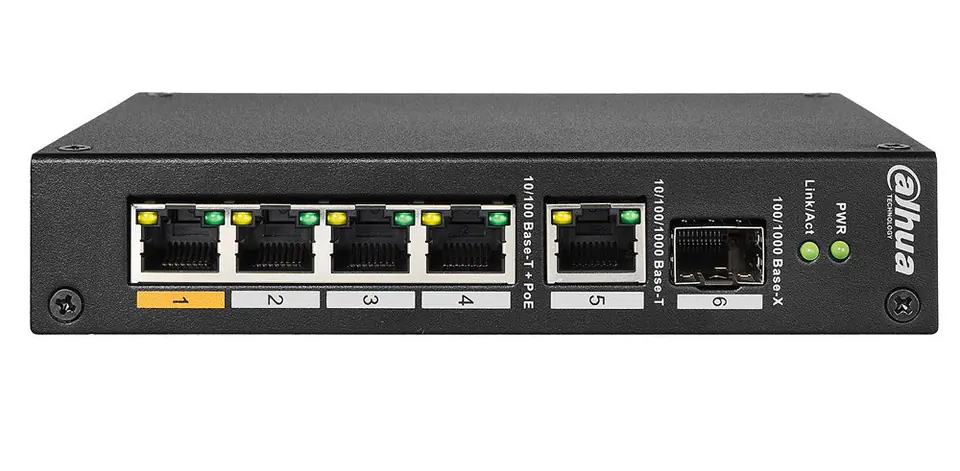

| Basic switching rj-45 ethernet ports quantity: | 4 |
| Basic switching rj-45 ethernet ports type: | Fast Ethernet (10/100) |
| Buffer size: | 1000 KB |

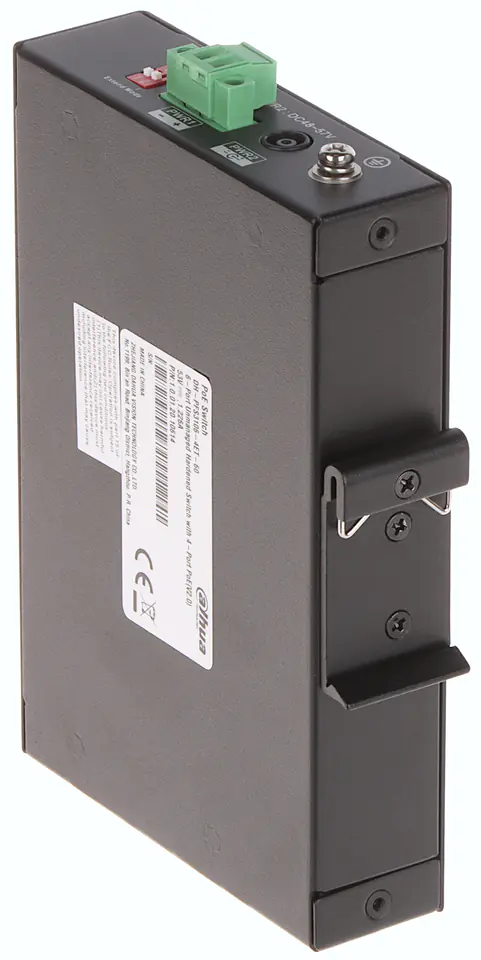

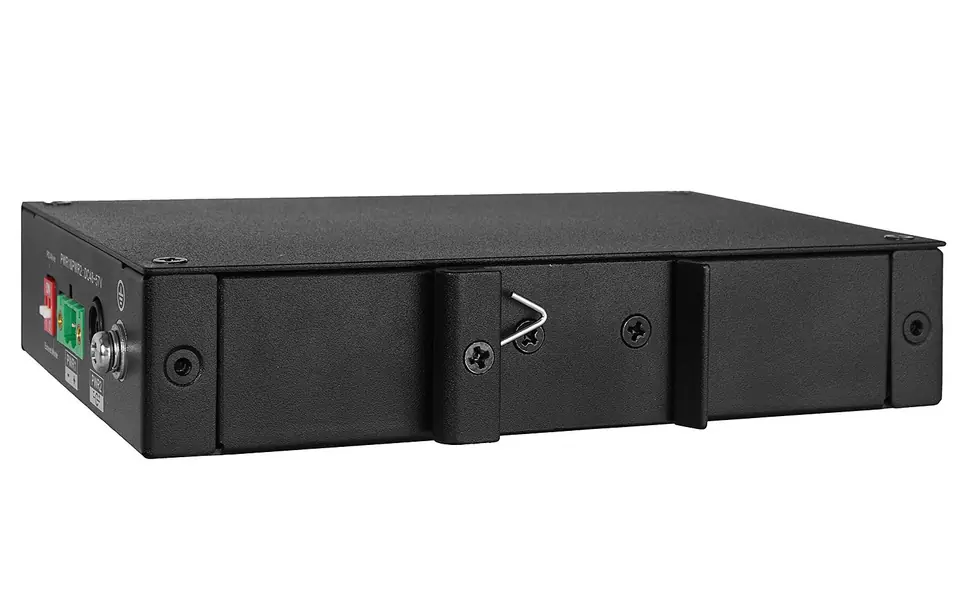

| Case type: | Desktop / DIN (bracket included) |
| Copper ethernet cabling technology: | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Dc input voltage: | 53 V |
| Depth: | 100 mm |
| Electrostatic discharge (esd) protection: | Yes |
| Flow control support: | Yes |
| Forwarding rate: | 3.57 Mpps |
| Gigabit ethernet (copper) ports quantity: | 1 |
| Height: | 30 mm |
| Led indicators: | Yes |
| Mac address auto-aging supported: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address table: | 8000 entries |
| Networking standards: | IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3z |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -30 - 65 °C |
| Package depth: | 240 mm |
| Package height: | 75 mm |
| Package weight: | 1.1 kg |
| Package width: | 270 mm |
| Plug and play: | Yes |

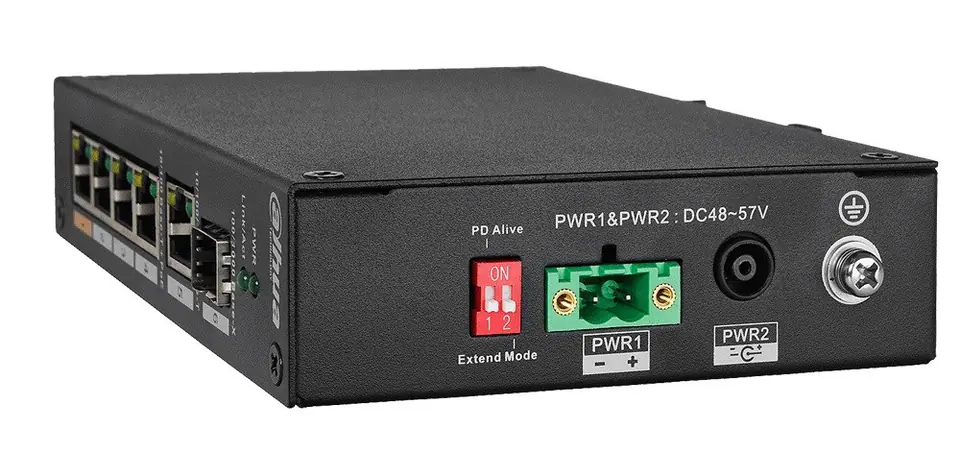

| Poe (power over ethernet) range: | Up to 250 m - Extend Mode (managed by DIP switch) |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 4 |
| Power over ethernet (poe) type supported: | 2.0, PoE+ |
| Product colour: | Black |

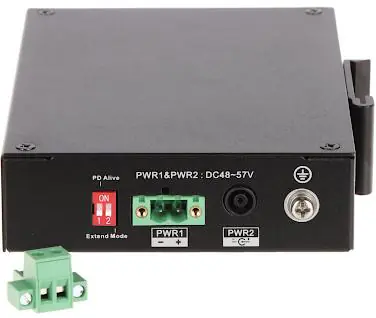

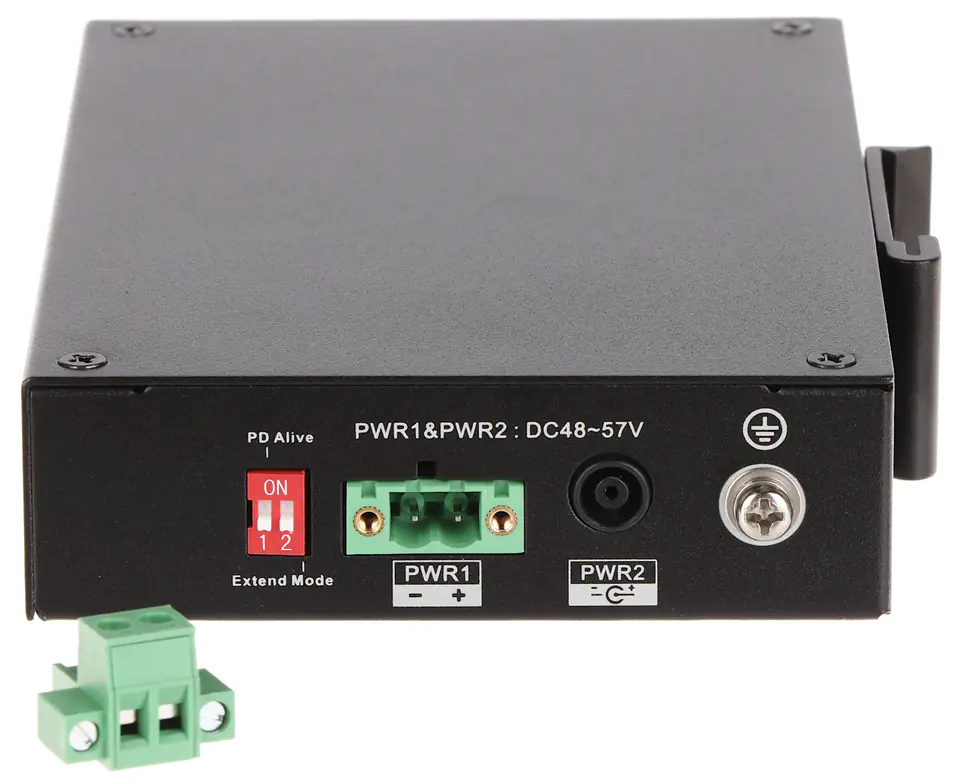

| Redundant power supply: | Yes |
| Sfp/sfp+ slots quantity: | 1 |
| Storage temperature (t-t): | -30 - 70 °C |
| Switch layer: | L2 |
| Switch type: | Unmanaged |
| Switching capacity: | 6.8 Gbit/s |
| Total power over ethernet (poe) budget: | 60 W |
| Weight: | 450 g |
| Width: | 150 mm |

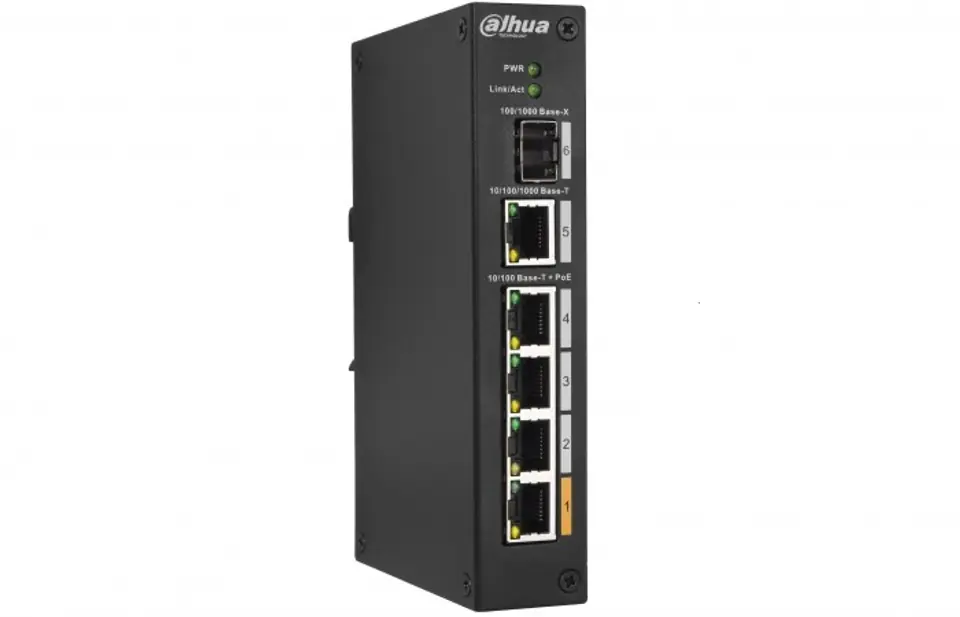

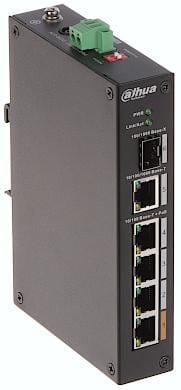

Switch PFS3106-4ET-60-V2 został zaprojektowany dla dużych strumieni danych wideo w sieciach monitoringu CCTV IPUrządzenia tego typu mogą być stosowane w instalacjach realizowanych w obiektach przemysłowych w niekorzystnych warunkach takich jak wysoka lub niska temperatura
Uwaga! Port SFP wymaga dokupienia modułu SFP, który jest dostępny w naszej ofercie
