| Ac input voltage: | 12 V |
|---|---|
| Alarm input channels: | 4 |
| Alarm output channels: | 2 |
| Audio detection: | Yes |
| Audio output channels: | 2.0 channels |
| Behavior analysis: | Intrusion detection, Line crossing detection |
| Built-in processor: | Yes |
| Depth: | 375 mm |
| Dfu / user manual: | Y |

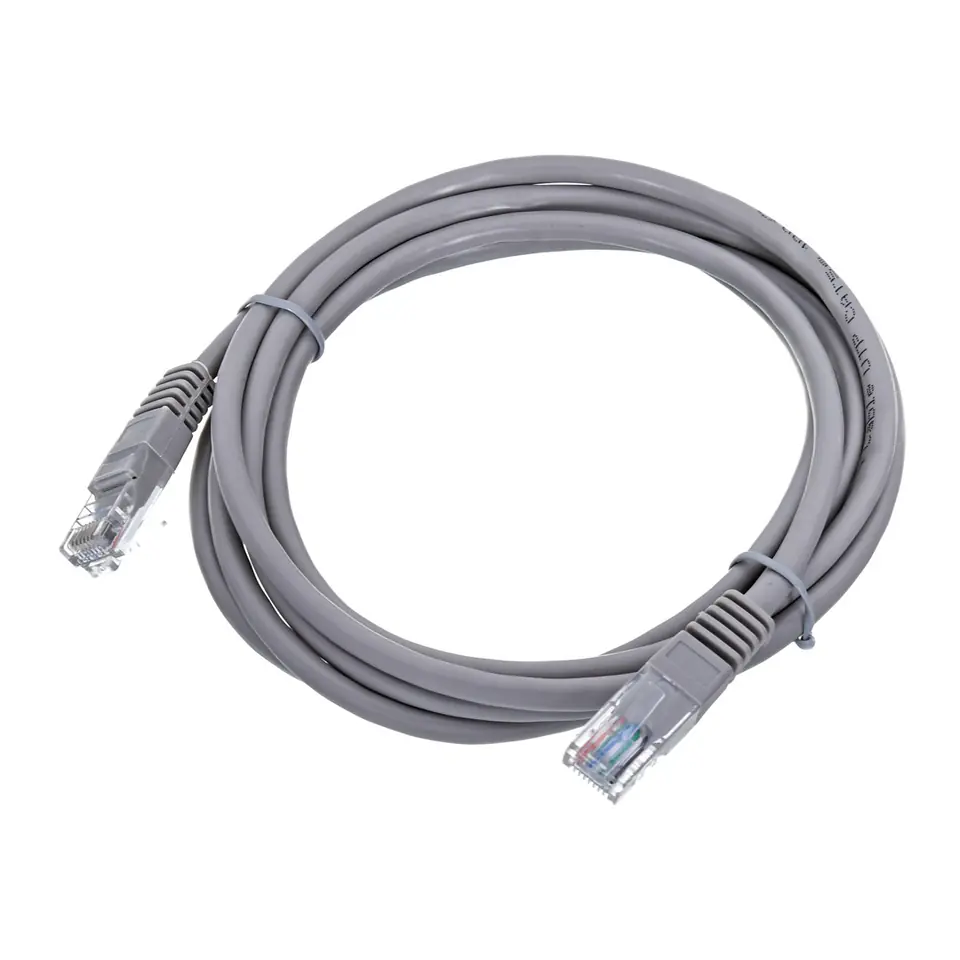

| Ethernet cable: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Face detection: | Yes |
| Face tracking: | Yes |
| Hdd interface: | SATA III |
| Hdmi ports quantity: | 1 |
| Height: | 53 mm |
| Input bandwidth: | 160 Mbit/s |
| Jumper cable included: | Yes |
| Maximum number of cameras supported: | 16 |
| Maximum resolution: | 3840 x 2160 pixels |
| Maximum storage capacity: | 20 TB |

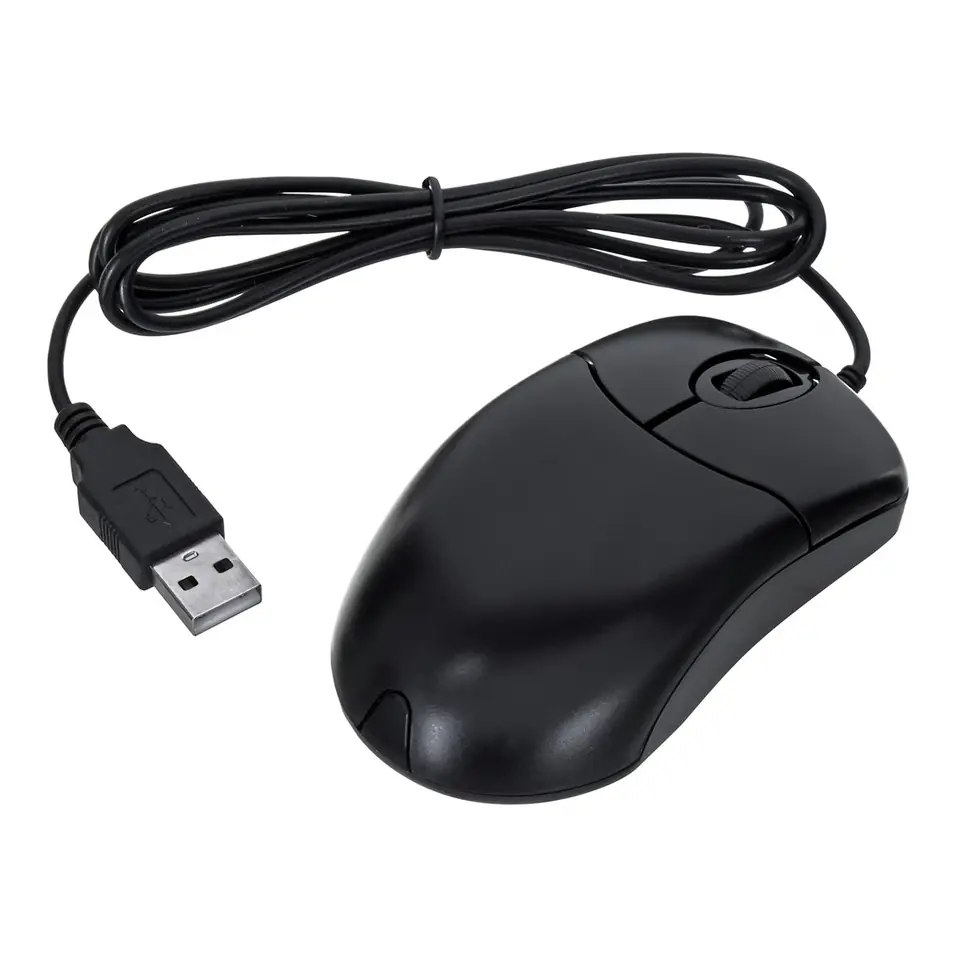

| Mouse included: | Yes |
| Number of sata iii connectors: | 2 |
| Operating system installed: | Linux |
| Package weight: | 2.76 kg |
| People counting function: | Yes |
| Playback modes: | Normal, Frame by frame, Shutter, Fast play, Next, Digital zoom, Full screen, Play, Slow backward, Stop, Next camera, Pause, Fast Backward, Slow forward |
| Power consumption (typical): | 10 W |
| Power over ethernet (poe): | No |
| Power source type: | Power socket |
| Product colour: | Black |
| Rated current: | 4 A |
| Recording modes: | Manual recording, I/O alarm, SMD recording, smart recording |
| Regulatory approvals: | CE, FCC, RoHS |
| Supported network protocols: | HTTP/HTTPS |
| Usb 2.0 ports quantity: | 2 |
| Vga (d-sub) output ports: | 1 |
| Video codecs: | H.264,H.264+,H.265,H.265+,M-JPEG |
| Video input channels: | 16 channels |
| Video loss detection: | Yes |
| Video motion detection: | Yes |
| Web-based management: | Yes |
| Weight: | 1.51 kg |
| Width: | 282.4 mm |
| Zoom type: | Digital |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
