| Audio rca inputs: | 1 |
|---|---|
| Audio rca outputs: | 1 |
| Bit rate: | 20000 Kbit/s |
| Brand compatibility: | Any brand |
| Built-in processor: | Yes |
| Current: | 2 A |

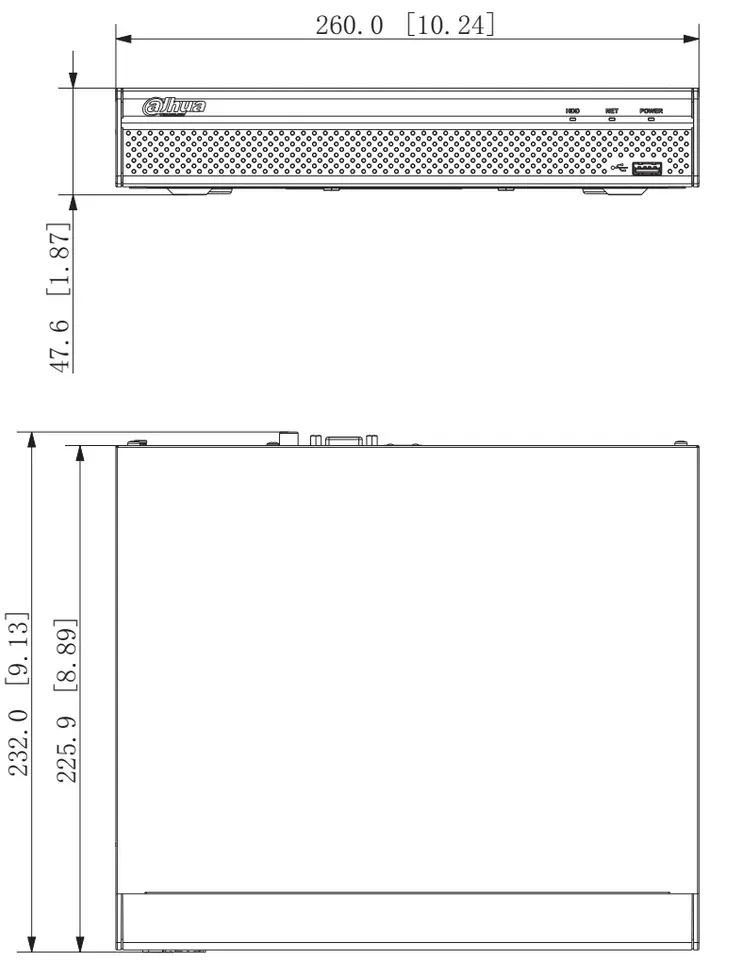

| Depth: | 224.9 mm |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 1000, 10, 100 |
| Hdd interface: | SATA III |
| Hdmi output: | Yes |
| Hdmi ports quantity: | 1 |
| Height: | 47.6 mm |
| Internal sata ports quantity: | 1 |
| Maximum resolution: | 3840 x 2160 pixels |
| Maximum storage capacity: | 6 TB |
| Mobile operating systems supported: | iOS, Android |
| Multi-screen: | Yes |
| Number of hdds supported: | 1 |
| Number of motion detection zones: | 396 |
| Number of users: | 128 user(s) |
| On screen display (osd): | Yes |
| Operating relative humidity (h-h): | 0 - 90% |
| Operating temperature (t-t): | -10 - 55 °C |
| Output current: | 2 A |
| Output voltage: | 12 V |
| Package weight: | 1.6 kg |
| People counting: | Yes |
| Playback controls: | Yes |
| Power consumption (typical): | 6.3 W |
| Power over ethernet (poe): | No |
| Power supply voltage: | 12 V |
| Processor cores: | 4 |
| Product colour: | Black |
| Ptz control: | Yes |
| Rack capacity: | 1U |
| Rack mounting: | Yes |
| Rca: | Yes |
| Recording modes: | Manual, Schedule, Stop |
| Recording time: | 120 min |
| Sata revision: | 3.0 |
| Snapshot: | Yes |
| Storage relative humidity (h-h): | 0 - 90% |
| Storage temperature (t-t): | -20 - 70 °C |
| Supported network protocols: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP |
| Throughput data rate: | 80 Mbit/s |
| Two-way talk: | Yes |
| Usb 2.0 ports quantity: | 2 |
| Vga (d-sub) output ports: | 1 |
| Video formats supported: | H.264, H.265 |
| Video input channels: | 4 channels |
| Video loss detection: | Yes |
| Video motion detection: | Yes |
| Video recording modes: | 1080p |
| Weight: | 800 g |
| Wi-fi: | No |
| Width: | 260 mm |
