| Attenuation:: | 4.43 MHz @ 0.34 dB 11 MHz @ 0.42 dB 21 MHz @ 0.59 dB 38 MHz @ 0.91 dB 42 MHz @ 0.91 dB 67.5 MHz @ 1.01 dB |
|---|---|
| Bandwidth:: | 200 MHz |
| Device type:: | Passive |
| Dimensions:: | 49 x 20 x 17 mm |
| Galvanic separation between inputs and outputs:: | 25 VDC |
| Input impedance:: | 75 Ω |
| Number of inputs:: | 1 pc. BNC socket |
| Number of outputs:: | 1 pc. BNC plug |
| Operating temperature:: | -20 °C ... 55 °C |
| Output impedance:: | 75 Ω |
| Scales:: | 0.03 kg |
| Standard:: | AHD - 8 Mpx, 4K UHD HD-CVI - 8 Mpx, 4K UHD HD-TVI - 8 Mpx 4K UHD CVBS - PAL / NTSC |
| Warranty:: | 2 years |

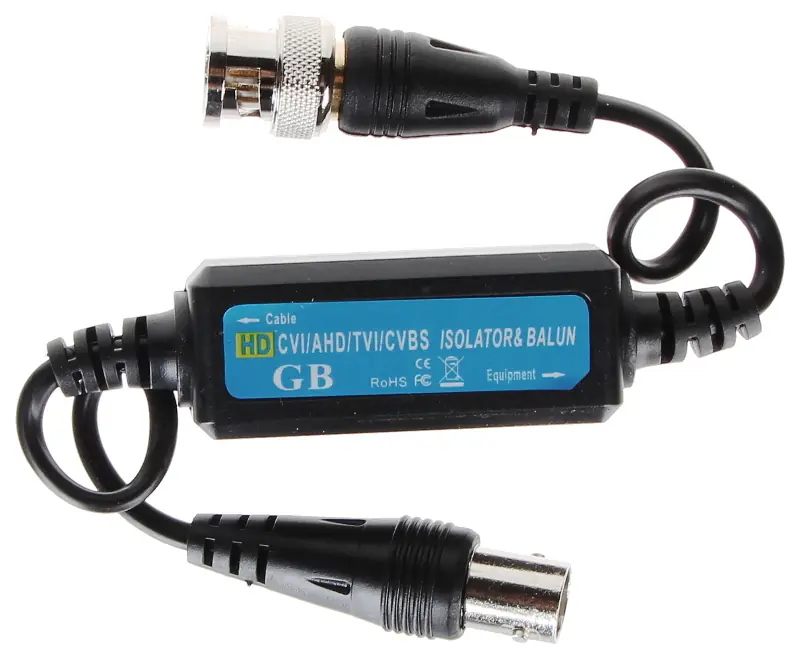

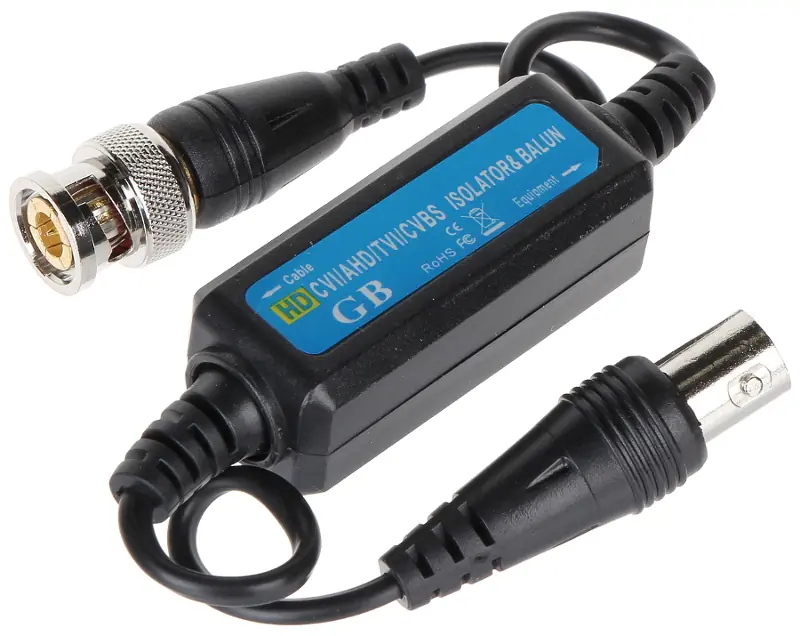

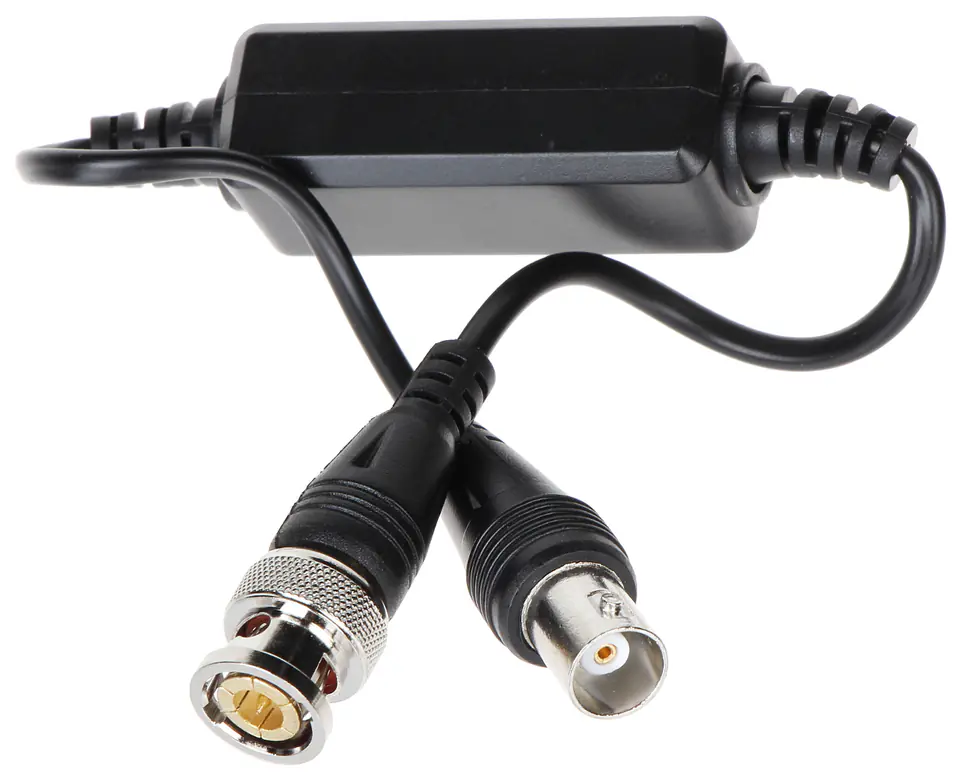

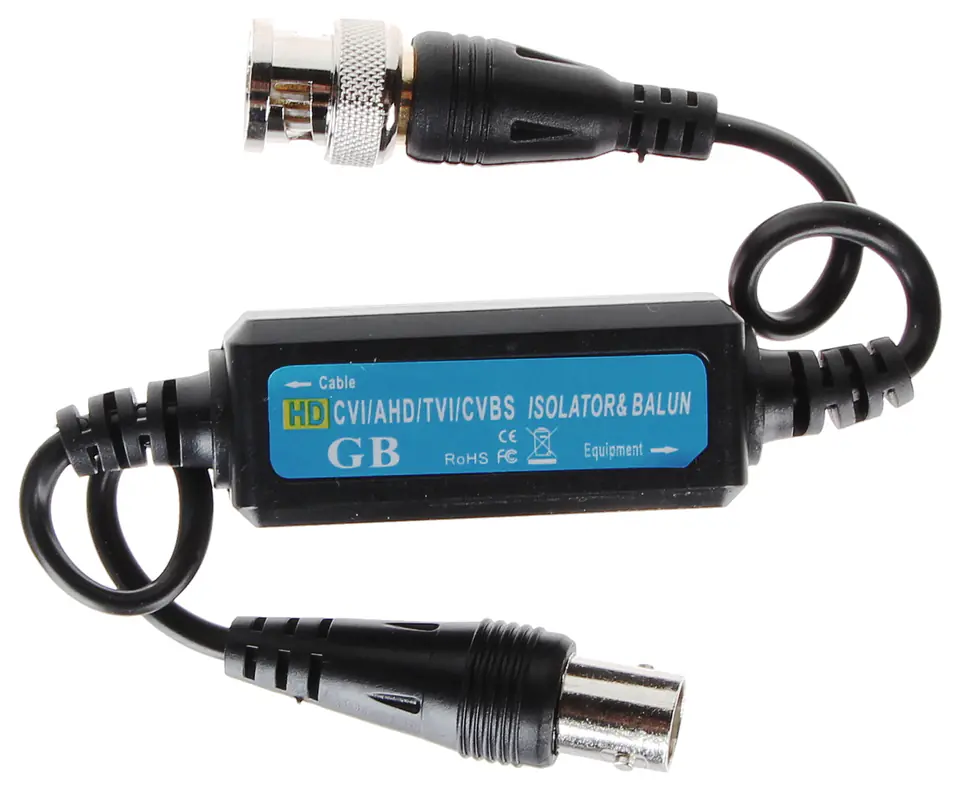

D-SEP/HD ground loop isolator is a passive device that eliminates or reduces signal interference resulting from the potential difference between devices and currents flowing through the signal massThe device provides galvanic separation and is designed for applications using the signal standard: AHD, HD-CVI, HD-TVI, PAL

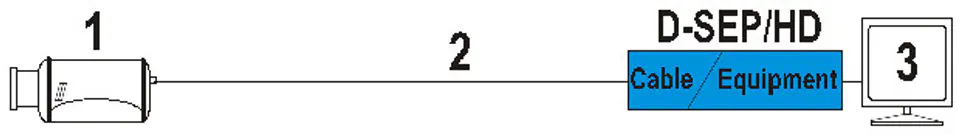

Remark! The D-SEP/HD device requires a correct connection: Cable (BNC socket) – camera signal (transmission line), Equipment (BNC plug) – recorder, monitor
