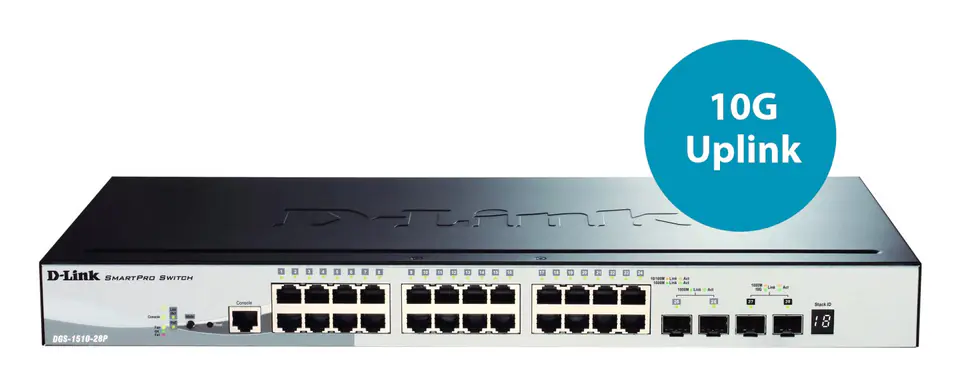

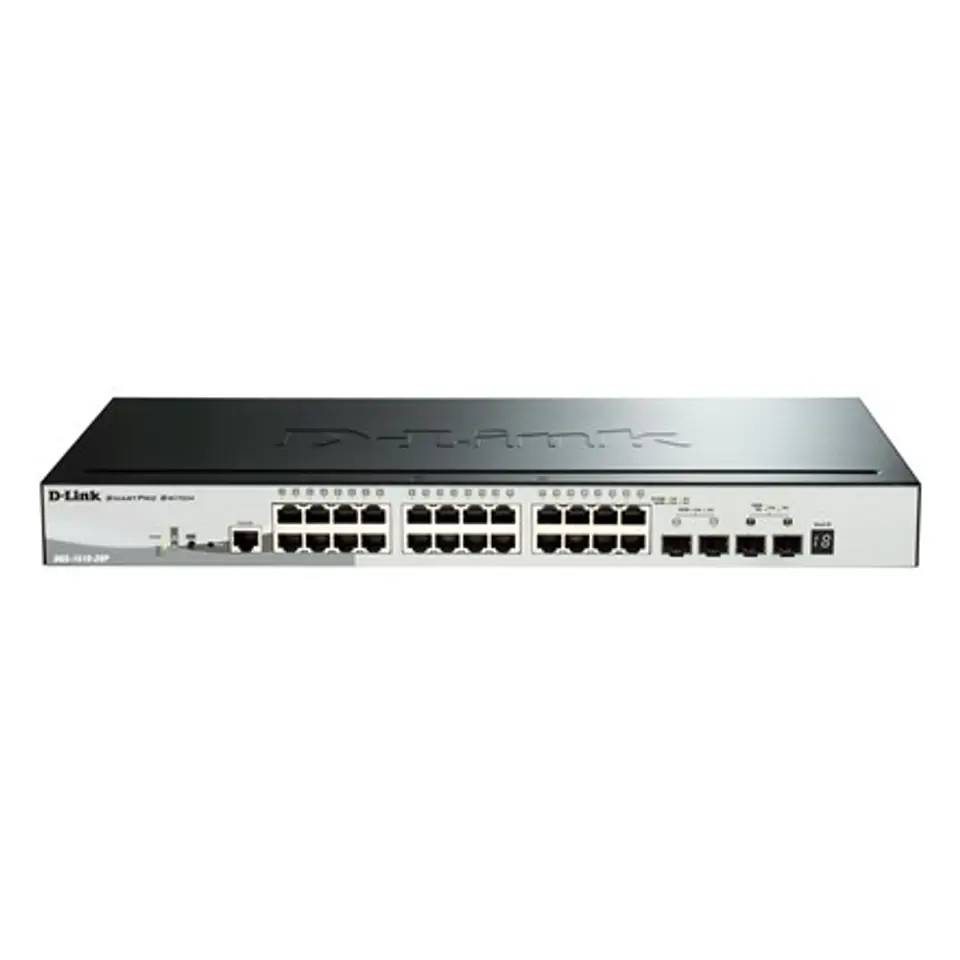

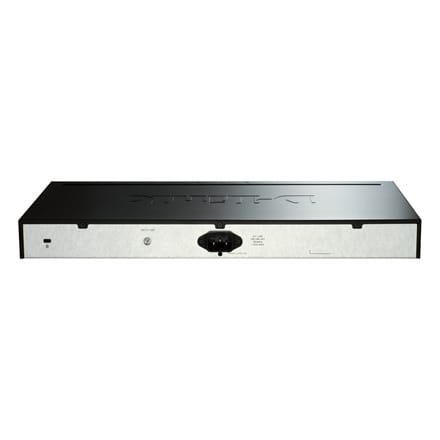

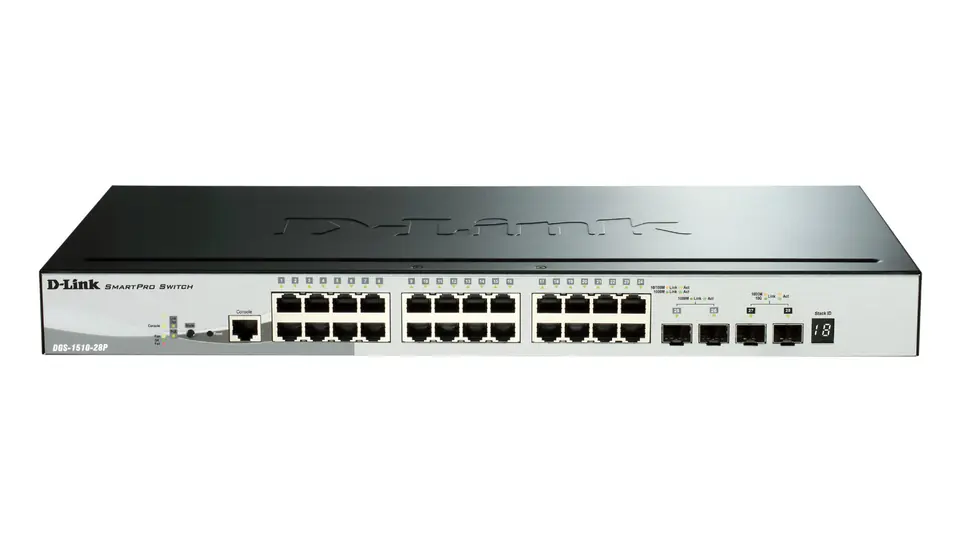

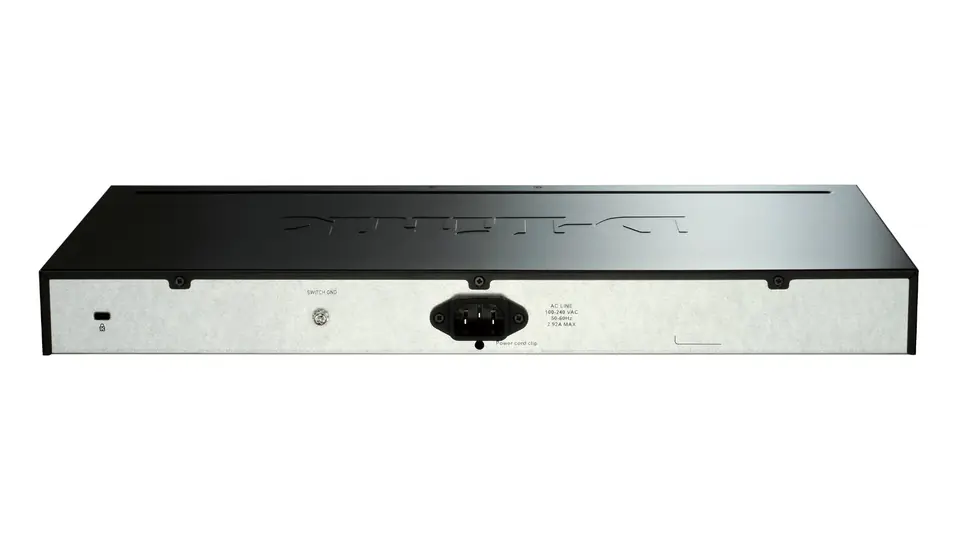

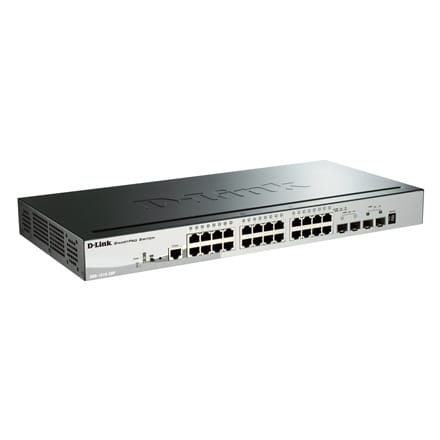

D-Link | Switch | DGS-1510-28P | Web Management | Rack mountable | 1 Gbps (RJ-45) ports quantity 24 | SFP ports quantity 2 | SFP+ ports quantity 2 | PoE/Poe+ ports quantity 24 | Power supply type Single | 24 month(s)
€861.71
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DGS-1510-28P/E / 0790069467936
Share this product:
Specification
| 10g support: | Yes |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Cable types supported: | Cat5, Cat5e |
| Depth: | 250 mm |
| Dhcp features: | DHCP server, DHCP client |
| Flow control support: | Yes |
| Forwarding rate: | 68.45 Mpps |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Head-of-line (hol) blocking: | Yes |
| Heat dissipation: | 813.967 BTU/h |
| Height: | 44 mm |
| Igmp snooping: | Yes |
| Jumbo frames support: | Yes |
| Led indicators: | Activity, PoE, Power, Link |
| Link aggregation: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address filtering: | Yes |
| Mac address table: | 16000 entries |
| Manual: | Yes |
| Master (outer) cases per pallet (air): | 40 pc(s) |
| Master (outer) cases per pallet (sea): | 40 pc(s) |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3u, IEEE 802.1s, IEEE 802.1x, IEEE 802.3x, IEEE 802.1D, IEEE 802.3ae, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p |
| Noise level: | 46.4 dB |
| Number of fans: | 2 fan(s) |
| Number of static routes: | 512 |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -5 - 50 °C |
| Package depth: | 511 mm |
| Package height: | 91 mm |
| Package weight: | 4 kg |
| Package width: | 348 mm |
| Packet buffer memory: | 1.5 MB |
| Pallet gross length: | 110 cm |
| Pallet gross weight (air): | 533.9 kg |
| Pallet gross weight (sea): | 533.9 kg |
| Pallet gross width: | 120 cm |
| Pallet height (air): | 2.05 m |
| Pallet height (sea): | 2.05 m |
| Physical stacking (units): | 6 |
| Port mirroring: | Yes |
| Power connector: | DC-in jack |
| Power consumption (typical): | 238.7 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 24 |
| Product colour: | Black |
| Products per pallet (air): | 120 pc(s) |
| Products per pallet (sea): | 120 pc(s) |
| Products per shipping (inner) case: | 3 pc(s) |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Safety: | cUL, CB |
| Sfp module slots quantity: | 2 |
| Sfp+ module slots quantity: | 2 |
| Shipping (inner) case gross weight: | 12.9 kg |
| Shipping (inner) case height: | 38.3 cm |
| Shipping (inner) case length: | 52.9 cm |
| Shipping (inner) case net weight: | 9.27 kg |
| Shipping (inner) case width: | 29.6 cm |
| Ssh/ssl support: | Yes |
| Stackable: | Yes |
| Static port security: | Yes |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -20 - 70 °C |
| Store-and-forward: | Yes |
| Switch layer: | L3 |
| Switch type: | Managed |
| Switching capacity: | 92 Gbit/s |
| System event log: | Yes |
| Total power over ethernet (poe) budget: | 193 W |
| Virtual stacking (units): | 32 |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 2.54 kg |
| Width: | 440 mm |
