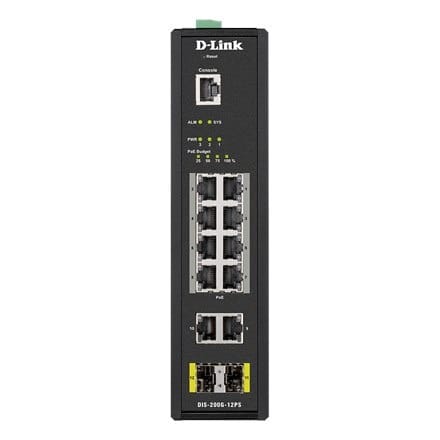

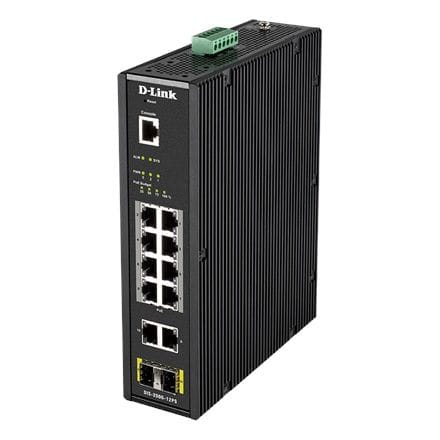

D-LINK DIS-200G-12PS L2 Managed Industrial Switch with 10 10/100/1000Base-T and 2 1000Base-X SFP ports D-Link | Switch | DIS-200G-12PS | Managed L2 | Wall mountable | 60 month(s)
€1,068.44
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Thu, Nov 28
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Product code:
- 1807616 / 0790069433504
Share this product:
Specification
| 10g support: | No |
|---|---|
| Active link detection: | Yes |
| Authentication: | Port-based authentication |
| Authentication type: | RADIUS |
| Auto mdi/mdi-x: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 10 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Configuring location settings (cli): | Yes |
| Console port: | RJ-45 |
| Copper ethernet cabling technology: | 100BASE-TX, 10BASE-T, 1000BASE-T |

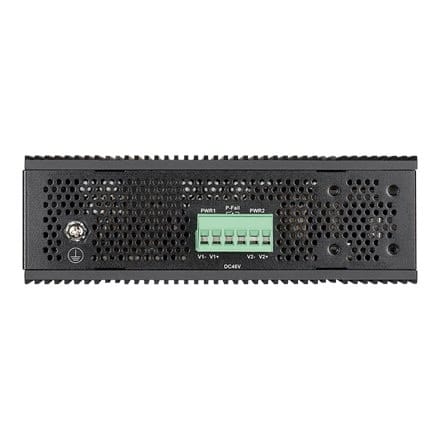

| Dc input voltage: | 46 - 54 V |
| Depth: | 48 mm |
| Dhcp features: | DHCP client |

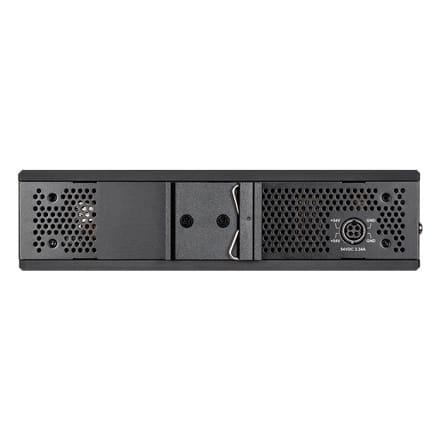

| Din rail mounting: | Yes |
| Dos attack prevention: | Yes |
| Electromagnetic compatibility: | CISPR 22, FCC Part 15B Class A |
| Fiber ethernet cabling technology: | 1000BASE-X |
| Flow control support: | Yes |
| Forwarding rate: | 17.85 Mpps |
| Full duplex: | Yes |
| Gigabit ethernet (copper) ports quantity: | 10 |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 887.16 BTU/h |
| Height: | 210 mm |
| Housing material: | Metal |
| Igmp snooping: | Yes |
| International protection (ip) code: | IP30 |
| Jumbo frames: | 9216 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Mac address table: | 8000 entries |
| Management protocols: | SNMP v1/v2c/v3, SNTP, Telnet |
| Master (outer) cases per pallet (air): | 24 pc(s) |
| Master (outer) cases per pallet (sea): | 42 pc(s) |
| Mean time between failures (mtbf): | 205689 h |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1Q, IEEE 802.3x, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3az, IEEE 802.1D, IEEE 802.3z, IEEE 802.3u, IEEE 802.1x |
| Number of vlans: | 4094 |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -40 - 65 °C |
| Package depth: | 355 mm |
| Package height: | 76 mm |
| Package weight: | 2.2 kg |
| Package width: | 217 mm |
| Pallet gross length: | 110 cm |
| Pallet gross weight (air): | 283.7 kg |
| Pallet gross weight (sea): | 496.4 kg |
| Pallet gross width: | 120 cm |
| Pallet height (air): | 114.3 cm |
| Pallet height (sea): | 189.9 cm |
| Port mirroring: | Yes |
| Power consumption (max): | 260 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 8 |
| Power over ethernet (poe) power per port: | 30 W |
| Product colour: | Black |
| Products per pallet (air): | 120 pc(s) |
| Products per pallet (sea): | 210 pc(s) |
| Products per shipping (inner) case: | 5 pc(s) |
| Quality of service (qos) support: | Yes |
| Queue scheduling algorithms: | SPQ, Weighted Round Robin (WRR) |
| Rack mounting: | Yes |
| Safety: | UL60950-1 |
| Security algorithms: | 802.1x RADIUS, SSL/TLS |
| Sfp module slots quantity: | 2 |
| Shipping (inner) case gross weight: | 11.8 kg |
| Shipping (inner) case height: | 25.2 cm |
| Shipping (inner) case length: | 40.9 cm |
| Shipping (inner) case net weight: | 11 kg |
| Shipping (inner) case width: | 37.2 cm |
| Spanning tree protocol: | Yes |
| Stackable: | No |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -40 - 85 °C |
| Store-and-forward: | Yes |
| Surge protection: | Yes |
| Surge protection voltage: | 6 kV |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 24 Gbit/s |
| System event log: | Yes |
| Total power over ethernet (poe) budget: | 240 W |
| Virtual lan features: | Tagged VLAN, Voice VLAN, Port-based VLAN |
| Vlan support: | Yes |
| Wall mountable: | Yes |
| Web-based management: | Yes |
| Weight: | 2.5 kg |
| Width: | 171.2 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
