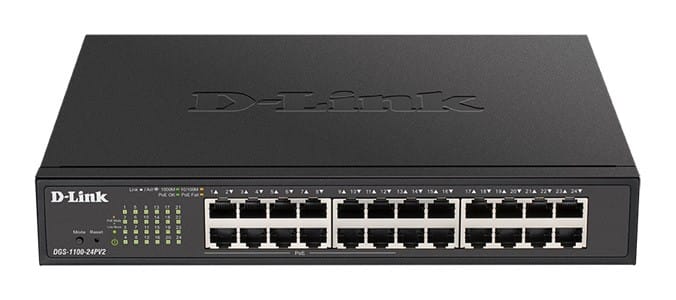

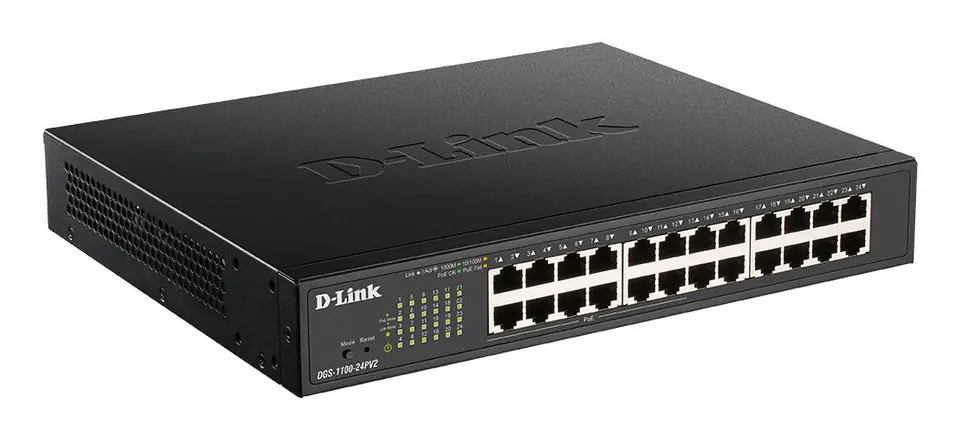

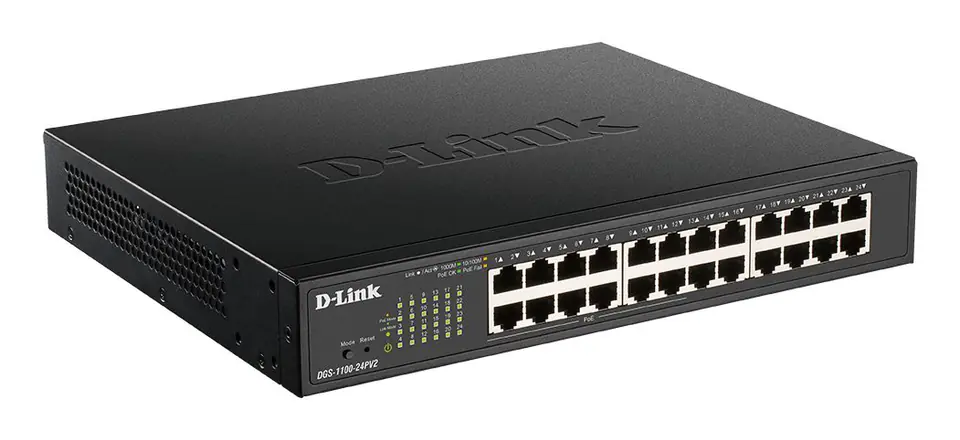

D-Link DGS-1100-24PV2/E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

€308.05
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
D-link
Product code:
DGS-1100-24PV2/E / 0790069467837

Specification

10g support:N
Ac input voltage:100 - 240 V
Auto mdi/mdi-x:Y
Auto-negotiation:Y
Basic switching rj-45 ethernet ports quantity:24
Basic switching rj-45 ethernet ports type:Gigabit Ethernet (10/100/1000)
Broadcast storm control:Y
Built-in processor:Y
Copper ethernet cabling technology:10BASE-TX, 1000BASE-T, 10BASE-T
Depth:230 mm
Dhcp features:DHCP client
Fanless:Y
Flash memory:16 MB
Flow control support:Y
Forwarding rate:35.71 Mpps
Full duplex:Y
Harmonized system (hs) code:85176990
Head-of-line (hol) blocking:Y
Heat dissipation:107.5 BTU/h
Height:44 mm
Igmp snooping:Y
Jumbo frames:9216
Jumbo frames support:Y
Led indicators:Y
Link aggregation:Y
Mac address table:8000 entries
Mean time between failures (mtbf):255003 h
Memory type:DRAM
Multicast support:Y
Networking standards:IEEE 802.3af, IEEE 802.3az, IEEE 802.1w, IEEE 802.1AX, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u, IEEE 802.1D, IEEE 802.3z
Number of queues:4
Number of vlans:128
Operating altitude:0 - 2000 m
Operating relative humidity (h-h):0 - 95%
Operating temperature (t-t):-5 - 50 °C
Packet buffer memory:4.1 MB
Port mirroring:Y
Power consumption (max):19.5 W
Power over ethernet (poe):Y
Power over ethernet (poe) power per port:30 W
Power over ethernet plus (poe+) ports quantity:12
Processor frequency:125 MHz
Product colour:Black
Quality of service (qos) support:Y
Queue scheduling algorithms:SPQ, Weighted Round Robin (WRR)
Rack mounting:Y
Rate limiting:Y
Security algorithms:SNMP, SSL/TLS
Spanning tree protocol:Y
Storage relative humidity (h-h):0 - 95%
Storage temperature (t-t):-40 - 70 °C
Store-and-forward:Y
Switch layer:L2
Switch type:Managed
Switching capacity:48 Gbit/s
System event log:Y
Total power over ethernet (poe) budget:100 W
Virtual lan features:Port-based VLAN, Voice VLAN
Vlan support:Y
Web-based management:Y
Weight:2.2 kg
Width:280 mm

DGS-1100 Series Gigabit Managed Smart Switches

  • Easy Layer 2 management
  • Browser-based graphical user interface
  • Optional PoE power supply
  • Lifetime-Limited warranty upon registration

Simple. Easy. Smart.

The DGS-1100 family of switches is an affordable solution for SOHO and SMB businesses, as well as for deployments in branch offices, conference rooms of large enterprises, wherever basic management functions are required.

Intuitive graphical user interface

The DGS-1100's graphical user interface enables easy management of Layer 2 features such as VLANs, Spanning Tree Protocol (STP) and link aggregation (static). With powerful security features in the form of IGMP snooping, Static MAC and Storm Control tools, the DGS-1100 family switches are a versatile tool for environments requiring uncomplicated deployment and easy configuration solutions without unnecessary complexity.

Easy deployment and management

D-Link's free Network Assistant (DNA) provides information about all connected devices and speeds up initial configuration. The free D-View 7 network management system comes with a licence for 25 nodes and 2 probes and full access to management tools. An optional licence upgrade allows for expanded network and analysis capabilities.

PoE budget

The DGS-1100 switch family includes switches with a large PoE power budget for easy installation of IP phones, wireless access points and IP cameras.

Easy troubleshooting

With loop detection and cable connection diagnostics, the DGS-1100 switch family effectively supports administrators in troubleshooting network problems. The loop detection function detects the formation of a loop on a port and automatically closes it.

Cable connection diagnostics, on the other hand, allows the quality of copper cables to be tested, the type of cables to be recognised and errors to be detected.

Energy saving

D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
