DGS-1016D Switch is an non-managed switch 10/100/1000 Mb/s dedicated to operate on small working groups. Device is characterized by simplicity of operation and installation, and at the same time ensures maximum performance of the network.

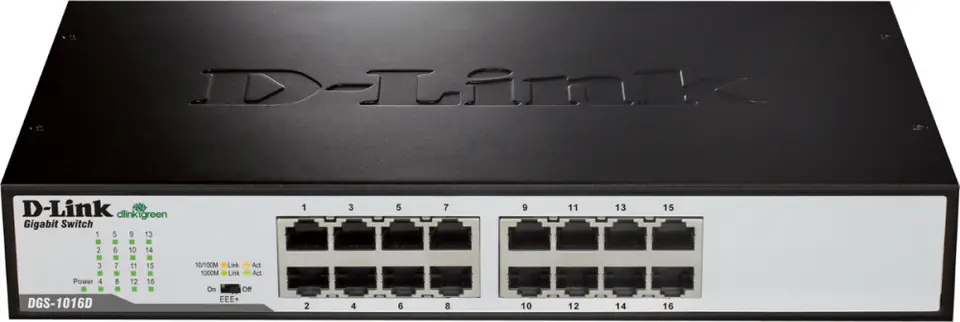

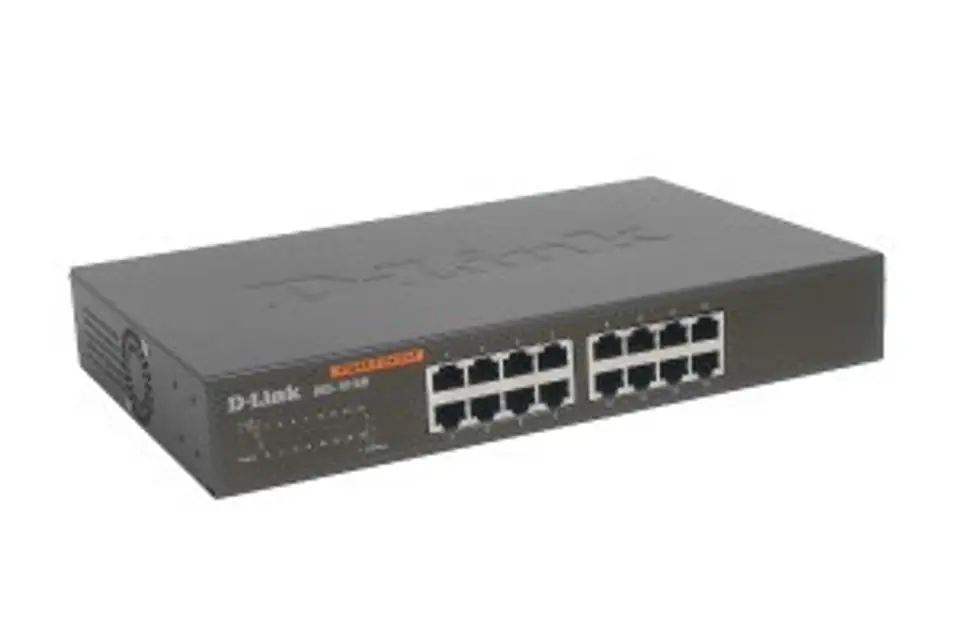

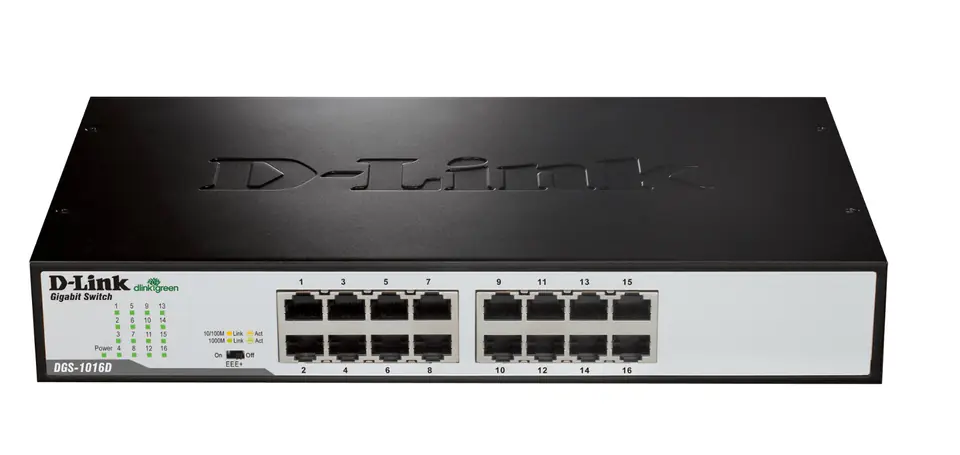

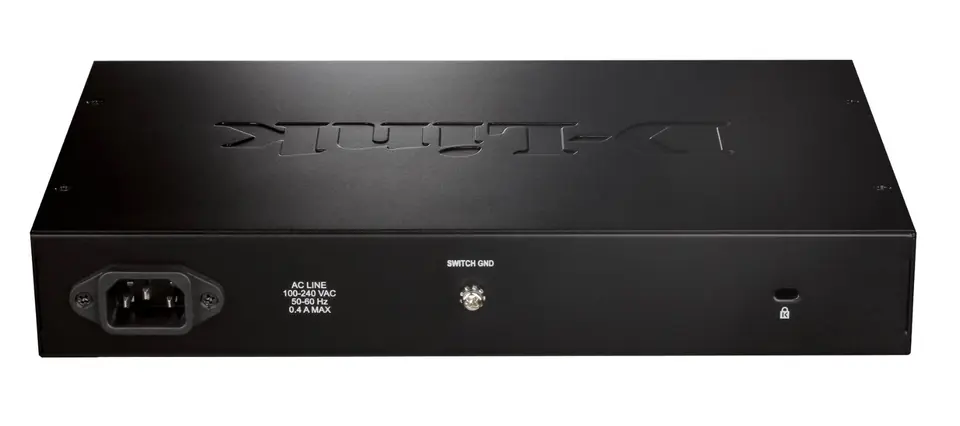

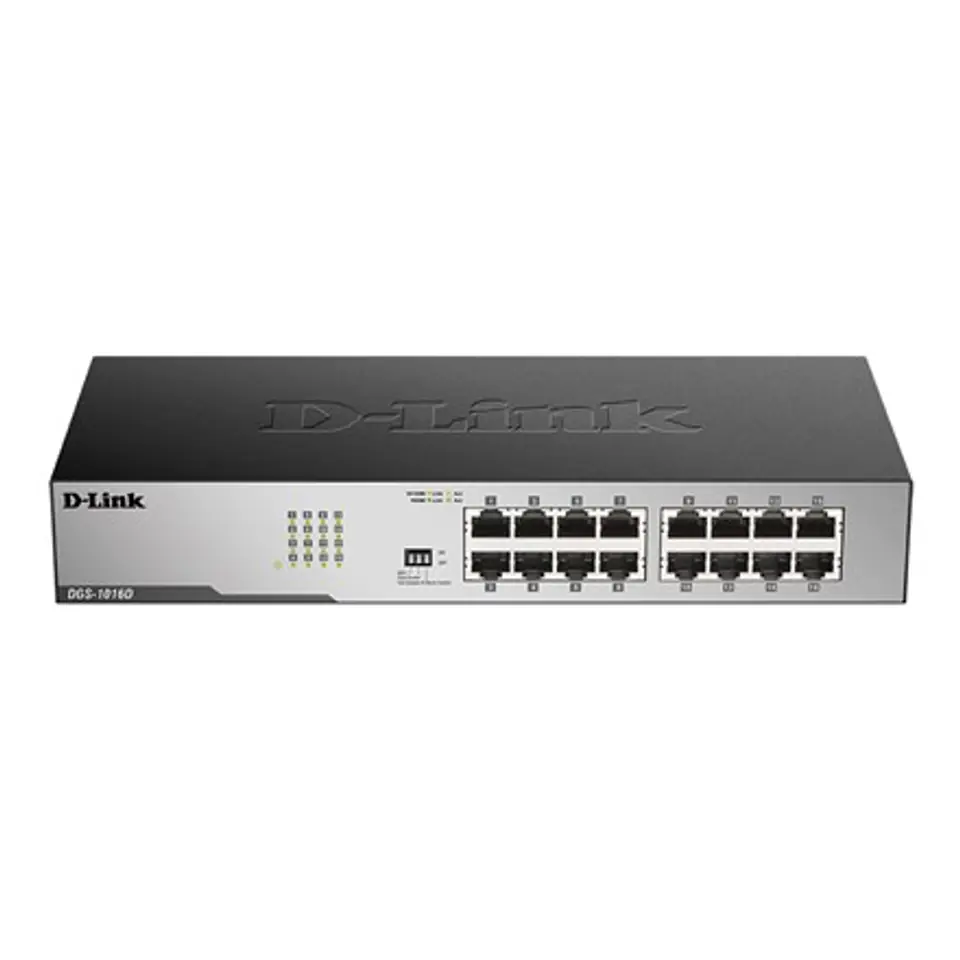

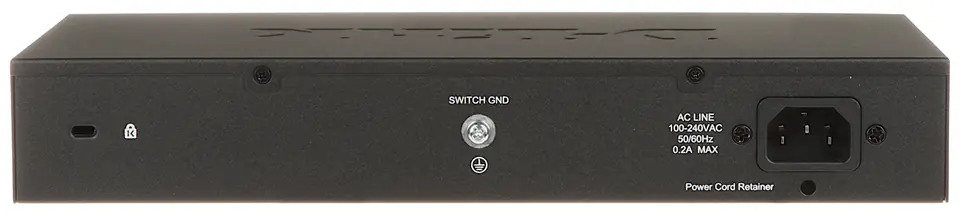

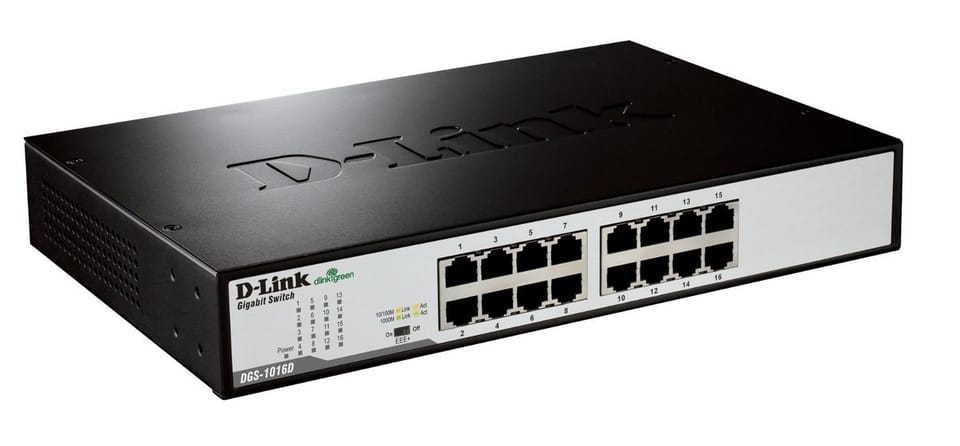

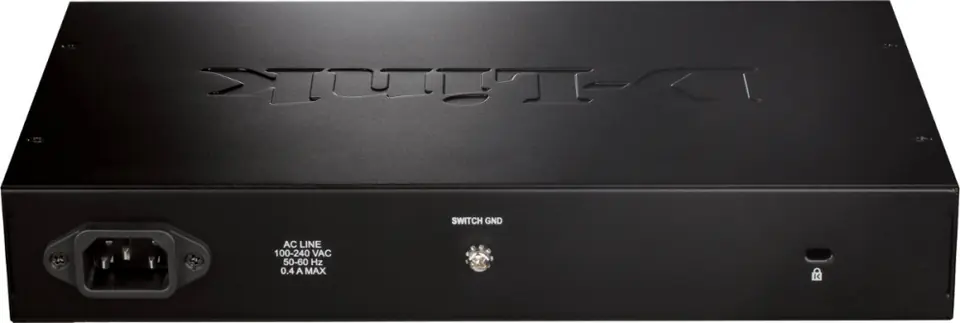

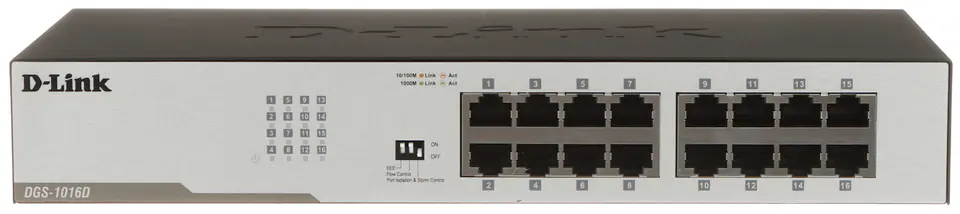

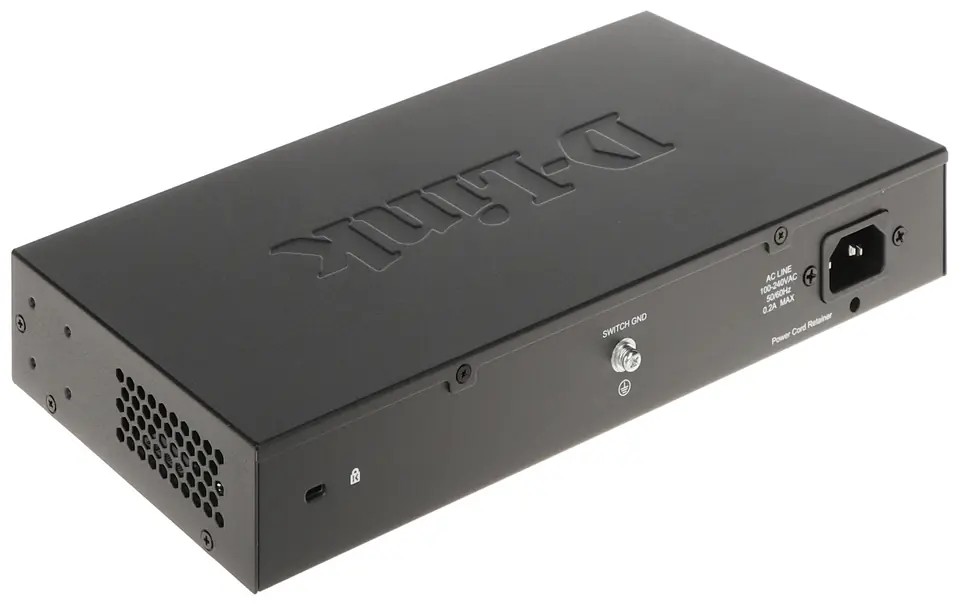

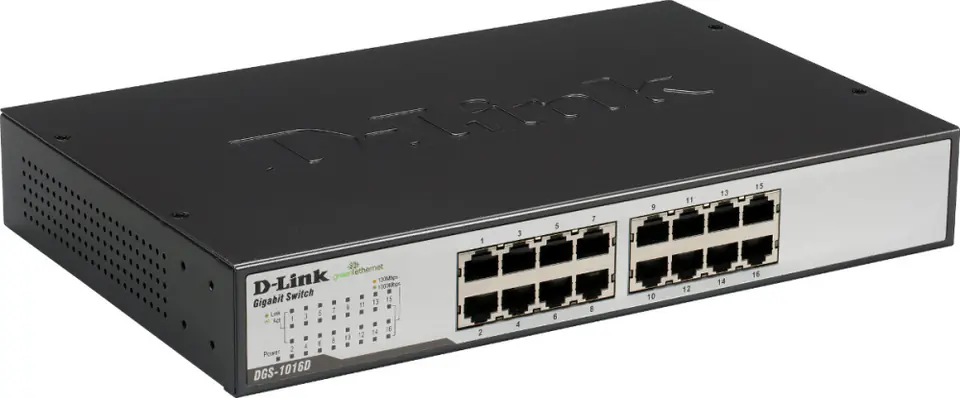

D-Link DGS-1016D/E network switch Unmanaged Black, Metallic
€96.49
Shipping from warehouse: D4
Estimated shipping: Wed, Nov 13 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- 0790069269974
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 16 |
| Copper ethernet cabling technology: | 1000BASE-T, 10BASE-T, 100BASE-T |
| Depth: | 180.3 mm |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 44.5 mm |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Mac address table: | 8000 entries |
| Master (outer) cases per pallet (air): | 30 pc(s) |
| Master (outer) cases per pallet (sea): | 50 pc(s) |
| Maximum data transfer rate: | 1 Gbit/s |
| Mean time between failures (mtbf): | 828109 h |
| Networking standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3u |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | 0 - 40 °C |
| Package depth: | 328 mm |
| Package height: | 108 mm |
| Package weight: | 1.71 kg |
| Package width: | 180 mm |
| Packet buffer memory: | 0.340 MB |
| Pallet gross length: | 110 cm |
| Pallet gross weight (air): | 295.7 kg |
| Pallet gross weight (sea): | 480.3 kg |
| Pallet gross width: | 120 cm |
| Pallet height (air): | 121.2 cm |
| Pallet height (sea): | 193 cm |
| Power consumption (typical): | 11.7 W |
| Power over ethernet (poe): | No |
| Product colour: | Black, Metallic |
| Products per pallet (air): | 150 pc(s) |
| Products per pallet (sea): | 250 pc(s) |
| Products per shipping (inner) case: | 5 pc(s) |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Shipping (inner) case gross weight: | 9.21 kg |
| Shipping (inner) case height: | 35.9 cm |
| Shipping (inner) case length: | 57.2 cm |
| Shipping (inner) case net weight: | 8.54 kg |
| Shipping (inner) case width: | 19.7 cm |
| Stackable: | Yes |
| Storage temperature (t-t): | -10 - 55 °C |
| Store-and-forward: | Yes |
| Switch type: | Unmanaged |
| Switching capacity: | 32 Gbit/s |
| Weight: | 1.35 kg |
| Width: | 281.9 mm |
