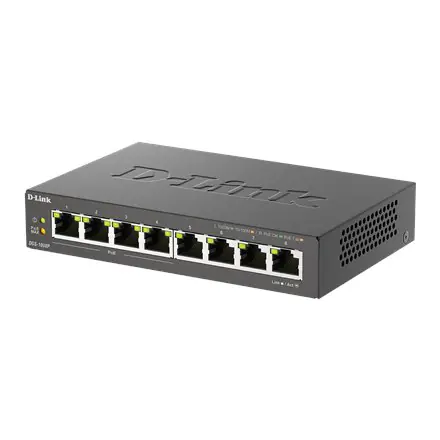

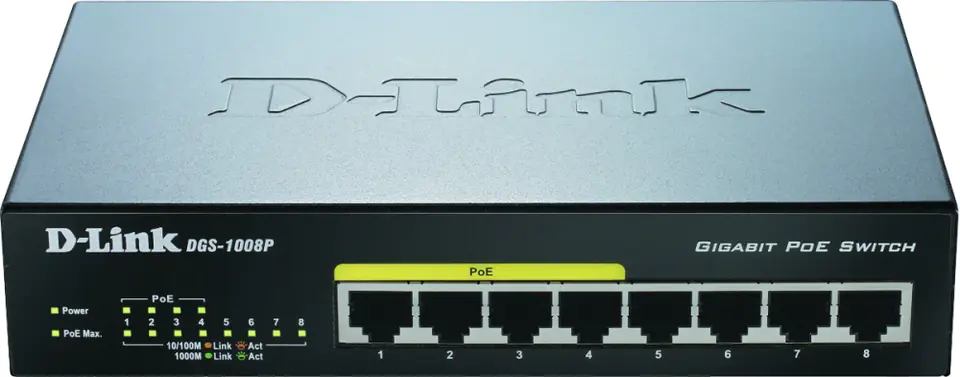

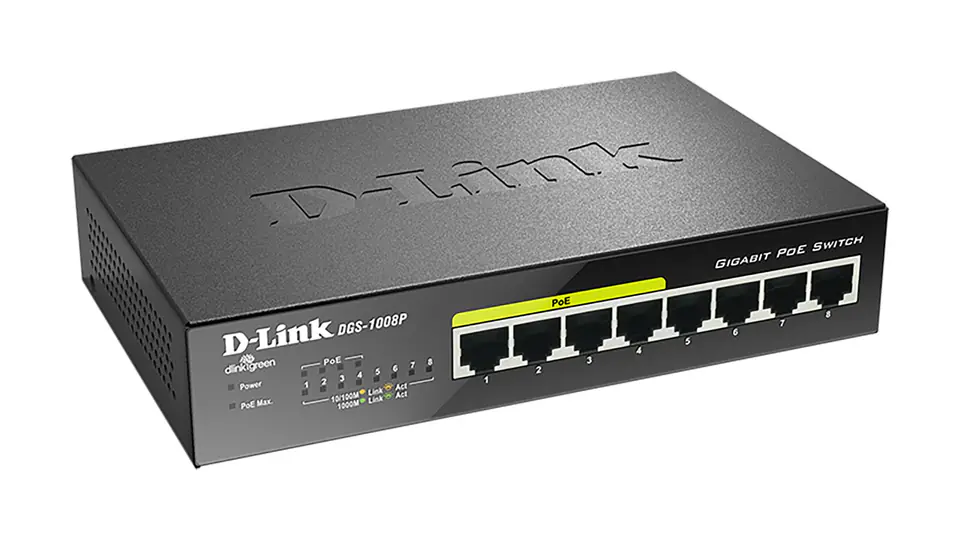

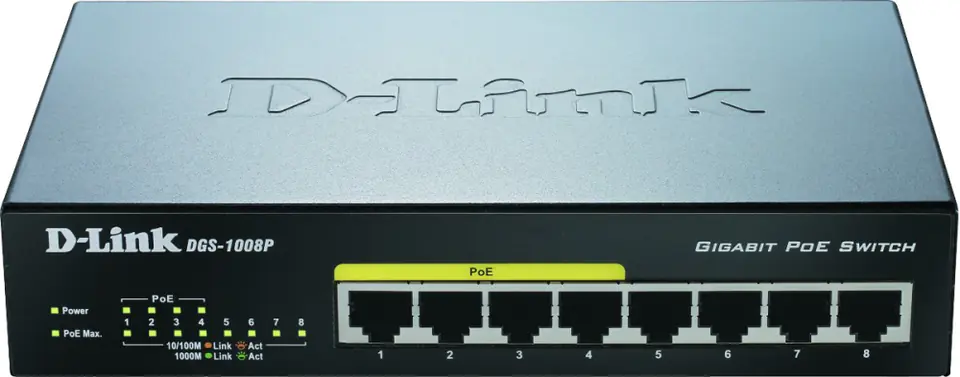

The DGS-1008P is a layer two switch. The device has a table of MAC addresses with a capacity of 4000 items and a buffer with a capacity of 192 KB. With Auto MDI-MDIX support for Ethernet, you can connect both straight and interlaced cables to the switch. Four of the sockets are powered by PoE. Support for PoE (Power over Ethernet) function allows you to transfer electricity via twisted pair RJ-45 cable to the device. This allows you to power devices such as wireless access points, IP network cameras or phones directly from network cables. The DGS-1008P is equipped with gigabit ports for high-speed data transfer and D-Link Green technology to effectively save power when the switch is not in use. Its fanless design makes it completely quiet, making it ideal for offices, libraries and conference rooms.

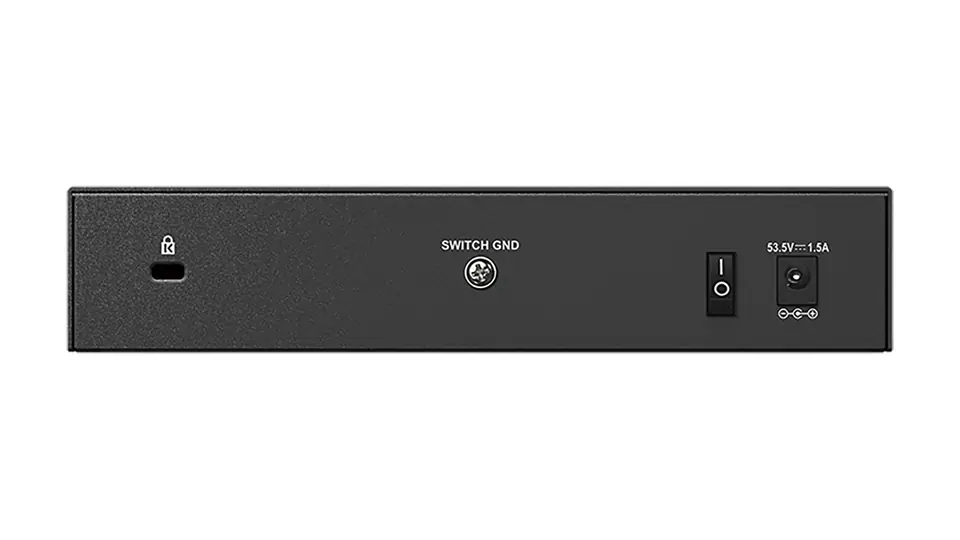

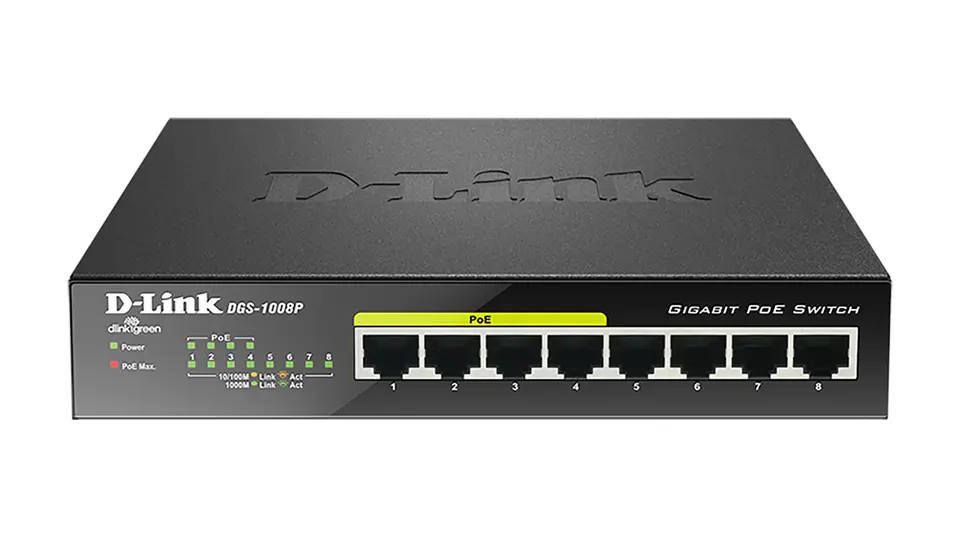

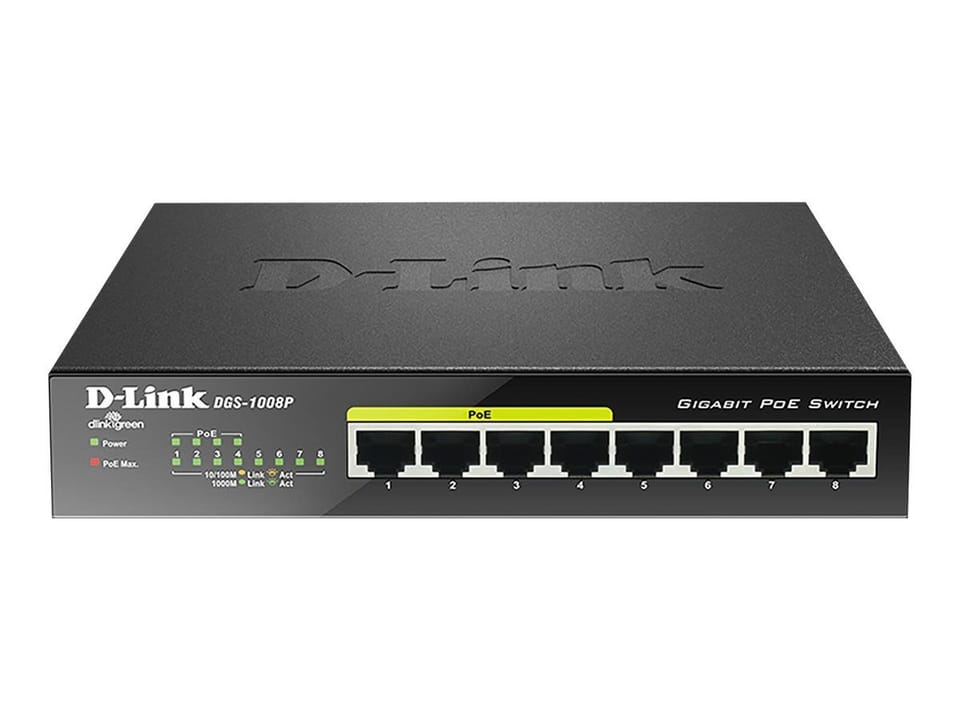

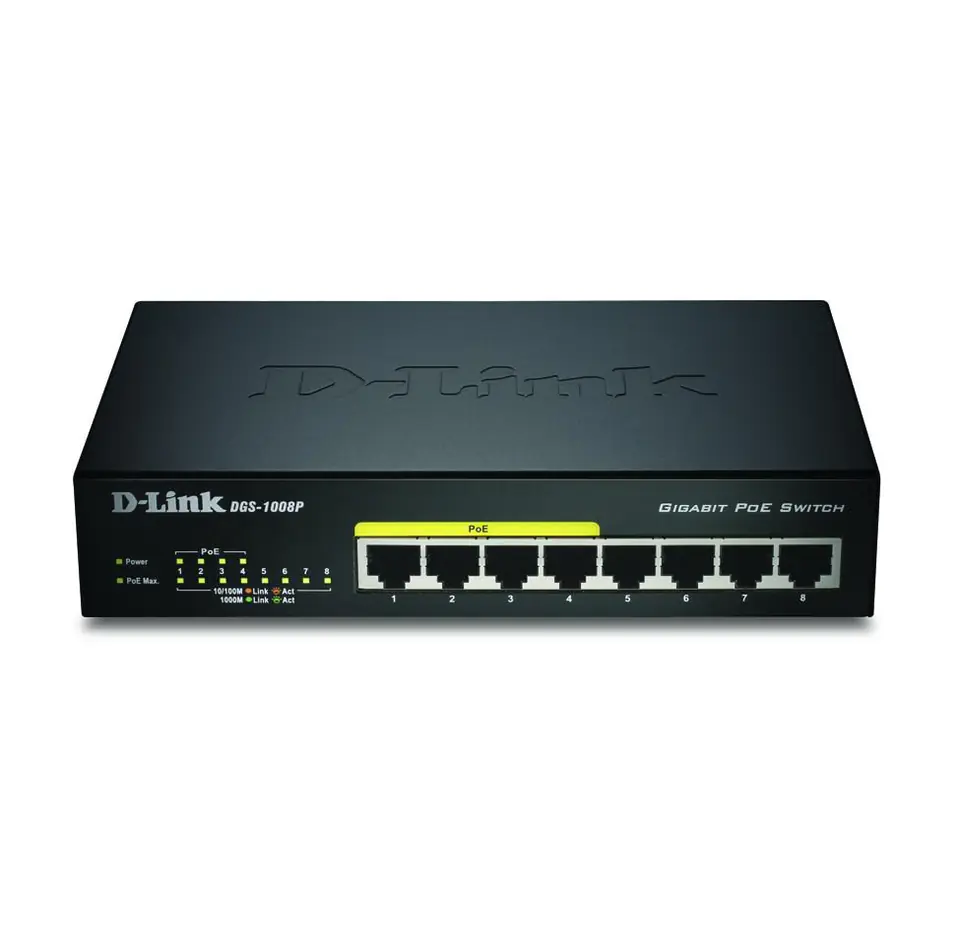

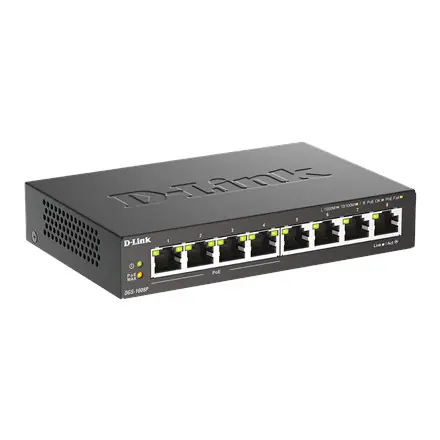

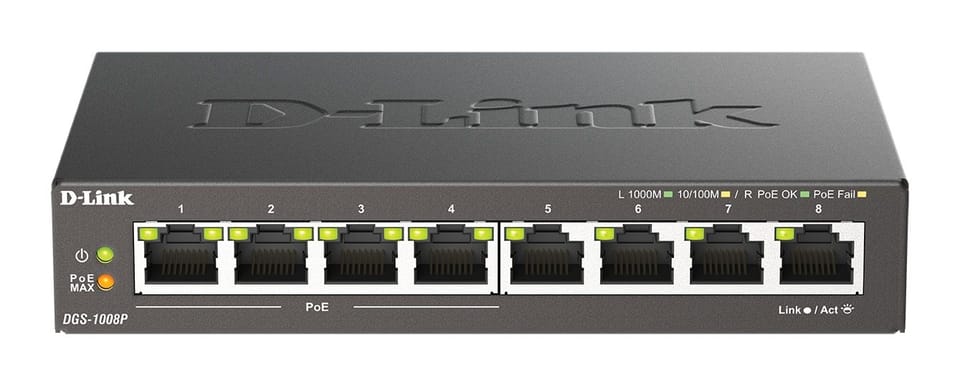

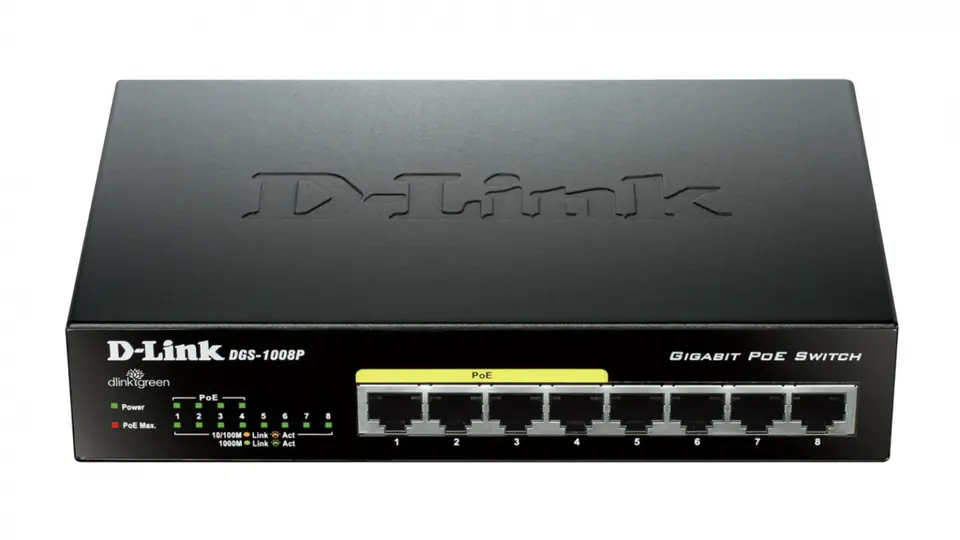

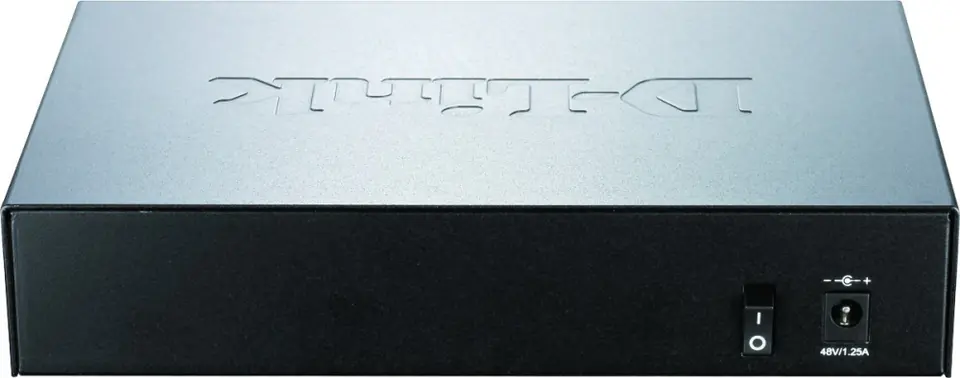

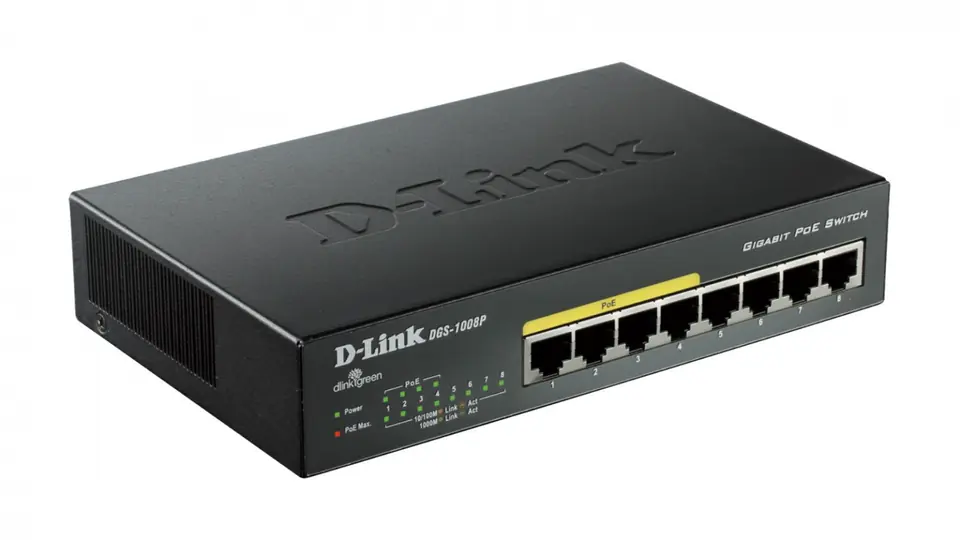

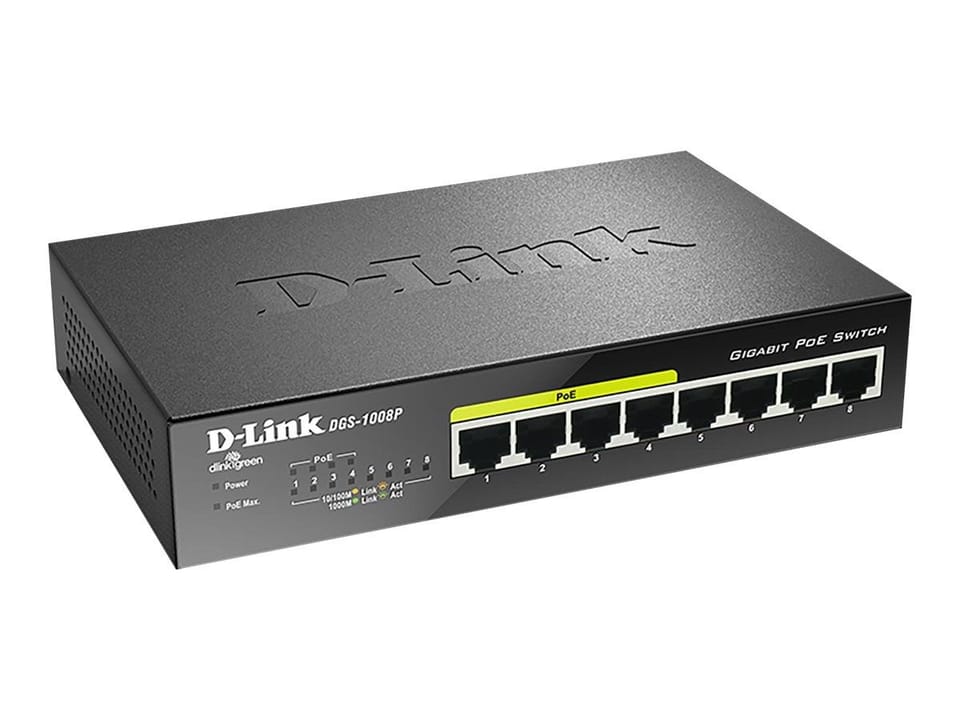

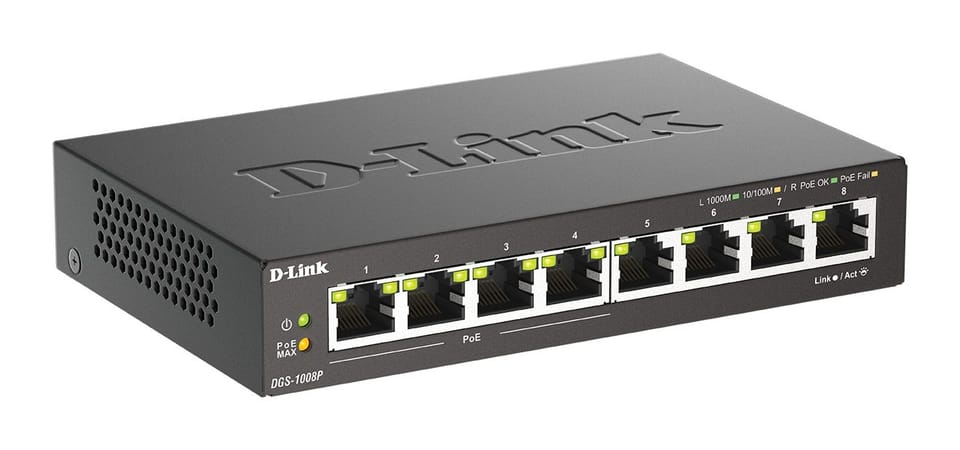

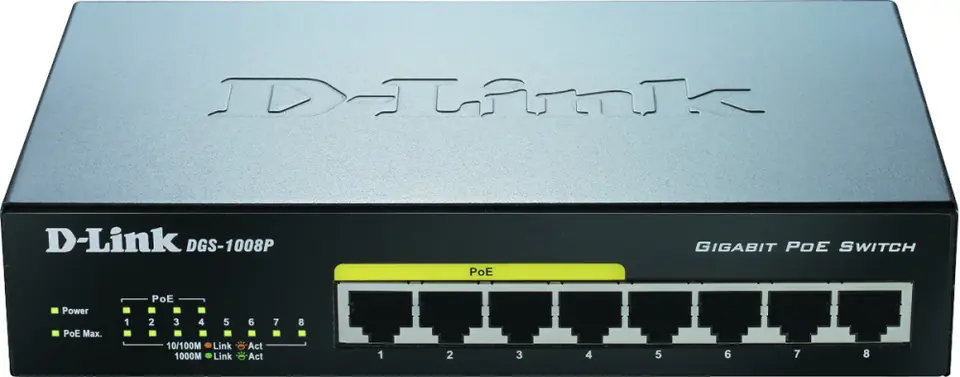

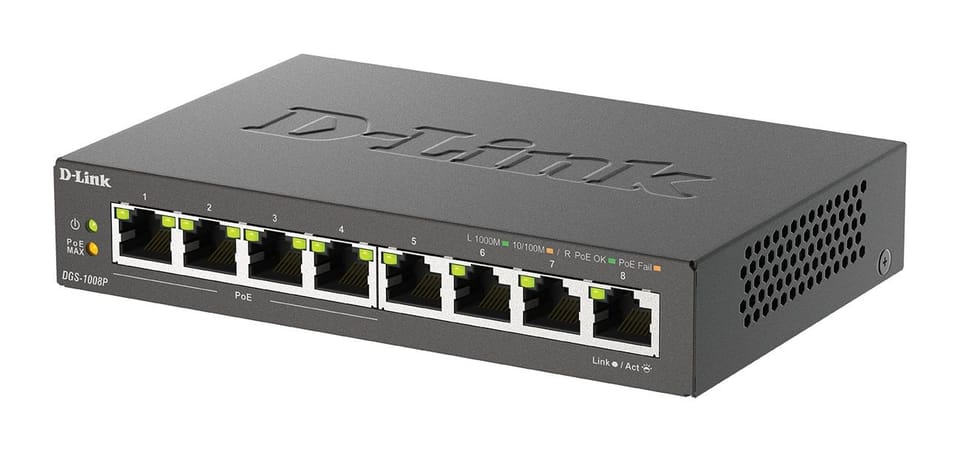

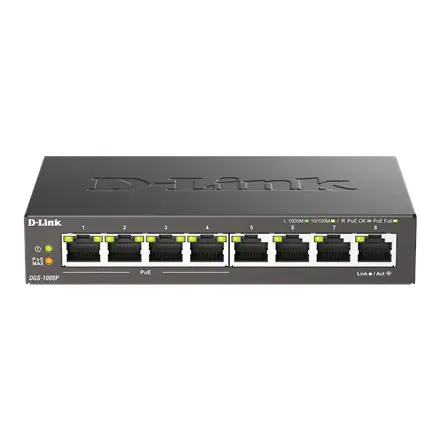

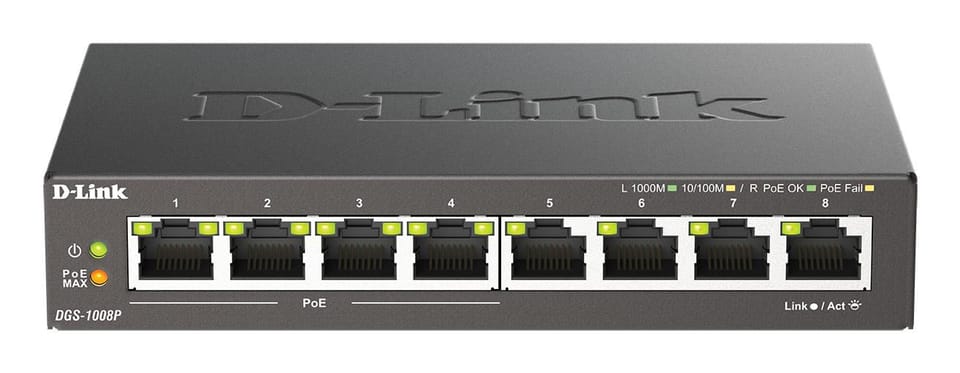

D-LINK DGS-1008P 8x 1GbE Switch
€101.52
Shipping from warehouse: A1
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- DGS-1008P / 0790069344176
Share this product:
Specification
| 10g support: | N |
|---|---|
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Y |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Built-in memory: | Buffer 192 KB |
| Bus speed: | 16 Gbps |
| Cable types supported: | Cat5, Cat4, Cat5e, Cat3 |
| Colour: | Black |
| Copper ethernet cabling technology: | 100BASE-TX, 1000BASE-T, 10BASE-T |
| Depth: | 120 mm |
| Depth (mm): | 120 |
| Destiny: | Desk |
| Dimensions (wxdxh): | 190 x 120 x 38 mm |
| Equipment: | AC adapter |
| Flow control support: | Y |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 38 mm |
| Height (mm): | 38 |
| Input current: | 1.5 A |
| Led indicators: | Yes |
| Mac address array size: | 4000 |
| Mac address table: | 4000 entries |
| Master (outer) cases per pallet (air): | 25 pc(s) |
| Master (outer) cases per pallet (sea): | 25 pc(s) |
| Maximum data transfer rate: | 2 Gbit/s |
| Method of transmission: | Store and forward |
| Network ports: | 8x 1 GbE |
| Networking standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Operating humidity range (%): | 0 - 95 |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | 0 - 40 °C |
| Operating temperature range (deg. c): | 0 to 50 |
| Other parameters: | Auto MDI-MDI-X, No fans, QoS support, 4 PoE powered ports, Jumbo frame support |
| Package depth: | 328 mm |
| Package height: | 108 mm |
| Package weight: | 1.7 kg |
| Package width: | 180 mm |
| Packet buffer memory: | 0.256 MB |
| Packet forwarding rate (1 gbps): | 14880 pps |
| Packet forwarding rate (10 mbps): | 1488000 pps |
| Packet forwarding rate (100 mbps): | 148800 pps |
| Pallet gross length: | 120 cm |
| Pallet gross weight (air): | 467 kg |
| Pallet gross weight (sea): | 467 kg |
| Pallet gross width: | 100 cm |
| Pallet height (air): | 195 cm |
| Pallet height (sea): | 195 cm |
| Power: | 100 - 240 V AC, PoE |

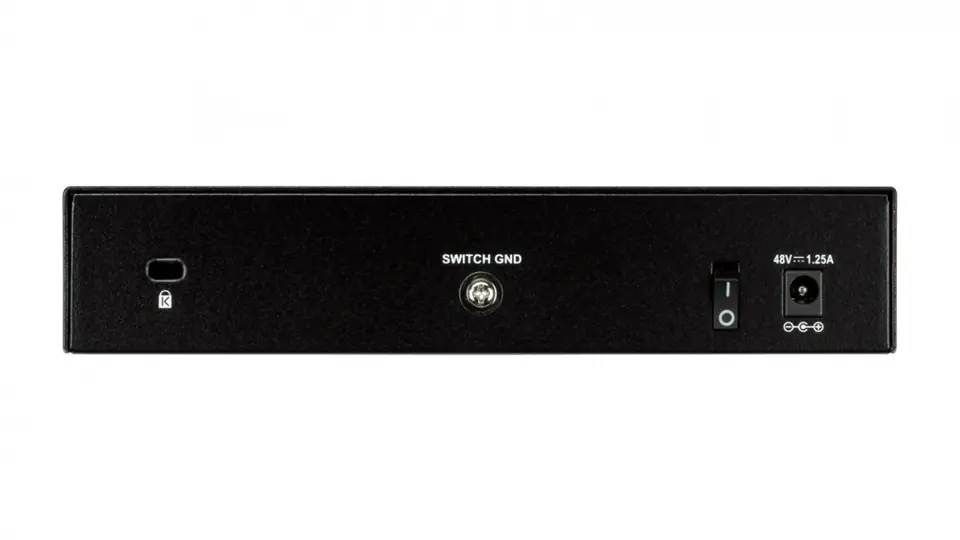

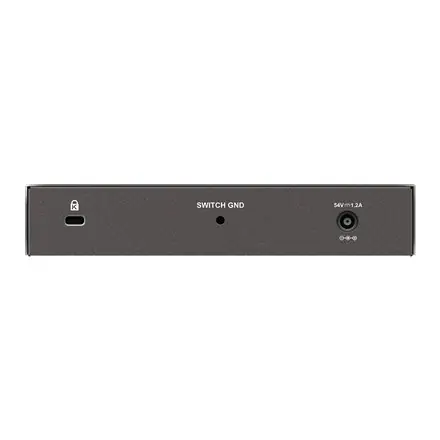

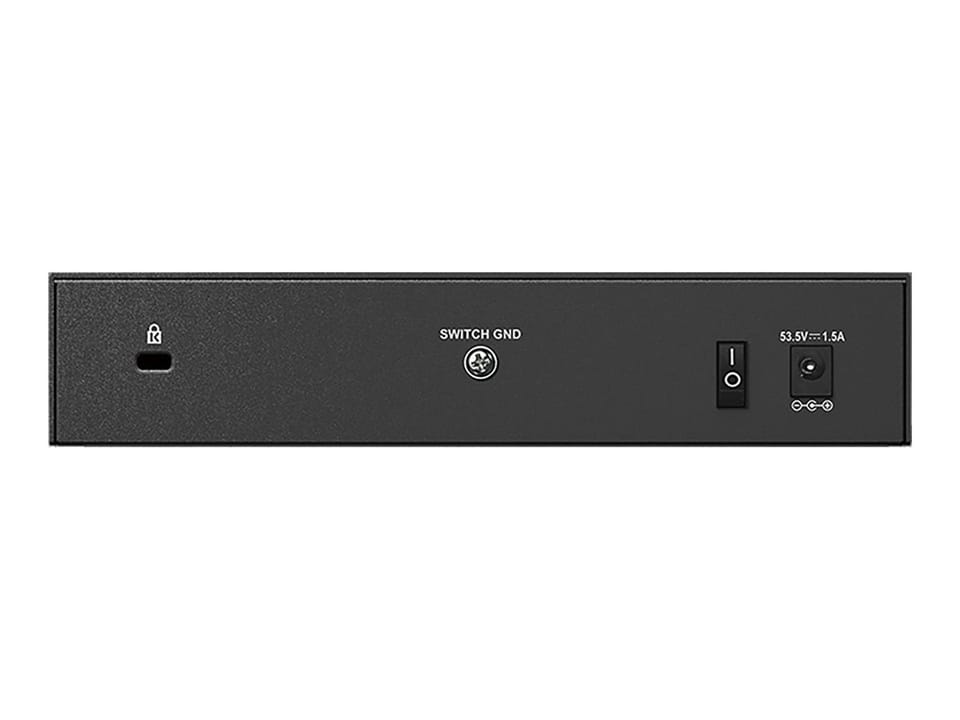

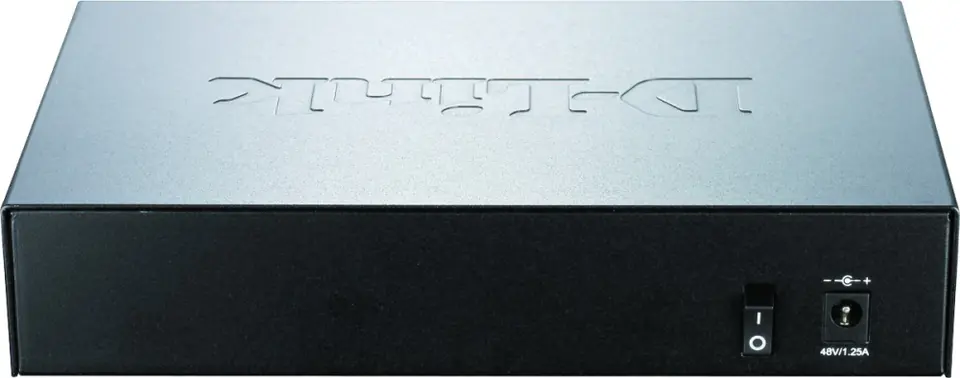

| Power connector: | DC-in jack |
| Power consumption (typical): | 63.2 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 4 |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 4 |
| Power supply included: | Y |
| Product colour: | Black |
| Products per pallet (air): | 250 pc(s) |
| Products per pallet (sea): | 250 pc(s) |
| Products per shipping (inner) case: | 10 pc(s) |
| Protocols and standards: | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Quality of service (qos) support: | Y |
| Rack mounting: | No |
| Shipping (inner) case gross weight: | 17.9 kg |
| Shipping (inner) case height: | 36.3 cm |
| Shipping (inner) case length: | 57.2 cm |
| Shipping (inner) case net weight: | 12.4 kg |
| Shipping (inner) case width: | 38.4 cm |
| Storage temperature (t-t): | -40 - 70 °C |
| Store-and-forward: | Y |
| Supported data transfer rates: | 200, 100, 20, 10 Mbit/s |
| Switch layer: | L2 |
| Switch type: | Unmanaged |
| Switching capacity: | 16 Gbit/s |
| Switching layer: | 2 |
| Technologies: | Plug & Play, IEEE 802.3x, IEEE 802.1p, Green Ethernet |
| Throughput: | 1.48 mpps |
| Total power over ethernet (poe) budget: | 68 W |
| Warranty: | 2 years |
| Weight: | 760 g |
| Width: | 190 mm |
| Width (mm): | 190 |
