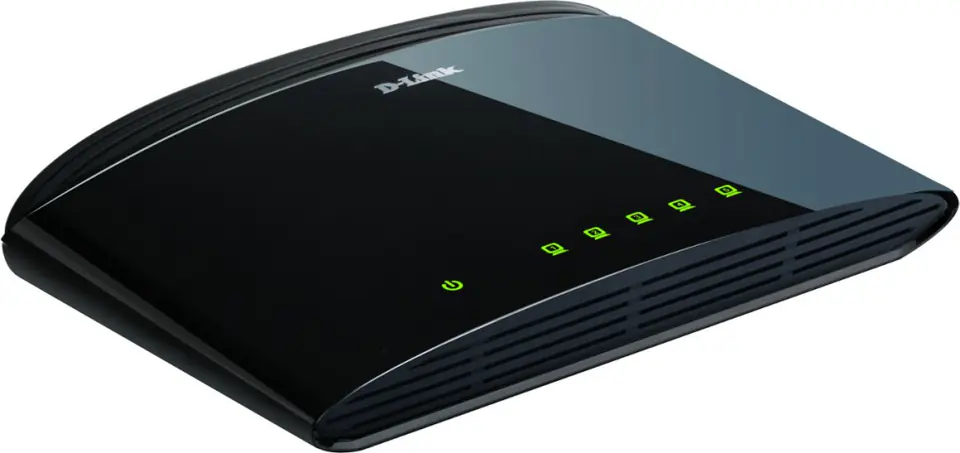

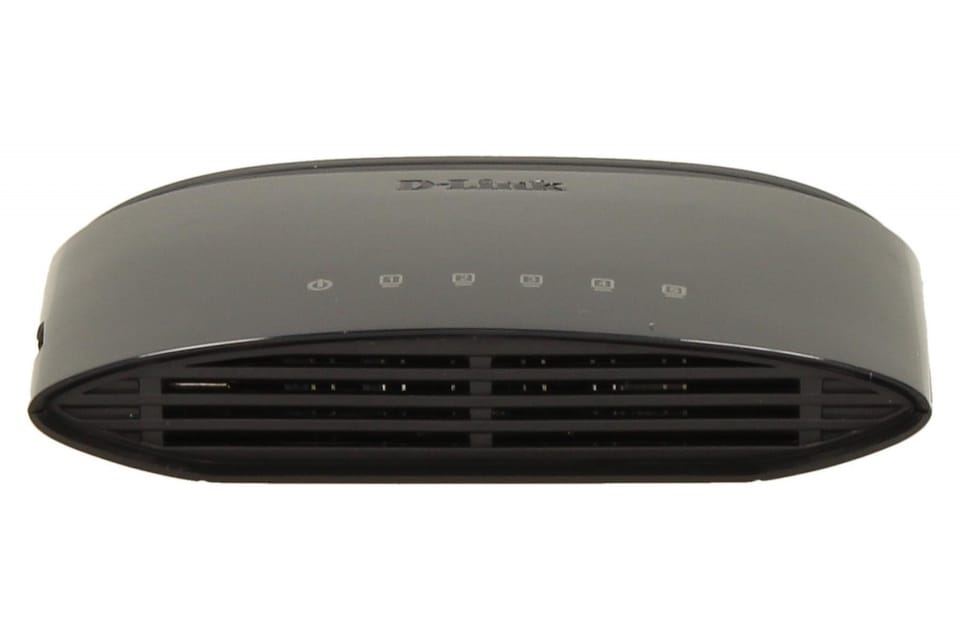

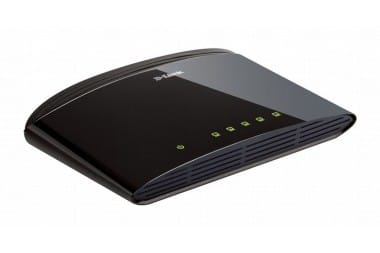

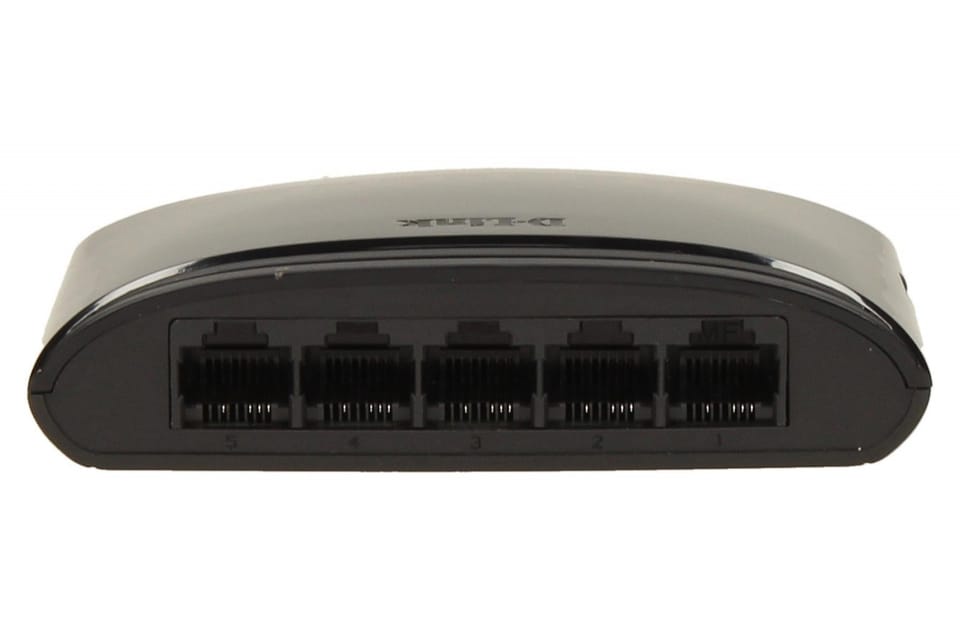

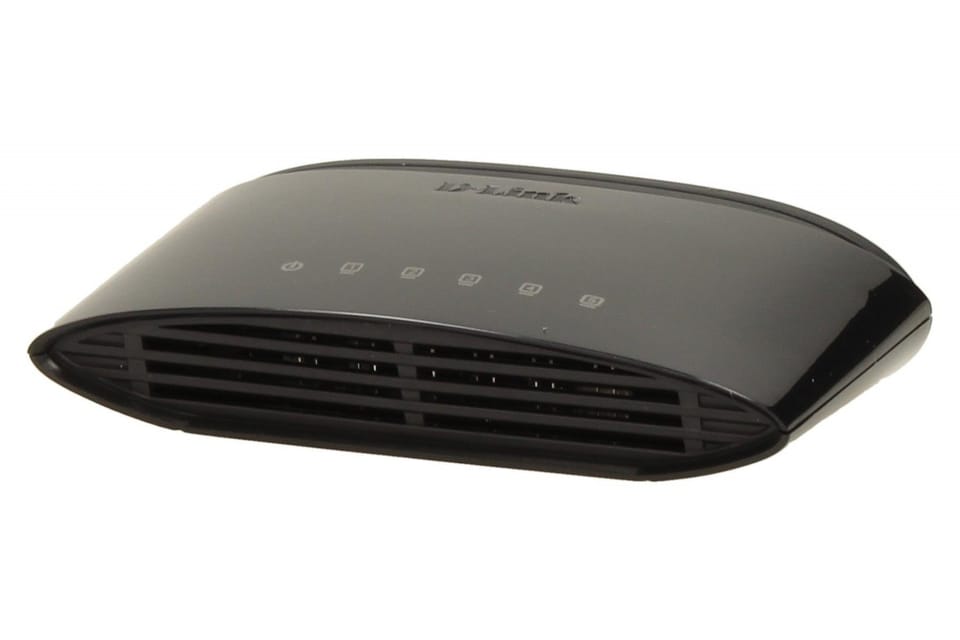

D-Link DES-1005D Unmanaged Fast Ethernet 10/100) Blac
€13.84
Shipping from warehouse: M7
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Specification
10g support: | N |
---|---|
Auto mdi/mdi-x: | Y |
Auto-negotiation: | Y |
Basic switching rj-45 ethernet ports quantity: | 5 |
Basic switching rj-45 ethernet ports type: | Fast Ethernet (10/100) |
Cable types supported: | Cat4, Cat3, Cat5, Cat5e |
Cables included: | AC |
Copper ethernet cabling technology: | 100BASE-TX, 10BASE-T |
Depth: | 83.4 mm |
Flow control support: | Y |
Forwarding rate: | 0.1488 Mpps |
Full duplex: | Y |
Harmonized system (hs) code: | 85176990 |
Heat dissipation: | 8.528 BTU/h |
Height: | 29.1 mm |
Led indicators: | Power, LAN |
Mac address auto-learning supported: | Y |
Mac address table: | 2000 entries |
Manual: | Y |
Master (outer) cases per pallet (air): | 48 pc(s) |
Master (outer) cases per pallet (sea): | 48 pc(s) |
Maximum data transfer rate: | 0.2 Gbit/s |
Networking standards: | IEEE 802.3x, IEEE 802.3u, IEEE 802.3 |
Operating relative humidity (h-h): | 10 - 90% |
Operating temperature (t-t): | 0 - 50 °C |
Package depth: | 105 mm |
Package height: | 98 mm |
Package weight: | 170 g |
Package width: | 65 mm |
Packet buffer memory: | 0.046875 MB |
Packet transfer speed: | 14880 - 148800 p/s |
Pallet gross length: | 110 cm |
Pallet gross weight (air): | 465.2 kg |
Pallet gross weight (sea): | 465.2 kg |
Pallet gross width: | 120 cm |
Pallet height (air): | 197.5 cm |
Pallet height (sea): | 197.5 cm |
Plug and play: | Y |
Power connector: | DC-in jack |
Power consumption (typical): | 2.5 W |
Power led: | Y |
Power over ethernet (poe): | N |
Product colour: | Black |
Products per pallet (air): | 2400 pc(s) |
Products per pallet (sea): | 2400 pc(s) |
Products per shipping (inner) case: | 50 pc(s) |
Rack mounting: | N |
Shipping (inner) case gross weight: | 9.25 kg |
Shipping (inner) case height: | 23 cm |
Shipping (inner) case length: | 51.5 cm |
Shipping (inner) case net weight: | 8.5 kg |
Shipping (inner) case width: | 35 cm |
Stackable: | N |
Storage relative humidity (h-h): | 5 - 90% |
Storage temperature (t-t): | -10 - 70 °C |
Store-and-forward: | Y |
Supported data transfer rates: | 10/20/100/200 Mb/s |
Switch type: | Unmanaged |
Switching capacity: | 1 Gbit/s |
User guide: | Y |
Width: | 125.3 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
