CYLINDRICAL REED SWITCH KN-04C-BR

€2.33
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
KN-04C-BR / 5902887023484

Specification

Colour:Brown
Detection:Opening a door or window

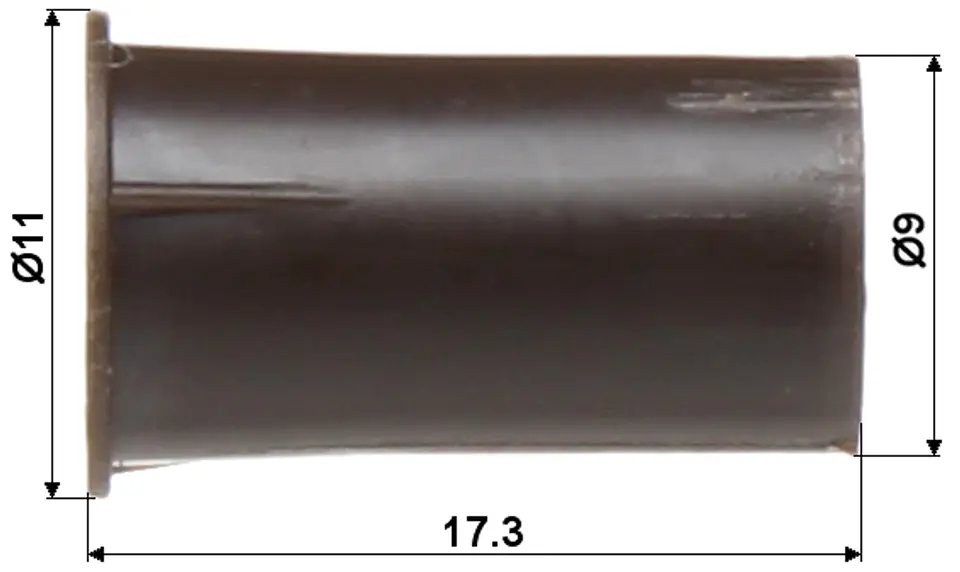

Dimensions:Ø 11 x 17.3 mm
Distance of opening of reed contacts:10 mm
Maximum switchable current:20 mA
Maximum switchable voltage of reed switch:20 volts
Reed switch closing distance:9 mm
Scales:0.01 kg
Selected features:Cable length : 25 cm Plastic (ABS)
Warranty:2 years

Magnetic detectors can be used wherever there is a need to control the condition of doors, windows or other moving elements, e.g. to protect or control access to specific objects, rooms, devices, automation systems, etc.

The detector element containing the magnet should be mounted on the moving part, while the reed switch should be mounted on the stationary part of the protected door, window, etc. The sensor is designed for face mounting in materials such as wood or plastic

The magnet must be within range of the reed switch (see specifications)The displacement of the axis of the magnet and reed switch in cylindrical sensors should not exceed 10mm

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
