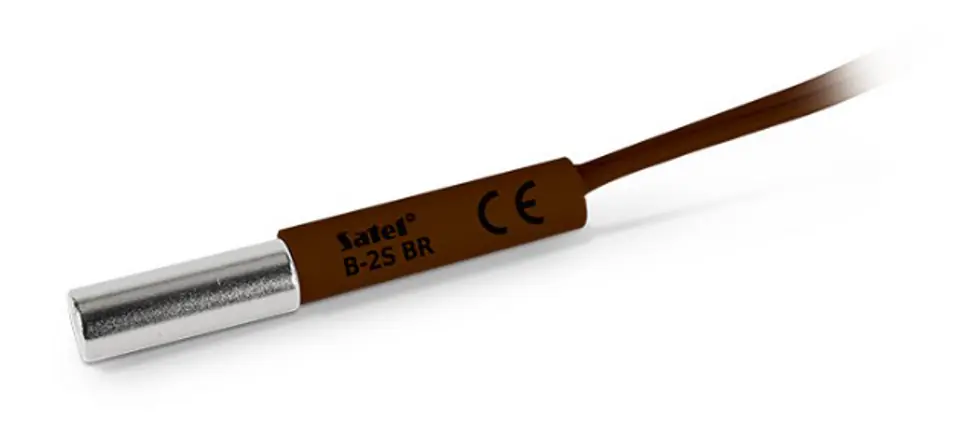

CYLINDRICAL REED SWITCH B-2S-BR SATEL

€3.71
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Satel
Product code:
B-2S-BR / 5902887020254

Specification

Cable length:44 cm
Colour:Brown
Detection:Opening a door or window
Dimensions:27 x 6.5 mm
Distance of opening of reed contacts:27 mm
Maximum switchable current:500 mA
Maximum switchable voltage of reed switch:100 volts
Producer / brand:SATEL
Reed switch closing distance:25 mm
Scales:0.01 kg
Selected features:Small footprint
Warranty:2 years

Magnetic detectors can be used wherever there is a need to control the condition of doors, windows or other moving elements, e.g. to protect or control access to specific objects, rooms, devices, automation systems, etc.

The detector element containing the magnet should be mounted on the moving part, while the reed switch should be mounted on the stationary part of the protected door, window, etc. The sensor is designed for face mounting in materials such as wood or plastic

The sensor is press-fit

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
