| Ac outlet types: | Type E |
|---|---|
| Ac outlets quantity: | 4 AC outlet(s) |
| Active power: | 630 watts (Printing) |
| Additional features: | Automatic Voltage Regulation (AVR) |
| Apparent power: | 1050 VA |
| Apparent power (va): | 1050 |
| Architecture: | Line-interactive |
| Arrangement: | Tower |
| Audible alarm: | yes |
| Audible alarm modes: | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Audible alarm(s): | Yes |
| Automatic voltage regulation (avr): | yes |
| Automatic voltage regulation (avr): | Yes |
| Average charging time: | 6 h |
| Battery recharge time: | 6 h |
| Battery technology: | Sealed Lead Acid (VRLA) |
| Battery type: | Lead acid (VRLA) |
| Cabling technology: | 10/100/1000Base-T(X) |
| Case: | Mini Tower |
| Charging time: | 6 h |
| Data line protection slots: | 1x RJ-45/RJ-11 |
| Depth: | 307 mm |
| Depth (cm): | 9.5 |
| Destiny: | monitoring systems, data storage centers, network, servers, workstations, industrial equipment |
| Dimensions: | 95 x 220 x 307 mm |
| Emi/rfi filter: | yes |
| Emi/rfi noise filtering: | Yes |
| Enclosure type: | Tower |
| Energy impact rating: | 150 J |
| Environmental certificate (sustainability): | RoHS |
| Equipment: | Power cable |
| Estimated battery life: | 65 minutes @ 60 W, 43 minutes @ 90 W, 14 minutes @ 200 W |
| Ethernet lan (rj-45) ports: | 2 |
| Ethernet lan ports (rj-45) quantity: | 2 |
| Form factor: | Tower |
| Height: | 220 mm |
| Height (cm): | 30.7 |
| Hold time: | 14 mins |
| Housing material: | Plastic |
| Indication of operating status: | LEDs, Beeps |
| Input frequency: | 50/60 Hz |
| Input frequency: | 50 / 60 Hz (auto sensing) |
| Input operating voltage (maximum): | 290 volts |
| Input operating voltage (minimum): | 165 volts |
| Input operation voltage (max): | 290 V |
| Input operation voltage (min): | 165 V |
| Input voltage: | 165 volts ... 290 VAC |
| Input voltage (v): | 120 |
| Kind: | Uninterruptible power supply |
| Led indicators: | Yes |
| Leds: | yes |
| Maximum configurable power: | 1.05 kVA |
| Network ports: | 4x type C/E/F (Hybrid) |
| Non-operating altitude: | 0 - 3000 m |
| Number of input phases: | 1 |
| Number of outputs: | 4 pcs. |
| Number of power outlets: | 4 x AC connectors |
| Operating altitude: | 0 - 3000 m |
| Operating height (a.s.l.): | 0 - 3000 m |
| Operating relative humidity (h-h): | 0 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Operating temperature / relative humidity: | 0 °C ... 40 °C / 0 ... 90 % |
| Other parameters: | LED status indicator |
| Output frequency: | 50/60 Hz |
| Output frequency: | 50 / 60 Hz ± 1 % |
| Output operating voltage (minimum): | 230 volts |
| Output operation voltage (max): | 230 V |
| Output power: | 630 W |
| Output power capacity: | 1.05 kVA |
| Output voltage: | 230 V AC ± 10 % (approximated sine wave) |
| Permissible height (a.s.l.): | 0 - 3000 m |
| Permissible relative humidity: | 0 - 90% |
| Port usb: | yes |
| Power (w): | 630 |
| Power protection features: | Overload, Short circuit |
| Producer / brand: | CyberPower |
| Product colour: | Black |
| Product depth: | 307 mm |
| Product height: | 220 mm |
| Product weight: | 6.9 kg |
| Product width: | 95 mm |
| Real power: | 630 watts (Printing) |
| Relative humidity range: | 0 - 90% |
| Response time: | 4 ms |
| Response time (typical): | 4 ms |
| Scales: | 6.79 kg |
| Security: | Surge Protection Overload Protection Overcharge Protection Protection: DSL/Tel/FAX/Modem--RJ11/RJ45 |
| Security measures applied: | Surge Protector, Overload Over |
| Selected features: | Automatic voltage regulator AVR Cooperation with power generators Built-in EMI, RFI filter Configurable alarm |
| Starting attendance: | 50/60 Hz |
| Storage relative humidity (h-h): | 0 - 90% |
| Storage temperature (t-t): | -20 - 50 °C |
| Surge energy rating: | 150 J |
| Surge protection features: | Fax, Network, Digital Subscriber Line (DSL), Modem |
| Sustainability certificates: | RoHS |
| Switching time: | 4 ms |
| Technologies: | RJ-45 |
| Temperature range (operation): | 0 - 40 °C |
| Temperature range (storage): | -20 - 50 °C |
| Types of ac outputs: | Type E |
| Typical battery charging time: | 6 hours |
| Ups topology: | Line-Interactive |
| Ups topology: | Line-interactive technology |
| Usb port: | Yes |
| Warranty: | 2 years |
| Wave waveform: | Sine |
| Waveform: | Sine |
| Weight: | 6.9 kg |
| Weight (kg): | 6.9 |
| Width: | 95 mm |
| Width (cm): | 22 |
| Wiring technology: | 10/100/1000Base-T(X) |

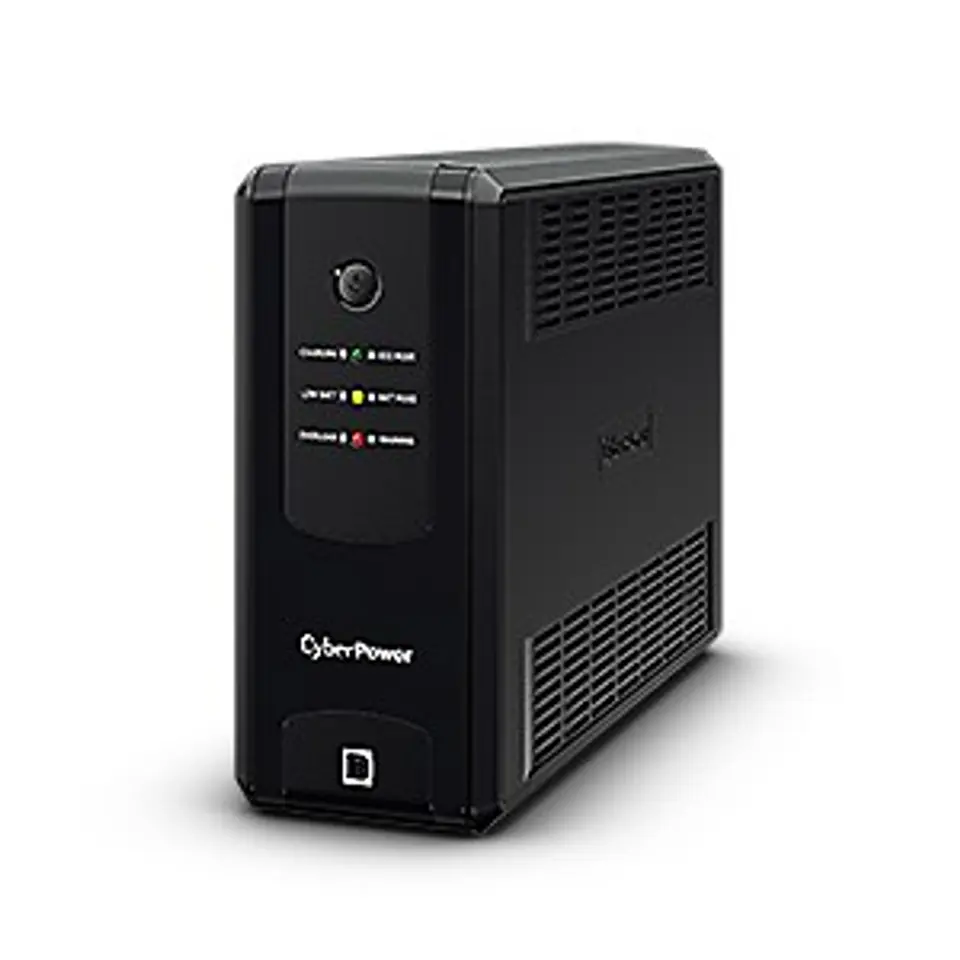

UT1050EG-FR/UPS is a professional device used to maintain the operation of connected assemblies of components
The UT CyberPower UPS Series is equipped with a best-in-class fire-resistant plastic enclosure to provide exceptional fire resistance and minimize potential losses in the event of a fire
