| Aluminium > 8% silicon: | 110 |
|---|---|
| Cast iron gg/gts: | 45 |
| Copper alloys: | 90 |

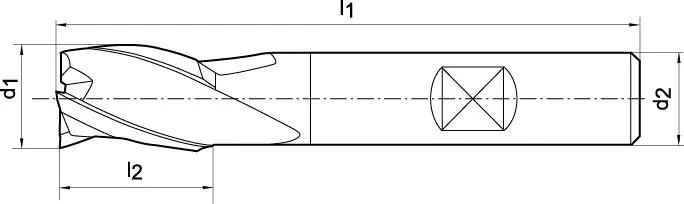

| Cutting part length l2: | 11 mm |
| Diameter d1 = e8: | 8.0 mm |
| Ggg cast iron: | 36 |
| Inox austenite.: | 24 |
| Inox duplex: | 19 |
| Inox ferrite./martenz.: | 30 |
| Shank diameter d2 = h6: | 10 mm |
| Steel < 1000 n/mm2: | 44 |
| Steel < 1000 n/mm2 fz: | 0.039 mm/rev. |
| Steel < 1400 n/mm2: | 35 |
| Steel < 700 n/mm2: | 55 |
| Titanium > 850 n/mm2: | 22 |
| Total length l1: | 61 mm |

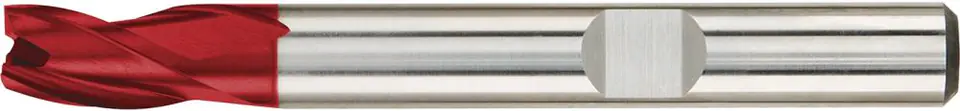

Longitudinal hole end milling cutter (keyway), 3-blade, DIN 327, HSS Co8, Fire coating
Design: type N, 30°, from diameter 3.0 mm with central blade.
Application: for wedge and keyway milling, for diameter in tolerance e8 for fitting P9 and for circumferential milling.
Cutting speed approx. 50 % higher than uncoated tools. Dry processing possible.
