| Aluminium > 8% silicon: | 110 |
|---|---|
| Cast iron gg/gts: | 45 |
| Copper alloys: | 90 |

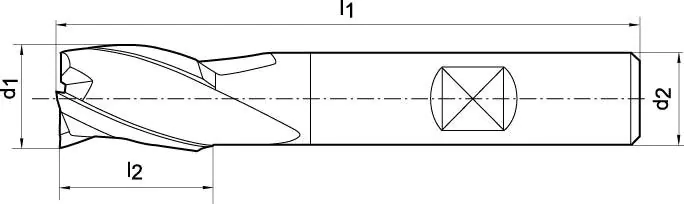

| Cutting part length l2: | 8 mm |
| Diameter d1 = e8: | 5.0 mm |
| Ggg cast iron: | 36 |
| Inox austenite.: | 24 |
| Inox duplex: | 19 |
| Inox ferrite./martenz.: | 30 |
| Shank diameter d2 = h6: | 6 mm |
| Steel < 1000 n/mm2: | 44 |
| Steel < 1000 n/mm2 fz: | 0.019 mm/rev. |
| Steel < 1400 n/mm2: | 35 |
| Steel < 700 n/mm2: | 55 |
| Titanium > 850 n/mm2: | 22 |
| Total length l1: | 52 mm |

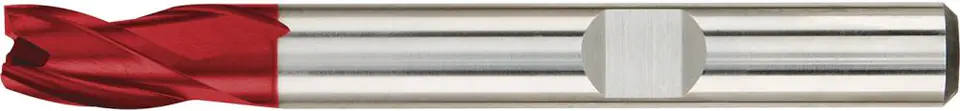

Longitudinal hole end milling cutter (keyway), 3-blade, DIN 327, HSS Co8, Fire coating
Design: type N, 30°, from diameter 3.0 mm with central blade.
Application: for wedge and keyway milling, for diameter in tolerance e8 for fitting P9 and for circumferential milling.
Cutting speed approx. 50 % higher than uncoated tools. Dry processing possible.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
