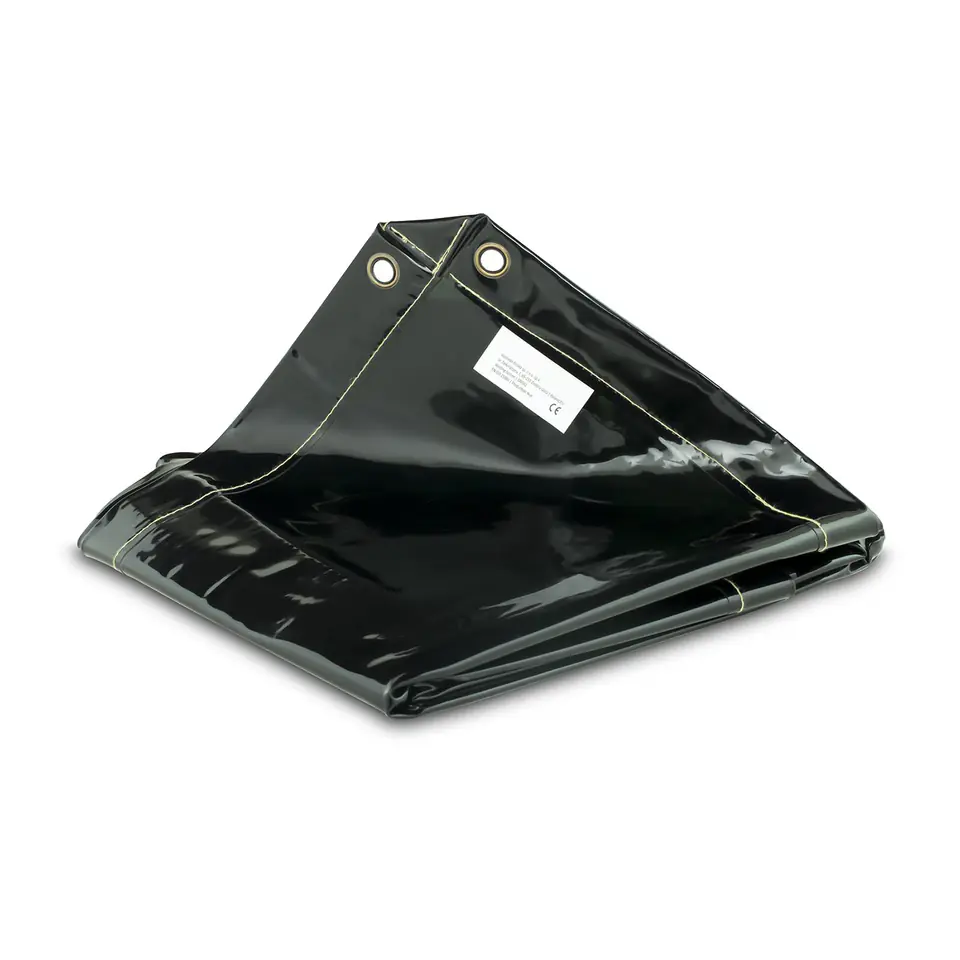

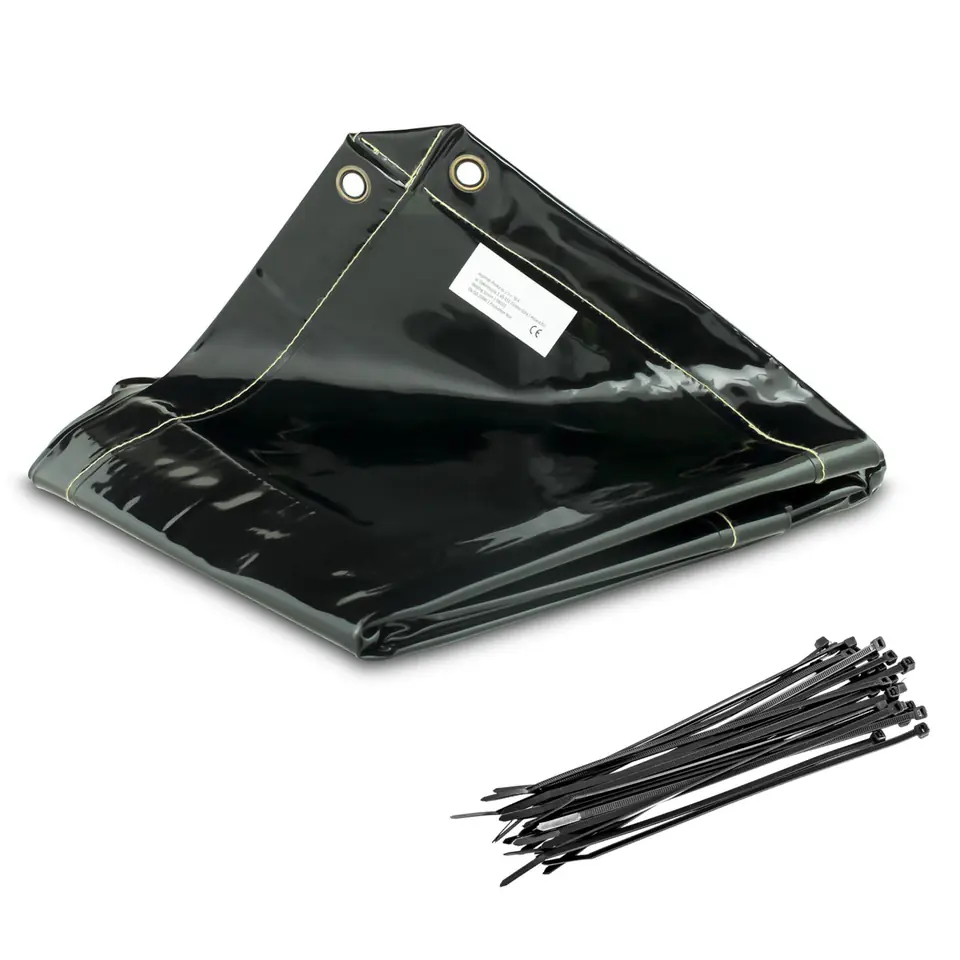

SWS01 curtain for welding screen. Features and Functions:Technical Parameters:
- - Model - SWS01
- - Catalog No. - 10020607
- - Article status - New
- - Material - Vinyl
- - Seams - Strong fireproof threads
- - Light transmittance based on light source A> 0.0001 - 0.93%
- - Spectral penetration coefficient for wavelength 210nm≤λ≤313nm - < 0.002%
- - Spectral penetration coefficient for wavelength 313nm≤λ≤400nm [%] - < 3
- - Hazard level < 1 (400nm≤λ≤1400nm) - 0.6
- - Light transmittance based on light source A after exposure to UV rays - 0.63%
- - Relative change in light transmittance after exposure to UV rays - 29.6%
- - Hazard level < 1 (400nm λ≤1400nm) after exposure to UV rays - 0.59
- - Moderate UV resistance - Yes
- - Fire resistance - Yes
- - Spacing between grommets - 304 mm
- - Material thickness - 0.4 mm
- - Length - 230 cm
- - Width - 175 cm
- - Dimensions (LxWxH) - 234 x 168 x 0.5 cm
- - Weight - 2.38 kg
- - Shipping dimensions (LxWxH) - 39 x 36 x 3 cm
- - Shipping weight - 2.43 kg
