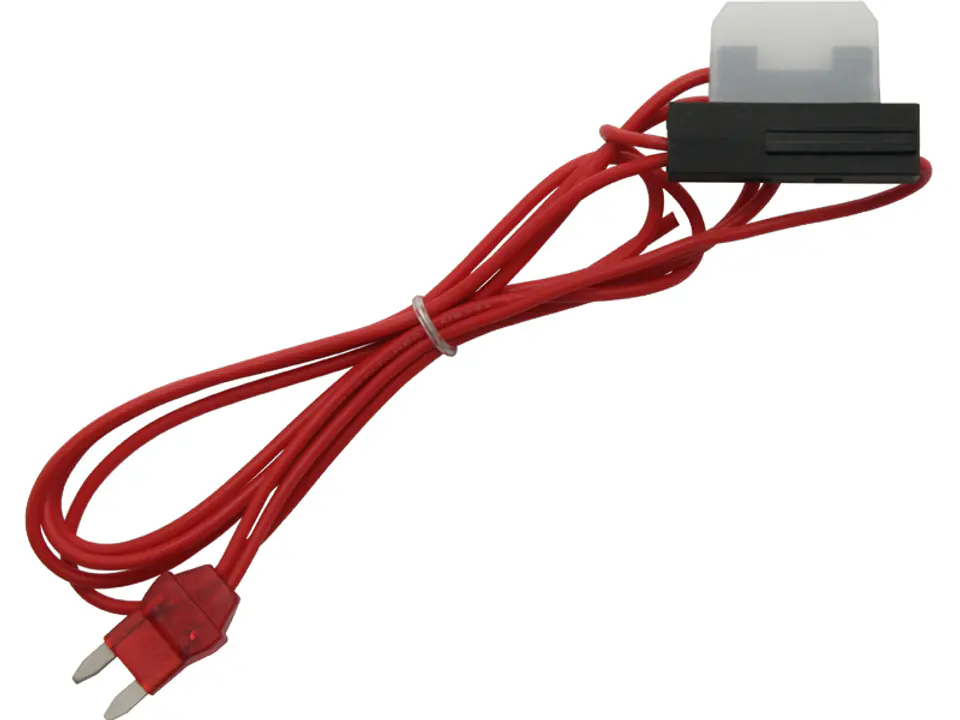

The current splitter allows you to connect an additional device in the car installation, protected by a fuse.
Installation notes:
1. Check in the fuse socket the fuse boxes under which we connect
splitter where the "+" supply voltage is located (after removing the original fuse)
2. Insert the fuse plug so that the contact No. 1 (see figure - the one where they branch
wires) has been connected to the "+" point of the supply voltage
3. Insert the fuse previously removed from the fuse box into the fuse holder
4. Secure the device connected to a free cable with the appropriate fuse
if it does not have one.
