Item no.: 97 78 180
EAN: 4003773072003
Head: polished
handles: with multi-component caps, insulated according to VDE
Weight: 254 g
Dimensions: 180 x 54 x 28 mm
Standard: DIN EN 60900 IEC 60900
Application: Sleeves without flange
Operating range in mm2: 0.25 - 16.0 mm2
Number of slots: 9
AWG: 24 — 6
Lightweight and compact design
Also available in VDE version
Optimal lever ratio for easier crimping
For crimping cable sleeves according to DIN 46228 part 1 + 4 in the range from 0.25 to 16 mm2
Semicircular crimping profile provides a secure connection between sleeve and cable
9 extremely deep crimping profiles with tapered side surfaces
Special tool steel, forged, oil hardened
**
Illustrative photos.

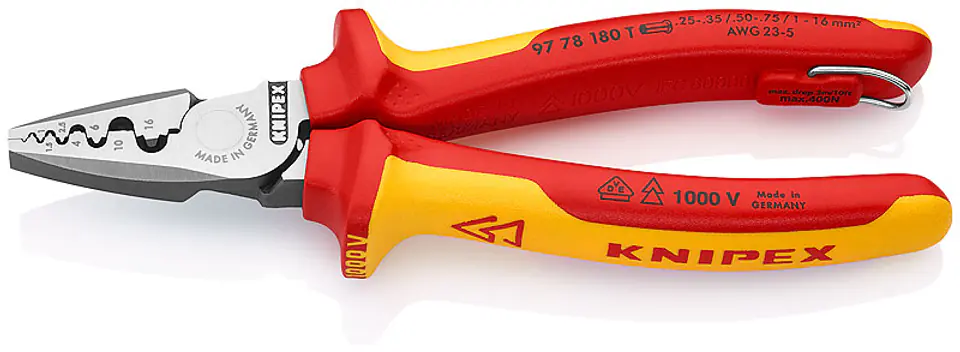

CURNING PLIERS 180MM
€44.83
Shipping from warehouse: U1
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- KNIPEX
- Product code:
- 8255130005 / 4003773072003
Share this product:
Specification
| Wire cross section: | 0,25 to 16 mm2 |
|---|
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
