Media converter fiber optic 1.25 Gbps SM BIDI SC 10/100/1000 Mbit/s 20km:

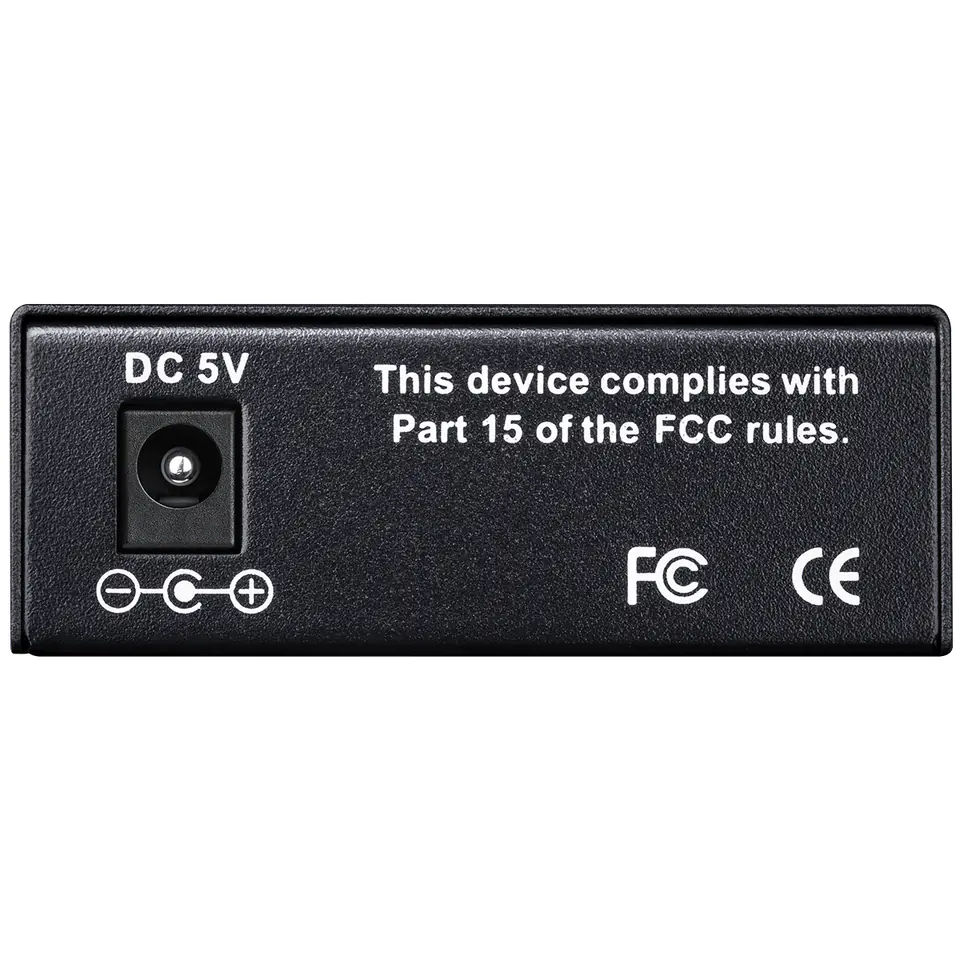

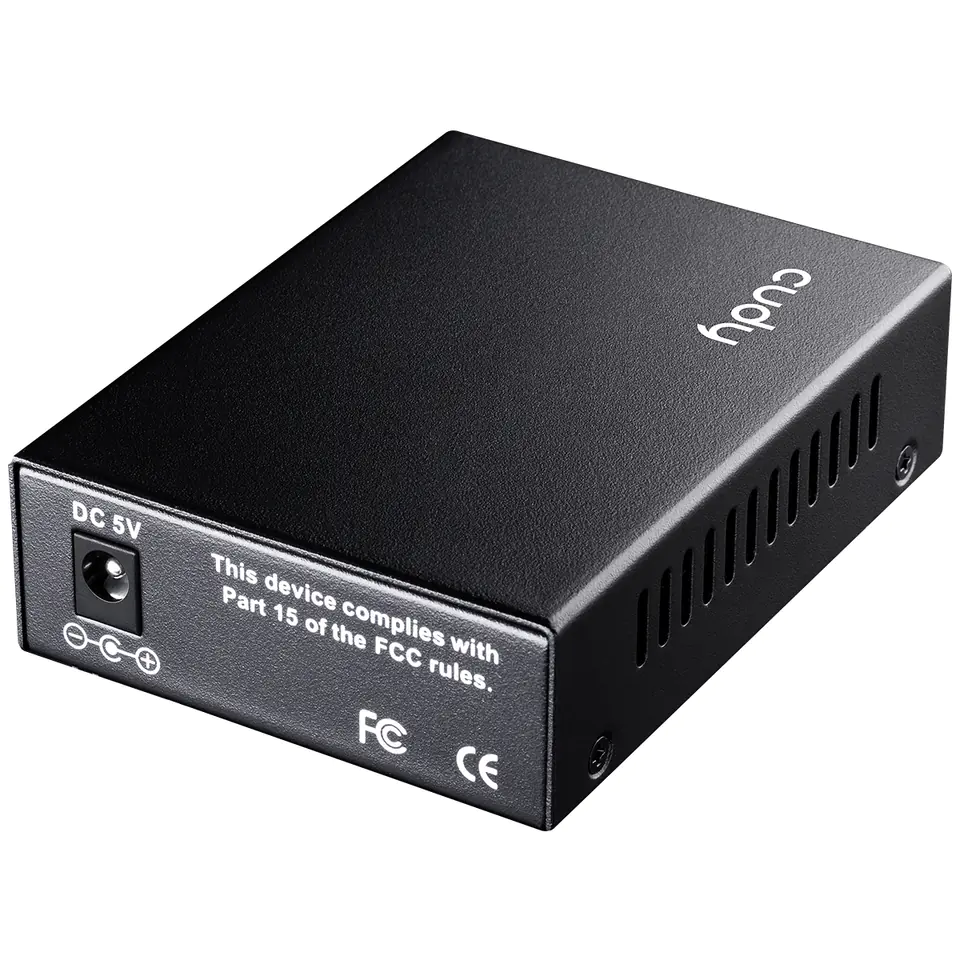

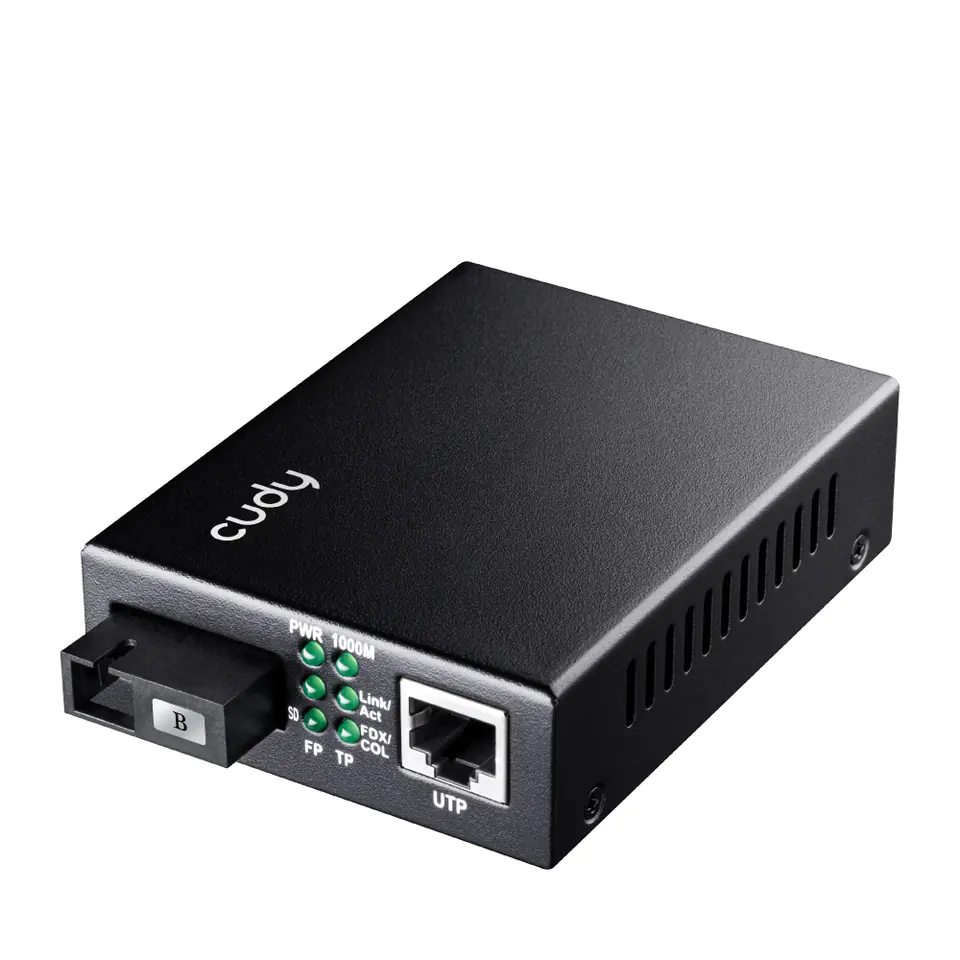

Cudy MC100GSB-20B fiber optic media converter is a fiber optic converter that has an SC input of 1.25 Gbps and supports half-duplex or full-duplex modes. It is compatible with 10Base-T, 100Base-TX and 1000Base-T Ethernet networks and operates over distances of up to 20 km. The converter has 2 ports: 1 SC fiber optic port and 1 RJ-45 Ethernet port. It is powered by an external DC 5V/1A power supply.
Key features:
● 1x 1.25Gbps SC fiber port
● 1x 10M/100M/1000M RJ45 connector
● Two-way single-mode fiber
● TX 1550nm / RX 1310nm
● Distance up to 20km
● Support full duplex and half duplex
● 2Mbit RAM for data buffer
● Support for 9KB jumbo frames
How does the media converter work?
A fiber optic to cable ethernet converter is a device that is used to transfer data between computers or servers using optical fiber. It is powered by an external DC 5V/1A power supply and has 2 ports: 1 SC fiber port and 1 RJ-45 Ethernet port. The fiber optic media converter works as follows:
First, connect the RJ-45 Ethernet cable to the Ethernet port on the device, and then connect the other end of the cable to your computer or server. Next, connect the SC fiber optic cable to the fiber port of the device, and the other end of the same cable to the fiber optic socket in the second media converter.

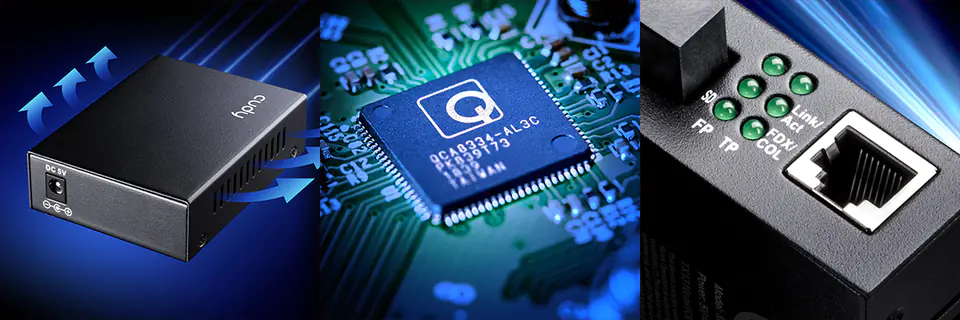

Built-in Qualcomm chipset
For fiber optics, it offers a high level of performance, which is necessary to realize Gigabit Ethernet bandwidth. In addition, it also has advanced hardware functionality that allows better use of fiber optic link. Qualcomm internal chip ensures stable transmission, strong performance and strong anti-interference ability.
Easy to monitor

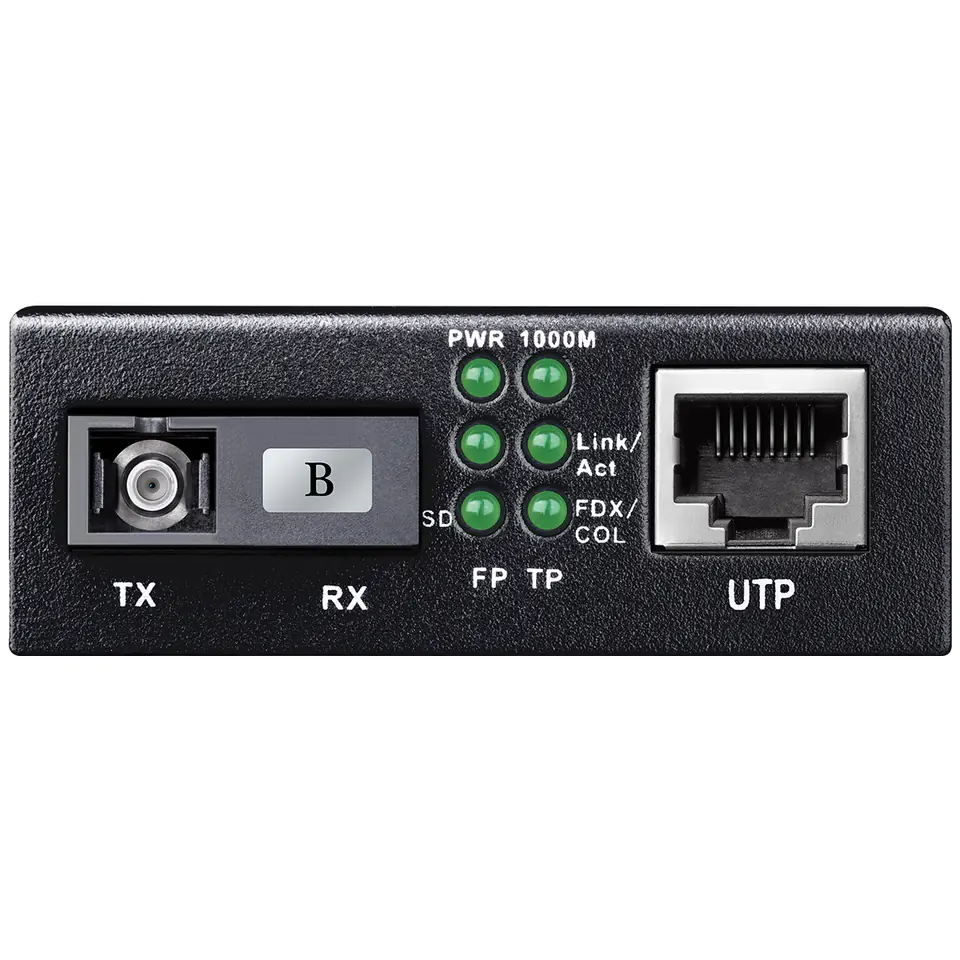

High visibility LED indicators indicate the status for easy monitoring of network activity.
• FP: ON: maximum fiber speed, OFF: no maximum speed
• TP: ON: Maximum Ethernet speed, OFF: non-maximum speed
• Link/ACT: flashes when sending and receiving
• FDX: ON: full duplex mode, OFF: half duplex
• PWR: ON: on, OFF: off
Specification
The bold model indicates the product to which this offer relates.
| PN | RX nm | TX nm | PTX dBm | SEN dBm | Connector | Loss dB/km | Distance Km | Overload dBm |
|---|---|---|---|---|---|---|---|---|
| MC100GMA-05 | 850 | 850 | -8~-3 | ≤-19 | MM Dual SC | 2.5 | 0.55 | ≥-3 |
| MC100GMA-2 | 1310 | 1310 | -8~-3 | ≤-20 | MM Dual SC | 0.4 | 0.55 | ≥-3 |
| MC100GSA-10 | 1310 | 1310 | -8~-3 | ≤-24 | SM Dual SC | 0.4 | 10 | ≥-3 |
| MC100GSA-20 | 1310 | 1310 | -8~-3 | ≤-24 | SM Dual SC | 0.4 | 20 | ≥-3 |
| MC100GSA-40 | 1550 | 1550 | -5~0 | ≤-24 | SM Dual SC | 0.25 | 40 | ≥-3 |
| MC100GSA-60A | 1550 | 1550 | -5~0 | ≤-24 | SM Dual SC | 0.25 | 60 | ≥-3 |
| MC100GSB-10A | 1550 | 1310 | -8~-3 | ≤-24 | SM BIDI SC | 0.4 | 10 | ≥-3 |
| MC100GSB-10B | 1310 | 1550 | -8~-3 | ≤-24 | SM BIDI SC | 0.25 | 10 | ≥-3 |
| MC100GSB-20A | 1550 | 1310 | -8~-3 | ≤-24 | SM BIDI SC | 0.4 | 20 | ≥-3 |
| MC100GSB-20B | 1310 | 1550 | -8~-3 | ≤-24 | SM BIDI SC | 0.25 | 20 | ≥-3 |
| MC100GSB-40A | 1550 | 1310 | -5~0 | ≤-24 | SM BIDI SC | 0.4 | 40 | ≥-3 |
| MC100GSB-40B | 1310 | 1550 | -5~0 | ≤-24 | SM BIDI SC | 0.25 | 40 | ≥-3 |
| MC100GSB-60A | 1550 | 1310 | -2~+3 | ≤-24 | SM BIDI SC | 0.4 | 60 | ≥-3 |
| MC100GSB-60B | 1310 | 1550 | -5~0 | ≤-24 | SM BIDI SC | 0.25 | 60 | ≥-3 |
