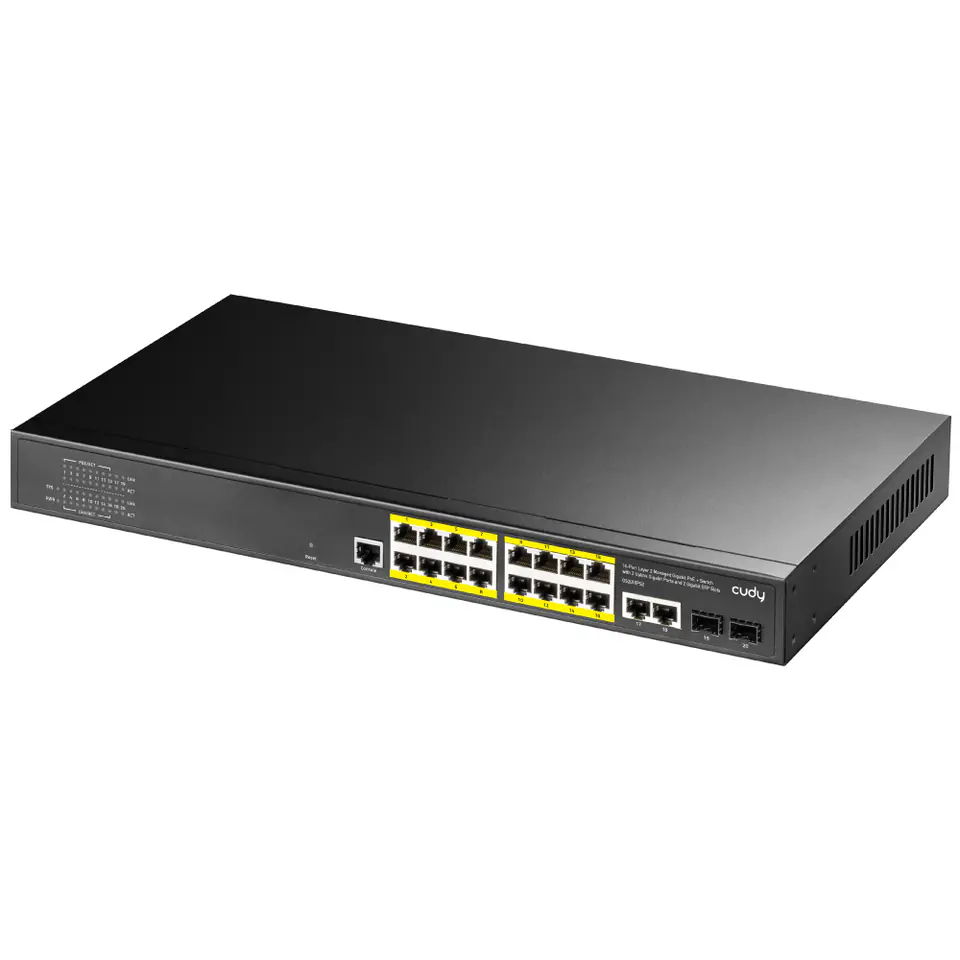

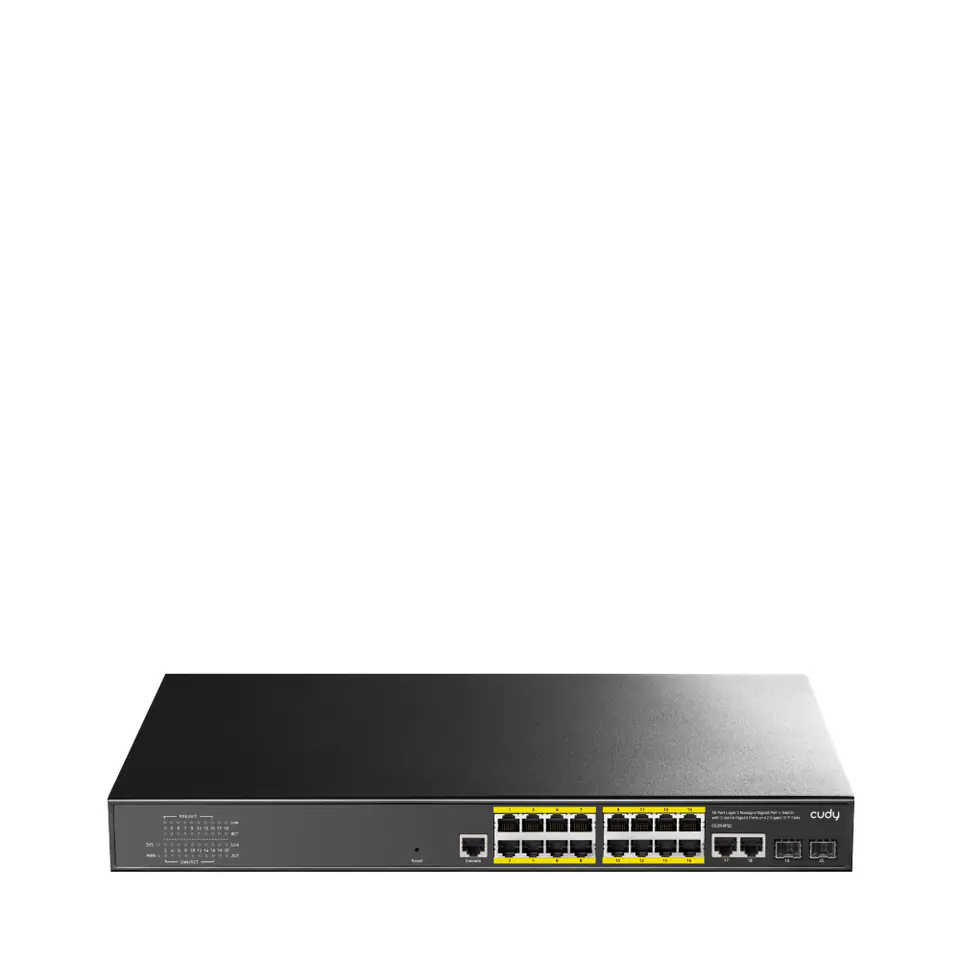

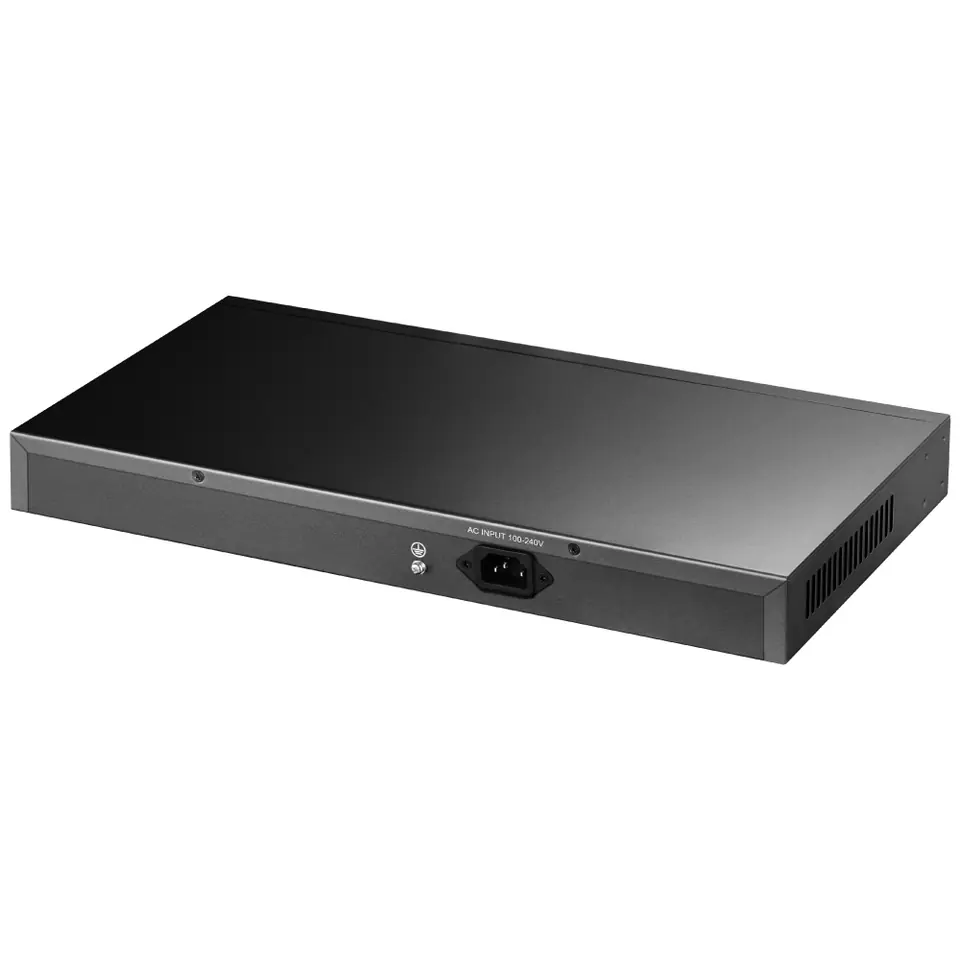

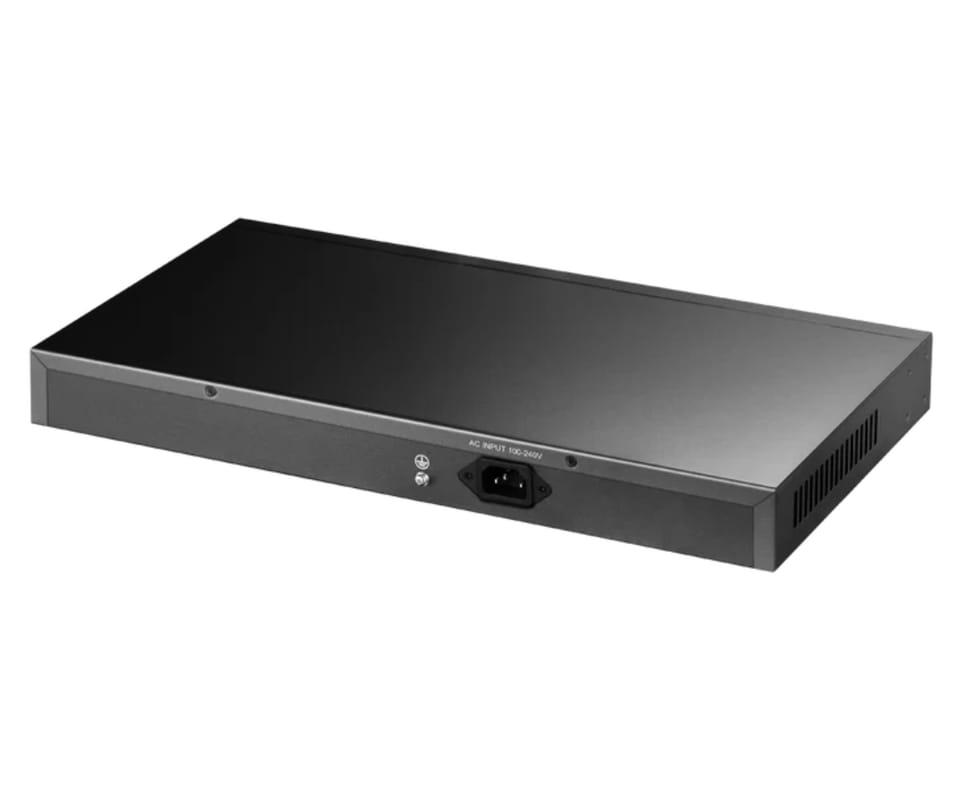

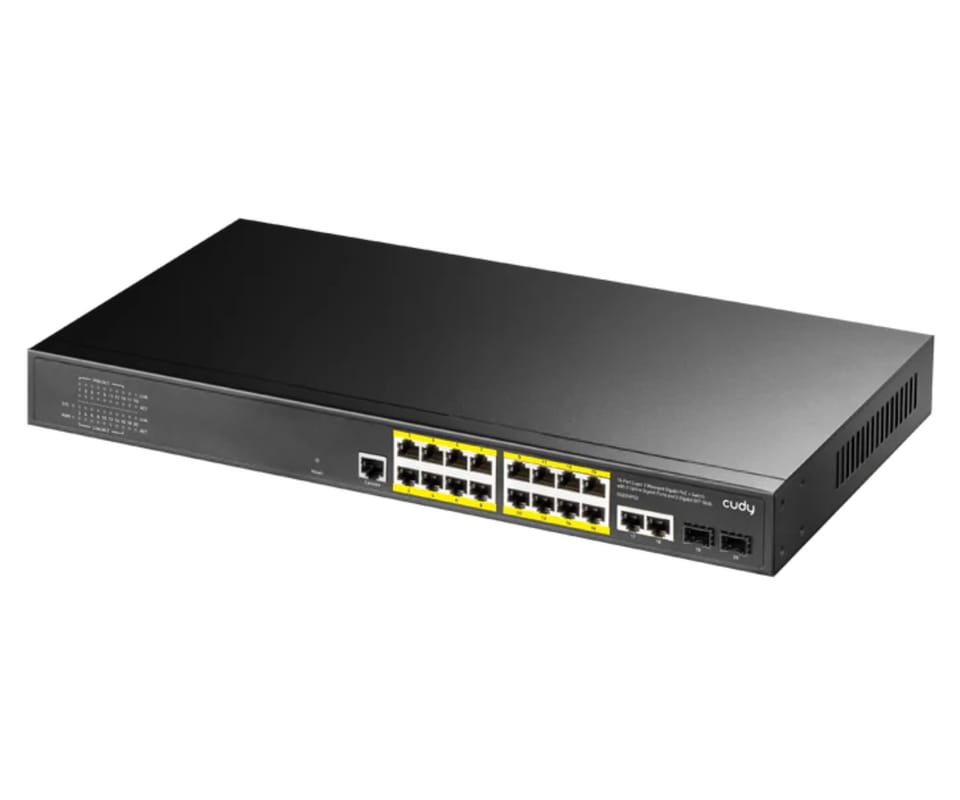

Cudy GS2018PS2 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
€266.33
Shipping from warehouse: A3
Estimated shipping: Mon, Dec 2 - Tue, Dec 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Cudy
- Product code:
- GS2018PS2-200W / 6971690790394
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 100 - 240 V |
| Authentication type: | IEEE 802.1x, RADIUS |
| Basic switching rj-45 ethernet ports quantity: | 16 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Cable types supported: | Cat3, Cat5, Cat5e, Cat6, Cat4 |
| Configuring location settings (cli): | Yes |
| Console port: | RJ-45 |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet ring protection switching (erps): | Yes |
| Fast leave: | Yes |
| Fiber ethernet cabling technology: | 1000BASE-X |
| Flash memory: | 16 MB |
| Flow control support: | Yes |
| Form factor: | 1U |
| Forwarding rate: | 19.76 Mpps |
| Garp vlan registration protocol (gvrp): | Yes |
| Gigabit ethernet (copper) ports quantity: | 16 |
| Igmp snooping: | Yes |
| Internal memory: | 128 MB |
| Ip-mac-port binding: | Yes |
| Jumbo frames: | 9600 |
| Jumbo frames support: | Yes |
| Led indicators: | Activity, Link, Power, System, PoE |
| Link aggregation: | Yes |
| Mac address auto-aging supported: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address entries: | Static MAC address entries, Dynamic MAC address entries |
| Mac address table: | 8000 entries |
| Management protocols: | HTTP, HTTPS, Telnet, SSH V1/V2, SNMP V1/V2/V3, RMON V2 |
| Mean time between failures (mtbf): | 50000 h |
| Multicast features: | Multicast traffic suppression |
| Multicast listener discovery (mld) snooping: | v1/v2 |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3ad, IEEE 802.1s, IEEE 802.1x, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1D, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.1w, IEEE 802.3u, IEEE 802.3i |
| Non-operating altitude: | 0 - 3048 m |
| Number of queues: | 8 |
| Number of vlans: | 4096 |
| Operating altitude: | 0 - 3048 m |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -20 - 50 °C |
| Packet buffer memory: | 4 MB |
| Packet filtering: | Y |
| Password protection: | Yes |
| Port mirroring: | Yes |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 16 |
| Power over ethernet (poe) power per port: | 30 W |
| Power source: | AC |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Queue scheduling algorithms: | PQ + WRR |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Reset button: | Yes |
| Security algorithms: | SSH, HTTPS, SSH-2 |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 85 °C |
| Surge protection: | Yes |
| Surge protection voltage: | 15 kV |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 40 Gbit/s |
| System event log: | Yes |
| Total power over ethernet (poe) budget: | 200 W |
| Uplink ports quantity: | 2 |
| Virtual lan features: | Port-based VLAN, MAC address-based VLAN, Voice VLAN |
| Vlan support: | Yes |
| Web-based management: | Yes |
