| Ac input voltage: | 100 - 240 V |
|---|---|
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 5 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Cable types supported: | Cat5, Cat3, Cat7, Cat6+, Cat8, Cat6, Cat8.1, Cat6e, Cat7e, Cat5e, Cat6a, Cat4 |
| Cables included: | DC |
| Copper ethernet cabling technology: | 100BASE-TX, 10BASE-T, 1000BASE-TX |
| Dc input voltage: | 5 V |
| Depth: | 70 mm |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Half duplex: | Yes |
| Height: | 26 mm |
| Jumbo frames: | 2000 |
| Jumbo frames support: | Yes |
| Led indicators: | Loop, Power, Link |
| Mac address auto-aging supported: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address table: | 1000 entries |
| Manual: | Yes |
| Master (outer) case gross weight: | 17 kg |
| Master (outer) case height: | 400 mm |
| Master (outer) case length: | 320 mm |
| Master (outer) case width: | 505 mm |
| Mean time between failures (mtbf): | 100000 h |
| Networking standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3u |
| Operating altitude: | 0 - 3048 m |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -10 - 50 °C |
| Package depth: | 120 mm |
| Package height: | 63 mm |
| Package type: | Box |
| Package weight: | 400 g |
| Package width: | 175 mm |
| Packet buffer memory: | 1 MB |
| Power over ethernet (poe): | No |
| Power source: | AC/DC |
| Power supply included: | Yes |
| Product colour: | Black |
| Products per master (outer) case: | 40 pc(s) |
| Rack mounting: | No |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Store-and-forward: | Yes |
| Switching capacity: | 10 Gbit/s |
| Throughput: | 7.44 Mpps |

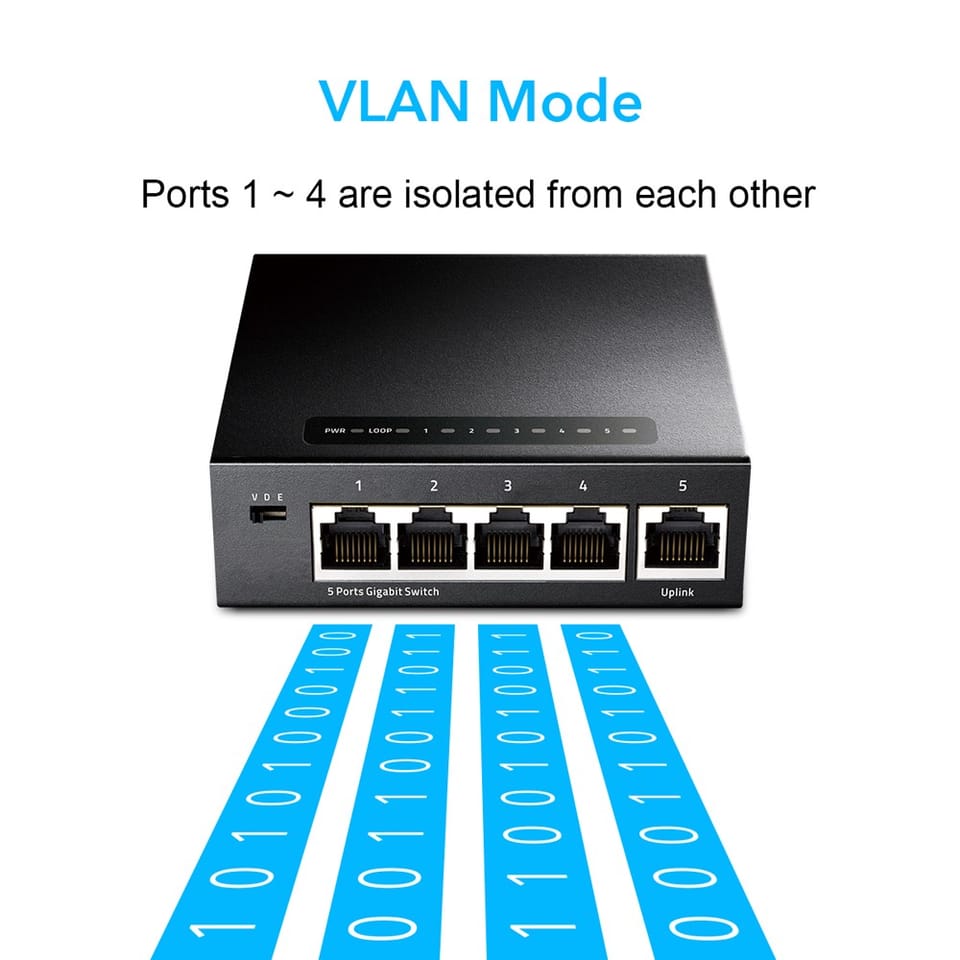

| Vlan support: | Yes |
| Weight: | 200 g |
| Width: | 100 mm |

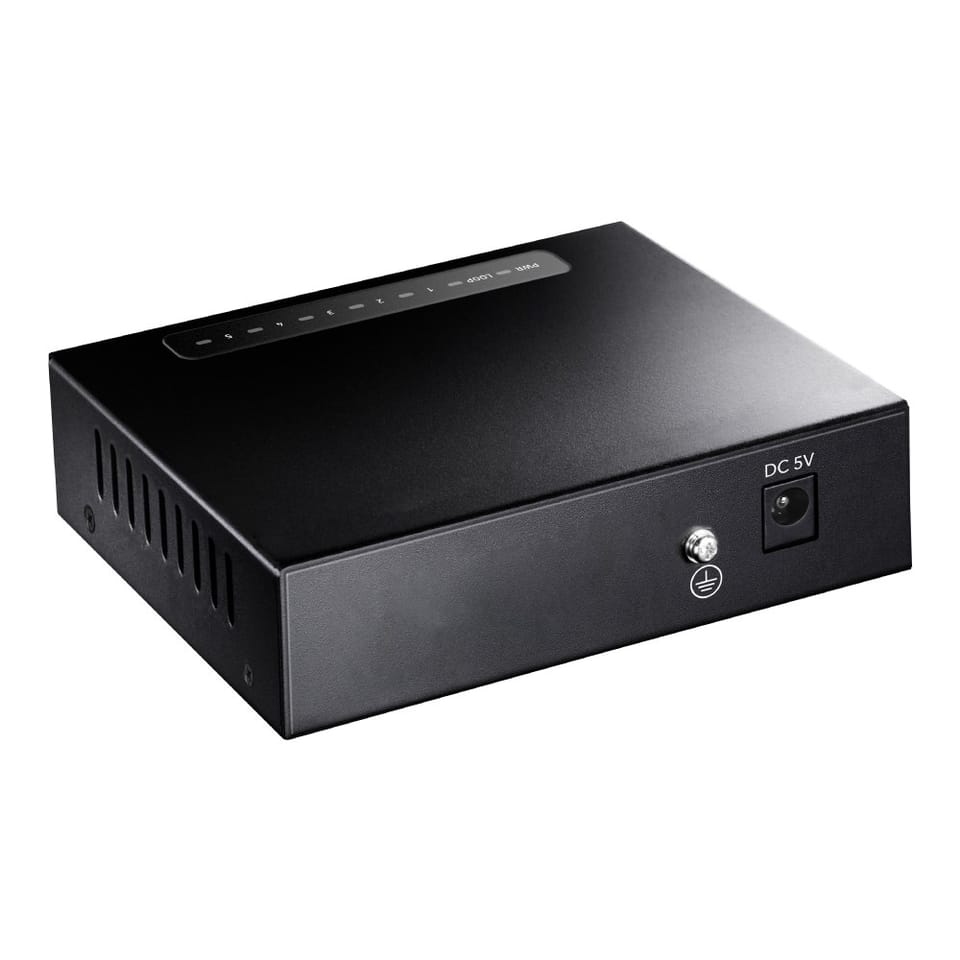

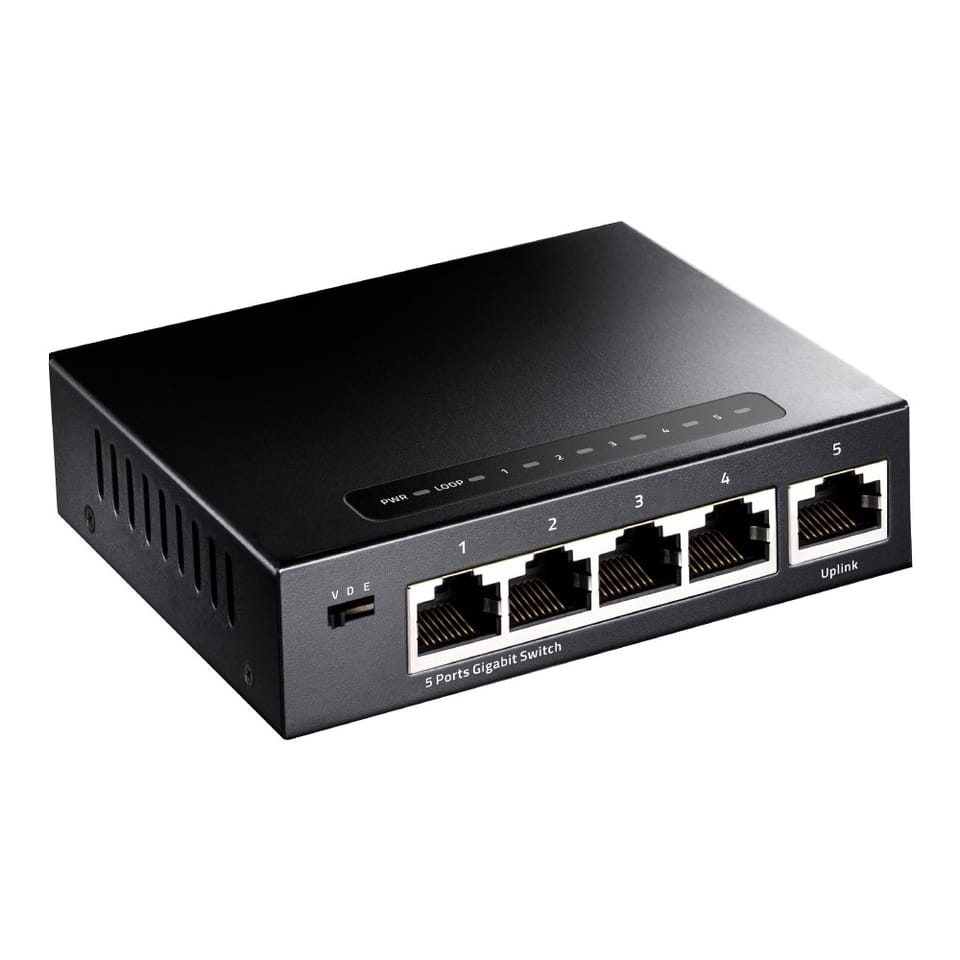

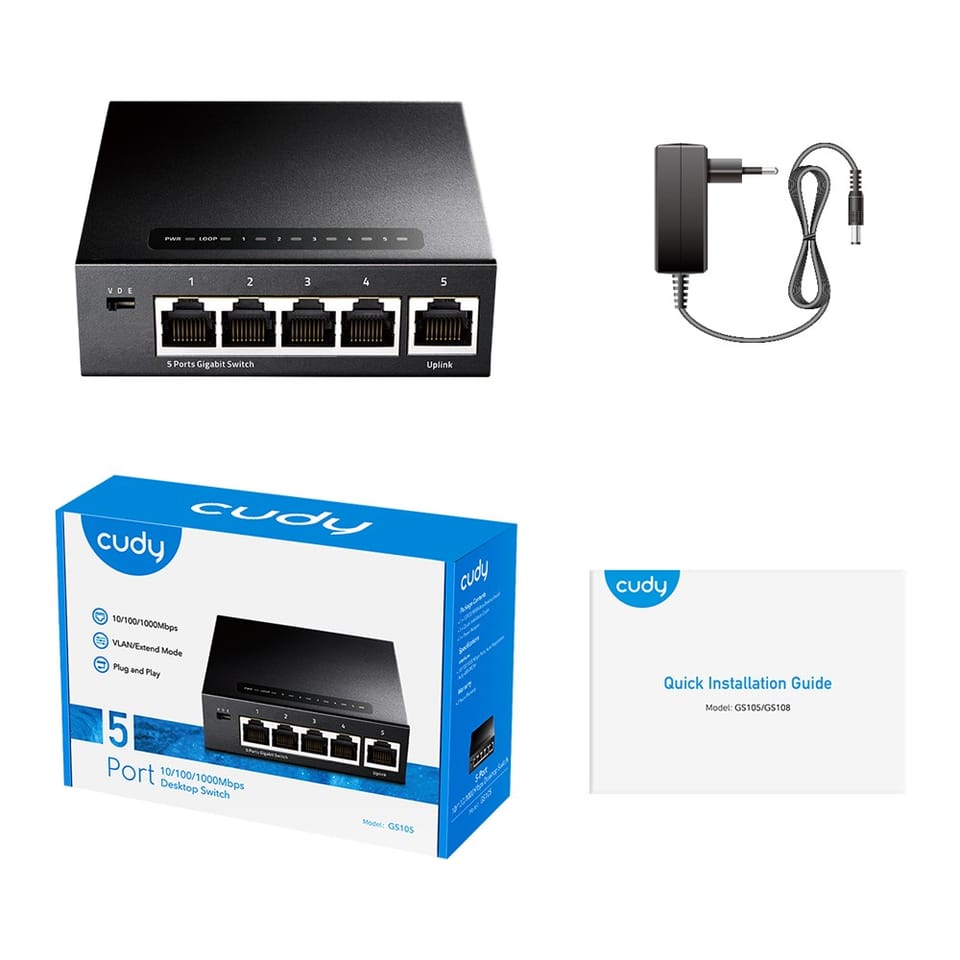

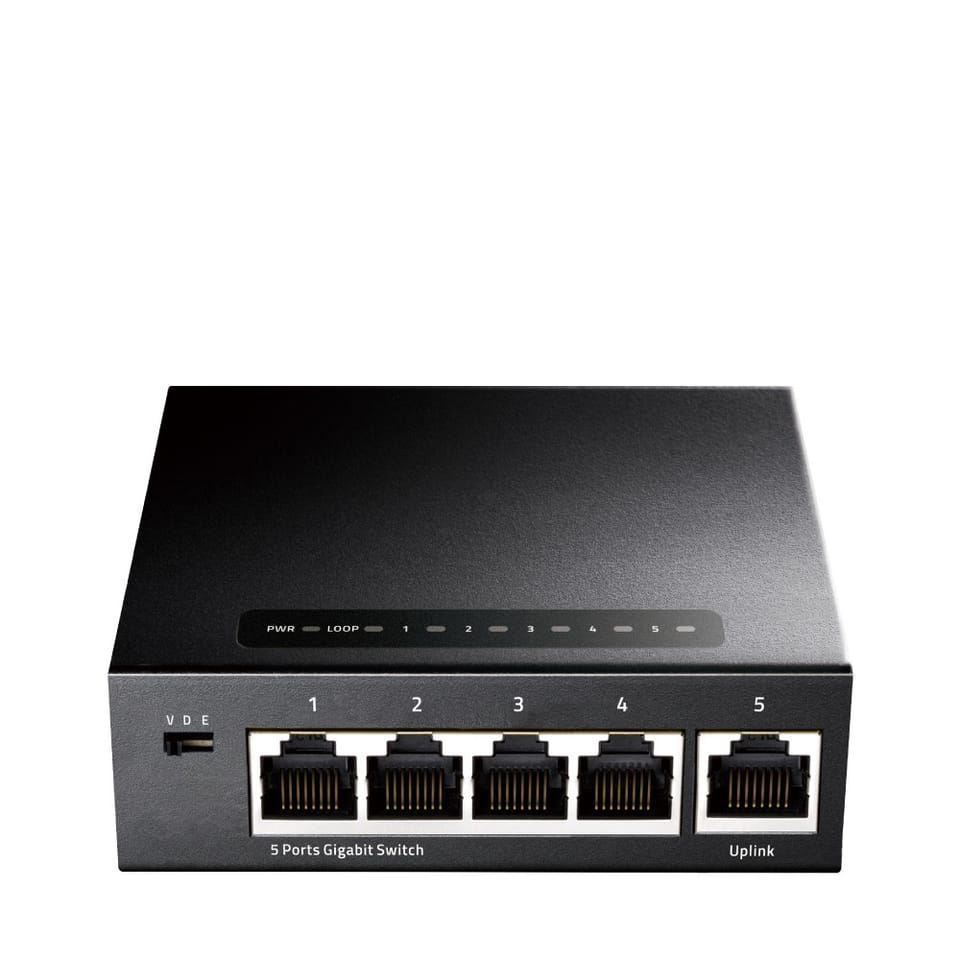

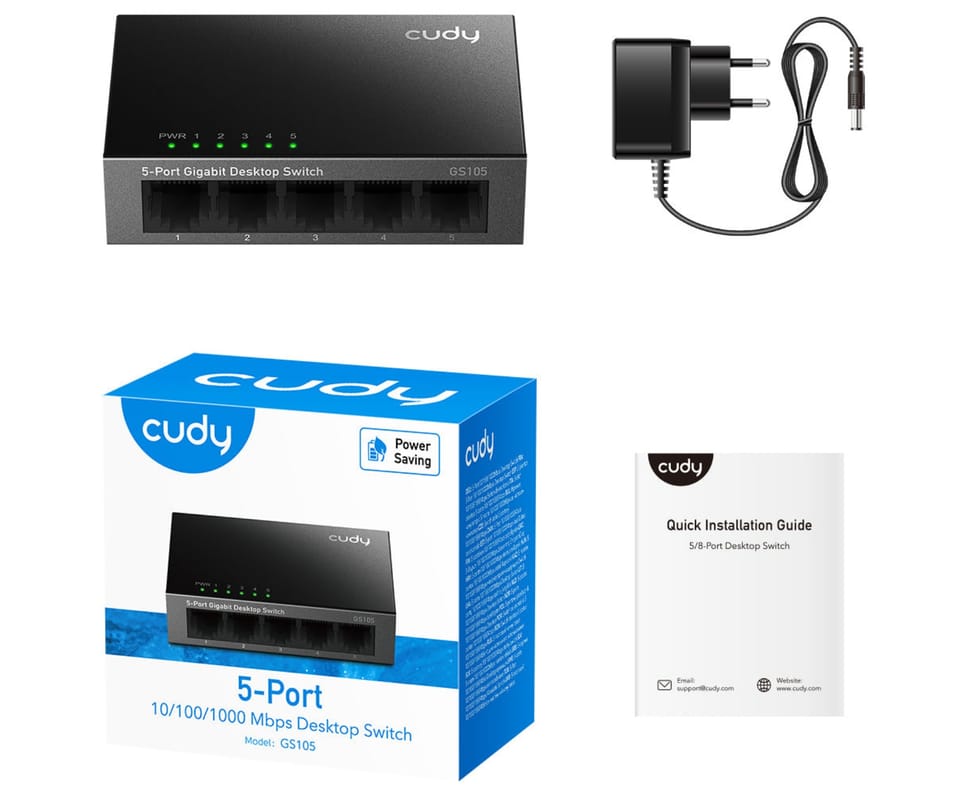

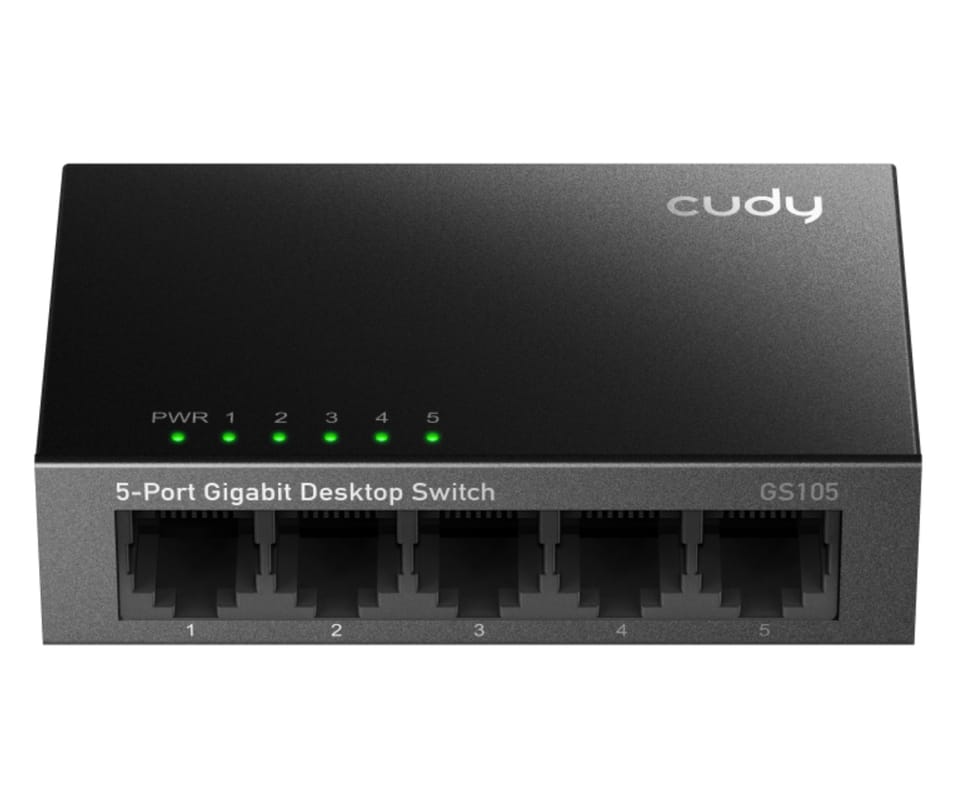

GS105 5-Port Gigabit Desktop Switch
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
