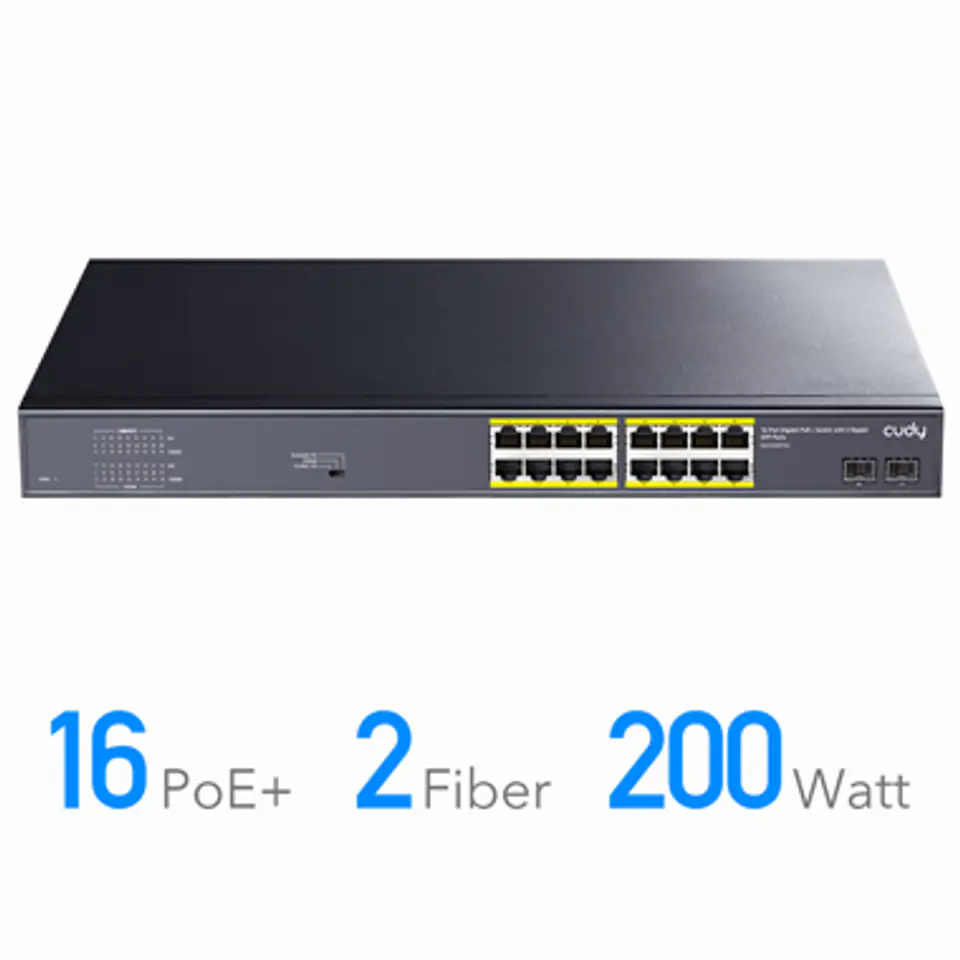

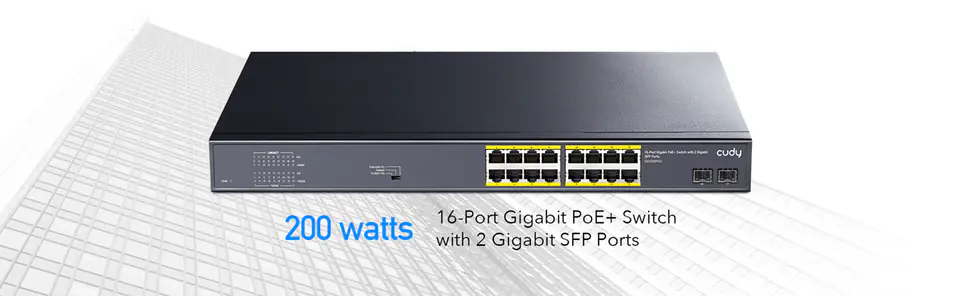

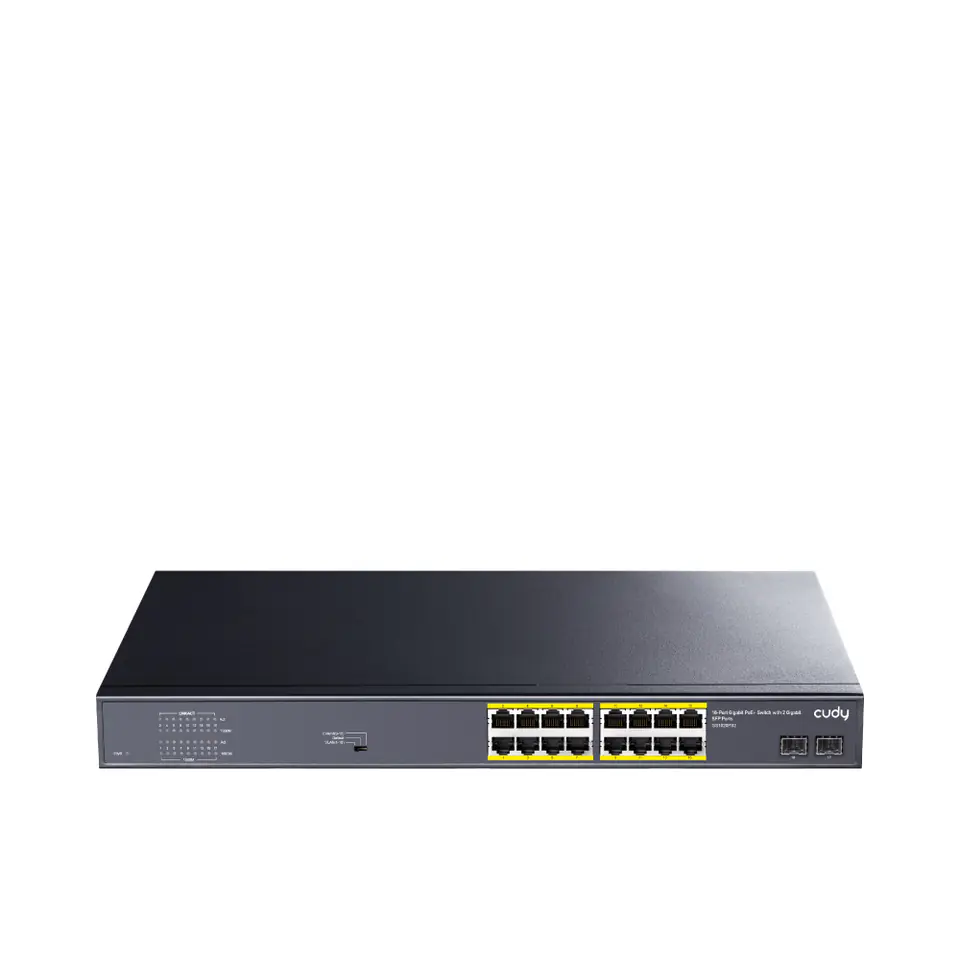

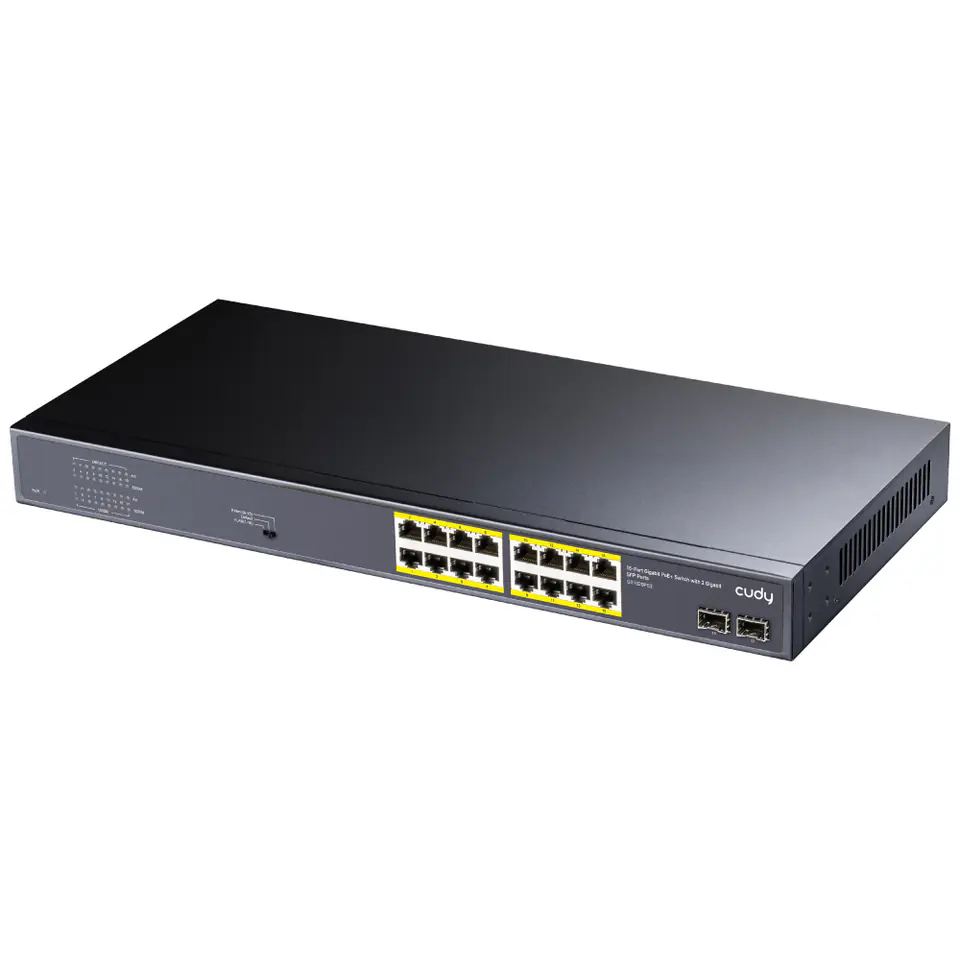

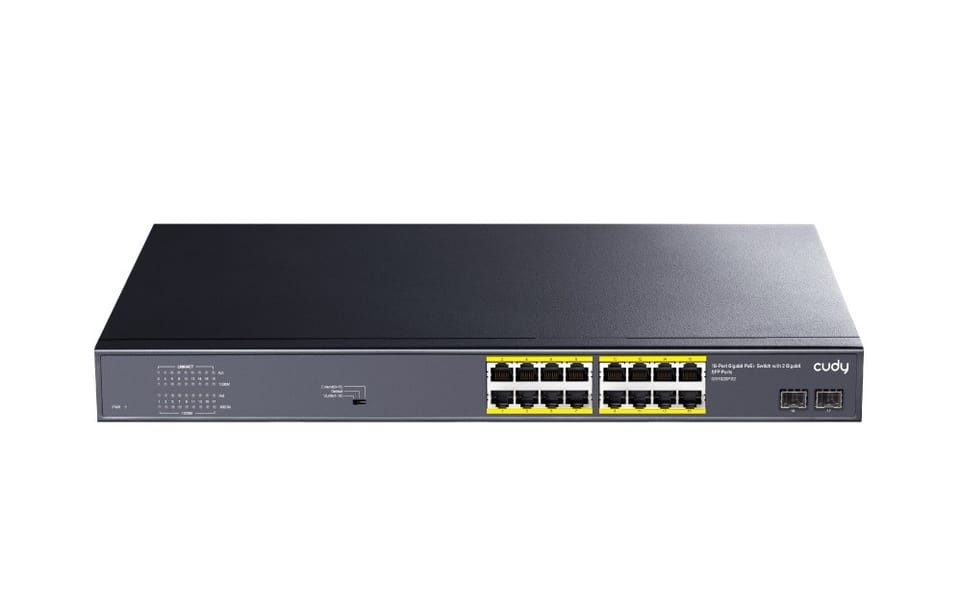

Cudy GS1020PS2 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
€182.83
Shipping from warehouse: D3
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Cudy
- Product code:
- GS1020PS2 / 6971690791131
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Airflow direction: | Side-to-side airflow |
| Auto-sensing: | Yes |
| Bandwidth: | 52 Gbit/s |
| Basic switching rj-45 ethernet ports quantity: | 16 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Cable types supported: | Cat6, Cat8.1, Cat5, Cat5e, Cat6e, Cat7e, Cat7, Cat6+, Cat8, Cat6a |
| Cables included: | AC |
| Combo sfp ports quantity: | 2 |
| Copper ethernet cabling technology: | 100BASE-TX, 10BASE-T, 1000BASE-TX |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Fiber type: | Multi-mode |
| Fiber uplink ports quantity: | 2 |
| Forwarding rate: | 38.7 Mpps |
| Housing material: | Metal |
| Installed sfp modules quantity: | 2 |
| Led indicators: | Power, Link, Activity |
| Mac address table: | 8000 entries |
| Maximum transfer distance (multi-mode): | 2000 m |
| Maximum transfer distance (single-mode): | 120000 m |
| Mean time between failures (mtbf): | 50000 h |
| Networking standards: | IEEE 802.3, IEEE 802.3z, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af, IEEE 802.3u, IEEE 802.3ab |
| Operating altitude: | 0 - 3000 m |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -20 - 50 °C |
| Output current: | 3.85 A |
| Output voltage: | 52 V |
| Packet buffer memory: | 4 MB |

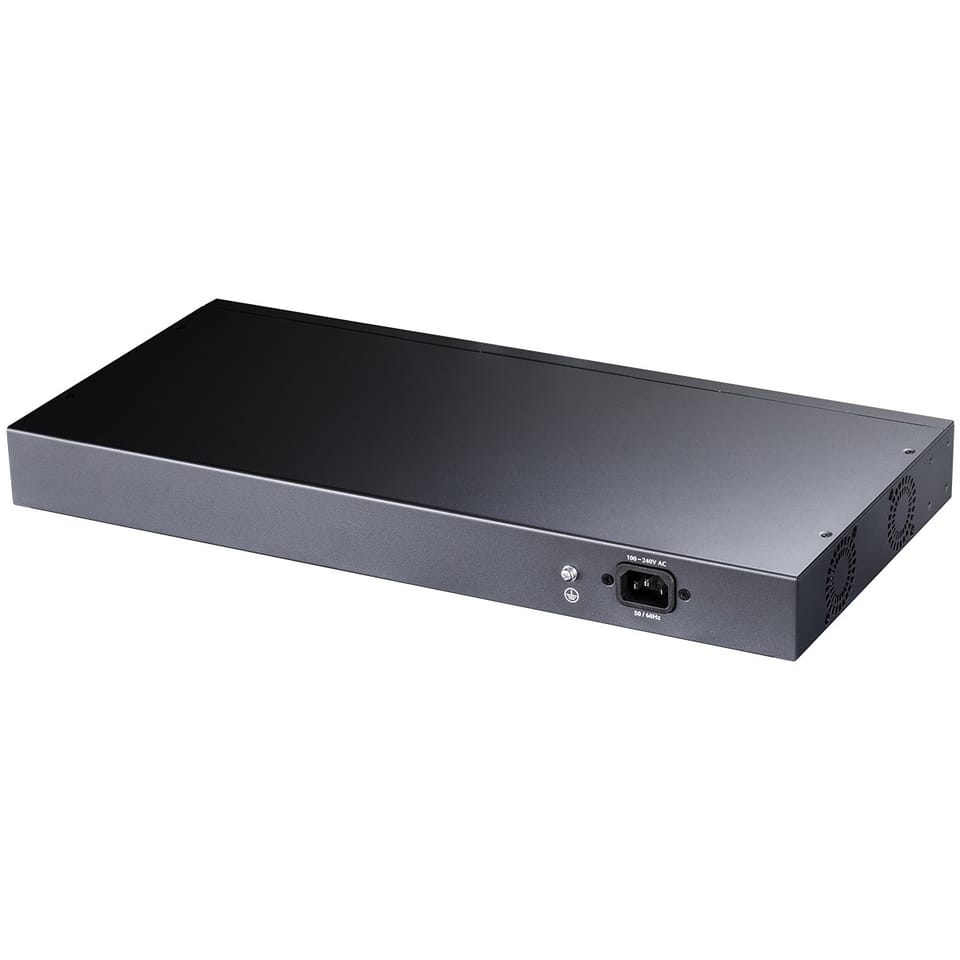

| Power connector: | AC-in jack |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 16 |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 16 |
| Power source: | AC |
| Power supply included: | Yes |
| Product colour: | Black |

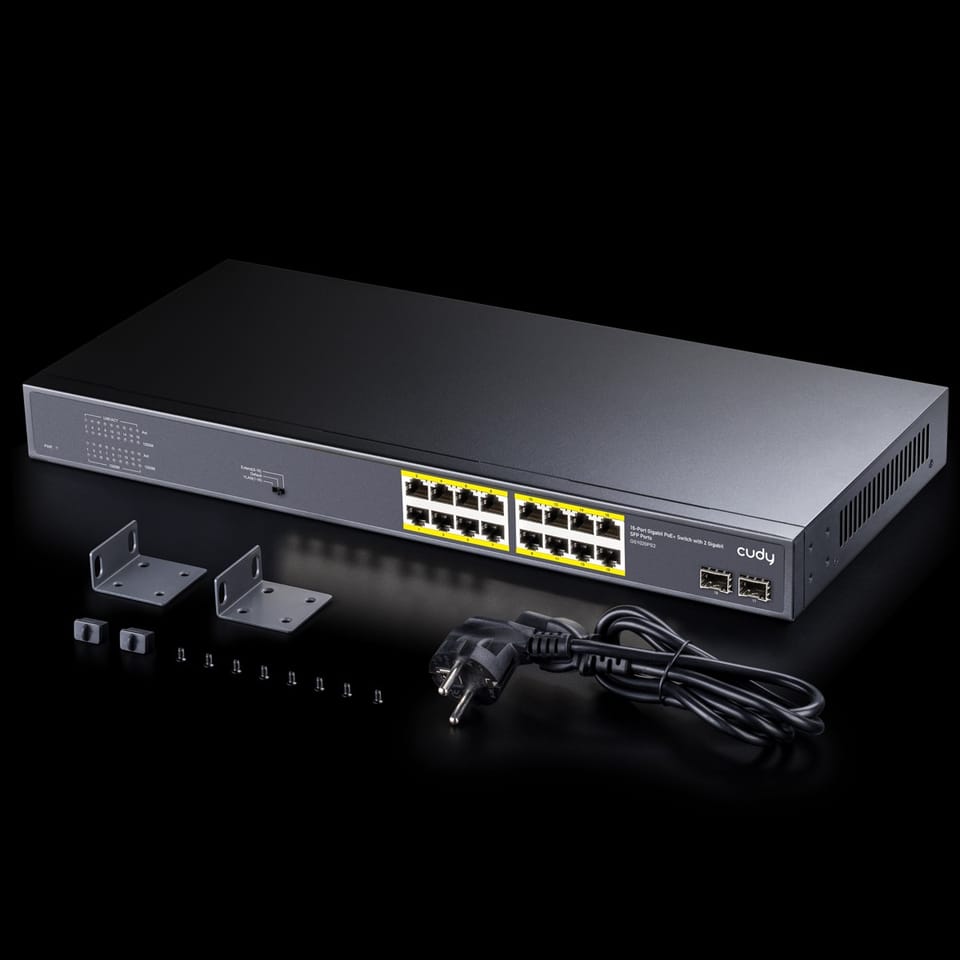

| Rack mount kit: | Yes |
| Rack mounting: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 80 °C |
| Switching optical modules type: | Gigabit Ethernet |

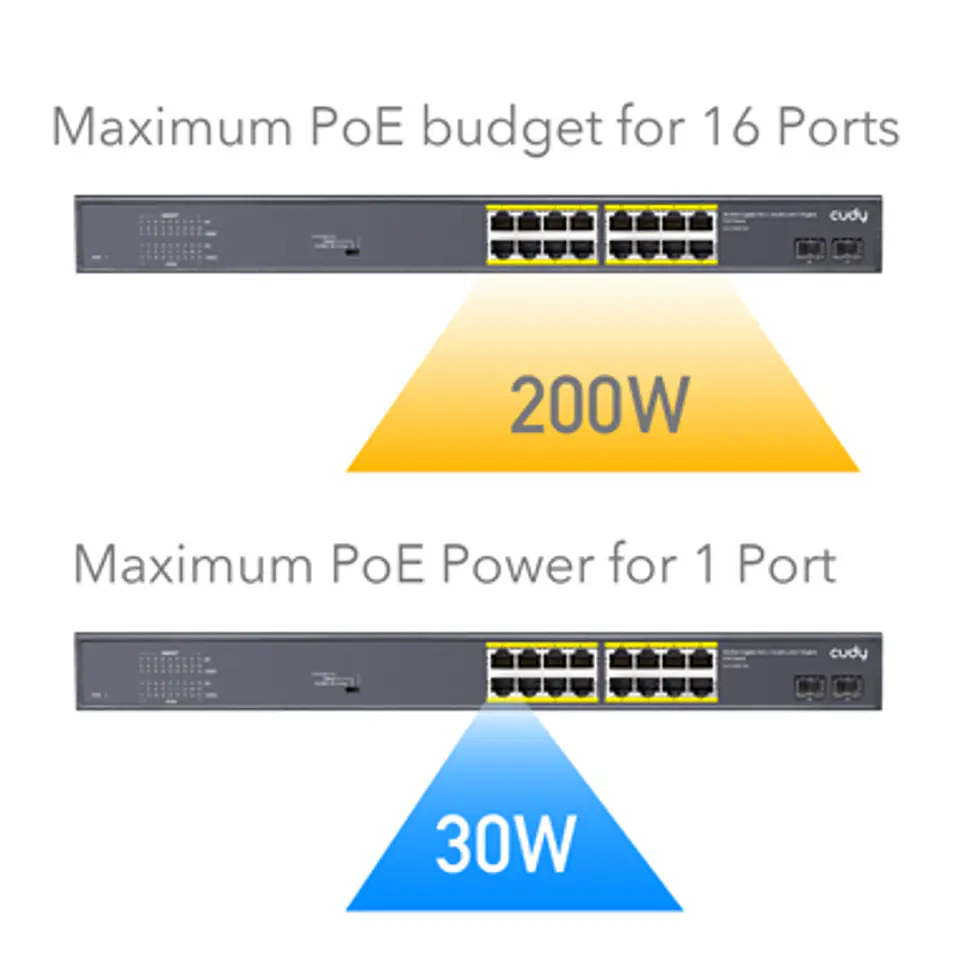

| Total power over ethernet (poe) budget: | 200 W |
| Transmission distance (max): | 120 km |

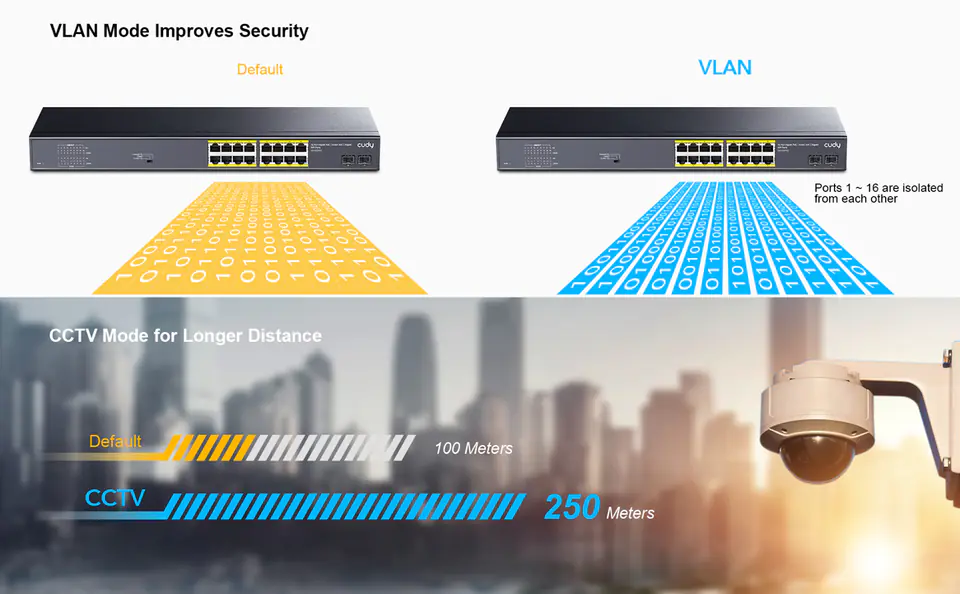

| Vlan support: | Yes |
