Cudy FS1010PG network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black

€51.38
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Cudy
Product code:
FS1010PG / 6971690791254

Specification

Ac input frequency:50 - 60 Hz
Ac input voltage:100 - 240 V
Bandwidth:2 Gbit/s
Basic switching rj-45 ethernet ports quantity:8
Basic switching rj-45 ethernet ports type:Fast Ethernet (10/100)
Cable types supported:Cat3, Cat5, Cat5e, Cat4

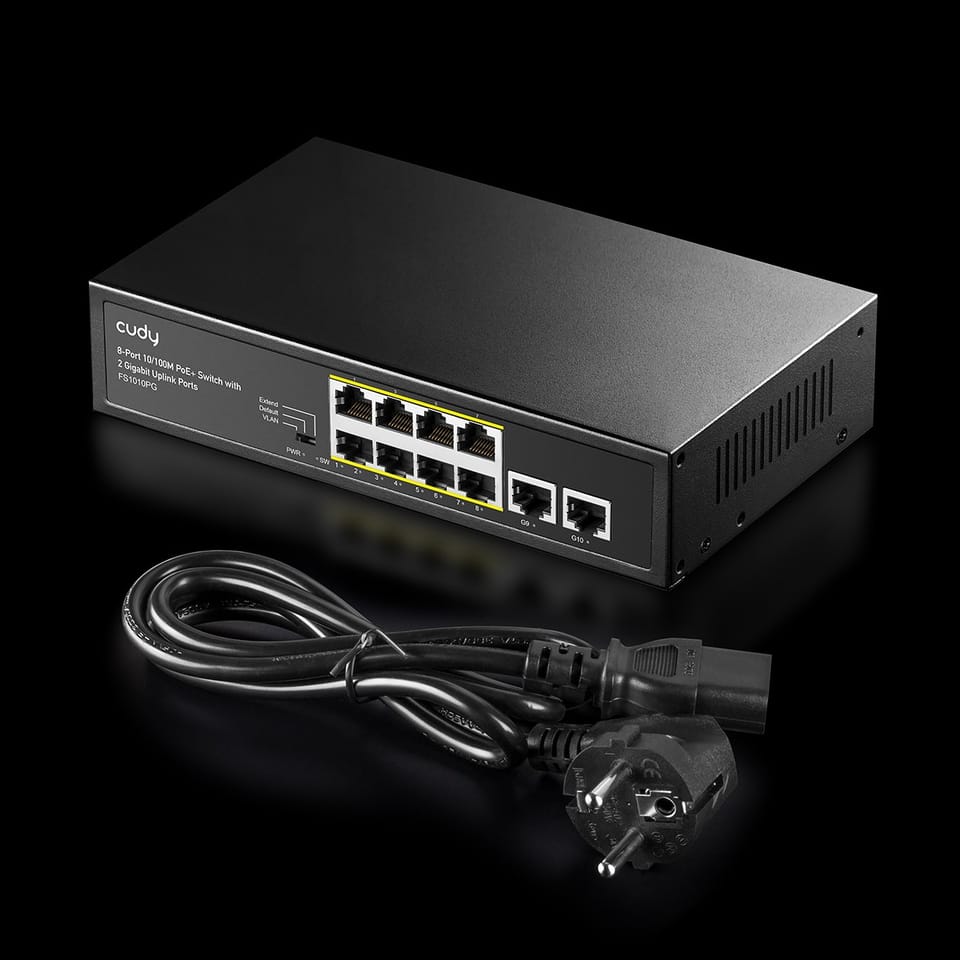

Cables included:AC
Copper ethernet cabling technology:10BASE-T, 100BASE-TX
Depth:150 mm
Ethernet lan data rates:10,100 Mbit/s
Fanless:Yes
Flow control support:Yes
Forwarding rate:1.48 Mpps
Full duplex:Yes
Half duplex:Yes
Height:44 mm
Housing material:Metal
Jumbo frames:1528
Jumbo frames support:Yes
Led indicators:Link, Activity, PoE, Power
Mac address table:8000 entries
Mean time between failures (mtbf):50000 h
Networking standards:IEEE 802.3at, IEEE 802.3x, IEEE 802.3af, IEEE 802.3az
Operating relative humidity (h-h):10 - 90%
Operating temperature (t-t):0 - 40 °C
Packet buffer memory:0.25 MB
Plug and play:Yes
Power connector:AC-in jack
Power over ethernet (poe):Yes
Power over ethernet (poe) ports quantity:8
Power over ethernet (poe) power per port:30 W
Power over ethernet plus (poe+) ports quantity:1
Power source:AC
Power supply included:Yes
Product colour:Black
Storage relative humidity (h-h):5 - 90%
Storage temperature (t-t):-40 - 70 °C
Store-and-forward:Yes
Surge protection:Yes
Surge protection voltage:4 kV
Total power over ethernet (poe) budget:120 W
Uplink ports quantity:2
Vlan support:Yes
Width:220 mm

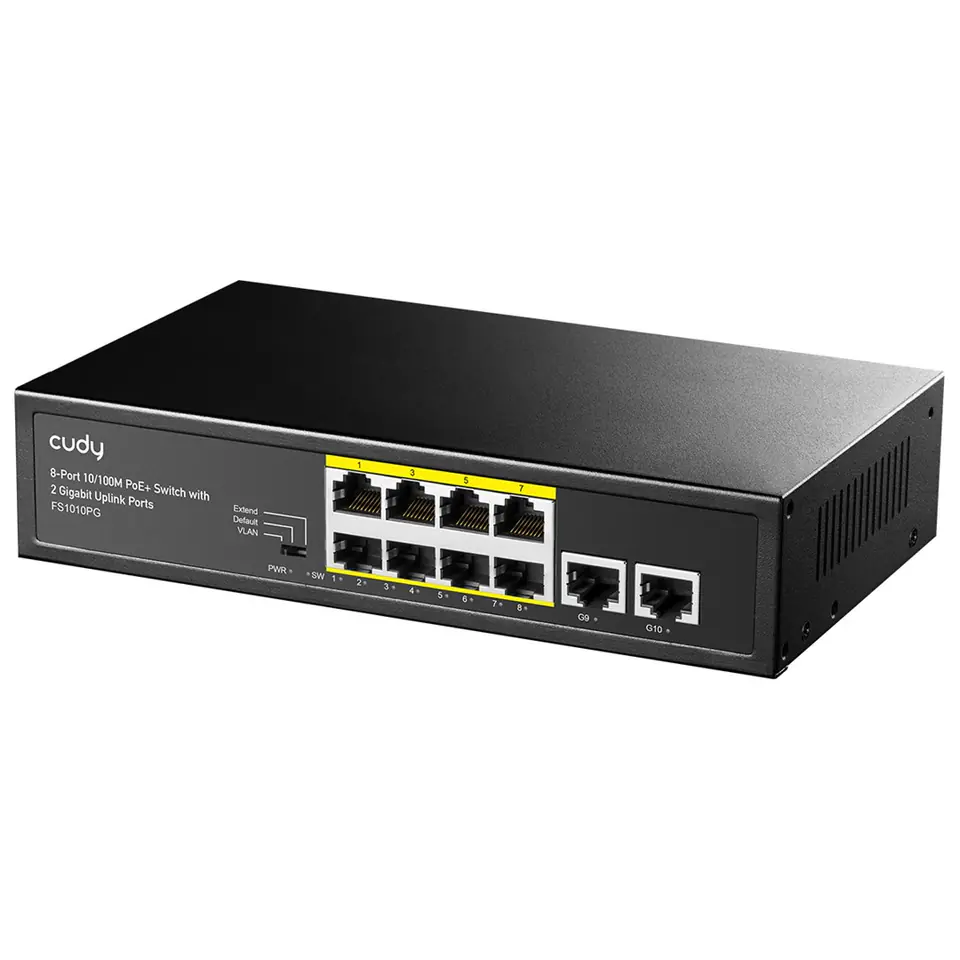

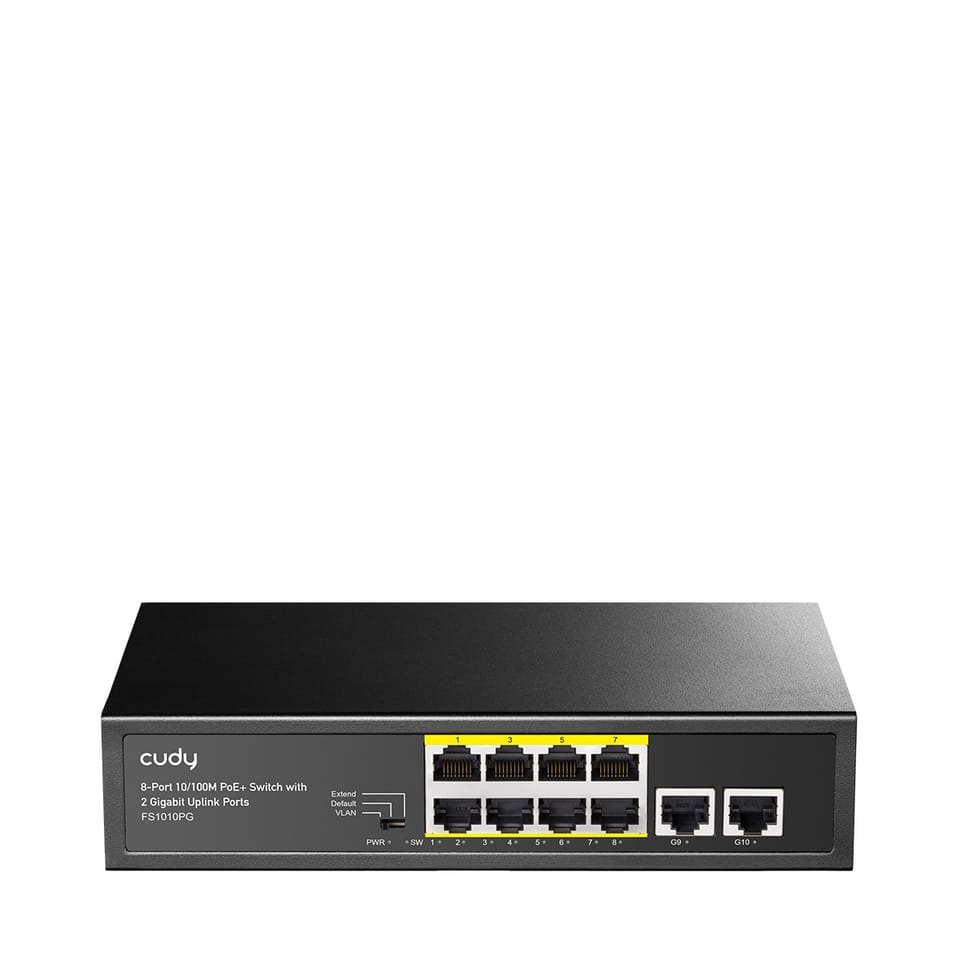

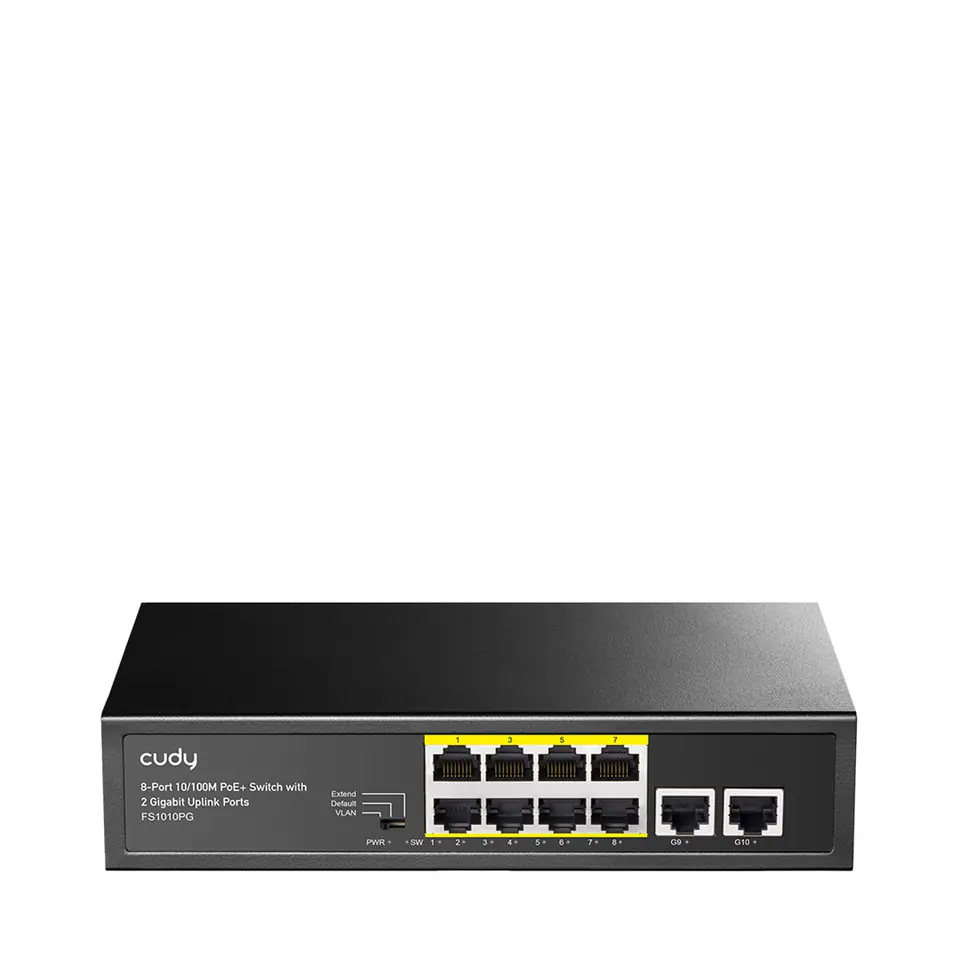

FS1010PG 8-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports

  • Supports IEEE802.3at and IEEE802.3af
  • Total PoE output power 120W, up to 32W for one PoE port
  • Support IEEE802.3x full duplex and half duplex flow control
  • Support VLAN and CCTV functions
  • Panel LEDs to monitor operating status and assist in fault analysis
  • Perfect security mechanism
