| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Bandwidth: | 2 Gbit/s |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Fast Ethernet (10/100) |
| Cable types supported: | Cat5, Cat5e, Cat4, Cat3 |
| Cables included: | AC |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX |
| Depth: | 150 mm |
| Ethernet lan data rates: | 10,100 Mbit/s |
| Fanless: | Yes |
| Flow control support: | Yes |
| Forwarding rate: | 1.48 Mpps |
| Full duplex: | Yes |
| Half duplex: | Yes |
| Height: | 44 mm |
| Housing material: | Metal |
| Jumbo frames: | 1528 |
| Jumbo frames support: | Yes |
| Led indicators: | Link, PoE, Power, Activity |
| Mac address table: | 8000 entries |
| Mean time between failures (mtbf): | 50000 h |
| Networking standards: | IEEE 802.3at, IEEE 802.3x, IEEE 802.3af, IEEE 802.3az |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Package type: | Box |
| Packet buffer memory: | 0.25 MB |
| Plug and play: | Yes |

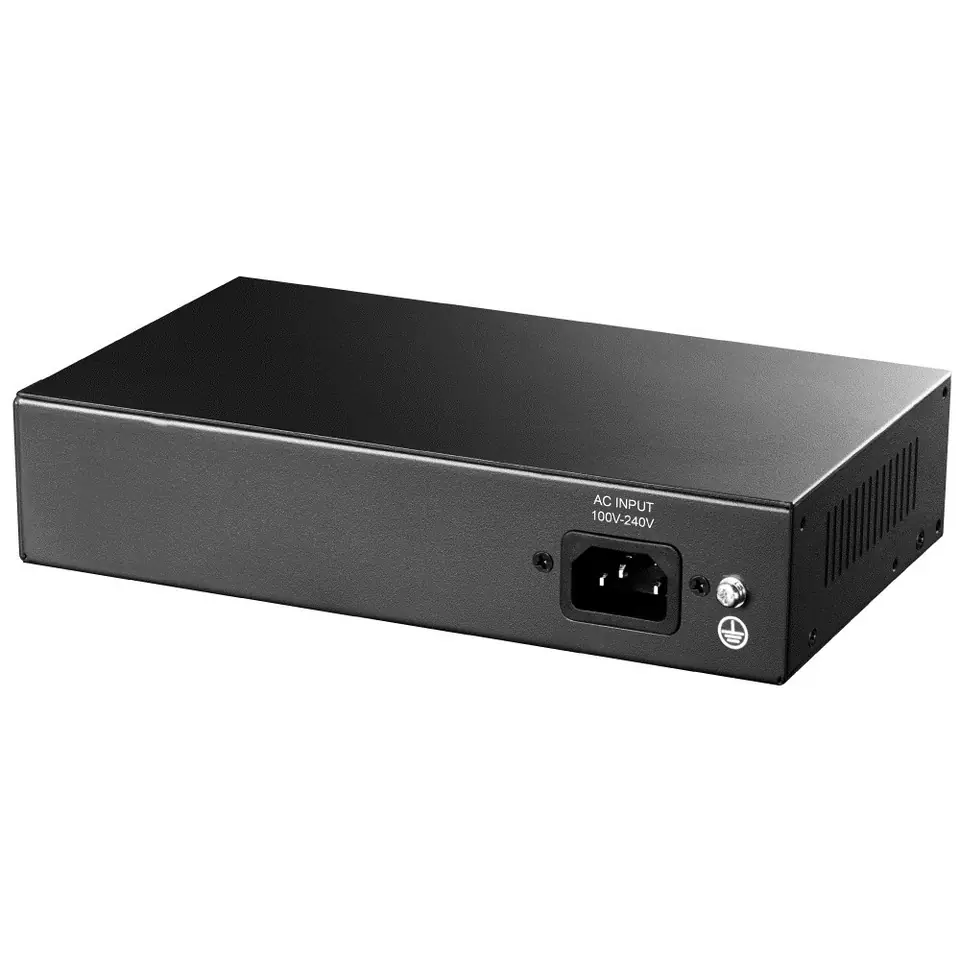

| Power connector: | AC-in jack |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 8 |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 2 |
| Power source: | AC |
| Power supply included: | Yes |
| Product colour: | Black |
| Quick start guide: | Yes |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Store-and-forward: | Yes |
| Surge protection: | Yes |
| Surge protection voltage: | 4 kV |
| Total power over ethernet (poe) budget: | 120 W |
| Uplink ports quantity: | 2 |
| Vlan support: | Yes |
| Width: | 220 mm |

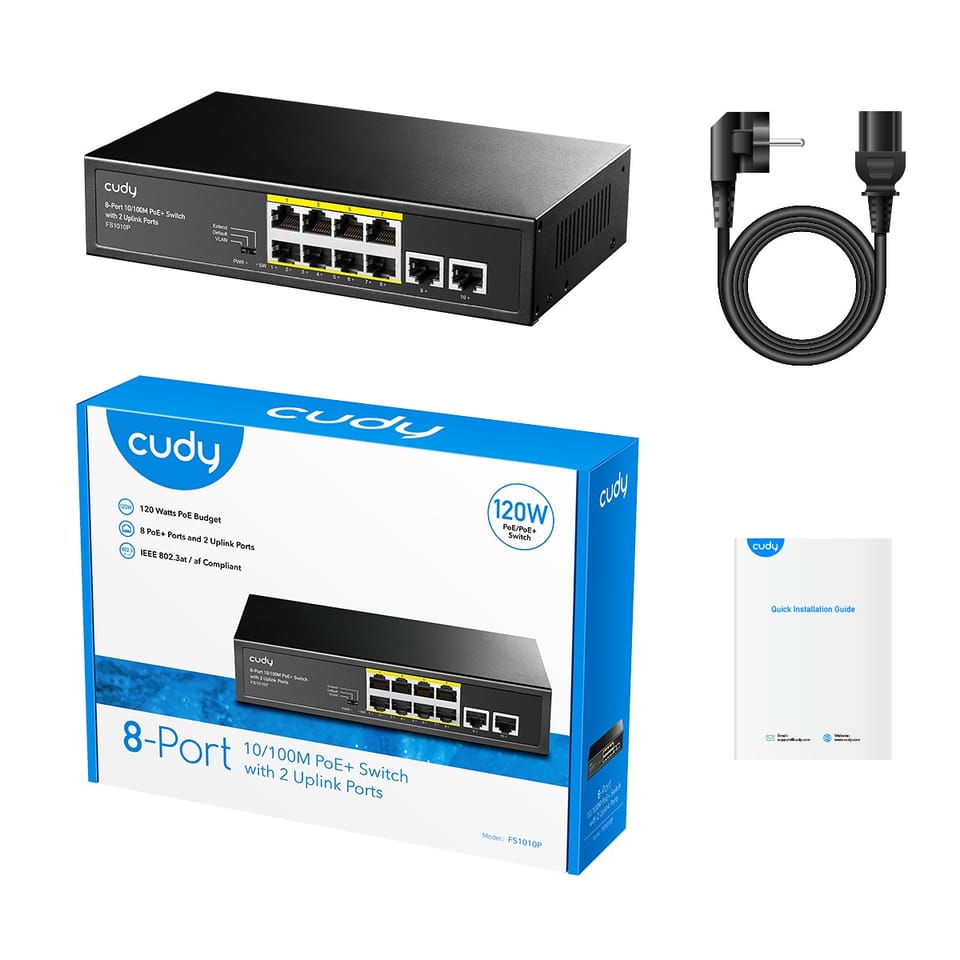

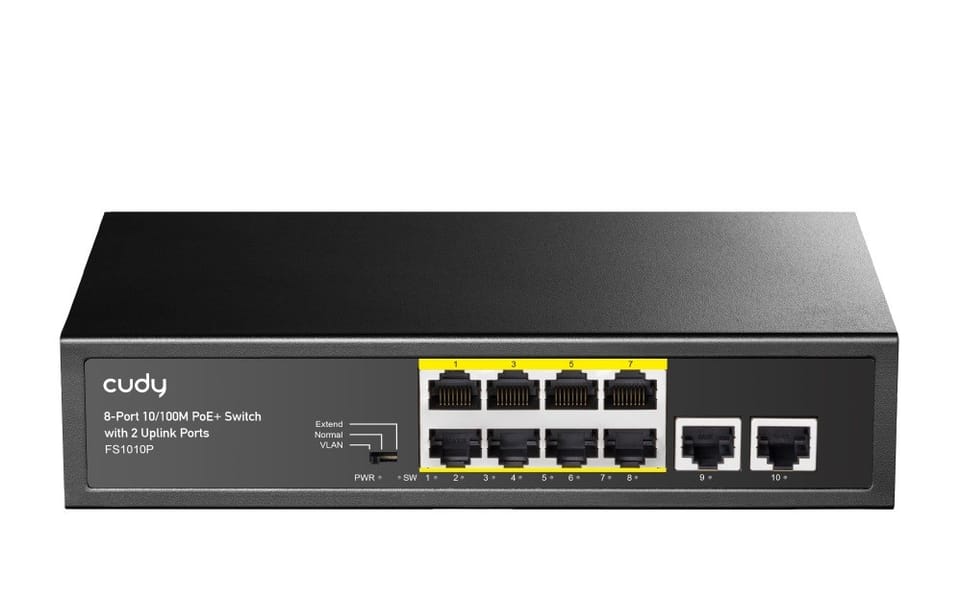

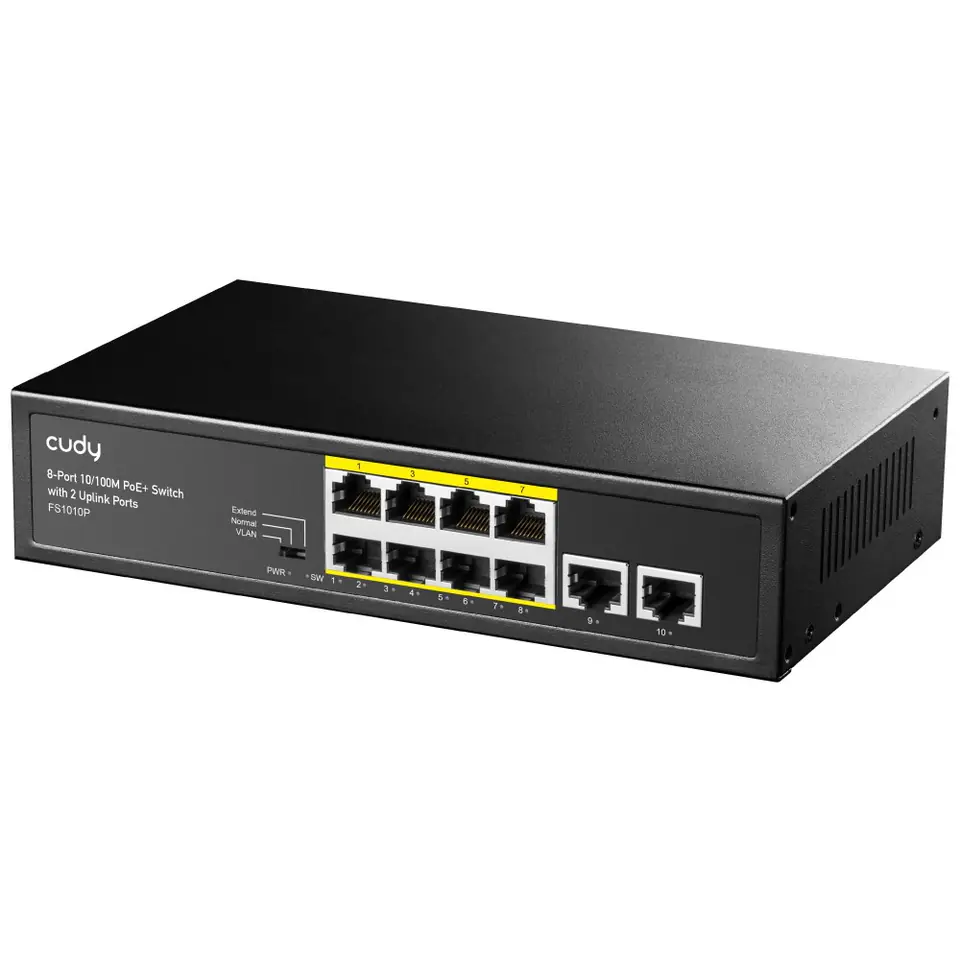

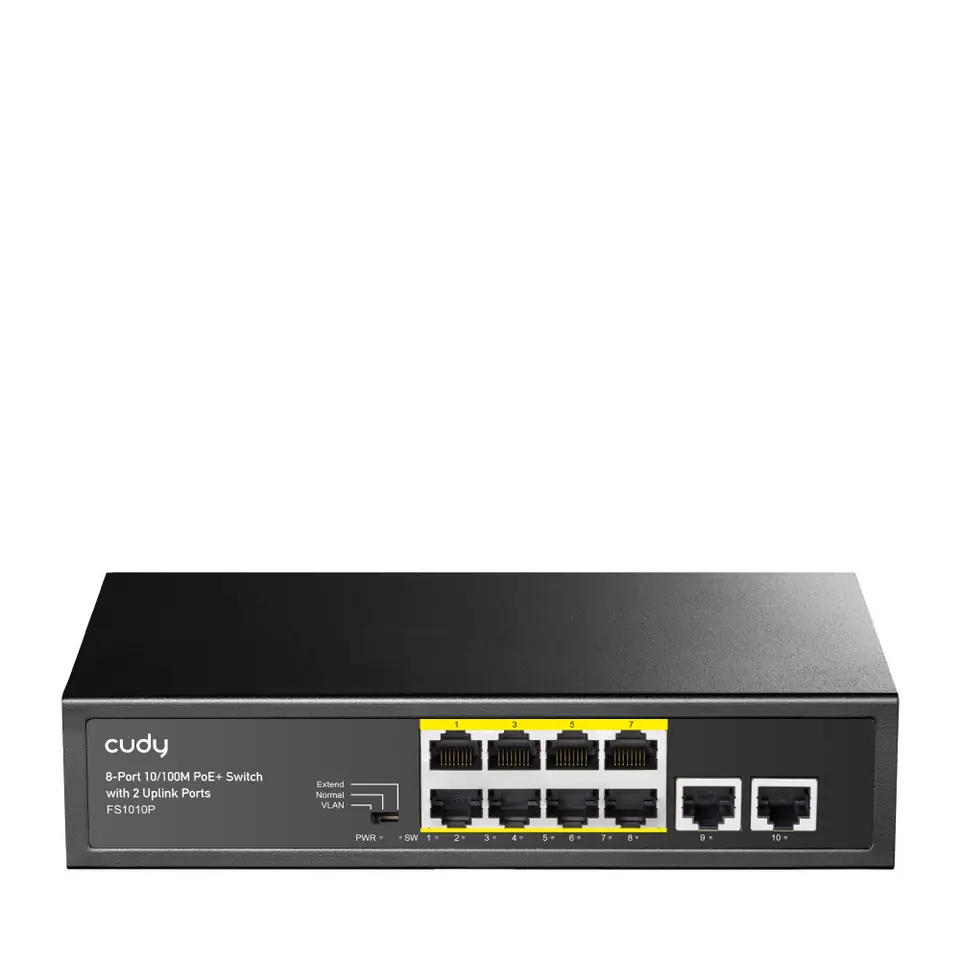

FS1010P 8-Port 10/100M PoE+ Switch with 2 Uplink Ports
