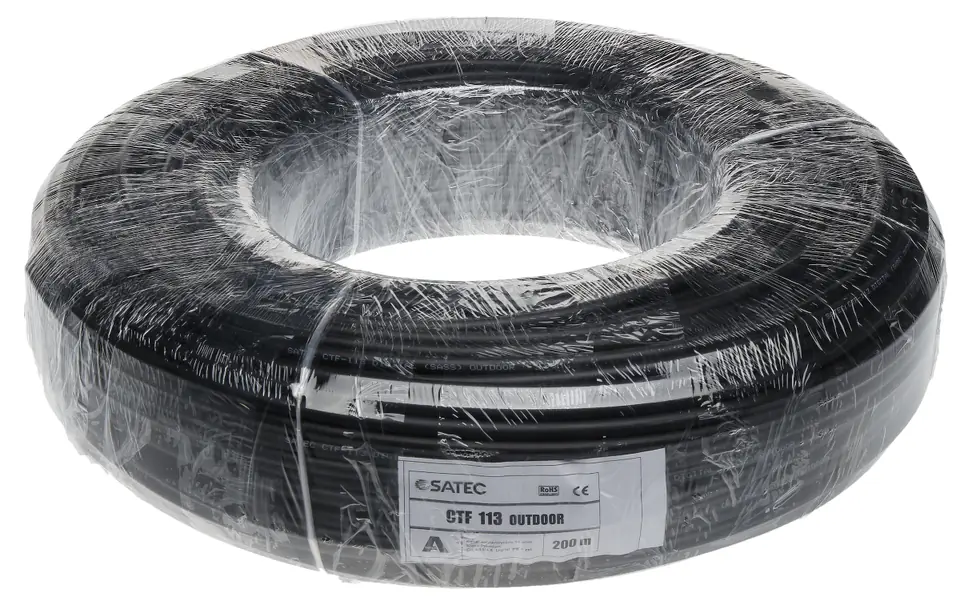

CTF-113/ZEL/200 COAXIAL CABLE

€0.91

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: CTF-113/ZEL/200 / 5902887012495

Specification

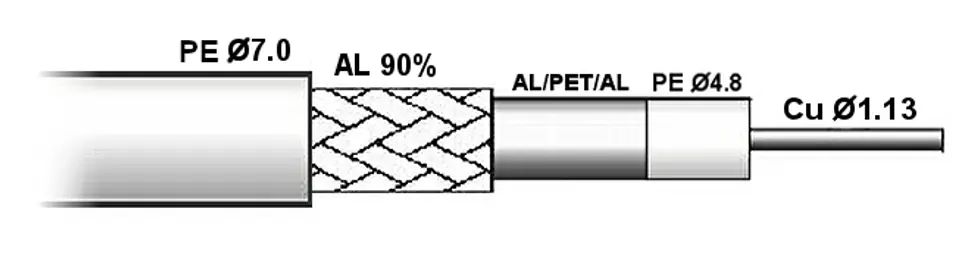

Braid:	Al wire
Braid density:	90 %
Cable attenuation over a distance of 100m:	3.9 dB @ 50 MHz7.8 dB @ 200 MHz12.3 dB @ 450 MHz17 dB @ 860 MHz18.6 dB @ 1000 MHz21.9 dB @ 1350 MHz25.2 dB @ 1750 MHz28.2 dB @ 2150 MHz33.8 dB @ 3000 MHz
Capacity:	52 pF/m
Coating color:	Black
Coaxial cable:	CTF 113
Dc conductor resistance:	17 Ω/km
Dielectric:	Ø 4.8 mm PE (physically foamed)
Impedance:	75 Ω ± 3 Ω
In ":	200 m . Price for 1m when buying the whole roll
Internal vein:	Ø 1.13 mm Cu Wire
Match damping:	28 dB @300MHz26 dB @900MHz23 dB @2150MHz
Outer shell:	Ø 7.0 mm PE
Scales:	38.4 kg/km
Screen:	Al/PET/Al film - gelled
Shielding efficiency:	> 90 dB
Warranty:	2 years
Wave shortening factor:	85 %

CTF-113/ZEL/200 is a modern cable with an impedance of 75 Ω characterized by very good electrical and mechanical parametersPolyethylene (PE) used for the coating is resistant to sunlight, UV and moisture

The cable is gel-filled, so it can be laid in the ground without additional covers

The cable complies with the CPR Directive No. 305/2011 and meets the requirements of the European standard PN-EN 50575, which specifies requirements for properties in fire conditions, test methods and assessment of cables used as a building material. The cable has a Declaration of Performance and CE marking, which confirm its compliance with the guidelines of the CPR Regulation

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
